The New-Way Motor Company

Old Marine Engine » One and Two Cylinder Gas Inboards » The New-Way Motor Company « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 956
Registered: 11-2001


Posted on Wednesday, January 04, 2006 - 10:43 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

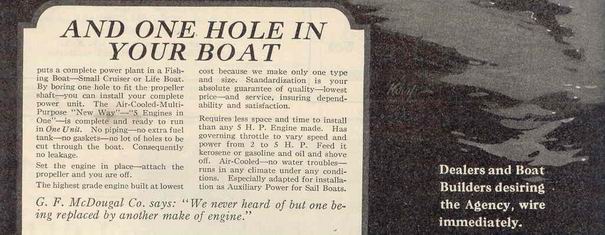

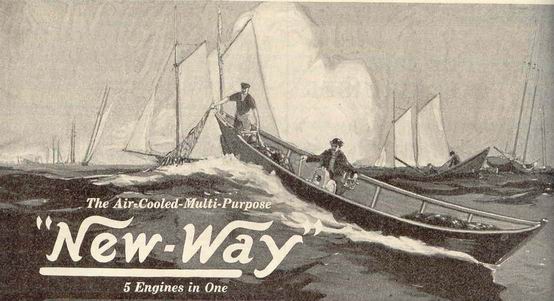

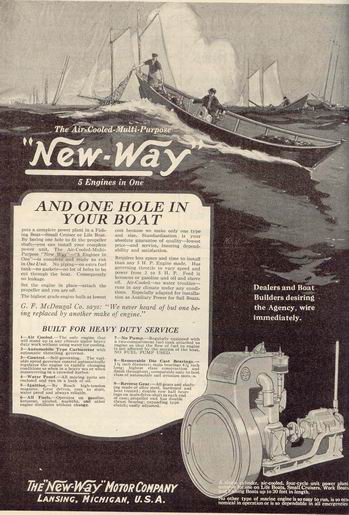

The New-Way Motor Company 1922 ad !

New1

New2
New3
New4
Top of pagePrevious messageNext messageBottom of page Link to this message

restogreen
New member
Username: restogreen

Post Number: 3
Registered: 03-2007
Posted on Friday, April 13, 2007 - 10:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I just restored this engine featured in the ad. It is a Model CR rated up to 5hp. The engine runs on kero, starts on gas. I dont have the correct carg (Told it is same as early chevrolet?) nor the dual compartment fuel tank.
The engine flywheel is six spoke, covered by a round tin cover. behind the flywheel is a squirrel fan. Air is directed up and over the cylinder fins and head. The cylinder is cast like the older new way engines in that discs/spacer rods were stacked to form a finned casting. The "F" style head has caged removable valve units. The piston has 3 sets of rings; 2 rings per groove. The rings can be turned in each groove to stagger ring grooves. Rod is a hinged adjustable babbit ; accessed thru hand cover for easy maintainence.I matched original color to a "Royal Blue " (krylon) and cylinder is silver. Ignition is horshoe American Bosch Magneto. The New Way company was going broke in 1919. I have read that some employees kept it going til early 20's. This was the last attempt to built a "portable, air cooled self contained engine; which had high horsepower /lb weight! Engine runs great!RESTOGREEN See attached photoNew Way  CR
