2 cylinder thrall inboard

Old Marine Engine » One and Two Cylinder Gas Inboards » 2 cylinder thrall inboard « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

j_shenk
New member
Username: j_shenk

Post Number: 1
Registered: 12-2006
Posted on Friday, December 22, 2006 - 11:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 2 cyl thrall that has cast iron water jackets instead of the usual copper water jackets can anyone tell me why they are cast iron and about what year this engine is thanks in advance
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 1365
Registered: 11-2001


Posted on Sunday, December 24, 2006 - 01:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

* Possible to post some photos here or email to me and I'll post them and I will try to get info ??

oceanblu@adelphia.net
Top of pagePrevious messageNext messageBottom of page Link to this message

j_shenk
New member
Username: j_shenk

Post Number: 2
Registered: 12-2006
Posted on Wednesday, December 27, 2006 - 10:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard I sent you a photo 6 27 if you dont get it I will try again thanks Jerry
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 1373
Registered: 11-2001
Posted on Wednesday, December 27, 2006 - 11:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

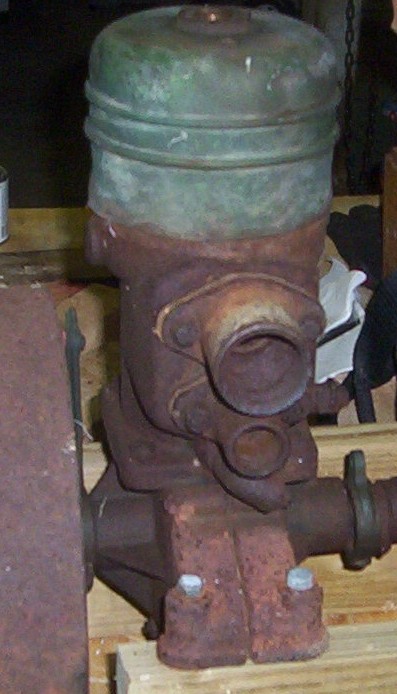

Jerry's Photo

TJS2
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 1375
Registered: 11-2001
Posted on Thursday, December 28, 2006 - 12:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Looking at the photo and thinking out loud- the water jackets appear to have the contour of the lathe spun copper domes, the round flat flange at the center top looks just like the ones used to hold down the regular domes and thread the spark plug into. Maybe take a little paint off and see if they are copper ??

1909-1910 Thrall went through many chnges they recast the cylinders with a plate on the port side putting the intake and exhaust together, Not sure but I don't think this Company surrvived as late as WWI- pressed to date this one I would guess 1912 ca.
Top of pagePrevious messageNext messageBottom of page Link to this message

j_shenk
New member
Username: j_shenk

Post Number: 3
Registered: 12-2006
Posted on Sunday, December 31, 2006 - 07:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard thank you so much for posting photo and for the info . The water jackets are definately cast iron . the engine was stuck and had a small crack in one jacket . I removed one jacket and brazed up the small crack . I was told it was a thrall and it looks like one . maybe it is something else . If you get more info let me know .thanks again Jerry
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 530
Registered: 01-2002


Posted on Monday, January 01, 2007 - 10:08 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Jerry

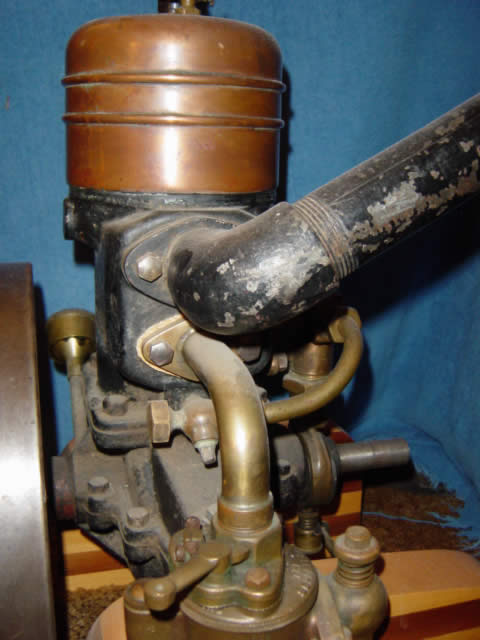

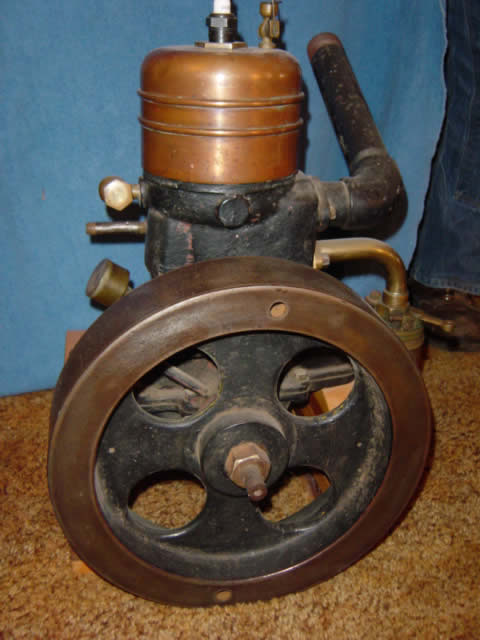

I don't think there is any question that it is a Thrall. Some pics below of a couple of single cylinder ones. Note where the tag is and where it was on yours
You can use the search function at the top of the page and put in Thrall. There is a ton of stuff here on OME.
