J.B.'s New Find

Old Marine Engine » One and Two Cylinder Gas Inboards » J.B.'s New Find « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 1459
Registered: 11-2001
Posted on Wednesday, April 11, 2007 - 08:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

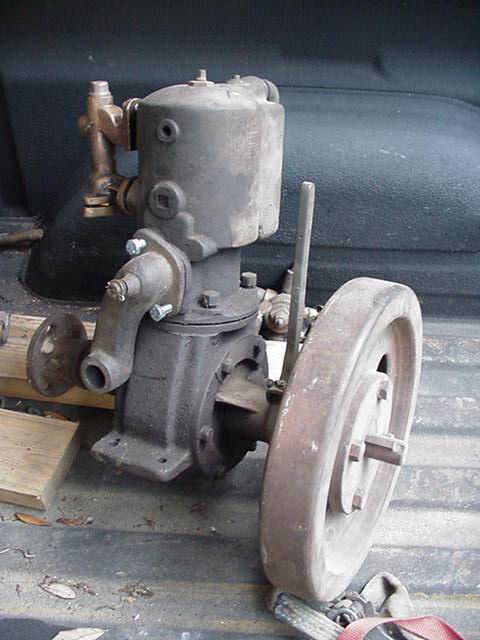

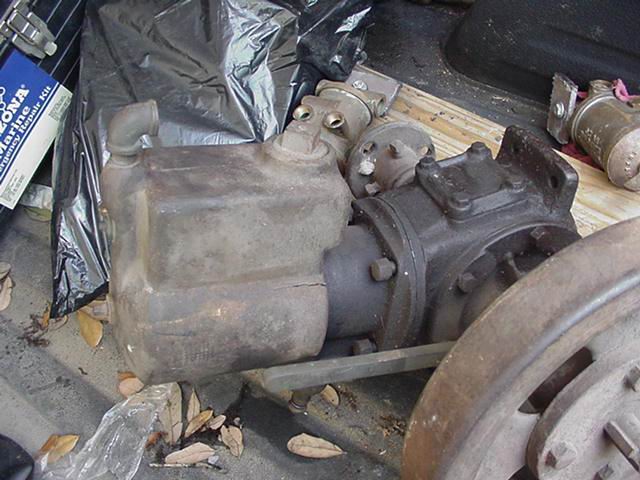

J.B.'s new find !


1

2

3

*
Top of pagePrevious messageNext messageBottom of page Link to this message

johnny
Senior Member
Username: johnny

Post Number: 101
Registered: 03-2006
Posted on Wednesday, April 11, 2007 - 10:19 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Interesting, Who made it?
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 236
Registered: 07-2002


Posted on Thursday, April 12, 2007 - 06:14 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard is going to see if he can ID it for me, any help would be appreciated. The water pump and base are Termat & Monihan style, the boxed manifold is cast into the cylinder, the T&M's I've seen were bolted on. The flywheel has a gibb key, the hub has been repaired. All of the Detroit, Caille, and T&M's I've seen had a tapered flywheel with a nut, but they may have been later models. The intake valve cage resembles a Caille, but they usually had four bolts and were shorter.
Top of pagePrevious messageNext messageBottom of page Link to this message

johnny
Senior Member
Username: johnny

Post Number: 103
Registered: 03-2006
Posted on Thursday, April 12, 2007 - 07:40 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

JB,

All the Detroits,Cailles and T&M's I have ever seen all had crank shafts that use gibb keys and I have seen a lot of them. Never seen any of these engines with a tappered crank and a nut. Sure your not thinking of a another engine company?
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 238
Registered: 07-2002


Posted on Thursday, April 12, 2007 - 08:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Johnny, I took some pictures of what we have here, not all are tagged but seem to be in the same family, you be the judge.
caille 1
caille 2
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 239
Registered: 07-2002


Posted on Thursday, April 12, 2007 - 08:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

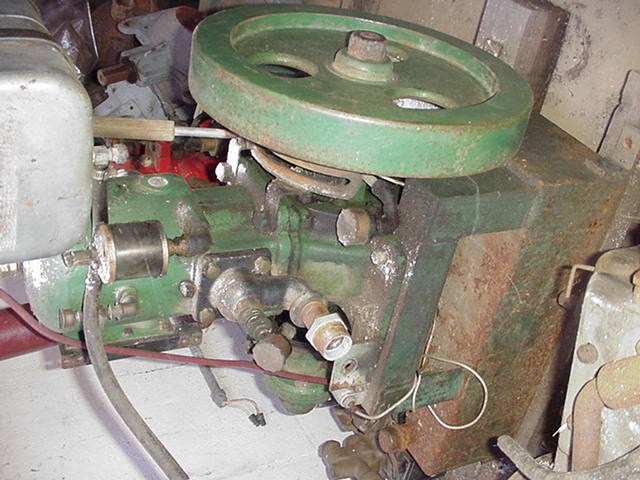

That engine has an American inspection cover.The swing timer is a himemade addition, it has the hole in the crankcase and the boss on the head for the post timer. This engine seems identical and has the Caille cover.
caille 7
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 240
Registered: 07-2002


Posted on Thursday, April 12, 2007 - 08:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

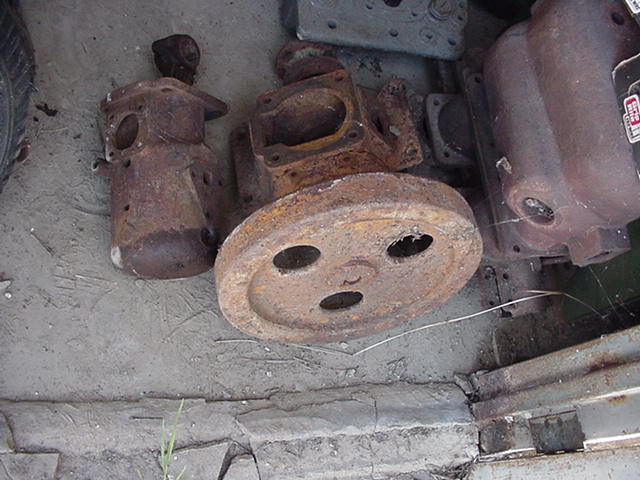

Itook the flywheel off this engine years ago and installed it on an old friends 4hp Caille when he cracked his by running with a timer that was shorting out and over advancing. The flywheels were identical on these motors, but the cylinders and timers were different.
caille 5
caille4
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 241
Registered: 07-2002


Posted on Thursday, April 12, 2007 - 08:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

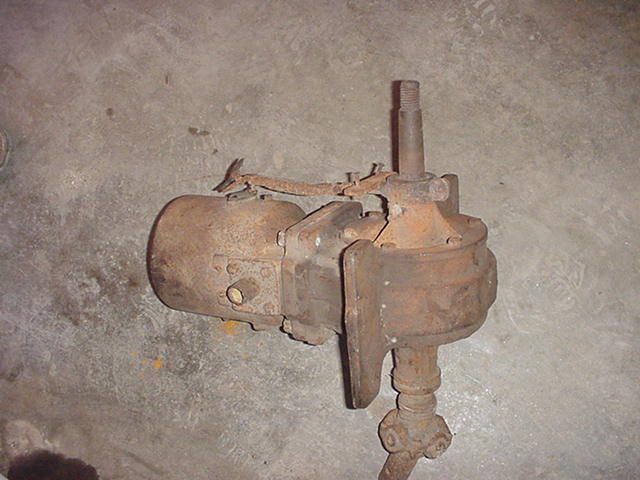

This is an old base, no ID, the threaded section is broken off, but it is a tapered crank.
caille3
And a 2hp Caille.
caille6
Top of pagePrevious messageNext messageBottom of page Link to this message

johnny
Senior Member
Username: johnny

Post Number: 104
Registered: 03-2006
Posted on Friday, April 13, 2007 - 07:01 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

You learn something every day... Guess I should of stuck with the engines I know more about (Detroits). Do you have any photos of Detroits with tappered shaft and a nut?
Top of pagePrevious messageNext messageBottom of page Link to this message

johnny
Senior Member
Username: johnny

Post Number: 105
Registered: 03-2006
Posted on Friday, April 13, 2007 - 07:07 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

JB,

I was just looking at the photos of the first engine you posted and that round plate on the flywheel makes me wonder maybe if the keyway and hub broke on that flywheel and someone may of added the round plate with a new key way slot as a fix? What do you think?
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 242
Registered: 07-2002


Posted on Friday, April 13, 2007 - 09:27 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Johnny, the crank is bigger than the threaded section, I doubt they welded it. Flywheel is definately a repair. I'll keep an eye out for the Detroits, haven't payed attention to them before.
