Frisco Standard 8HP

Old Marine Engine » One and Two Cylinder Gas Inboards » Frisco Standard 8HP « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
New member
Username: rowella

Post Number: 1
Registered: 06-2008
Posted on Saturday, November 15, 2008 - 03:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi I am restoring a 1917 workboat that was fitted originally with a 8HP frisco engine.
I have just acquired a Frisco with a 6 1/4 bore and a 6 7/8 stroke.Can anybody identy the size of this engine.Thanks Martin
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
New member
Username: rowella

Post Number: 2
Registered: 06-2008
Posted on Saturday, November 15, 2008 - 11:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

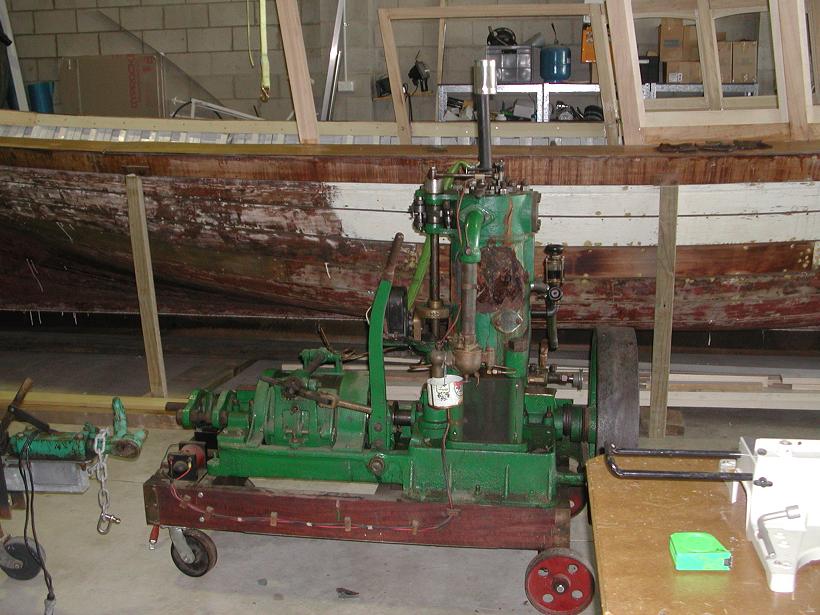

I have added a photo of my "new" Frisco in front of the boat I am restoring.The barrel and Head are very damaged by corrosion but I hope to salvage them The waterpump is missing as is the name plate and serial number.Can anybody help with the HP output and propellor size diameter & pitch? Any help much appreciated. Martin

Frisco and Boat
Top of pagePrevious messageNext messageBottom of page Link to this message

russell
Member
Username: russell

Post Number: 23
Registered: 08-2003


Posted on Sunday, November 16, 2008 - 12:35 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

They make a nice couple -Look forward to them joining up. According to my catalog (unfortunately undated but probably of an earlier series than this engine) a 6 1/4 x 7 is a 7hp at 380rpm. It swings a 22" propeller. Does not quote a pitch for it but it would be square or more. The last Frisco Standard I heard running in a boat was 50 years ago. It was a NZ made Orion crib of a Standard -supposedly improved. Sounded great!
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
New member
Username: rowella

Post Number: 3
Registered: 06-2008
Posted on Sunday, November 16, 2008 - 01:47 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks for that Russell,This boat was launched in Hobart Tasmania Australia in 1917 I'll post a photo when she is finnished Martin
Top of pagePrevious messageNext messageBottom of page Link to this message

rholcomb
Advanced Member
Username: rholcomb

Post Number: 31
Registered: 10-2004
Posted on Wednesday, November 26, 2008 - 01:30 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Martin what does your mounting pattern for the water pump look like i have a 4 hp here bob...
Top of pagePrevious messageNext messageBottom of page Link to this message

gregoryan
Member
Username: gregoryan

Post Number: 22
Registered: 09-2004
Posted on Wednesday, November 26, 2008 - 04:59 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Wow; what a massive single! What length boat do you have there, & do you have another pic of the boat? The windows are looking good!
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 4
Registered: 06-2008


Posted on Monday, December 01, 2008 - 11:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bob the pump is held on by three bolts and driven by an excentric from the drive shaft, see photo

frisco pump mounting
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 5
Registered: 06-2008


Posted on Monday, December 01, 2008 - 11:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

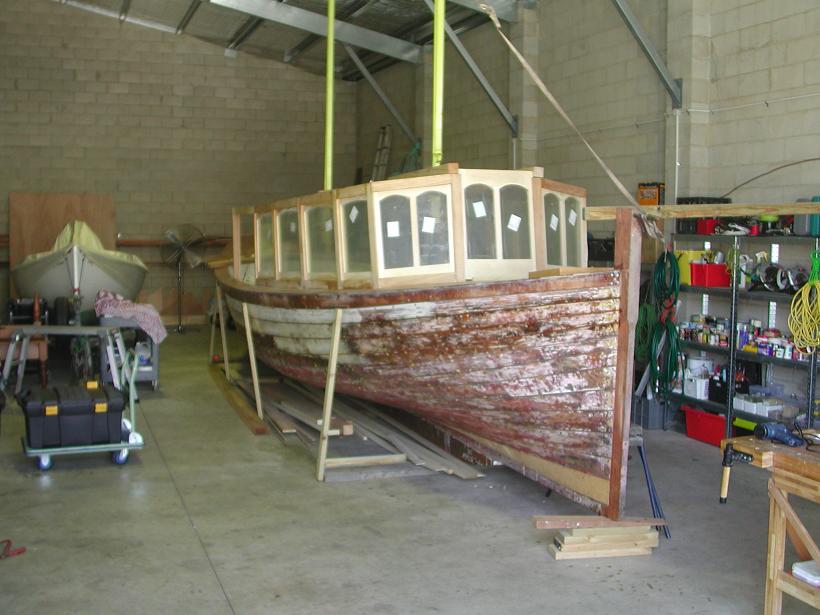

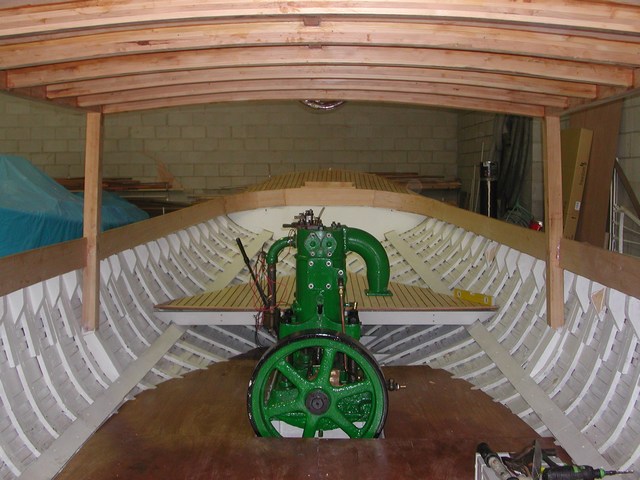

Greg She is 35ft overal and 30ft at the water line here are some more pics Martin

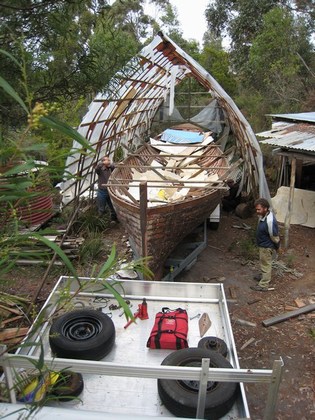

progress so far

halfway restored
Top of pagePrevious messageNext messageBottom of page Link to this message

gregoryan
Member
Username: gregoryan

Post Number: 26
Registered: 09-2004
Posted on Tuesday, December 02, 2008 - 05:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks for posting the pics.
This size putt putt these days are very rare
The definition of a putt putt at the wooden boat regattas these days often only includes boats up to 18ft or so !!?? [then its the diesel class]
What an impressive length Hull to go with an equally impressive engine!
I imagine this is a counter stern/ fantail, with a 5ft difference in the waterline to overall length?!
Your launch reminds me of the stories An elderly friend of mine used to tell. His relative's boat at Horsfield bay, Woy Woy Central Coast NSW AU. It too had a Frisco single cylinder! When He died last year, I was given some photos including that boat, the Altona. It too had a counter stern. To me these are the most graceful through the water.
The Altona
Your 35ft will have a generous hull speed, & a petrol engine has a much softer, quieter roll-over than a diesel, making for a very pleasant ride!
There was another similar boat in the mangroves at Newport NSW with a Frisco Twin, but all that's left now is the keelson & garboards.
You are surely raising a Phoenix of another lifetime there. Congratulations!
Greg

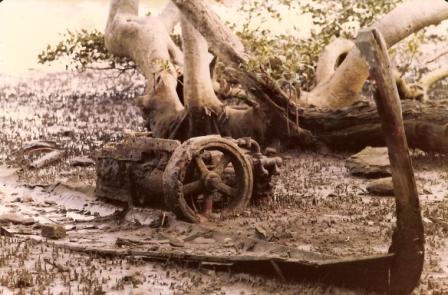

Frisco Twin on backbone
Top of pagePrevious messageNext messageBottom of page Link to this message

todd_vidgen
Senior Member
Username: todd_vidgen

Post Number: 105
Registered: 03-2008
Posted on Tuesday, December 02, 2008 - 03:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

As the treasurer of the Davo Putt putt regatta
I would put it in the "gentleman's launch"category. You are going to have a ton of fun with that lovely old girl
Top of pagePrevious messageNext messageBottom of page Link to this message

russell
Member
Username: russell

Post Number: 24
Registered: 08-2003


Posted on Tuesday, December 02, 2008 - 03:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I don't think they are that smooth as a boat propulsion unit. I am very much looking forward to the day when my Frisco can be afloat again. Low priority just now though. I bought it as a derelict from an old neighbour whose father had it in a 28' boat. She said they took it out because it was "shaking the boat to bits" and put in a Kelvin. I guess the boat just wasn't heavily enough in the scantlings! BTW pics of my engines are in an earlier posting (several years ago) on this website.}
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 6
Registered: 06-2008


Posted on Tuesday, December 02, 2008 - 08:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Request identification for spare parts that came with my frisco.Transmision this is painted green but looks nothing like my other one.
Two cylinders one cast solid between bottom lugs the other is open also the water intake is different.Two heads no photo,the ignition timing device is held on with on bolt the other with two.Any comments welcome Martin transmission sidetrans topcylinders
Top of pagePrevious messageNext messageBottom of page Link to this message

robert
Senior Member
Username: robert

Post Number: 233
Registered: 07-2003
Posted on Monday, December 08, 2008 - 01:38 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Another candidate for the Coates treatment. Someone really ought to save that twin.
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 11
Registered: 06-2008


Posted on Sunday, May 24, 2009 - 09:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does anyone have a head to suit a 6 1/4" bore 8HP to sell or trade? Martin
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 12
Registered: 06-2008


Posted on Sunday, May 24, 2009 - 09:30 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

attachmenthead for frisco 8HP 61/4" bore
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 14
Registered: 06-2008


Posted on Wednesday, May 19, 2010 - 09:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

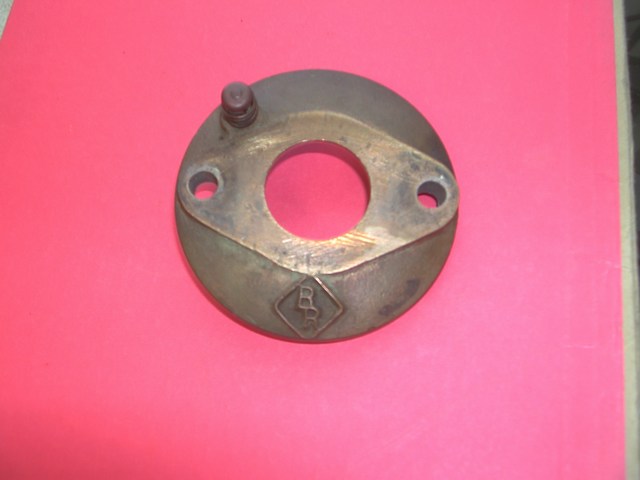

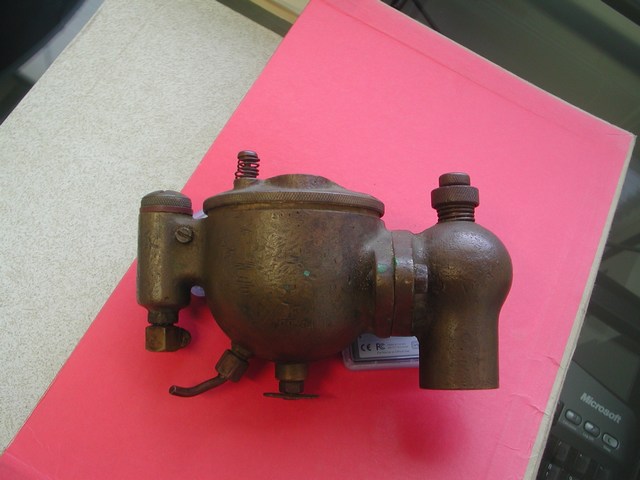

The carburetor on my 8HP frisco standard appears
to be a Schebler D but it is not marked and has a
BR in a square embossed on top.Does anybody recognise the marking? I hope to have the engine running soon and fitted to the boat will post the photos if successfull. Martin

CARB

carb2
Top of pagePrevious messageNext messageBottom of page Link to this message

qwilkin
Member
Username: qwilkin

Post Number: 18
Registered: 08-2009
Posted on Wednesday, May 19, 2010 - 09:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

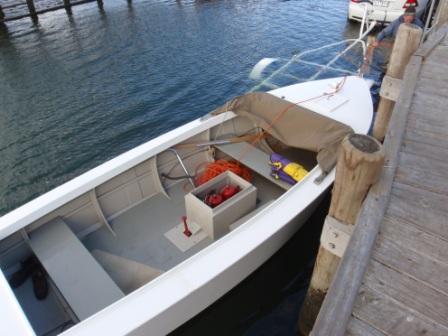

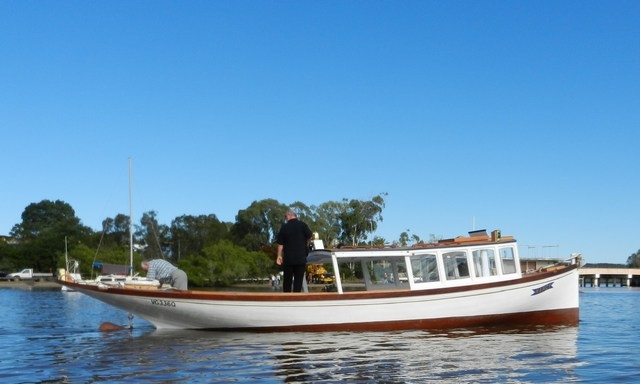

first time since 1982 in water
Top of pagePrevious messageNext messageBottom of page Link to this message

gregoryan
Senior Member
Username: gregoryan

Post Number: 65
Registered: 09-2004


Posted on Wednesday, May 19, 2010 - 10:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

"BR" in Australia = Blaxland Rae according to the same symbol that i have seen on the Blaxland engines.
Did the Schebler carburettor ever come in any other model than 'D'?? I know of 3 sizes; 3/4", 1", & 1-1/4"
Top of pagePrevious messageNext messageBottom of page Link to this message

capmo
Member
Username: capmo

Post Number: 15
Registered: 06-2008


Posted on Monday, July 12, 2010 - 05:05 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Martin, My 30' Monterey clipper 'DIXIE' @6.5 tons, had an 8 hp Hicks single (6" bore) for many years. Ran great with a 24" x 24" three blade. Contemporary catelog lists same. I have two original "Weed Free" props. Shaft size is 1 1/2". One is 27 27 other is 24 X 2?, larger pitch, can't remember exactly. If interested, long haul to down under. Good luck on a fine looking project.
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 16
Registered: 06-2008


Posted on Tuesday, July 13, 2010 - 07:50 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Capmo, I cant swing a large prop on my fantail so I have got a 20x30 4 blade. I had the Frisco running recently and hope to have her fitted and in the water in November I'll post some photo's if I make it. Martin
Top of pagePrevious messageNext messageBottom of page Link to this message

richardday
Senior Member
Username: richardday

Post Number: 876
Registered: 11-2003


Posted on Thursday, July 15, 2010 - 11:13 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

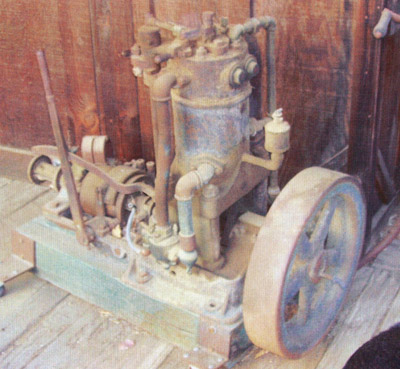

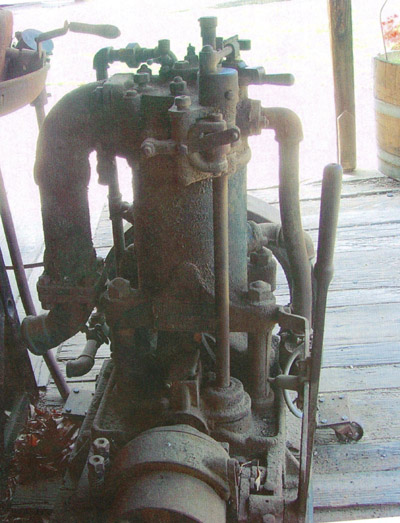

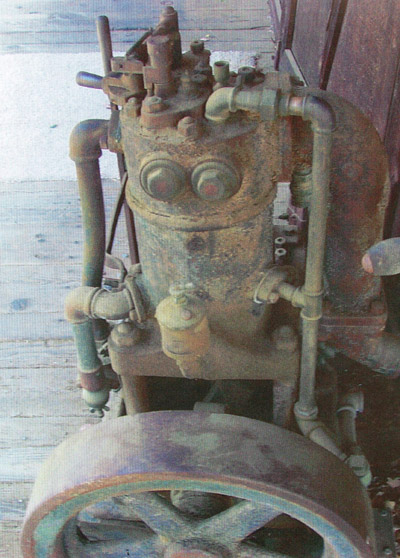

He is at it again. Remember the fantastic antique style two cylinder engine Dave Williams made from scratch. Now he is restoring a 4 HSP Frisco Standard and building a pontoon style hull for it from a 30 foot long 3 foot diameter log. The log will be split in half lengthwise and the halves hollowed out for pontoon decked over and the engine will be mounted on the platform. Having seen the high quality of his work don't laugh he is a man who no challenge is too big I think.
He is looking for any instruction material on the Hicks. I gather Dave doen't like dealing with computers. So who does??? He asked me to post these photos of the Hicks on OME. Hope someone can help him.

Looking for instruction material for 4 HP Hicks Standard



4 HP Hicks Standard for OME
Top of pagePrevious messageNext messageBottom of page Link to this message

robert
Senior Member
Username: robert

Post Number: 378
Registered: 07-2003
Posted on Thursday, July 15, 2010 - 11:30 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A classic engine deserves a classic (style) hull IMO, but who knows! The engine is an absolute beauty and so complete. Can't be many 'sleepers' like that left.
Top of pagePrevious messageNext messageBottom of page Link to this message

richardday
Senior Member
Username: richardday

Post Number: 877
Registered: 11-2003


Posted on Thursday, July 15, 2010 - 12:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am sure you can bet it will be very well cared for. The reason he is asking for any instruction etc. material is so he won't make any bad choices.
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 17
Registered: 06-2008


Posted on Friday, July 16, 2010 - 09:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard,You refer to the photo's you posted as a "Hicks" To me me it looks like a Standard. Is there a connection between Hicks and Frisco Standard?
Also any idea on the age of the engine you posted as it has a seperate water supply to the Head that I have not seen before and the transmission is different. Regards Martin
Top of pagePrevious messageNext messageBottom of page Link to this message

richardday
Senior Member
Username: richardday

Post Number: 880
Registered: 11-2003


Posted on Saturday, July 17, 2010 - 07:41 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Sorry I got confused and added the word "Hicks".
I know nothing about the engine. Perhaps the owner will contact me and answer your questions.
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 18
Registered: 06-2008


Posted on Sunday, July 18, 2010 - 01:27 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Richard.
Any info on that posted frisco is most welcome.
Top of pagePrevious messageNext messageBottom of page Link to this message

russell
Advanced Member
Username: russell

Post Number: 34
Registered: 08-2003


Posted on Sunday, August 15, 2010 - 02:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I'm not sure that the extra water feed to the top of the head would be any benefit but will bow to the knowledge of the antients! This engine has the same reverse system as my two. I think your engine is a bit later or bigger, Martin. I've never seen any connection between Hicks and Standard mentioned. They were well apart geographically weren't they?
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 19
Registered: 06-2008


Posted on Monday, August 16, 2010 - 03:00 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yes it looks like mine must a later model.
The Hicks connection does not exist it was a "typo" by Richard.I hope to install mine in the boat next month. Martin
Top of pagePrevious messageNext messageBottom of page Link to this message

johnoxley
Member
Username: johnoxley

Post Number: 8
Registered: 04-2010
Posted on Monday, August 16, 2010 - 05:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi - the extra water feed is unusual - we looked hard at water flow while making a pattern for a 6" bore head. There is not much space in this part of the head as the gas path/valve chambers core and the water jacket core are hard to fit in. Hence the tubes lining the forward head studs. Suggest the extra head connection utilised an existing core plug opening to feed cooler water here - someone's bright idea, but not original. The test would come when running the engine under load for a time. This engine looks like it has never seen salt water - a real find.
Top of pagePrevious messageNext messageBottom of page Link to this message

russell
Advanced Member
Username: russell

Post Number: 35
Registered: 08-2003


Posted on Monday, August 16, 2010 - 07:09 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yep, there is a screwed plug with a square drive somewhere round there. Will be interesting to see how it performs with that arrangement. Can't think that it will be called on to work that hard again. And yes, fresh water use makes all the difference. My one that came out of the boat went straight on to a saw bench and ran that for years so that purged the salt. It was a similar green (although one of those pics looks bluish) in the places that had paint so I repainted it a similar colour. Anyone know for certain what colour they were? My heart goes out to that poor old twin lying on its side in the mud.
Top of pagePrevious messageNext messageBottom of page Link to this message

rholcomb
Advanced Member
Username: rholcomb

Post Number: 50
Registered: 10-2004
Posted on Monday, August 16, 2010 - 10:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

http://www.google.com/patents?id=5d9lAAAAEBAJ&pg=PA1&dq=827,810&source=gbs_selec ted_pages&cad=2#v=onepage&q=827%2C810&f=false
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 21
Registered: 06-2008


Posted on Monday, October 18, 2010 - 03:24 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

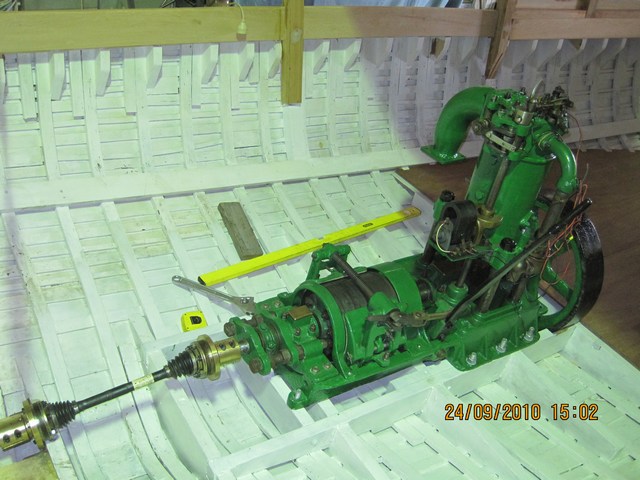

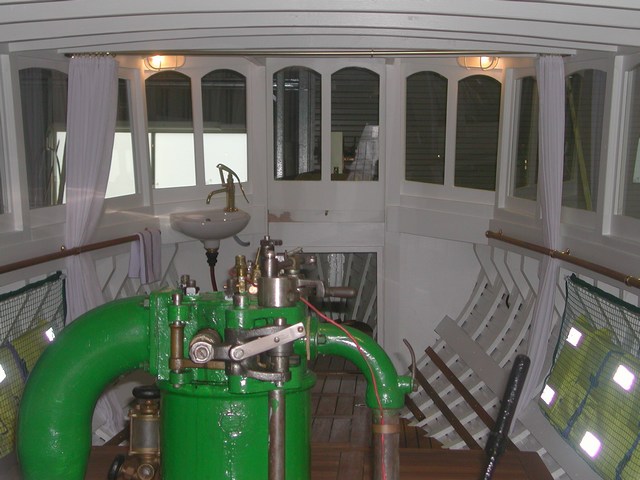

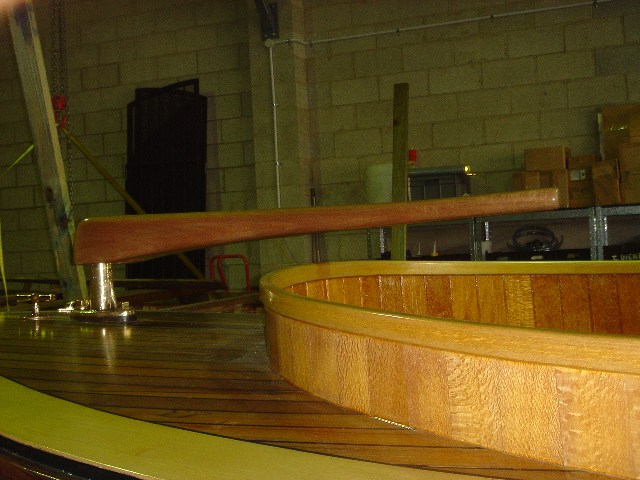

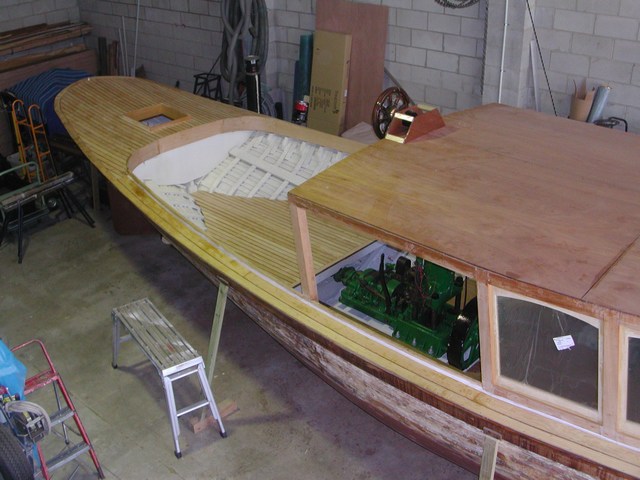

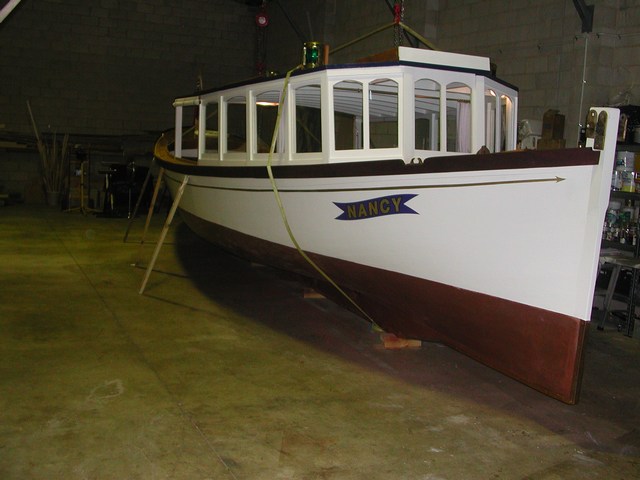

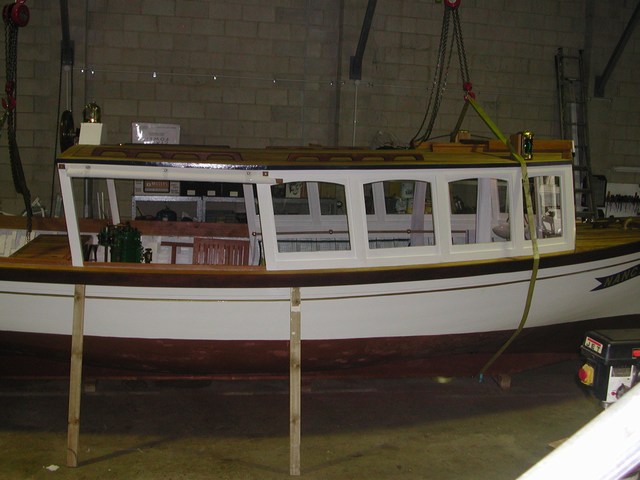

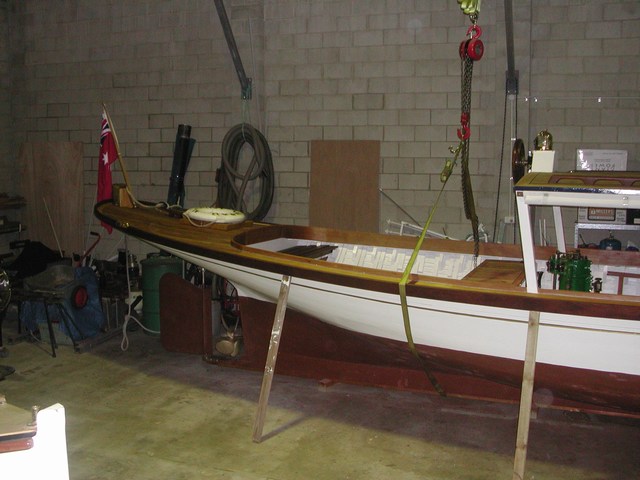

Some progress pics to prove I'm still making slow progress

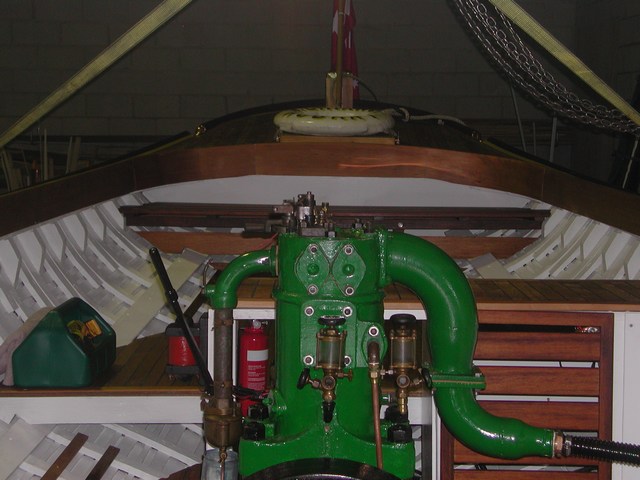

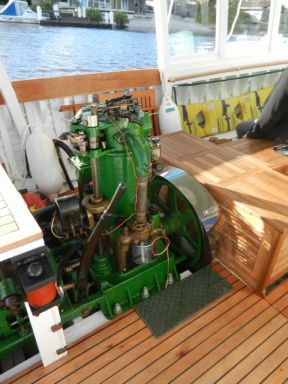

Engine is now restored and fitted

Top of pagePrevious messageNext messageBottom of page Link to this message

russell
Advanced Member
Username: russell

Post Number: 40
Registered: 08-2003


Posted on Monday, October 18, 2010 - 03:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looking gr8, m8! Hope to come over the ditch for a looksee and listen after the launching!
Top of pagePrevious messageNext messageBottom of page Link to this message

miro
Senior Member
Username: miro

Post Number: 505
Registered: 11-2001


Posted on Monday, October 18, 2010 - 10:31 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Boat and engine installation look just fine.

Can those CV flex joints take the thrust of the prop?

miro
Top of pagePrevious messageNext messageBottom of page Link to this message

john_archibald
Senior Member
Username: john_archibald

Post Number: 149
Registered: 08-2006


Posted on Monday, October 18, 2010 - 11:17 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Rowella,

Where are you located?

Any details on the steamboat you have as your Profile Image?

Love the current project.

Regards,

Archibald
Northfield, Minnesota
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 22
Registered: 06-2008


Posted on Monday, October 18, 2010 - 06:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

There is a thrustbearing just before the propellorshaft but outside the picture.

I am in Noosa 80miles north of Brisbane Queensland Australia. The steamboat is called "lady Lavinia" it is a Elliot Bay design
and has a single 5HP steam engine build by Strath Steam in Aus.as is the firetube boiler.
Top of pagePrevious messageNext messageBottom of page Link to this message

john_archibald
Senior Member
Username: john_archibald

Post Number: 150
Registered: 08-2006


Posted on Monday, October 18, 2010 - 07:45 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Rowella,

Thanks for the info. I would be interested in seeing the steam engine and its boiler installation if you have any pictures posted or that you could send.

Regards,

John Archibald
leadminer@qwest.net
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 23
Registered: 06-2008


Posted on Wednesday, October 20, 2010 - 12:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

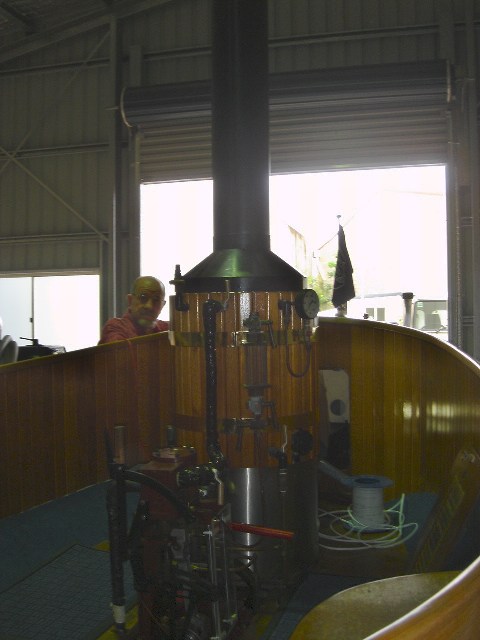

John
Don't have much on the interior, have added one pic of my presnt restoration where I found iton Bruny Island Tasmania.
Martin krynen







Top of pagePrevious messageNext messageBottom of page Link to this message

john_archibald
Senior Member
Username: john_archibald

Post Number: 151
Registered: 08-2006


Posted on Wednesday, October 20, 2010 - 09:17 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Rowella,

So it looks like a single cylinder double acting column engine with the Stephenson reversing link. Judging by where the exhaust seems to be heading it looks like it is also running condensing. Keel condenser I presume.

I have a double acting compound of roughly the same size that is waiting to go in a launch. First, I will stick in the 4 Hp. ( NOS ) Acadia and have some fun on the water, then later stick in the steam plant.

Thanks for the images.

Archibald
Northfield, Minnesota
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 24
Registered: 06-2008


Posted on Friday, October 22, 2010 - 12:52 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

John,
Yes she has keel tubes and before that the exhaust goes through a small heatexchanger to preheat the boiler feedwater.The keeltubes feed into a hotwell in the bilge to supply the boiler feed pump.Seeing your interest in steam I'll post some pics tomorrow of a small compound engine that has the hotwell,the feedpump and vacuum pump incorporated in one casting.I have never been able to identify it.
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 25
Registered: 06-2008


Posted on Friday, October 22, 2010 - 08:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

John, Some pics of the unidentified Steam engine.
It is 5.5+3 X 3 shaft 1 1/8 inch. The condensor,hotwell and two pumps are all included It makes a very compact engine. Any ideas about origen? Martin Krynen
Top of pagePrevious messageNext messageBottom of page Link to this message

john_archibald
Senior Member
Username: john_archibald

Post Number: 152
Registered: 08-2006


Posted on Friday, October 22, 2010 - 09:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Martin,

It's a Hobart! Just kidding. I don't recognize it, but there were hundreds of makers of steam engines this size. Mine is just a little bit smaller. I think the low pressure cylinder is 4 inches in diameter and the engine's stroke is 3 inches if I recall correctly.

Are the threads Whitworth, American or possibly metric? That would narrow it's provenance down some if you knew. Also, if the threads are American, another clue is the age determining 1/2-12 versus the later 1/2-13 thread. The switch occurred around 1900 or so. Perhaps there are no 1/2-inch threads present.

She's looks great either way. Are you restoring it?

Regards,

Archibald
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 26
Registered: 06-2008


Posted on Saturday, October 23, 2010 - 03:59 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

John I no longer own this engine. I swapped it for a 8HP Frisco in poor condition to let me finnish the restoration of MV Rowella which was originally fitted with a 8HP Frisco Martin
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 27
Registered: 06-2008


Posted on Thursday, June 07, 2012 - 02:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Well it has taken 5 years but here are some pics of the final product both engine and hull ready for launchingRowella(now Nancy) and engine
Top of pagePrevious messageNext messageBottom of page Link to this message

robert
Senior Member
Username: robert

Post Number: 481
Registered: 07-2003
Posted on Saturday, June 09, 2012 - 12:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Congratulations! She looks amazing. Have you got a nice binnacle for her?
Top of pagePrevious messageNext messageBottom of page Link to this message

bruce
Senior Member
Username: bruce

Post Number: 304
Registered: 07-2002
Posted on Saturday, June 09, 2012 - 04:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looks like a brass binnacle forward of the helm..
Top of pagePrevious messageNext messageBottom of page Link to this message

johnoxley
Senior Member
Username: johnoxley

Post Number: 62
Registered: 04-2010
Posted on Saturday, June 09, 2012 - 04:57 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi - compound steam engine with integral condenser is unusual and highly valuable - would date from early 1900's so a sale overseas should not get an export license - More often had a keel condenser. Catalogues for Simpson STrickland, Mumfords, Bellis, White and Thorneycroft have similar looking engines but nowhere have I seen the integral condenser. Looks British (or Empire). In those days with simple metallurgy there were thousands of manufacturers and every small town blacksmith or engineering works made engines. Local patternmakers and founders were also highly skilled and skilled labour was less expensive (no gold collar or flouro vest workers then!)
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 28
Registered: 06-2008


Posted on Sunday, September 16, 2012 - 01:36 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

And finally a couple of pics after launchingNancy afloat
Top of pagePrevious messageNext messageBottom of page Link to this message

russell
Senior Member
Username: russell

Post Number: 56
Registered: 08-2003


Posted on Sunday, September 16, 2012 - 02:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

What a beautiful group you make. I can see three sterns of which one is most elegant indeed! Is the Frisco a good smooth shipmate? That looks a meaty prop you have there -what dimensions? Does she turn it without seeming too loaded?
Well done, son! You put some of us to shame!
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 29
Registered: 06-2008


Posted on Sunday, September 16, 2012 - 02:56 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Frisco StandardFrisco engine in situ
Top of pagePrevious messageNext messageBottom of page Link to this message

marks
Senior Member
Username: marks

Post Number: 142
Registered: 03-2002
Posted on Sunday, September 16, 2012 - 05:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I agree, congratulations and well done Martin,

Tiz a beauty that's for sure. Have fun with her :-)
Top of pagePrevious messageNext messageBottom of page Link to this message

robert
Senior Member
Username: robert

Post Number: 487
Registered: 07-2003
Posted on Sunday, September 16, 2012 - 11:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Superb. Could we see a few larger photos of the engine??
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Member
Username: rowella

Post Number: 30
Registered: 06-2008


Posted on Monday, September 17, 2012 - 07:17 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

friscofrisco 8HP
Top of pagePrevious messageNext messageBottom of page Link to this message

rowella
Advanced Member
Username: rowella

Post Number: 31
Registered: 06-2008


Posted on Monday, September 17, 2012 - 07:20 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The prop is 20 X 30 4 bladed and probably a touch too big

Add Your Message Here
Post:
Bold text Italics Underline Create a hyperlink Insert a clipart image

Username: Posting Information:
This is a public posting area. Enter your username and password if you have an account. Otherwise, enter your full name as your username and leave the password blank. Your e-mail address is optional.
Password:
E-mail:
Options: Automatically activate URLs in message
Action:

Administration Administration Log Out Log Out   Previous Page Previous Page Next Page Next Page

Home | Classifieds | History | Technical | Links | Store | About Us | Email
&copy 2005 OldMarineEngine.com, P.O. Box 188, Forest Dale, VT 05745-0188 • Phone: 802-247-4864 • All rights reserved.
   Marine Engine Seloc Repair Manual Lookup Tool

marine gas engine repair and restoration
