Lots a "Pumpin" Nuf-Sed

Old Marine Engine » One and Two Cylinder Gas Inboards » Lots a "Pumpin" Nuf-Sed « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2203
Registered: 11-2001
Posted on Saturday, October 10, 2009 - 07:31 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

Lots a "Pumpin" Nuf-Sed.

obpunp

obgray

grtwin1

*
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 301
Registered: 12-2003


Posted on Sunday, October 11, 2009 - 02:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Great information. I had always thought that they only worked in one direction, but hadn't really thought about it. Also, in the dozen of years I have been going to flea markets, they are a lot harder to find now.

Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2210
Registered: 11-2001
Posted on Sunday, October 11, 2009 - 05:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

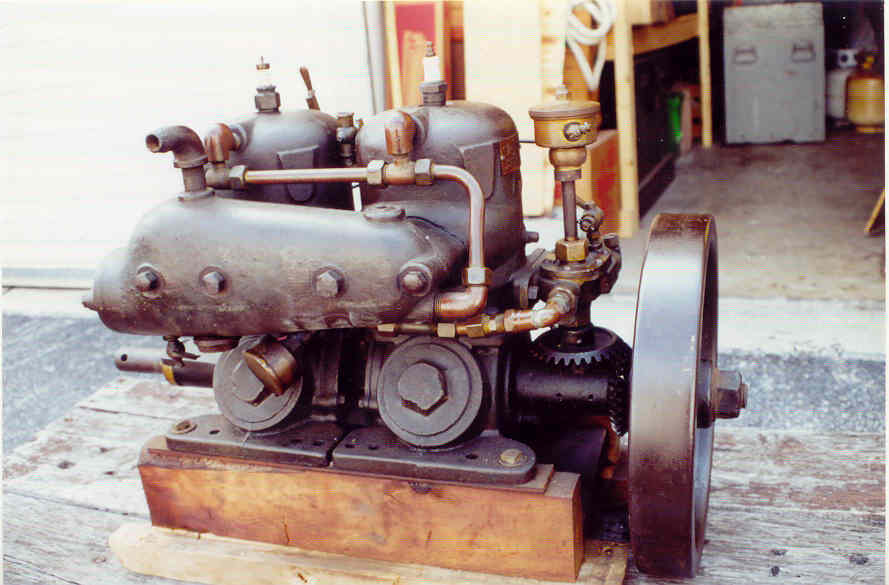

Bill, More trivia, your photo above shows the petcock with the oil cup, Gray was the only Co that had that feature made into its Oberdorfer pumps (I Believe), Obviously a very handy way to prime the water pump when needed, also nice to see the original accessory on the pump after very close to a hundred years !

**
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 262
Registered: 02-2002


Posted on Sunday, October 11, 2009 - 05:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Someone explain to me how a gear pump can be reversed and yet pump the water in the same direction. The inlet and outlet are located central to the two gears.
Top of pagePrevious messageNext messageBottom of page Link to this message

solarrog
Senior Member
Username: solarrog

Post Number: 378
Registered: 03-2002


Posted on Sunday, October 11, 2009 - 05:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i BELIEVE IT WOULD REQUIRE SOME ADDITIONAL PIPING AND VALVES TO WORK
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2211
Registered: 11-2001
Posted on Sunday, October 11, 2009 - 07:11 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Keith it can't be explained !
To reverse an external gear pump the inlet and outlet have to be reversed in some manner.

http://www.liquiflo.com/v2/files/pdf/Gear_Pump_Basics.pdf

*
Top of pagePrevious messageNext messageBottom of page Link to this message

kerrigan
Member
Username: kerrigan

Post Number: 28
Registered: 06-2008


Posted on Sunday, October 11, 2009 - 07:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

What happens to the direction of flow when the pump's shaft rotation is reversed?
Top of pagePrevious messageNext messageBottom of page Link to this message

kerrigan
Member
Username: kerrigan

Post Number: 29
Registered: 06-2008


Posted on Sunday, October 11, 2009 - 07:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does the engine care if the water inlet and outlet are reversed?
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 263
Registered: 02-2002


Posted on Sunday, October 11, 2009 - 08:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Pump
1
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1068
Registered: 01-2002


Posted on Sunday, October 11, 2009 - 08:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

On a Gray the pump doesn't work in reverse.
When I reverse the engine in my boat the exhaust gets a lot louder when the cooling water is no longer injected into the exhaust. When I go back to forward you can tell without even looking that is is pumping water again when the exhaust quiets down.

The oil cup on the pump is to add oil so it will prime. The amount of water that cup will hold is no way enough to prime the pump. I still have the one from my Gray however I replaced it with a grease cup which is a lot easier to deal with.
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 302
Registered: 12-2003


Posted on Sunday, October 11, 2009 - 09:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I would assume that to have it reversible, there would need to be a way to swap the inlet and outlet around, which would not be very hard. The ad said no check valves, not that other valves wouldn't be required.
Top of pagePrevious messageNext messageBottom of page Link to this message

kerrigan
Member
Username: kerrigan

Post Number: 30
Registered: 06-2008


Posted on Sunday, October 11, 2009 - 09:57 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

It may make a difference if you're cooling the exhaust too. Was that a feature on all engines? Look at at the inlet and outlet of the pump in the photo. If they both go to the drink what happens when you rotate the pump CW? What happens when you rotate it CCW?
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 264
Registered: 02-2002


Posted on Monday, October 12, 2009 - 10:13 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I guess the bottom line is you are not in reverse for extended periods of time. Therefore you don't have to worry about cooling. It would be somewhat complicated to have a system where you need to change the cooling system, throttle down and change the timing and ignition on/off to reverse. I imagine that Oberdorfor's claim only referred to the fact that the pump can be set up to work in either direction, not that it worked with reversing an engine in operation.
Top of pagePrevious messageNext messageBottom of page Link to this message

miro
Senior Member
Username: miro

Post Number: 396
Registered: 11-2001


Posted on Tuesday, October 13, 2009 - 09:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The only time I've seen the Gray gear pump work when the engine is turning backwards was at the Calvert Show.
The inlet and the outlet were in a water barrel and the exhaust went straight out into the atmosphere.
So, yes they CAN run in either direction, but I'm sure that's not what the factory had in mind when they wrote the ad all those decades ago.

miro
