Copper Top Twin

Old Marine Engine » One and Two Cylinder Gas Inboards » Copper Top Twin « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1096
Registered: 01-2002


Posted on Wednesday, November 11, 2009 - 10:36 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

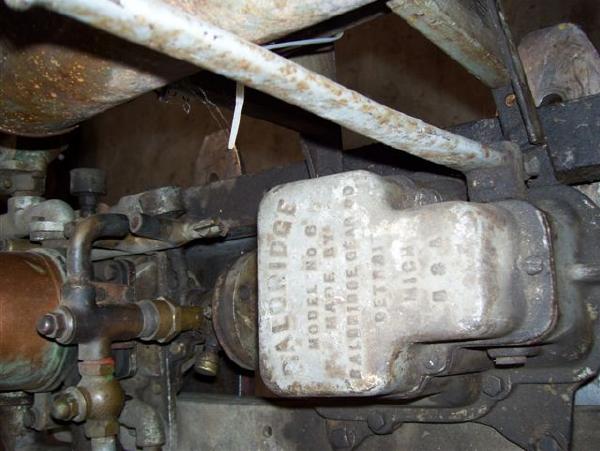

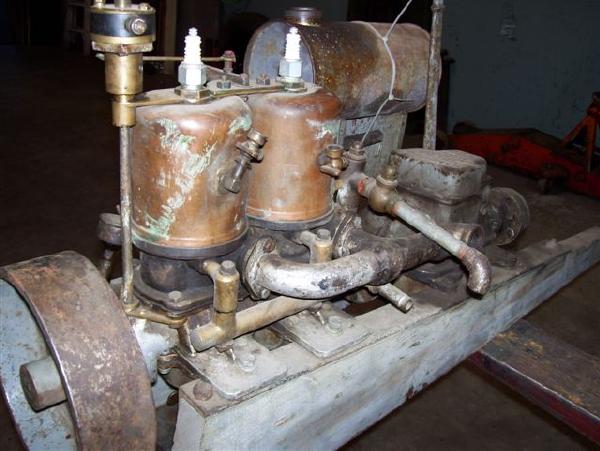

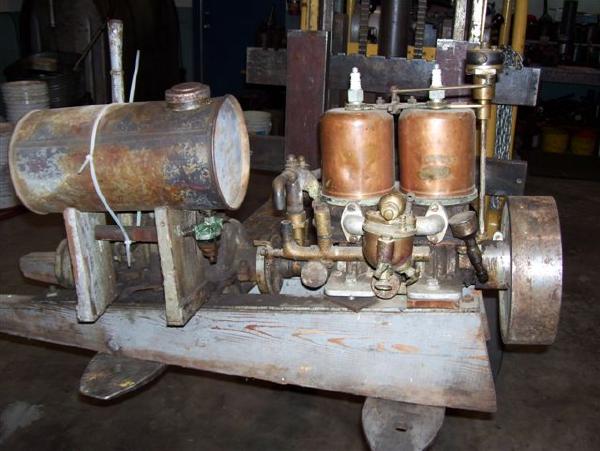

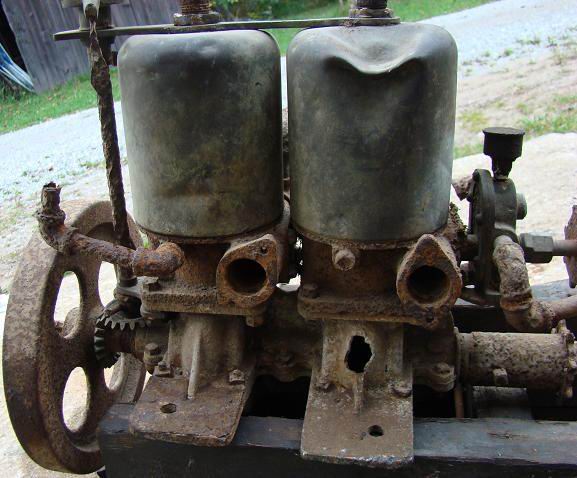

Here are some pics from Jim Scott up in Canada of a real neat engine with reverse gear.
He found it in a farmers field.
The engine has no tag so maybe collectivly we can assist him with an actual ID.
I told him it was most likely a Kingfisher/Arrow/Dispro/Waterman and or many more.
I have also asked Jim for a pic of the flywheel face and its dimensions as it looks small.


Top of pagePrevious messageNext messageBottom of page Link to this message

axtion_jim
Member
Username: axtion_jim

Post Number: 25
Registered: 01-2006
Posted on Thursday, November 12, 2009 - 12:13 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks to Ernie for posting my newly aquired project.The engine is complete, the only thing that conserns me is the fly wheel,it`s made out of tube steel and flat plate. Not much waight to keep her going at slower speeds.The fly wheel is 9 1/2 x 2 3/8 wide, with a 7/8`s shaft. It`s going to be a great winter project
Top of pagePrevious messageNext messageBottom of page Link to this message

solarrog
Senior Member
Username: solarrog

Post Number: 384
Registered: 03-2002


Posted on Thursday, November 12, 2009 - 12:26 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

that was a great find
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1097
Registered: 01-2002


Posted on Thursday, November 12, 2009 - 10:59 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

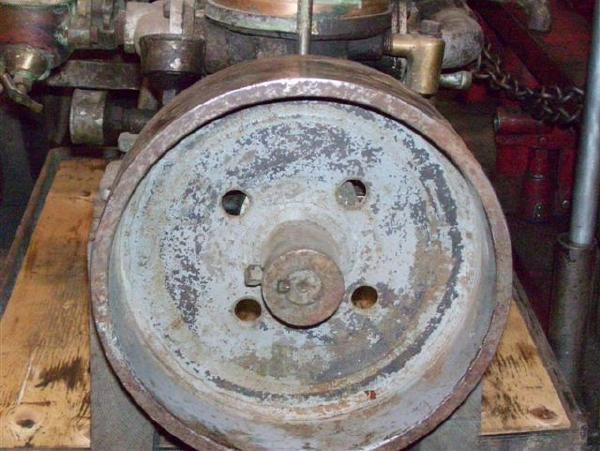

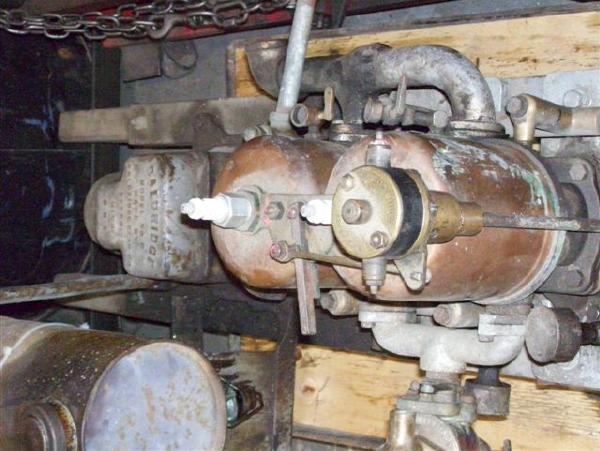

Here are more pics of Jim's engine. As to the flywheel whomever made it sure did a neat job. I wouldn't have a problem trying to run it as it is. I wonder if the partially drilled holes were from having it balanced?

quote from Jim on the flywheel dimensions.

"Now to the flywheel, it is fabricated out of steel tube and plate.The shaft size is 7/8`s outside diameter is 9 1/2 and width is 2 7/8 inches.On the outside of the rim there are 5 holes drilled half way in to the metal, but not thru, blind holes. Like they would be used to attach a cover to give a grip surface so the engine could be kick started with a rubber boot. That was a fishermans trick. I sure would like to get a possitive ID on this engine. And the other thing that would be nice is to find a copy of a manual. I could do a tear down and figure it out, but a little info first is better."



Top of pagePrevious messageNext messageBottom of page Link to this message

axtion_jim
Member
Username: axtion_jim

Post Number: 26
Registered: 01-2006
Posted on Friday, November 20, 2009 - 11:45 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

An up date on the copper top engine.located on the cover for the drive gears for the Bemus timer, there is a stamping of K 4.5,wondering if maybe related to a Kingfisher engine.I sure would like to ID this engine.O buy the way it does run.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2243
Registered: 11-2001
Posted on Friday, November 20, 2009 - 01:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

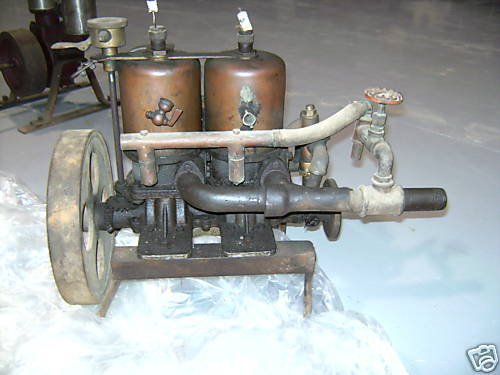

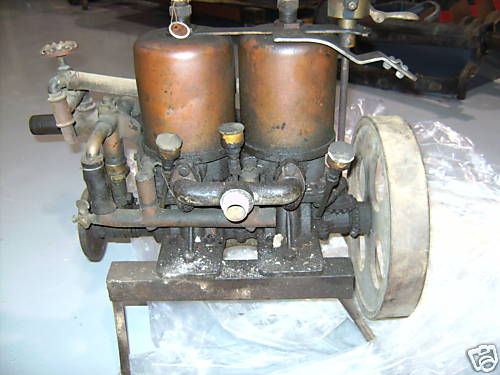

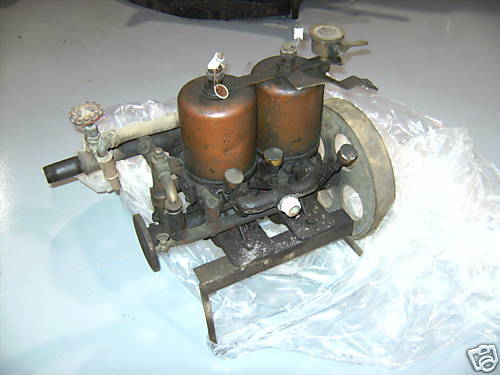

Waterman Arrow

K1

K2

K3

K4

BLair posted This one here awhile back.

waK2ome blair

Use the search option at the top of the page- these engs had many different sizes and designs over the yrs.

**
Top of pagePrevious messageNext messageBottom of page Link to this message

axtion_jim
Member
Username: axtion_jim

Post Number: 27
Registered: 01-2006
Posted on Friday, November 20, 2009 - 05:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Well sir that is pretty convining. Now I have a great engine, I suppose a boat is the nexttoy to consider.
