Evinrude inboard

Old Marine Engine » One and Two Cylinder Gas Inboards » Evinrude inboard « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Philip Allen
Visitor
Posted on Saturday, December 05, 2009 - 07:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Anyone willing to hazard a guess or estimate on what one would need to pay for a 1915-20? evinrude sgl.cylinder inboard flywheel magneto ignition? Not stuck, looks pretty good, magneto may need some work. Sorry no photo yet.
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Senior Member
Username: rbprice

Post Number: 271
Registered: 11-2001


Posted on Saturday, December 05, 2009 - 03:19 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Well Phillip - I have one that cost me about $45 including shipping from Texas to upstate NY. But the seller thought it was a water cooled motorcyle engine and did not know it was an inboard Evinrude marine engine.

Do a search for Evinrude on this site: there may be other information.
Top of pagePrevious messageNext messageBottom of page Link to this message

Philip Allen
Visitor
Posted on Saturday, December 05, 2009 - 04:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Great buy, does it run? It appears that the inboard is very similar to the Evinrude RBM of similar vintage. Would one expect them to be similar in value and price as well?
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Senior Member
Username: rbprice

Post Number: 274
Registered: 11-2001


Posted on Saturday, December 05, 2009 - 04:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have not tried to run mine Philip: the original wire from the magneto in the flywheel is in very poor condition and I am reluctant to replace it.
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Senior Member
Username: rbprice

Post Number: 275
Registered: 11-2001


Posted on Saturday, December 05, 2009 - 04:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Forgot to mention value - a good person to answer questions on outboards is Art Dekalb adekalb@precisionserv.com

Bob
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 491
Registered: 07-2002


Posted on Saturday, December 05, 2009 - 05:54 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Be sure it's an inboard and not a converted outboard, inboard had mounts on the block, outboards usually have angle iron mounts.
Top of pagePrevious messageNext messageBottom of page Link to this message

axtion_jim
Member
Username: axtion_jim

Post Number: 28
Registered: 01-2006
Posted on Saturday, December 05, 2009 - 11:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I sure would like to see a photo,is it air cooled or water cooled. I paid double that of Mr. Price and I`m still happy.
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Senior Member
Username: rbprice

Post Number: 276
Registered: 11-2001


Posted on Sunday, December 06, 2009 - 10:01 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

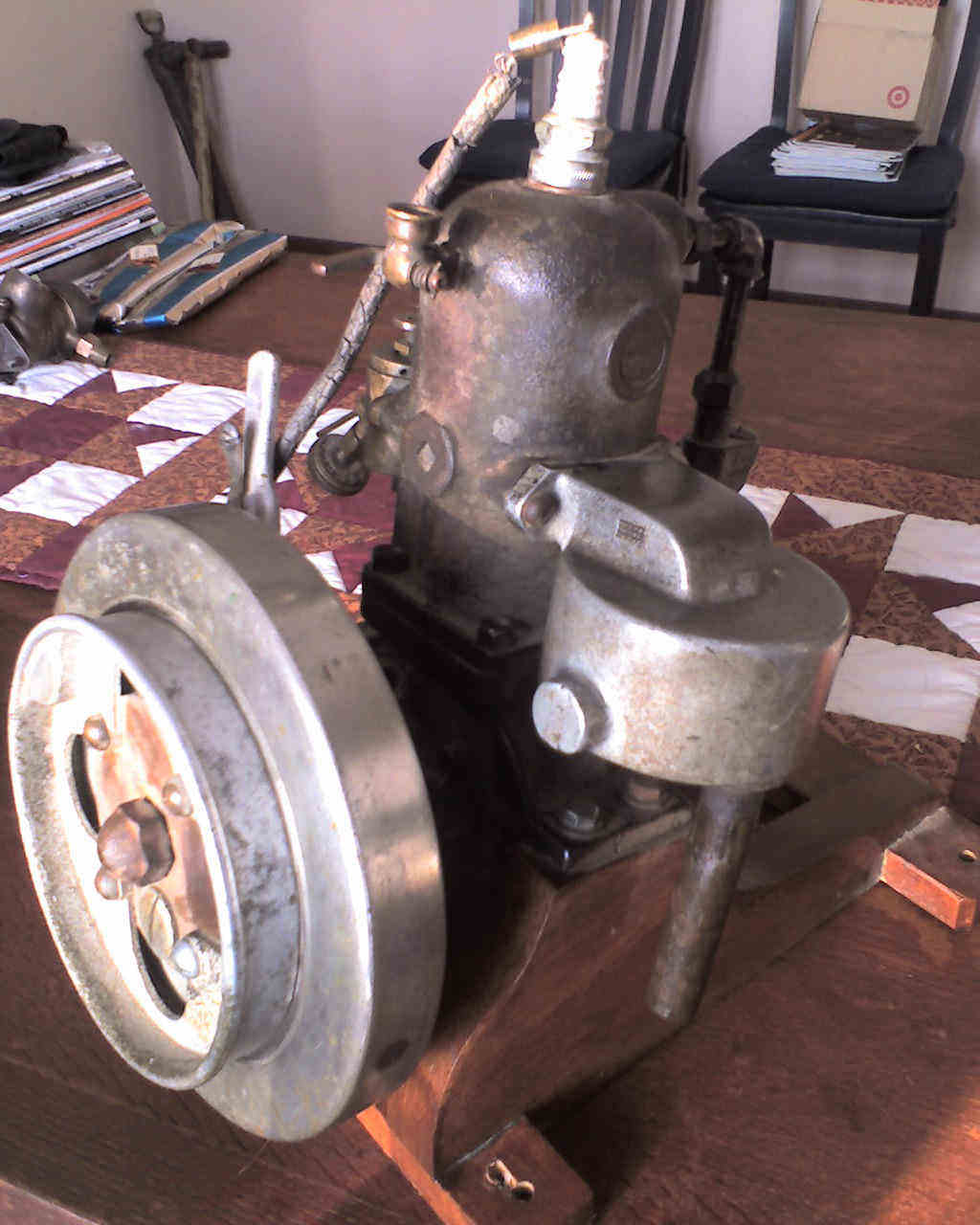

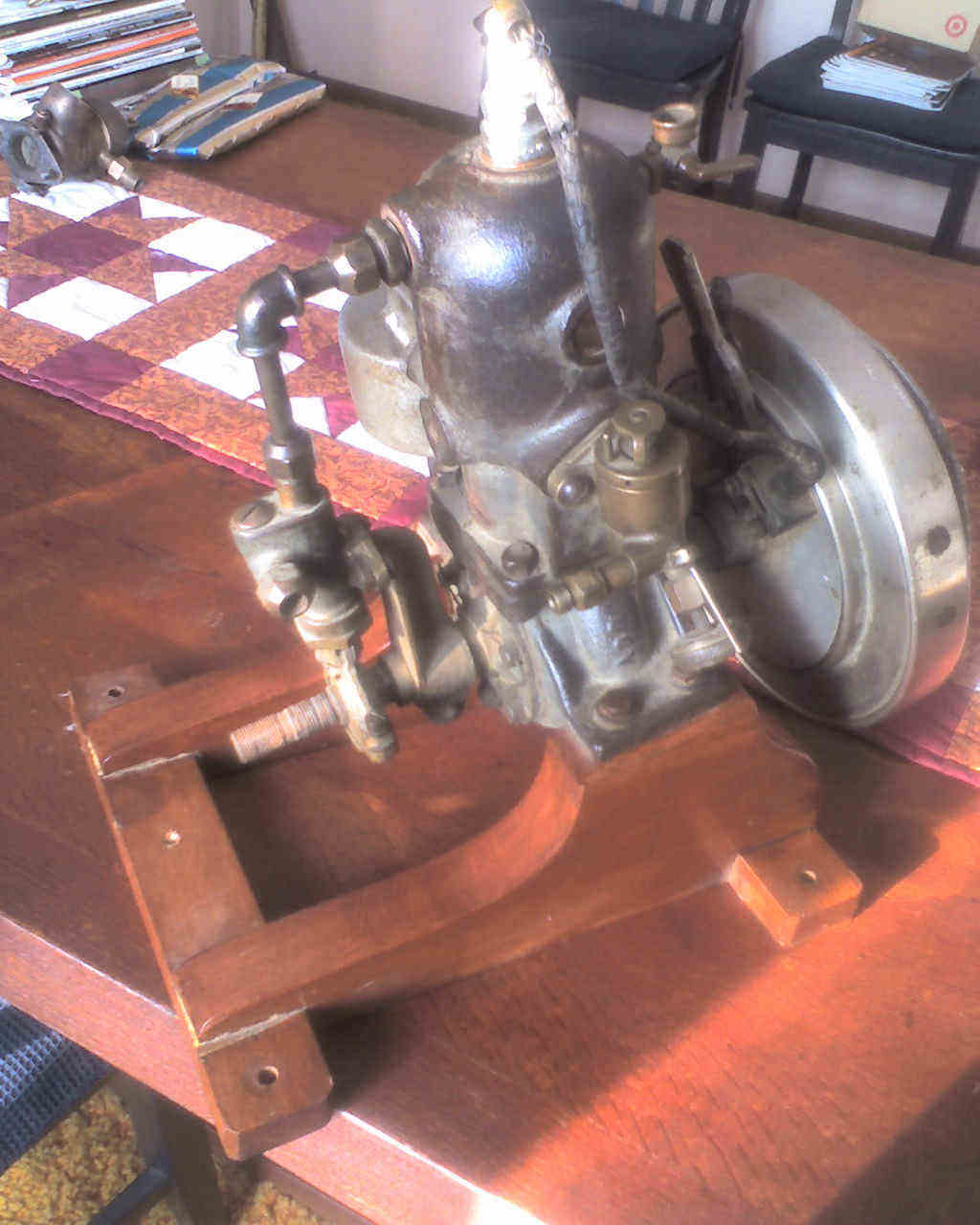

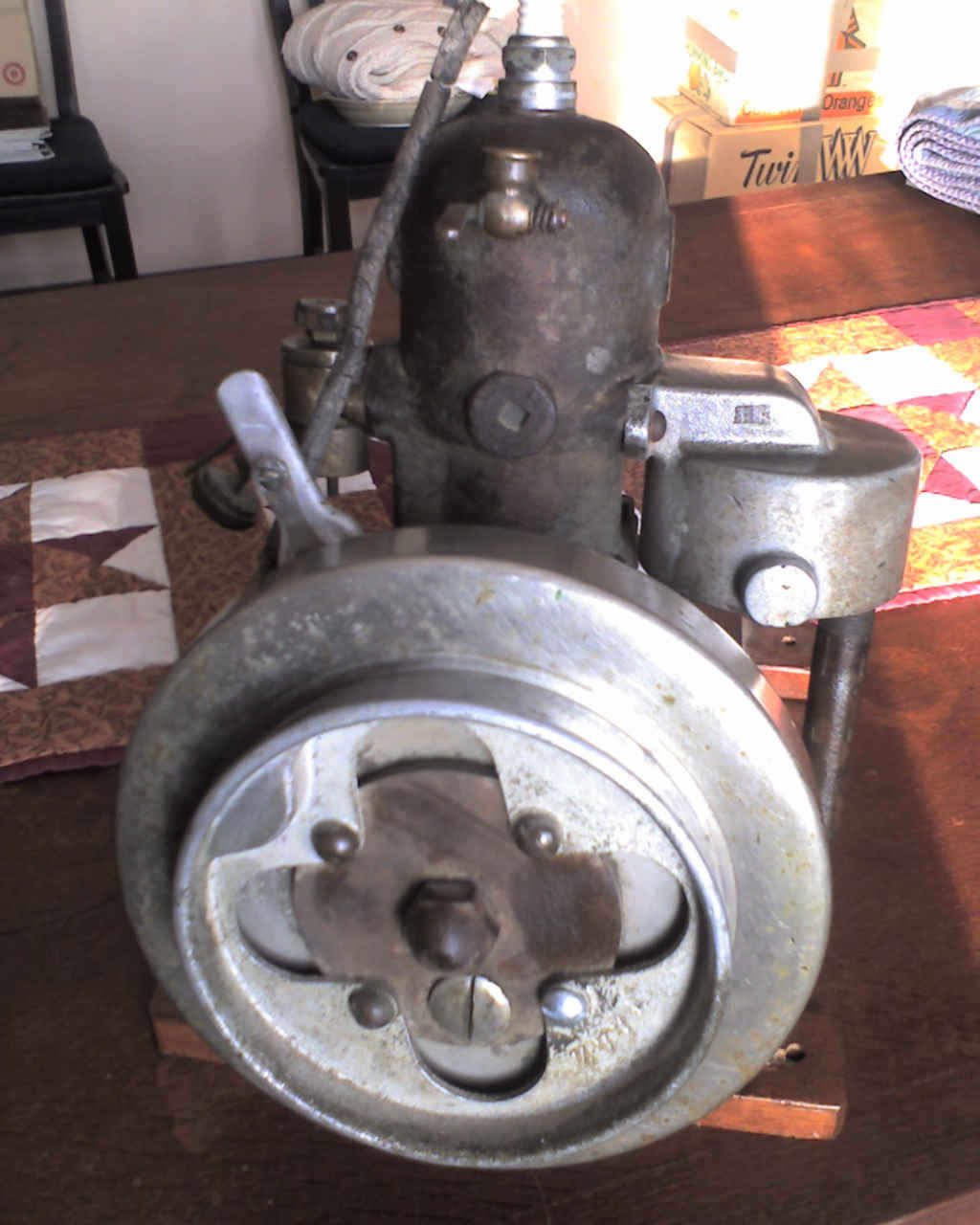

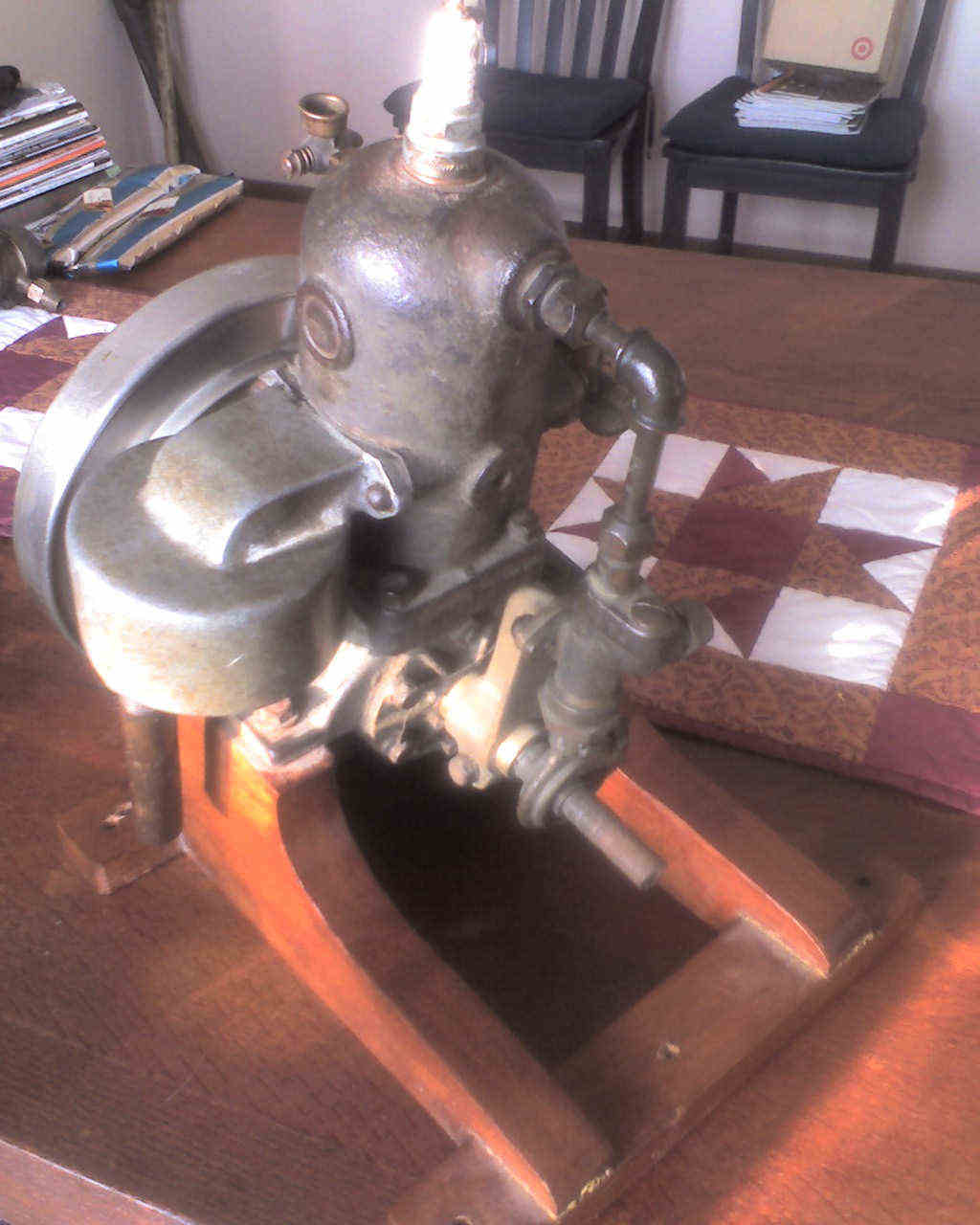

Here it is sitting on the dining room table [with permission of SWMBO]





Top of pagePrevious messageNext messageBottom of page Link to this message

john_archibald
Senior Member
Username: john_archibald

Post Number: 122
Registered: 08-2006


Posted on Sunday, December 06, 2009 - 10:21 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

She's an inboard.

Archibald
Northfield, Minnesota

.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2249
Registered: 11-2001
Posted on Sunday, December 06, 2009 - 01:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

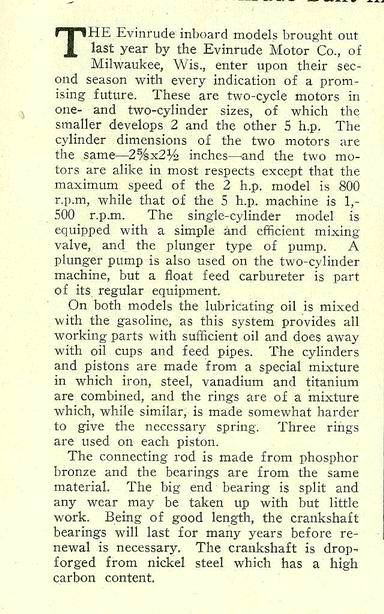

1917 article, first year on the market 1916.

Bob, serial numbers are stamped into the thin edge of the mounting bracket- can determine year of mfgr.


eia1917


**
Top of pagePrevious messageNext messageBottom of page Link to this message

Philip Allen
Visitor
Posted on Sunday, December 06, 2009 - 03:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks, I appreciate your insights. R B Price here is some info that may be of help with your magneto. I believe the magnetos are the same as the outboard version. www.pfs-ware.com/rbmj Click on Vol.2- Issue 1, scroll down about half way, the second page past the buzz coil diagram. There is a Evinrude stator plate with explanation and schematic, found it helpful. Best wishes Philip
Top of pagePrevious messageNext messageBottom of page Link to this message

gregoryan
Advanced Member
Username: gregoryan

Post Number: 48
Registered: 09-2004


Posted on Sunday, December 06, 2009 - 07:06 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

such a neat engine with the magneto in the flywheel; no messy/ noisy gears! I love the neat engine beds, and that you can just put the whole thing on the table! wow; an engine that small has a priming cock!
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Senior Member
Username: rbprice

Post Number: 277
Registered: 11-2001


Posted on Sunday, December 06, 2009 - 08:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks very much for the link Phillip

Bob
Top of pagePrevious messageNext messageBottom of page Link to this message

axtion_jim
Member
Username: axtion_jim

Post Number: 29
Registered: 01-2006
Posted on Monday, December 07, 2009 - 12:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Phillip that is a great looking piece of engine history. I shall use the idea to make a stand for my air cooled evinrude.also thank you for the posting from the news letter. Purhaps i should become a subsciber.
Top of pagePrevious messageNext messageBottom of page Link to this message

dick
Member
Username: dick

Post Number: 11
Registered: 07-2004
Posted on Monday, December 07, 2009 - 03:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I don't want to hijack this post, but I need a little help. I have a two cylinder Evinrude inboard that is missing the magneto plate and the exhaust manifold. I have found a plate that fits, but it is for a single cylinder outboard. I am thinking of redoing the coils and converting it to two cylinder - unless someone can possibly point me to a plate built for the two. Is this an impossible task? Many thanks, Dick
Top of pagePrevious messageNext messageBottom of page Link to this message

Philip Allen
Visitor
Posted on Monday, December 07, 2009 - 06:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The newsletter is freely available, as you can see. It contains some great info, that is useful both to Row Boat Motor owners, as well as Marine Inboard owners. There is considerable crossover between the two as I'm sure you are aware.
The rest of the site is open to AOMCI members, at this point.
Top of pagePrevious messageNext messageBottom of page Link to this message

seagal007
Member
Username: seagal007

Post Number: 5
Registered: 07-2012
Posted on Wednesday, August 29, 2012 - 03:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Im sure the rbm mag is the same as the inboards. I have a 1 cyl inboard. Does anybody know what the origional color of the inboard was? I heard they were some shade of blue.
Top of pagePrevious messageNext messageBottom of page Link to this message

azerman
New member
Username: azerman

Post Number: 2
Registered: 01-2014
Posted on Wednesday, January 01, 2014 - 12:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

what do you think these Evinrudes powered originally?
Top of pagePrevious messageNext messageBottom of page Link to this message

solarrog
Senior Member
Username: solarrog

Post Number: 565
Registered: 03-2002


Posted on Wednesday, January 01, 2014 - 01:24 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Like you I am restoring an Evinrude twin DD that has a broken
Back plate. I have looked at the gram back plates and there are several different ones. It is good that you have the flywheel as the twin has two lobes for the points. I even looked at the fire pampers for a back plate there are several different ones of those also
Top of pagePrevious messageNext messageBottom of page Link to this message

bruce
Senior Member
Username: bruce

Post Number: 421
Registered: 07-2002
Posted on Wednesday, January 01, 2014 - 10:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Miles, Small inboard engines like the Evinrude were suitable for small power skiffs and more often in Motor canoes
