A One Of A Kind Old Marine Engine Com...

Old Marine Engine » One and Two Cylinder Gas Inboards » A One Of A Kind Old Marine Engine Comes To Light « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2566
Registered: 11-2001
Posted on Tuesday, January 25, 2011 - 08:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

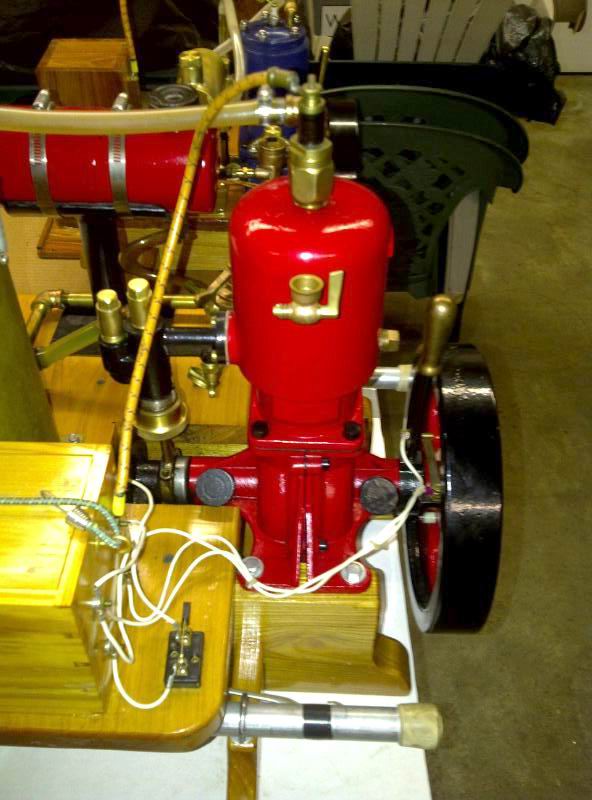

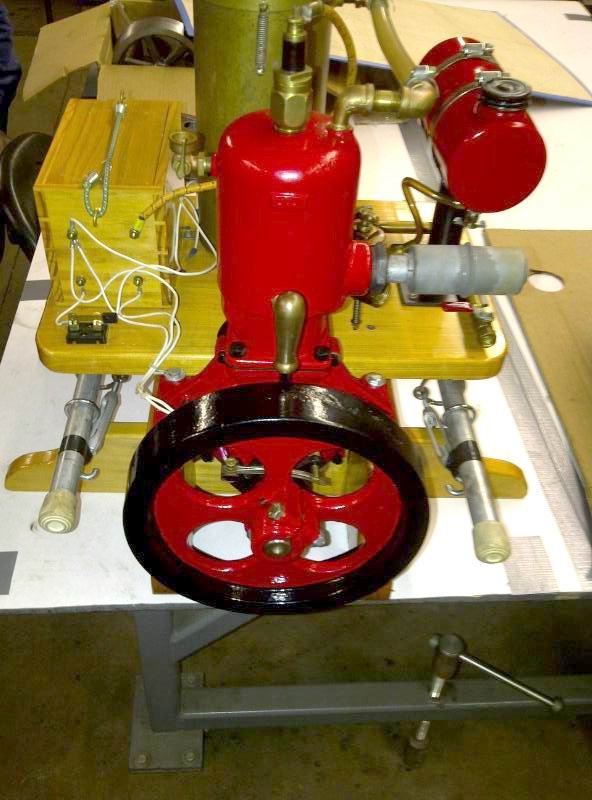

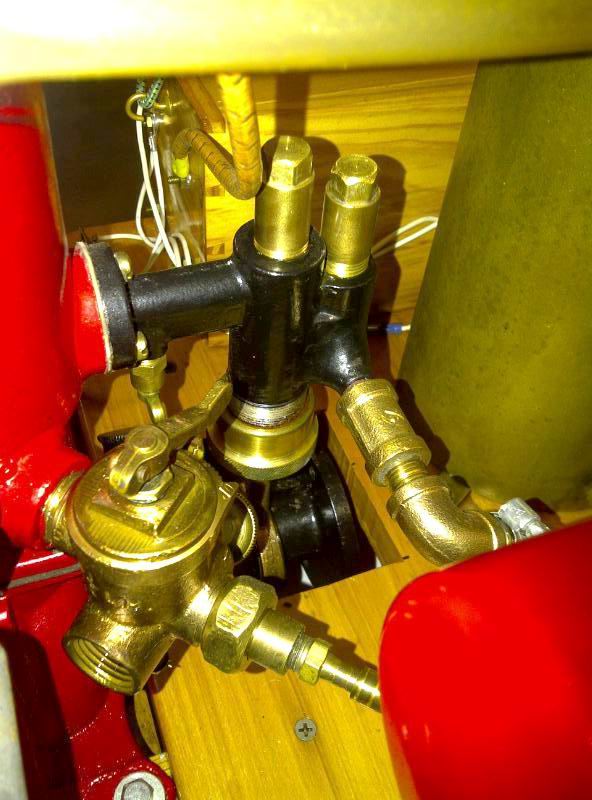

Bob Legnon sent these photos this morning
of his Single Cylinder C.T. Wright model L Special marine engine. I believe this is the only one presently known to exist ? its a 3 port design with a slotted piston skirt. it is also in running condition !
This is an early C.T.Wright production engine with roots in their outboard motors (vertically split crankcase).Wright also marketed The Weco inboard engines and in 1907 Bought Gile engine company moved its machinery to their Greenville, Michigan plant and sold these engines in their boats for many years.

A very cool piece of Old Marine Engine Hiostory.


W1

W2

W3

catcov

Wad

modL


**
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1306
Registered: 01-2002


Posted on Tuesday, January 25, 2011 - 08:19 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I had one Chuck B from TX got it from me.
Different model but CT Wright all over it.
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2567
Registered: 11-2001
Posted on Tuesday, January 25, 2011 - 08:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Ernie did your engine have the vertcally split crankcase ? The 2 1/2 hp model L seems to be the only model with it.
The 3 1/2 hp had a conventional horizontal split case even with crankshaft ?


Wa



I have info that a prominent naval architect Charles Desmond of Rutherford, New Jersey designed a marine engine and sold rights to C.T Wright Co. but i can't tie his eng to any one specific engine or model as yet ?

*
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1307
Registered: 01-2002


Posted on Wednesday, January 26, 2011 - 10:26 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I dont' remember
Sorry
E
Top of pagePrevious messageNext messageBottom of page Link to this message

pherne
New member
Username: pherne

Post Number: 1
Registered: 02-2015
Posted on Sunday, February 22, 2015 - 11:19 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I was given ct wright 2hp split case like the one in your picture.it is not complete but has good compression,serial no. is 12..would like to see more pictures to see what I could make for the engine or I may sell it by the pound for scrap no good the way it is,no water pump or timing lever.i do have the carb,,,please help if you can ..I do not think it is worth much the way it is thankyou
Top of pagePrevious messageNext messageBottom of page Link to this message

primetrucks
Senior Member
Username: primetrucks

Post Number: 52
Registered: 03-2004
Posted on Monday, February 23, 2015 - 11:16 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

how many bolt holes that hold water pump on and about how big around the mounting pad for water pump? i tink i got a water pump.
Top of pagePrevious messageNext messageBottom of page Link to this message

pherne
New member
Username: pherne

Post Number: 2
Registered: 02-2015
Posted on Thursday, April 02, 2015 - 09:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

am looking for water pump 1 1/2 flange 3 bolt ,,timing lever,spark plug ,thanks for 2 hp vertically split case ct wright
