Unknown 1 cylinder - Perth, Western ...

Old Marine Engine » One and Two Cylinder Gas Inboards » Unknown 1 cylinder - Perth, Western Australia « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Rod
Posted on Monday, February 04, 2002 - 08:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello

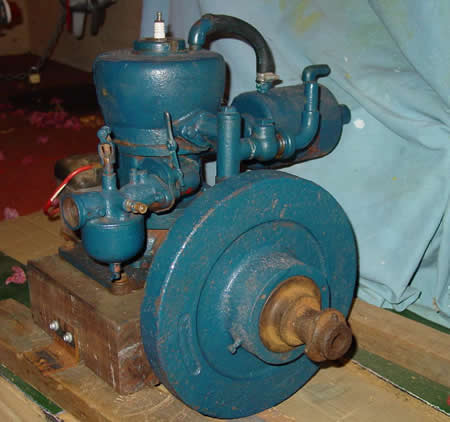

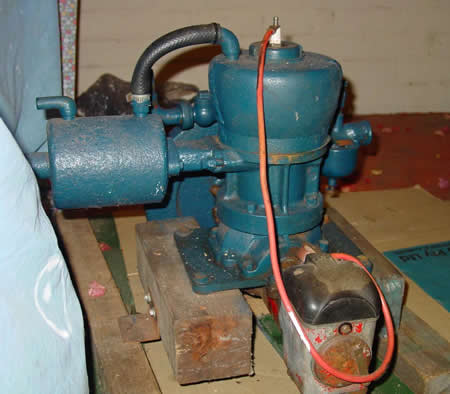

I was on the hunt for a small diesel for my 16.5' GRP gaff seaboat and was given the petrol engine shown below. I can find no identifying marks. I would be very grateful if you could identify the make/model and point me in the direction of any further information that might help me get her back in working order.
Thanks

Rod Hughes

Perth, Western Australia

1

2

3
Top of pagePrevious messageNext messageBottom of page Link to this message

Steve G
Posted on Wednesday, February 06, 2002 - 08:32 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

HI ROD, Looks like you have a PENGUIN ,4.H.P.
Built in N.S.W. ROD we are in Perth as well
Give me a ring on 94091221.. or email
outboard@iinet.net.au All the best
Steve Green
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Wednesday, February 06, 2002 - 09:20 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Isn't it amazing if two engine collectors in Perth, Australia can find each other and give assistance through a web site in the USA.... the Internet has certainly allowed for enhanced "communication"...!
Regards,
Andrew
Top of pagePrevious messageNext messageBottom of page Link to this message

peter ogborne
Posted on Thursday, February 07, 2002 - 09:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Three Andrew ........yes it is a Penquin Rod and a very collectable specimen . I dont have one but Steve will certainly put you on the right track .
Top of pagePrevious messageNext messageBottom of page Link to this message

geoffarcher
Posted on Thursday, February 07, 2002 - 08:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Just wondering.,...

I was looking at this nice little motor and noticed that the water pump appears very similar to the one on my Chapman Pup.I know that the magneto and carbys were proprietary (off the shelf)items that the Australian manufacturers used (ie lucas and schebler) were the water pumps also "bolt on" units? What about pistons/rings/bearings etc?
Top of pagePrevious messageNext messageBottom of page Link to this message

peter ogborne
Posted on Friday, February 08, 2002 - 08:44 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Geoff .........I think you will find that the pumps have slight differances . They all work on the same principle but there are dimensional variations mainly brought about by the mounting flange hole centers . This is not to say that with a bit of cut and patch you could quite easly interchange some of them . Something you would have to watch for is that the stroke was compatable . In answer to your question I am sure the engine manufacturer made their own pumps ,they were such a simple casting and M/C job .
Top of pagePrevious messageNext messageBottom of page Link to this message

Rod H
Posted on Friday, February 08, 2002 - 05:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks all. Steve - I'll call you at more civilised hour. My next decision will be whether this is the engine to put in the boat, replacing a 1977 Seagull Silver Century Plus outboard.
Top of pagePrevious messageNext messageBottom of page Link to this message

Trevor Watson
Posted on Sunday, February 24, 2002 - 07:04 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Rod

Yep Mate You have a Penguin... sometimes called a Tasman. It is a highly sought after engine & you will find as have I that it will come under the Australian movable cultural heritage control list - which makes it even more desirable.

It would drive your 16' boat niceley. Looking at the pic it would be around 1960 ish not an old one but a good one.

The piston will be a very ornate cast iron number & should last the life of the motor, the rings SHOULD be obtainable at any decent engine rebuilder. I bought some for my penguin that were out of a 1948 vauxhall I think. Bearings should be whitemetal & could be remetalled fairly simply.
Dont think the Magneto is original... a bosch would have been fitted when new.
Top of pagePrevious messageNext messageBottom of page Link to this message

rob
Posted on Tuesday, March 12, 2002 - 07:04 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yup, Penguin....... Mine's identical & includes the clutch & shift lever..... I'm planning on putting mine back into a boat...... :)
Top of pagePrevious messageNext messageBottom of page Link to this message

Rod Clark
Posted on Saturday, February 21, 2004 - 02:07 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have one to mine is a bit different to yours you can see photos on this web site
