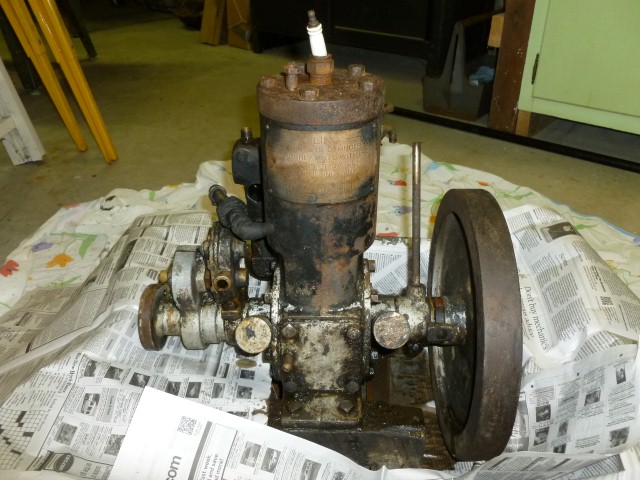

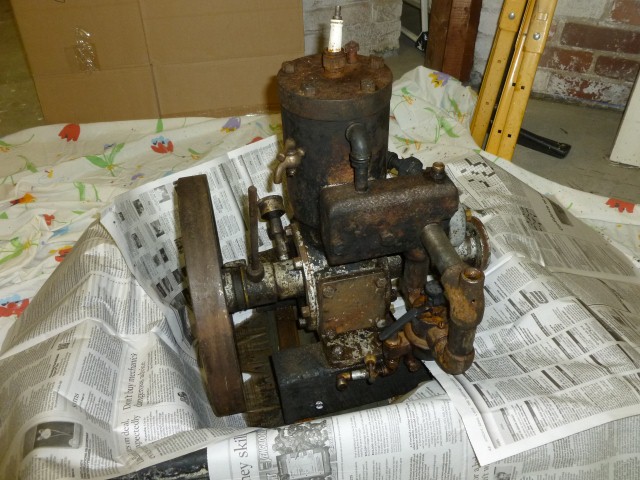

I have a Barber Brothers single cylinder engine, Engine Number 225. It seems to be fairly complete except, except it’s missing the ignition system. Can anyone furnish me with a photo, or any information regarding the ignition? Also, can anyone know the year of manufacture? Actually any input, HP, RPM, etc, would be helpful and appreciated. Thanks in advance……………Jerry, Collinsville CT.







Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 511
Registered: 12-2003


Posted on Saturday, April 07, 2012 - 07:37 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Is there a name on the water pump? If the carb is original, you should be able to date it from that. I have seen adv for krice starting in 1909 and going into the middle teens.

Top of pagePrevious messageNext messageBottom of page Link to this message

speleausmining
Member
Username: speleausmining

Post Number: 30
Registered: 10-2010


Posted on Monday, April 09, 2012 - 02:00 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Here is a double cylinder with the ignition timer. Timer runs off of a bevel gear near the flywheel. Do not know if this timer is original or was added at a later point. Single could be fitted with a similar timer. I used a Schubler Model D for the carb and have had it runing briefly off the fuel bowl. Had to use a 4 cylinder Distributer cap on it as it was the only cap I could find that fit the distributor.
Top of pagePrevious messageNext messageBottom of page Link to this message

speleausmining
Advanced Member
Username: speleausmining

Post Number: 31
Registered: 10-2010


Posted on Monday, April 09, 2012 - 02:02 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Sorry that should read 6 cylinder distributor cap
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2790
Registered: 11-2001
Posted on Monday, April 09, 2012 - 08:47 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

jerryh20

Your single engine Barber Serial #225 would have been mfgrd very close to 1911.

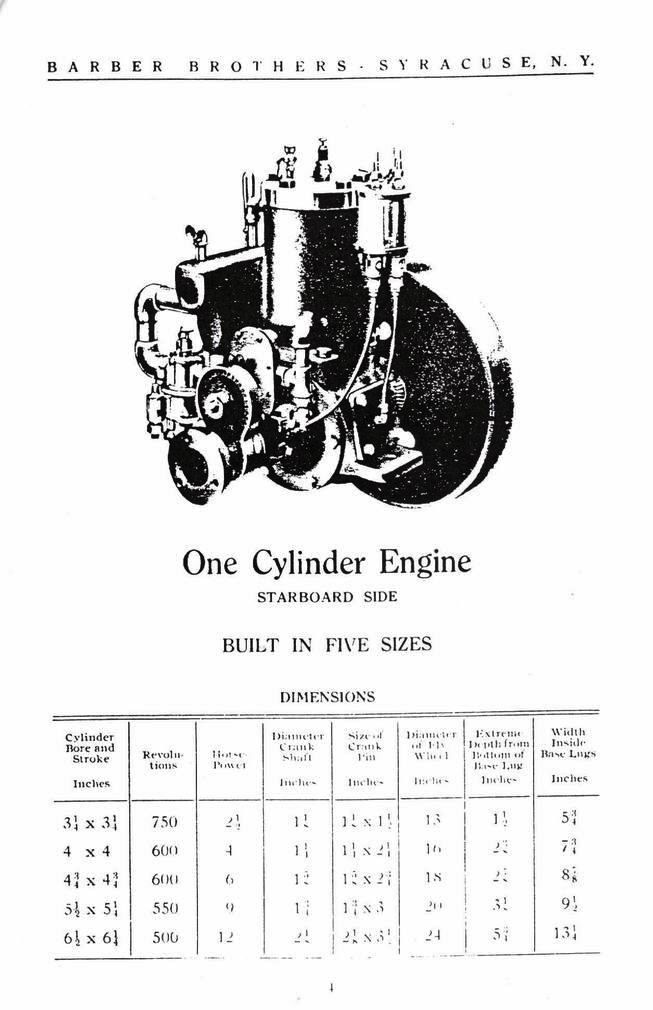

This is a 1908-09 copy of a copy but should be readable, its an earlier engine with the drip oiler, your eng is later and has the oil mix tag on it ! Go to search at top of this page and type ignition- your engine looks complete but would require a coil and battery wired up to run,
nice complete old Barber !!


Bsingle0809



*
Top of pagePrevious messageNext messageBottom of page Link to this message

jerryh2o
New member
Username: jerryh2o

Post Number: 2
Registered: 05-2010
Posted on Monday, April 09, 2012 - 04:23 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

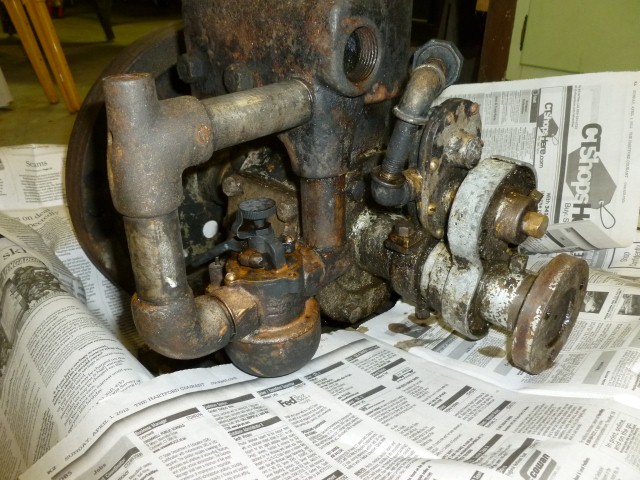

It is a KRISE carburetor and it has a patent date of Nov. 22, 1910. I don’t see any information on the water pump but I’ll keep looking. It has a 13” flywheel so by the chart it would be 2.5HP. The oilers have Detroit Lubricator Co. #01 printed on them. I’ve attached a close-up photo of the back of the flywheel, and as you can see there is no room for a bevel gear. There’s what looks to be a hard rubber “washer” with a piece of copper or brass imbedded in it. I searched for Barber Brothers ignition and found the attached sketch on the site. So this motor didn’t have any kind of distributor, it had this setup, or something like it?


Top of pagePrevious messageNext messageBottom of page Link to this message

paulgray
Senior Member
Username: paulgray

Post Number: 123
Registered: 05-2003
Posted on Monday, April 09, 2012 - 07:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Jerry-Me thinks there is supposed to be an insulated spring-loaded contact which goes through the hole in the last picture which grounds out the coil to the engine block. Tha handle on that collar moves to adjust the timing. See if the hole has threads in it...
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 513
Registered: 12-2003


Posted on Monday, April 09, 2012 - 07:56 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

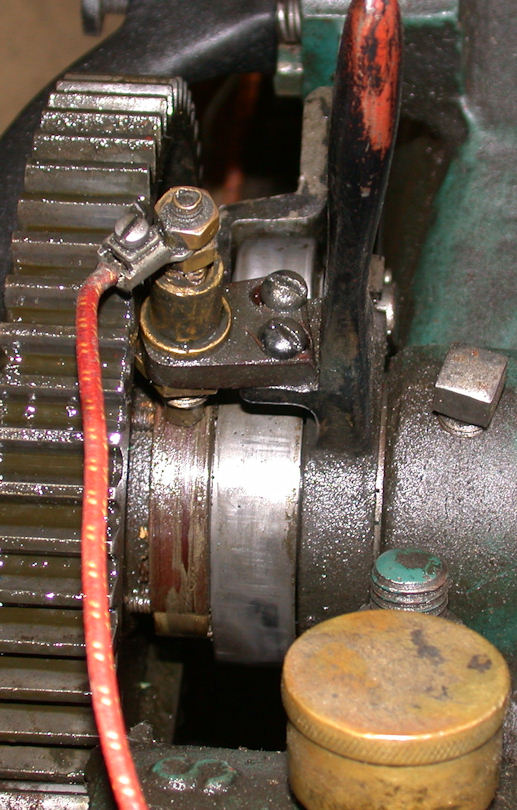

Here are a couple of pictures of a spring loaded contact from my RW.



Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 354
Registered: 02-2002


Posted on Tuesday, April 10, 2012 - 08:40 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Jerry, If you set the flywheel with the piston at top dead center and the lever straight up, you will see where the contact has to be set. Based on the wiring sketch it looks like more of a flat spring contact. Hopefully someone on the forum will have a single cylinder Barber with the same setup. Keith
Top of pagePrevious messageNext messageBottom of page Link to this message

jerryh2o
New member
Username: jerryh2o

Post Number: 3
Registered: 05-2010
Posted on Tuesday, April 10, 2012 - 09:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I'm starting to get the idea of how this system operated. There are no threads in the hole on the collar, so maybe the contact was held in place by a spring clip? All this has been very helpful, and much appreciated. Jerry
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 514
Registered: 12-2003


Posted on Tuesday, April 10, 2012 - 10:28 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

My twin Barber has two flat spring contacts.
