| Author |
Message |

richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3376
Registered: 11-2001
| | Posted on Wednesday, September 10, 2014 - 02:56 pm: |
|
*

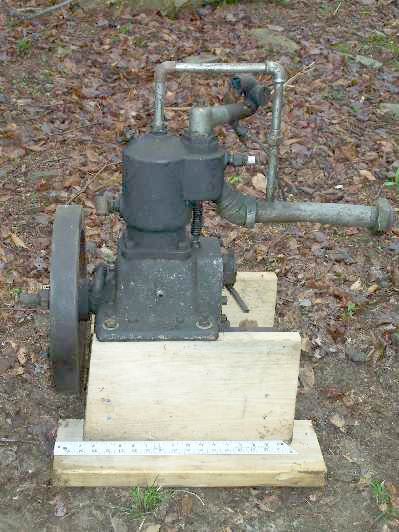

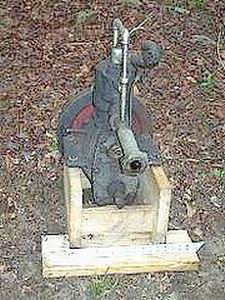

Any one know the I.D of this engine ?
Seems to have the output shaft drop down from the crankshaft level ?
* |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 945
Registered: 07-2002
| | Posted on Thursday, September 11, 2014 - 08:18 am: |
|
First I've seen Richard, looks like the cam and output shaft share the same drive gear. I wonder if it's a reduction, this wasn't really necessary until the high speed engines came around. This engine looks like it has an atmospheric intake, I guess 1000rpm or so max. One other thought is that if it replaced a steam engine it may have had a chance of using the same prop. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3377
Registered: 11-2001
| | Posted on Thursday, September 11, 2014 - 07:42 pm: |
|
*
J.B.
Good thought that it may have replaced a steam
engine ? interesting that we have not seen any
engines like it ?
A.J Houle Motor Works could be a possible mfgr, but none of these ads have that crankcase ??

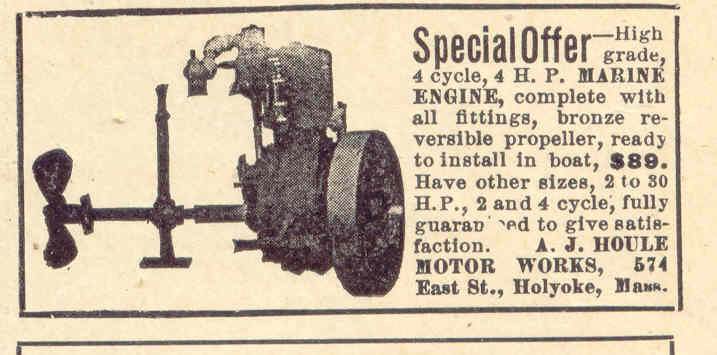

This 1905 ad the oldest I could find.

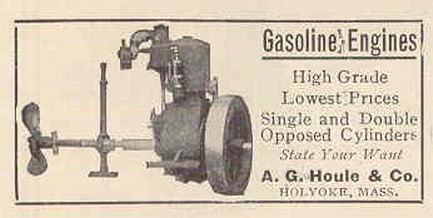

1907 ad lists a lot of different sizes ?

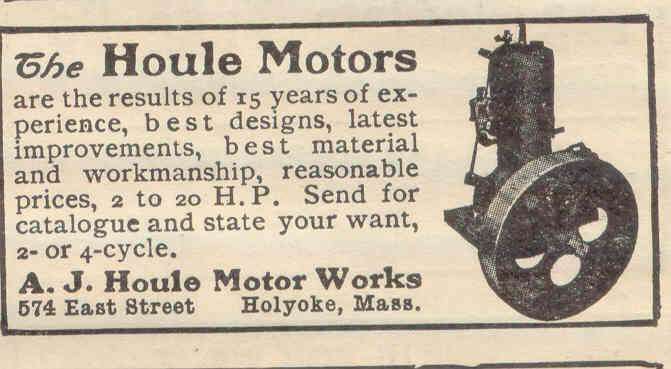

this 1909 ad says 15 yrs experience so maybe one of the engines made even before the A.J Houle Motor works was formed ?

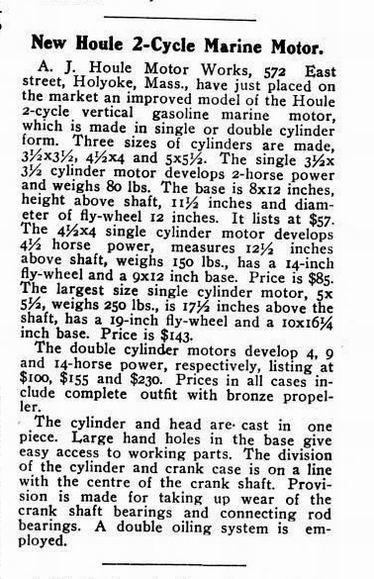

1906 Article of new engine
Very difficult to find info on some of these old Companies !
* |
|
|
|
|
