I had a crank to repair for my friend Bob Legnon. I welded the mains and rods and began to grind it. I noticed it had been welded in the throw, thought it was done properly, wrong. While grinding the first throw it broke in the weld, pinched the grinding wheel and spit the crank out at me. I did what I should have done in the first place, made a new crank. I had pictures of the process but the phone died and I lost them, here's a picture of the finished crank and the plate it was cut from. This is for a two cylinder Waterman copper top. It was a little bit of a challenge because my Arnold gauge, the indicator that allows you to measure while grinding, stops at 1", the crank is 15/16, 7/8, and 3/4". It took a little longer but came out OK, need to get a crank polisher, would save time and allow a better finish. I cut out two complete blocks for the throws and rough turned the mains, it was stronger and better balanced this way, the throws were cut after.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3665
Registered: 11-2001
Posted on Thursday, September 17, 2015 - 12:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

Wow ! Another piece of J.B. mechanical art work,
I would hate to hide it in a crankcase !


*
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 1096
Registered: 07-2002


Posted on Thursday, September 17, 2015 - 11:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Richard, Bob might let it hang around on the table for a while.
Top of pagePrevious messageNext messageBottom of page Link to this message

johnny
Senior Member
Username: johnny

Post Number: 547
Registered: 03-2006


Posted on Saturday, September 19, 2015 - 04:37 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Very nice looking work JB.

How do you do your stress relief and hardening or do you?
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 1097
Registered: 07-2002


Posted on Saturday, September 19, 2015 - 09:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Johnny. No treatment, just machine and use.
Top of pagePrevious messageNext messageBottom of page Link to this message

raa
Senior Member
Username: raa

Post Number: 96
Registered: 02-2007


Posted on Monday, September 21, 2015 - 01:23 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

great looking crank JB Your crank grinder sure beats cutting them out on a Lathe



crankshaft

Top of pagePrevious messageNext messageBottom of page Link to this message

solarrog
Senior Member
Username: solarrog

Post Number: 599
Registered: 03-2002


Posted on Monday, September 21, 2015 - 01:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

is anybody reproducing the timer gears for the K2, mine fell apart.
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 1099
Registered: 07-2002


Posted on Monday, September 21, 2015 - 06:56 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Good job on yours Dick, was that one water jetted?
Top of pagePrevious messageNext messageBottom of page Link to this message

raa
Senior Member
Username: raa

Post Number: 97
Registered: 02-2007


Posted on Monday, September 21, 2015 - 07:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

no it was flame cut out of 1045 annealed and Blanchard ground, tough turning for sure
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3666
Registered: 11-2001
Posted on Tuesday, September 22, 2015 - 06:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Dick

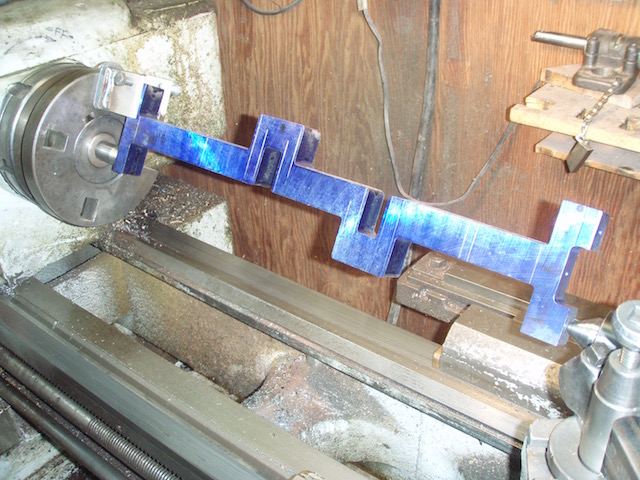

Good work, I appreciate the lathe setup photo, I am always impressed with the process of making your own crankshafts !

School is in session ( for me ), I looked up the Blanchard Rotary Grinding and discovered that it was started in 1911, all the many early engine parts with the semi circular striations on the machined faces I had thought they were milling machine made guess they could be either ??
In my time 1950's and later, cylinder heads, intake manifolds and engine blocks were ground on Rotary wet stones- was this the Blanchard Process ??

*
Top of pagePrevious messageNext messageBottom of page Link to this message

raa
Senior Member
Username: raa

Post Number: 98
Registered: 02-2007


Posted on Tuesday, September 22, 2015 - 07:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard

I have a good source for flat grinding. They have a whole herd of Blanchard grinders as well as large surface grinders such as Mattisson.
if anyone needs some grinding done let me know and I'll get you in touch. Both the Blanchard and the Mattisson grinders run wet.

cheers

Dick
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Senior Member
Username: rbprice

Post Number: 529
Registered: 11-2001


Posted on Tuesday, September 22, 2015 - 09:09 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Solarrog - do you have any pictures of your timing gears?
Bob
Top of pagePrevious messageNext messageBottom of page Link to this message

solarrog
Senior Member
Username: solarrog

Post Number: 600
Registered: 03-2002


Posted on Wednesday, September 23, 2015 - 01:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yes of what is left, I lost the link to where the resizer tool was
