Unknown Small Engine

Old Marine Engine » One and Two Cylinder Gas Inboards » Unknown Small Engine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

tmann
Member
Username: tmann

Post Number: 20
Registered: 09-2015
Posted on Wednesday, March 22, 2017 - 12:52 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

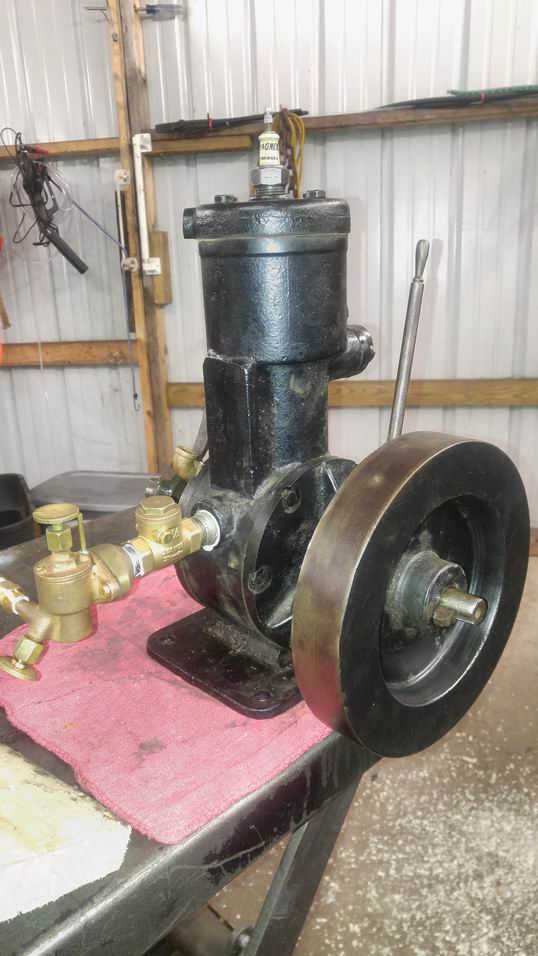

Would appreciate any information on the possible manufacturer of this engine.
I bought it a couple of years ago, in pieces, and just now have got it together.
I initially figured it was either a model engine, or made to run some small setup of some kind.
It's 14" tall, solid flywheel 8 1/2".
After looking at it pretty closely, though, it shows signs of being actually worked pretty extensively in it's day.
No markings I can find, but there are two rivets on the top of the head that probably held a brass tag in place.
Hope the pictures of it will post.

Thanks,

Tmann

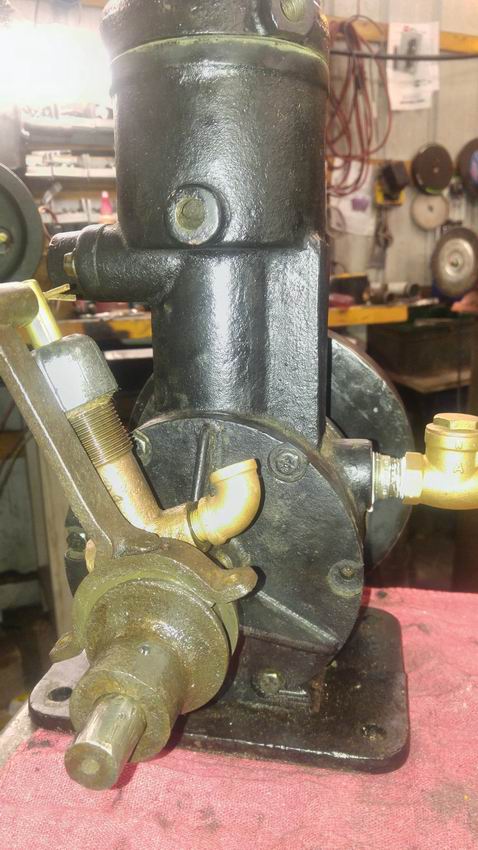

Unknown marine engine
Top of pagePrevious messageNext messageBottom of page Link to this message

tmann
Member
Username: tmann

Post Number: 21
Registered: 09-2015
Posted on Wednesday, March 22, 2017 - 12:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hopefully a couple of more pictures of the Unknown engine.

Tmann
Top of pagePrevious messageNext messageBottom of page Link to this message

tmann
Member
Username: tmann

Post Number: 22
Registered: 09-2015
Posted on Wednesday, March 22, 2017 - 03:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Here's another one



TmannUnknown engine
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 2374
Registered: 01-2002


Posted on Wednesday, March 22, 2017 - 05:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

At a guess and a wild one at that
Watertown
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3971
Registered: 11-2001
Posted on Wednesday, March 22, 2017 - 05:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

An old marine engine looks to be late 1890's

If you send me a good set of photos , ample size
all 4 sides focused and full engine shots, I'll post them here and research it. Would like to put a name on this one.
click my name at left for email address- look forward to photos.

*
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3972
Registered: 11-2001
Posted on Wednesday, March 22, 2017 - 07:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

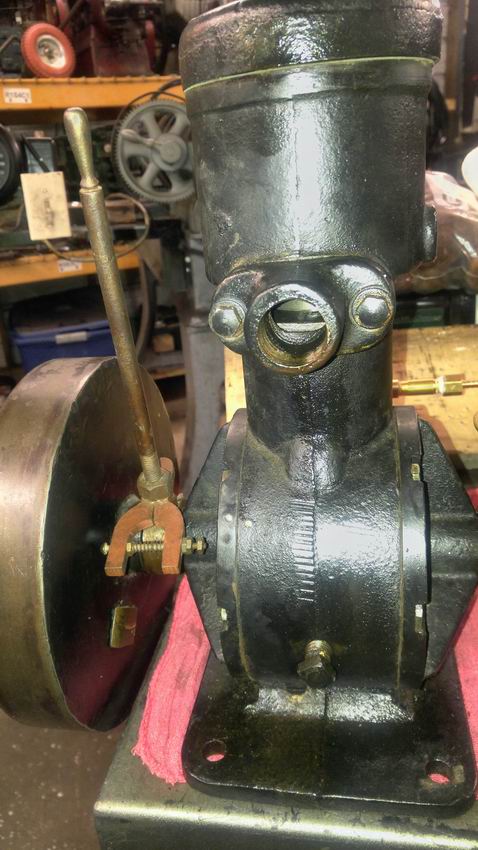

Tmann's photos


1

2

3

4

Will try to put a makers name to this old marine engine.

All guesses info or suggestions appreciated.

*
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 681
Registered: 12-2003


Posted on Wednesday, March 22, 2017 - 09:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

That's a nice early engine.
Top of pagePrevious messageNext messageBottom of page Link to this message

Engineville@aol.com
Visitor
Posted on Wednesday, March 22, 2017 - 10:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Another guess ... the round crankcase might be an Iowa Marine Engine.
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 287
Registered: 02-2008
Posted on Thursday, March 23, 2017 - 08:00 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I sold an engine like this at Mystic I was told it was a school project looks like the same engine if not their is moor than one?
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3973
Registered: 11-2001
Posted on Thursday, March 23, 2017 - 11:47 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

Engineville's guess is a good one, I considered the Iowa for a closer look-- the pedestal base and round shaped crankcase get you interested but closer look the Iowa pedestal based engs had an external fuel pipe, and close look at the cylinder and crankshaft flanges reveal a different casting design.

Iow 1


Iow 2

______________________________
______________________________

Scott's suggestion that it was a school project
maybe although the castings look more commercially
done ? No name yet - Keep on looking.

*
Top of pagePrevious messageNext messageBottom of page Link to this message

tmann
Member
Username: tmann

Post Number: 23
Registered: 09-2015
Posted on Thursday, March 23, 2017 - 05:52 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I appreciate all the effort and resources being tapped to ID the engine.
Scott, when I read your post, I remembered what the seller said about maybe the engine was a project? He may have been the one to buy it from you. He's a great guy that lives up in Ohio on the lake.
In looking it over closely, everything on it looks quite old, and factory done- with the exception of the piston. That's the reason I took it home.
As I told Richard in a pm, the piston looks newer. It is cast, and 2.5" diameter, abt. 3" long.
The deflector may have been added, but if so, VERY skillfully done.
Today looked it over with a magnifying glass for marks, and only came up with a flywheel mark, and possible letter beside it, and, of course several places where my imagination saw remnants of letters/numbers. The flywheel mark looks to me like whats left of a spoked flywheel, with the letter "O", or "C" cast beside it.
Hope the attachment posts, and thanks to everyone again.

Tmann
Top of pagePrevious messageNext messageBottom of page Link to this message

tmann
Member
Username: tmann

Post Number: 24
Registered: 09-2015
Posted on Thursday, March 23, 2017 - 06:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

See that the image didn't post- will ask Richard if he will post it for me.

Tmann
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3974
Registered: 11-2001
Posted on Friday, March 24, 2017 - 01:45 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

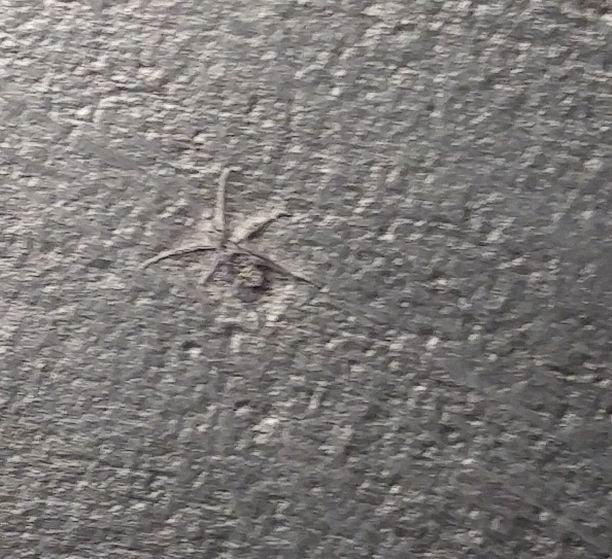

Flywheel mark

mark


*
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 288
Registered: 02-2008
Posted on Tuesday, March 28, 2017 - 08:12 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

www.oldmarineengine.com/discus/massages/3454/117096.html
I think this mite be the same engine
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 289
Registered: 02-2008
Posted on Tuesday, March 28, 2017 - 08:23 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

http://www.oldmarineengine.com/discus/messages/3454/117096.html
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 290
Registered: 02-2008
Posted on Tuesday, March 28, 2017 - 08:26 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I got it right the second time.
I also painted the engine black before i sold it.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3975
Registered: 11-2001
Posted on Tuesday, March 28, 2017 - 09:26 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

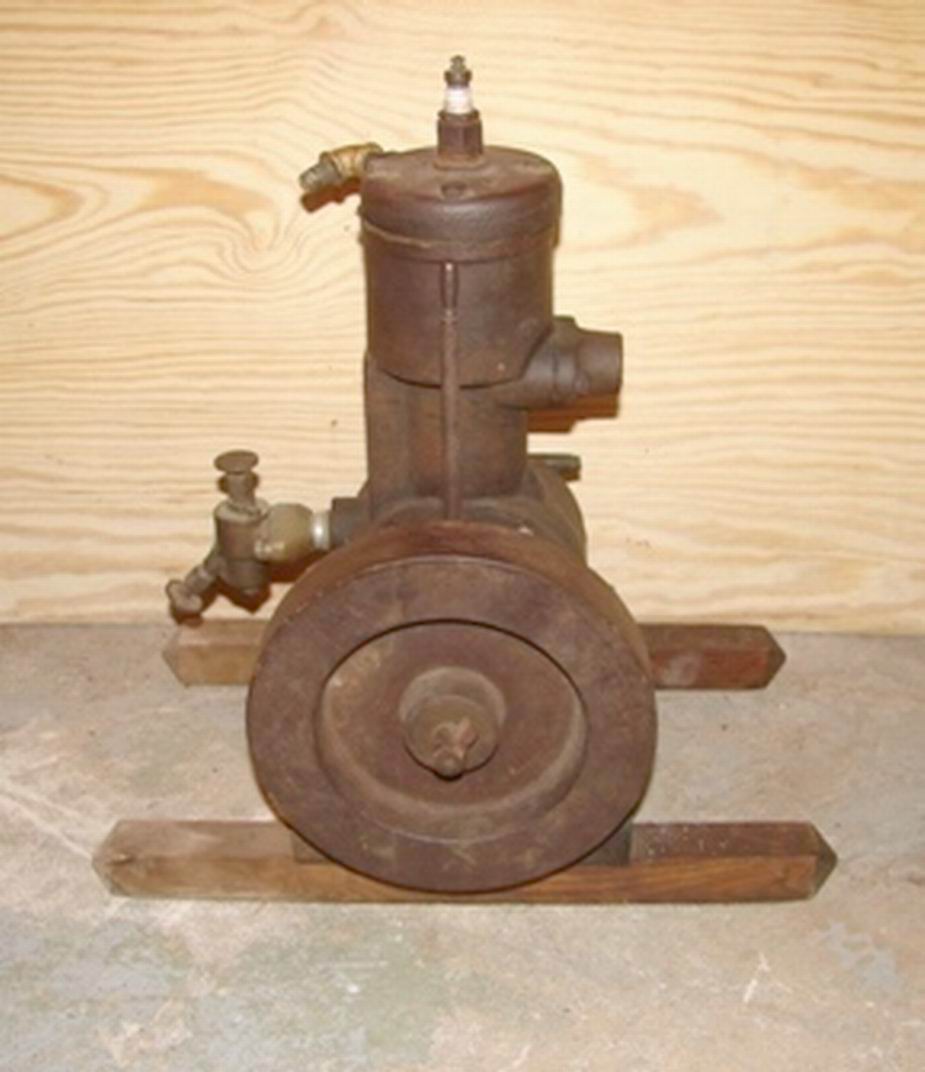

Scott

Good memory its either the same engine
or its twin !

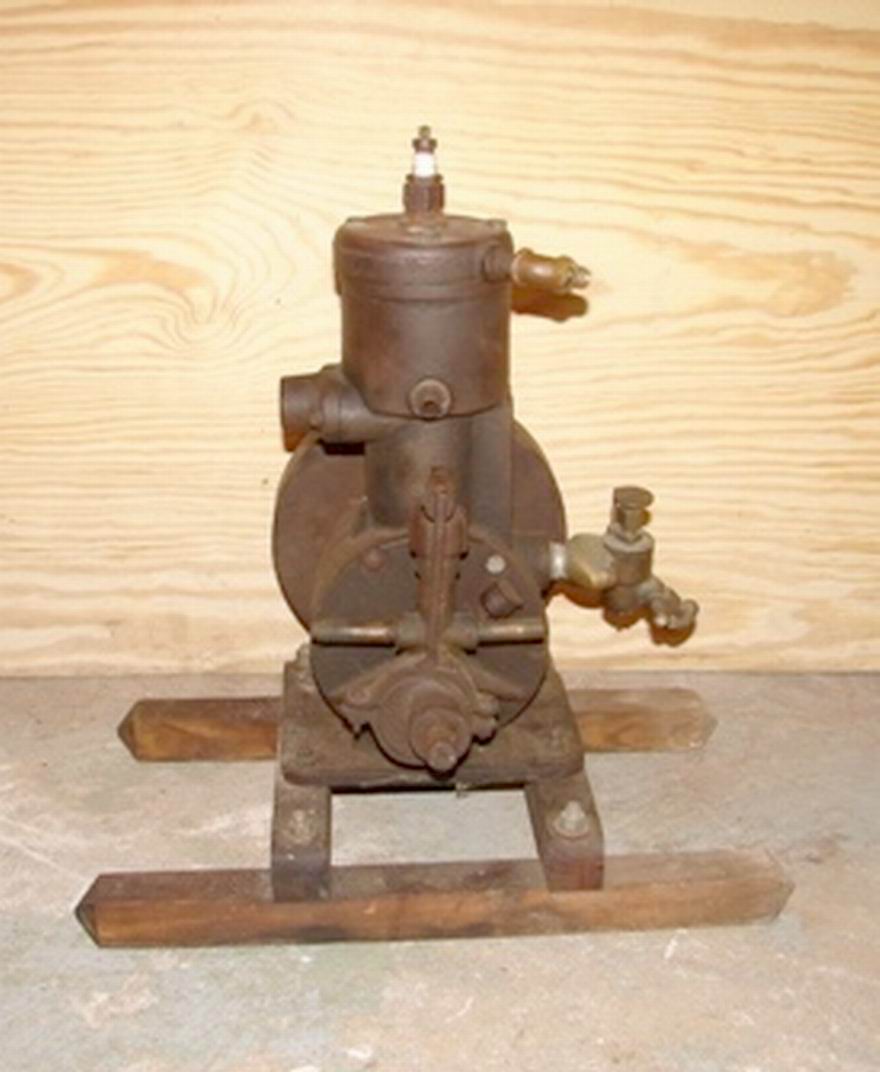

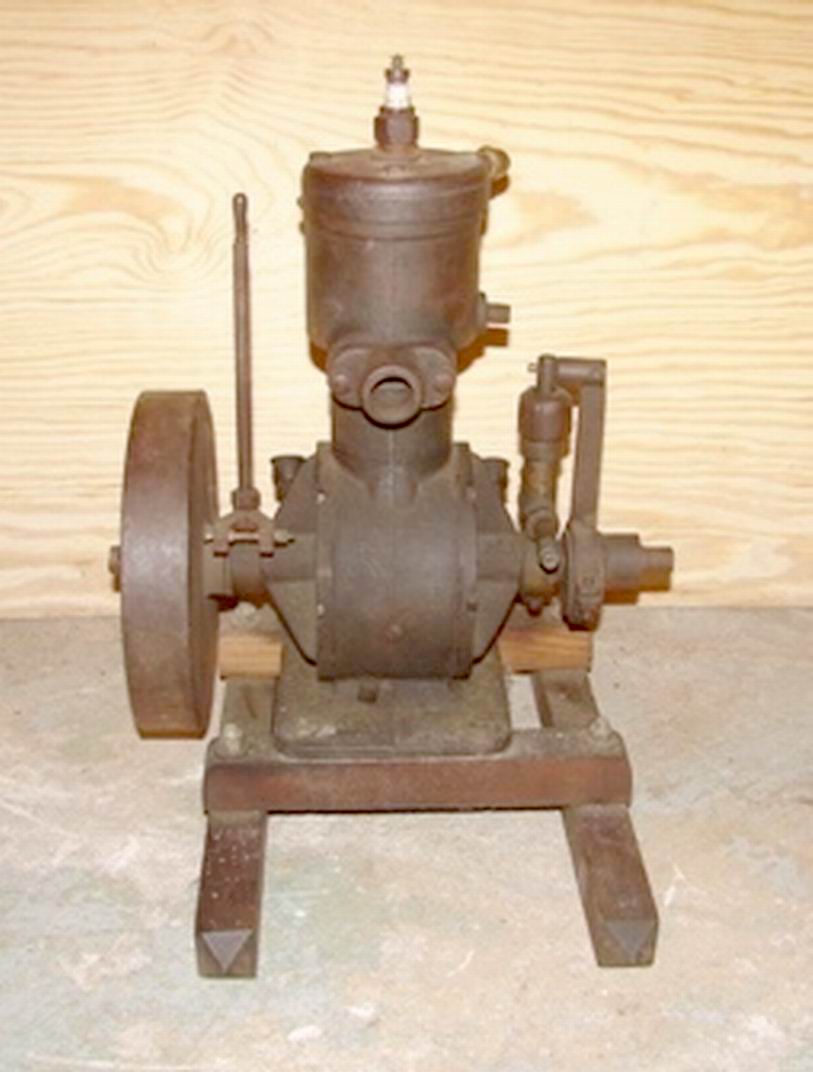

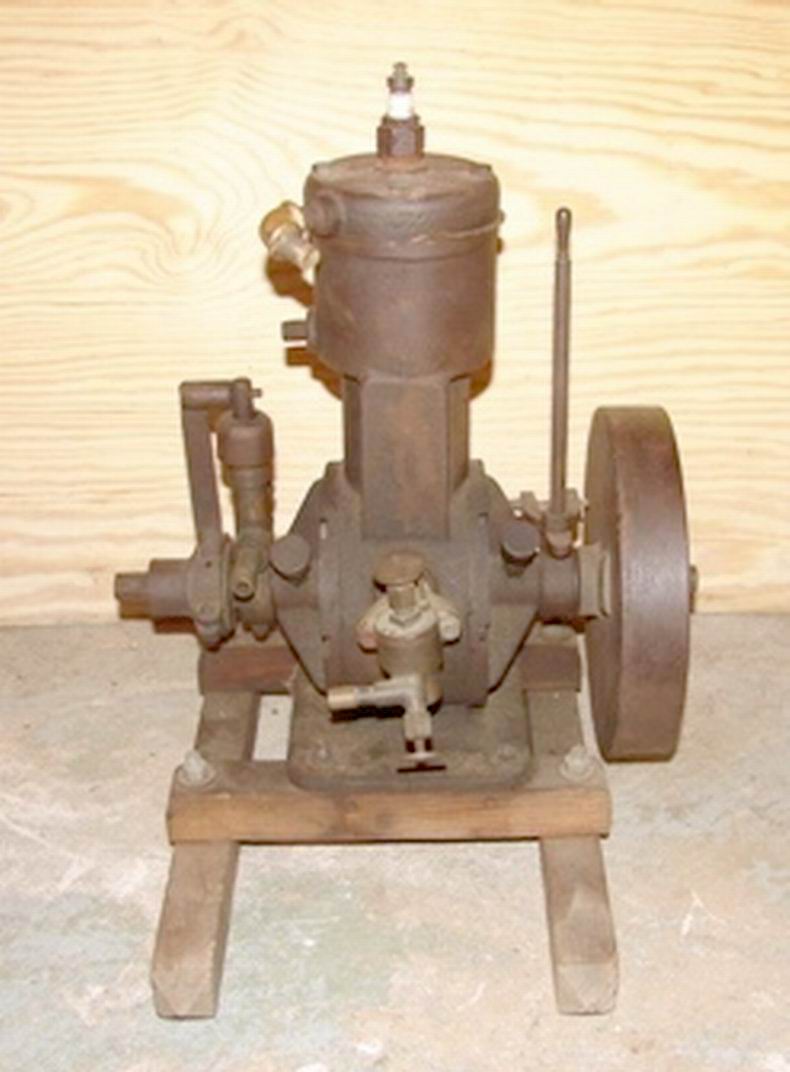

1

2

3

4

Still looking for Makers name ?


*
Top of pagePrevious messageNext messageBottom of page Link to this message

tmann
Member
Username: tmann

Post Number: 25
Registered: 09-2015
Posted on Tuesday, March 28, 2017 - 10:26 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Scott, thanks for the photos. It's definitely the very same engine.
I initially had it running for a brief time,but couldn't get it to idle.

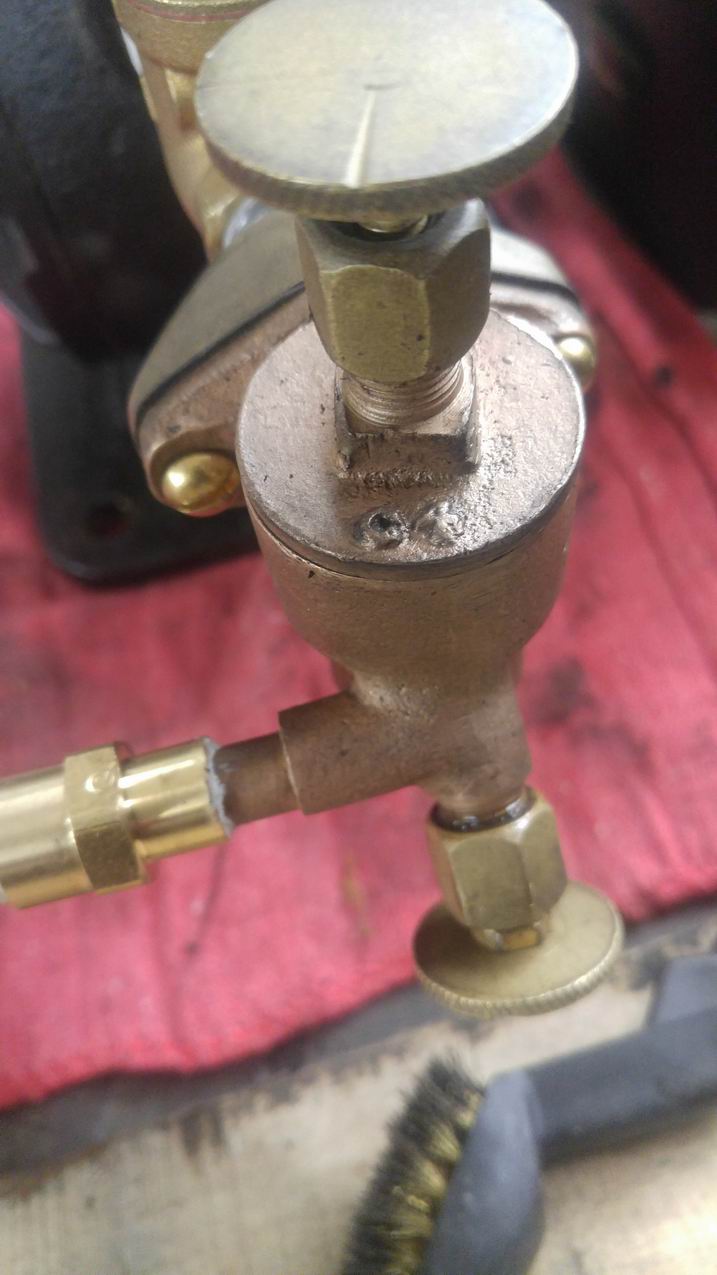

One ring turned out to have a small piece missing, where it was notched for the pin, and the needle valve was just about eaten away on the end.
I made a new brass needle for it, and just waiting on new rings to get it back together.
The old rings mic out to be the same as a Maytag 92. Look forward to playing with some more once it's up and running.
Thanks again for the history and photos.

Tmann
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 291
Registered: 02-2008
Posted on Thursday, March 30, 2017 - 07:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Glad you are getting it running I only got her to pop a couple of times never disassembled it.
I found it at a swap meet in Coldchester CT.
