Norfolk Navy Yard Engine

Old Marine Engine » One and Two Cylinder Gas Inboards » Norfolk Navy Yard Engine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

nater
New member
Username: nater

Post Number: 1
Registered: 04-2017
Posted on Tuesday, January 30, 2018 - 04:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looking for any information about pre-1915 Norfolk Navy Yard 2 cylinder engines. Pictures, drawings, manuals, parts etc.
Trying to restore/reconstruct a 2-cylinder 4-1/2" bore motor.
Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 4088
Registered: 11-2001
Posted on Wednesday, January 31, 2018 - 01:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

Could you post some photos of the engine ?

*
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 302
Registered: 02-2008
Posted on Wednesday, January 31, 2018 - 08:49 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The engine is taking apart in a crate we will try to hang it all together and post some pictures
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 4090
Registered: 11-2001
Posted on Wednesday, January 31, 2018 - 09:52 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

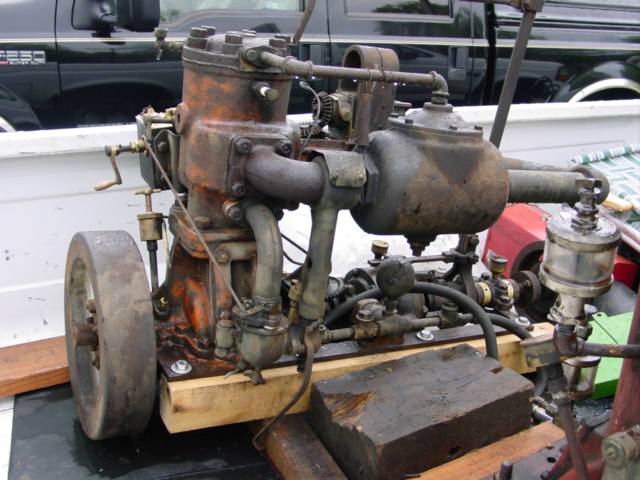

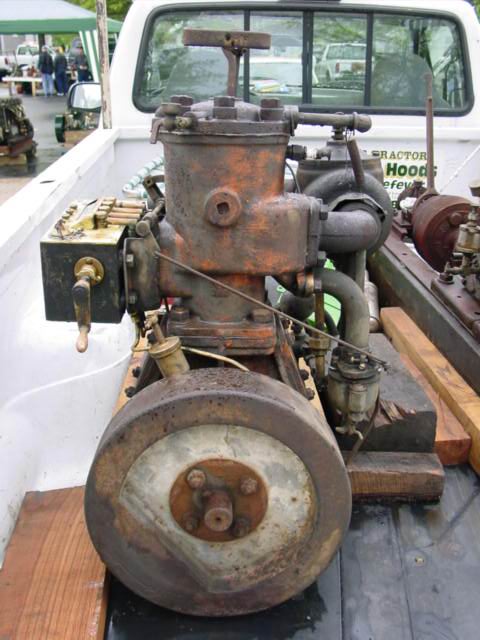

Scott this is only Navy engine photos I have, this eng was at Calvert show many yrs ago.

Navy didn't advertise their engines as far as I know so no help there !


n1


n2


n3


*
Top of pagePrevious messageNext messageBottom of page Link to this message

robert
Senior Member
Username: robert

Post Number: 932
Registered: 07-2003
Posted on Wednesday, January 31, 2018 - 11:50 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

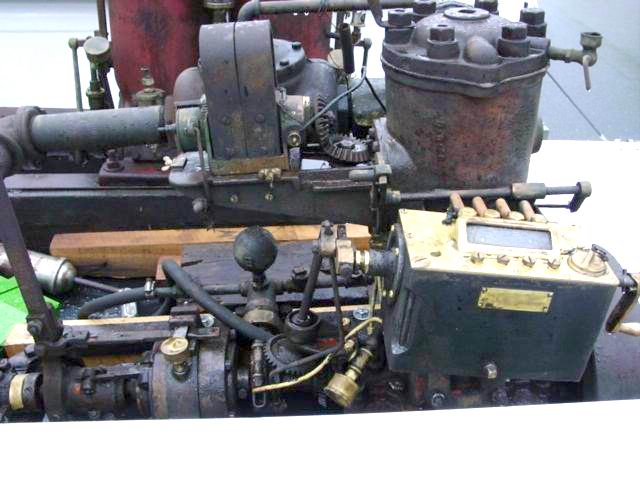

Never seen that placement of a priming cup before. Detroit lubricator by the look of it, but something has happened to the grip on the filler plug...could the Navy have polished most of it off?!
Does anyone recognize the magneto?
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 4091
Registered: 11-2001
Posted on Wednesday, January 31, 2018 - 01:32 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Bosch DU ?


*
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 4092
Registered: 11-2001
Posted on Wednesday, January 31, 2018 - 05:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
1919


me19



nengart19


*
Top of pagePrevious messageNext messageBottom of page Link to this message

scott_n
Senior Member
Username: scott_n

Post Number: 303
Registered: 02-2008
Posted on Thursday, February 01, 2018 - 02:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard Thanks I have bin looking for these Pictures for about a year I new I saw them on ome But could not remember were they were ours is a two cylinder and missing the heads.
Top of pagePrevious messageNext messageBottom of page Link to this message

nater
New member
Username: nater

Post Number: 2
Registered: 04-2017
Posted on Friday, February 02, 2018 - 08:52 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Here are a couple of pictures of the engine as we have it today. From looking at the posted pictures, we think ours is a very early version. The lower side covers have a riveted wood block to take up space in the crankcase. From Richard's pictures, we see that the new side covers have a casting with a built-in indent.

As Scott said, we are missing both heads. We also are missing 2 of the lower side covers. Any additional photos would be much appreciated.
Top of pagePrevious messageNext messageBottom of page Link to this message

robert
Senior Member
Username: robert

Post Number: 935
Registered: 07-2003
Posted on Friday, February 02, 2018 - 10:31 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

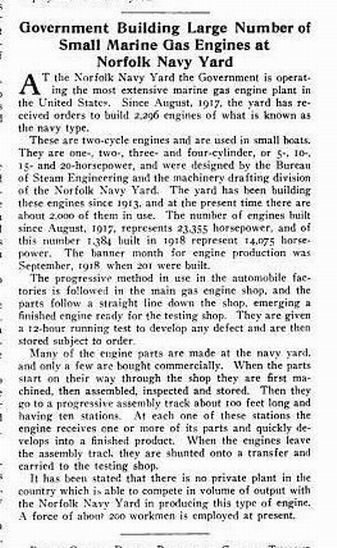

Thanks for that clipping Richard! Surprising, at least today, that the USN would think it had to build its own engines, rather than contract out the job, but presumably they had the manufacturing facilities and wanted to keep them busy? The choice of jump-spark over make and break surprises me since the former was considered much less reliable was it not?
