Palmer YT-1 Installation

Old Marine Engine » One and Two Cylinder Gas Inboards » Palmer YT-1 Installation « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

queeniebee
New member
Username: queeniebee

Post Number: 3
Registered: 05-2021
Posted on Friday, May 14, 2021 - 08:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am new to this discussion board.
Question about mounting a 1930 Palmer YT-1 in a Chesapeake Bay Crab Skiff. Can anyone tell me what Palmer recommends for the maximum mounting angle of the engine? The mounting is currently 15 degrees. Is this too acute? The answer is most likely in Dick Day’s YT-1 Manual, I had a copy and cannot locate the manual.

Thank you for any information you can supply.
Top of pagePrevious messageNext messageBottom of page Link to this message

narrabay2
Senior Member
Username: narrabay2

Post Number: 171
Registered: 10-2019
Posted on Monday, May 17, 2021 - 03:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I *believe* that 15 deg is the maximum recommended. When I dig up my manual I will email it to you. Post pics of your project we'd love to see it!
Top of pagePrevious messageNext messageBottom of page Link to this message

narrabay2
Senior Member
Username: narrabay2

Post Number: 172
Registered: 10-2019
Posted on Monday, May 17, 2021 - 03:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

OK I just found it and checked, it's 4" to the foot maximum angle. Hopefully you can translate that to degrees...

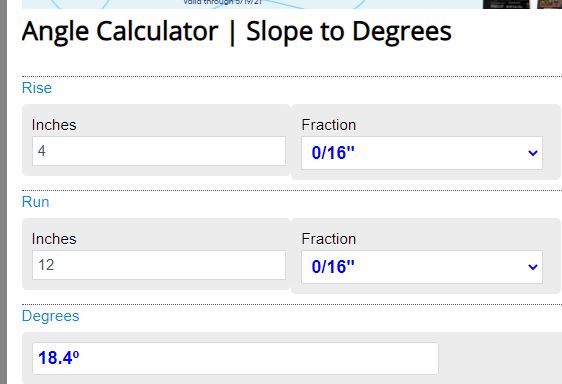

EDIT - I found an online calculator and it shows 4" rise over 12" run to be just over 18 degrees...

I'll email the manual to you now


Top of pagePrevious messageNext messageBottom of page Link to this message

narrabay2
Senior Member
Username: narrabay2

Post Number: 173
Registered: 10-2019
Posted on Monday, May 17, 2021 - 03:27 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

here it is



and here's the link

https://learnframing.com/angle-calculator-slope-degrees/

and excerpt from the installation instructions:
