| Author |
Message |

johnny
Senior Member
Username: johnny
Post Number: 636
Registered: 03-2006
| | Posted on Tuesday, May 10, 2022 - 09:39 am: |
|
Anyone in need of a water pump strap for a Detroit marine engine I might be able to help you. Cattail Foundry cast 7 of them for me and I have a few extra's. Email me if interested. Think these will fit Detroit or Sandow marine engines 2 to 3 hp.
Thank you Emanuel & company for doing such a great job on casting the pump strap's.
 |
johnny
Senior Member
Username: johnny
Post Number: 637
Registered: 03-2006
| | Posted on Friday, May 13, 2022 - 10:20 am: |
|
Just finished machining one of the bronze DEW water pump straps for a fellow engine collector.
 |
johnny
Senior Member
Username: johnny
Post Number: 638
Registered: 03-2006
| | Posted on Friday, May 13, 2022 - 10:41 am: |
|

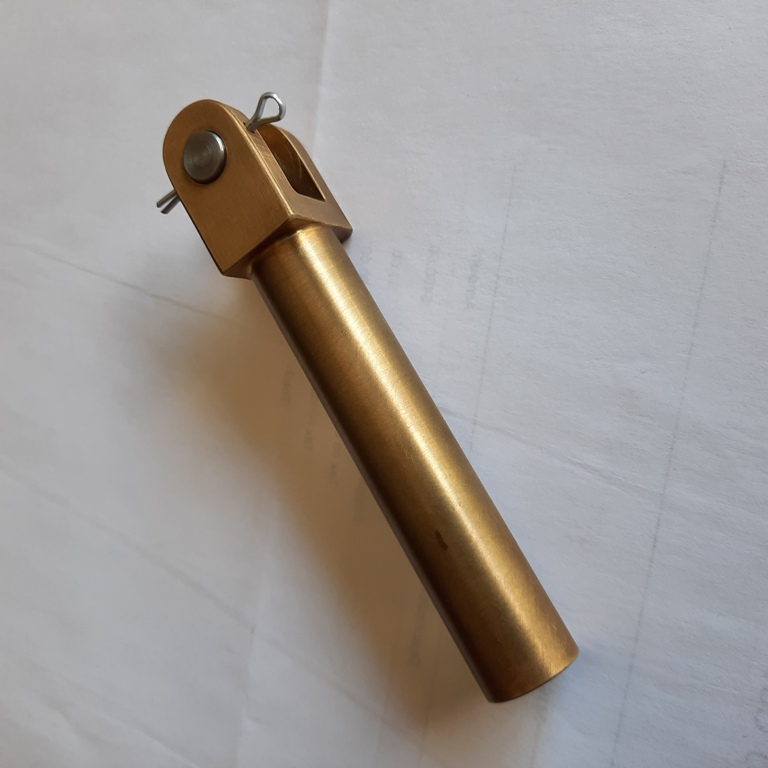

Also machined a brass water pump piston for a DEW marine engine.
 |
dick_briggs
Senior Member
Username: dick_briggs
Post Number: 58
Registered: 02-2015
| | Posted on Friday, May 13, 2022 - 01:20 pm: |
|
Good looking castings as usual for what I have seen from Cattail, and good of you to make extras for others who might need one. Very nice machining too. Would you tell me what you sent to Cattail - a pattern you made or an original connecting rod? Thanks, Dick Briggs |
johnny
Senior Member
Username: johnny
Post Number: 639
Registered: 03-2006
| | Posted on Friday, May 13, 2022 - 11:15 pm: |
|
Hi Dick, I modified an original DEW bronze water pump strap arm for my pattern. I'll go out to the shop tomorrow & take a few photo's of the pattern & post them so you can see what I done. |
dick_briggs
Senior Member
Username: dick_briggs
Post Number: 59
Registered: 02-2015
| | Posted on Saturday, May 14, 2022 - 01:06 pm: |
|
Thank you, I appreciate it. |
johnny
Senior Member
Username: johnny
Post Number: 640
Registered: 03-2006
| | Posted on Saturday, May 14, 2022 - 10:28 pm: |
|
 |
johnny
Senior Member
Username: johnny
Post Number: 641
Registered: 03-2006
| | Posted on Saturday, May 14, 2022 - 10:43 pm: |
|
 |
johnny
Senior Member
Username: johnny
Post Number: 642
Registered: 03-2006
| | Posted on Saturday, May 14, 2022 - 10:46 pm: |
|
 |
johnny
Senior Member
Username: johnny
Post Number: 643
Registered: 03-2006
| | Posted on Saturday, May 14, 2022 - 10:46 pm: |
|
 |
johnny
Senior Member
Username: johnny
Post Number: 644
Registered: 03-2006
| | Posted on Saturday, May 14, 2022 - 10:47 pm: |
|
 |
johnny
Senior Member
Username: johnny
Post Number: 645
Registered: 03-2006
| | Posted on Monday, May 16, 2022 - 10:34 am: |
|
I use JB weld stick puddy to fill in all the holes & add material in some places where I wanted more bronze stock for machining purposes. The bottom end of the large bore is glued to top with cyanoacrylate (Super Glue). I machined the two aluminum rings with flanges on my Monarch lathe & those two rings are also just glued and allow for more stock on the large ID bore & also on the two faces. |
dick_briggs
Senior Member
Username: dick_briggs
Post Number: 60
Registered: 02-2015
| | Posted on Monday, May 16, 2022 - 11:18 am: |
|
Perfect - I was hoping for a bit more explanation for the pictures. Thank you very much. Dick |
johnny
Senior Member
Username: johnny
Post Number: 646
Registered: 03-2006
| | Posted on Saturday, May 21, 2022 - 08:44 pm: |
|
Hey Dick, Which photo & what is it you want to know? I'll try my best to answer your questions. |
dick_briggs
Senior Member
Username: dick_briggs
Post Number: 61
Registered: 02-2015
| | Posted on Sunday, May 22, 2022 - 05:22 am: |
|
I apologize for I see my response wasn't clear. Your follow up comments on the 16th explained what you did and what I was asking. Thanks again. |
