Pacific Marine Supply Engine

Old Marine Engine » One and Two Cylinder Gas Inboards » Pacific Marine Supply Engine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

ken
Posted on Thursday, November 08, 2001 - 07:06 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Anybody heard of it?Maybe a pump engine.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Sunday, November 11, 2001 - 08:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ken:Reading the Nov 2001 issue of Gas Engine magazine, on page 16 is an article on this engine.
built some time in 1930's by The Fire Equipment Division of Pacific Marine Supply Co. Seattle, Wash. Apparentaly built from two Johnson outboard,water cooled, opposed two cyclinder engines, on a portable base directly driving a
pump.
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank
Posted on Sunday, January 13, 2002 - 02:36 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Frank,
Your picture didn't load... try again or send it to me by email and I will post it.
Regards,
Andrew

1,pump
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank
Posted on Sunday, January 13, 2002 - 11:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

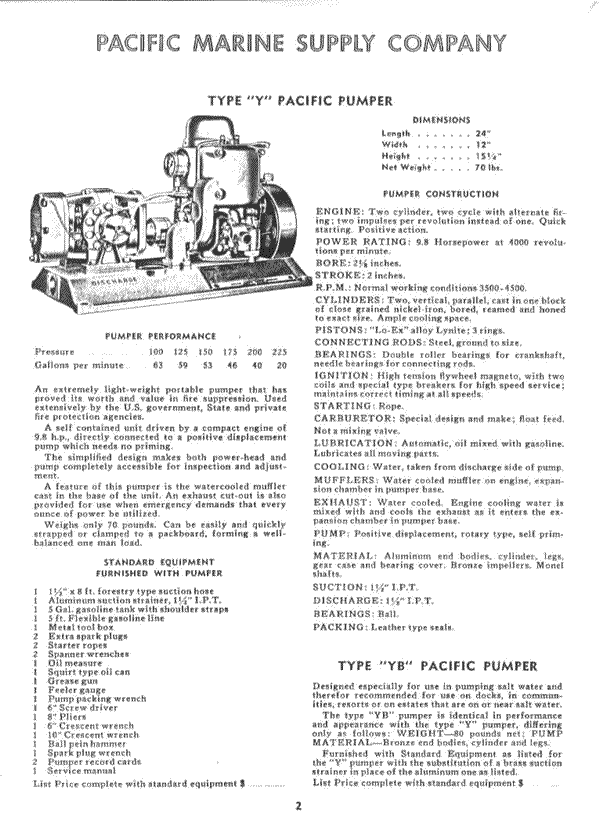

Here Is the Information and picture of the Pacific Marine Pump.
I have two of them. Never tried to run them. Don't know the fuel mix or the spark adjustment lever settings. One will fire on both cylinders & one will fire on one cylinder (bad wire)
Later
Frank Watson
Southeastern VA
image/gifpacific
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank Watson
Posted on Tuesday, January 15, 2002 - 12:07 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

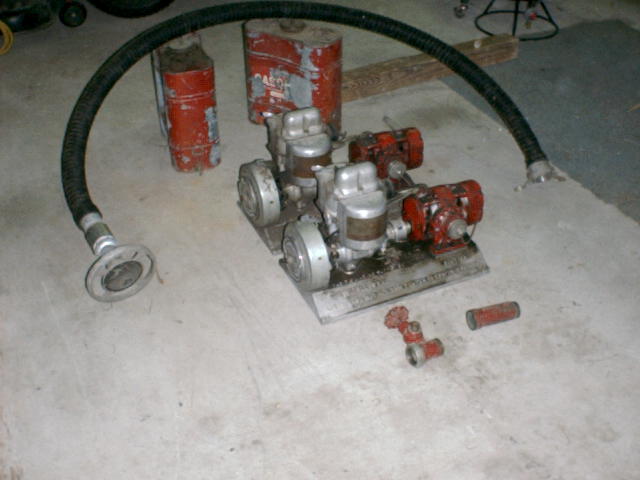

Here is some pictures
Frank {:-{)
pmp1
pmp2
pmp3
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank Watson
Posted on Friday, May 10, 2002 - 10:01 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does any one know the Fuel-Mix and the proper settings to start and run this type of engine
Top of pagePrevious messageNext messageBottom of page Link to this message

ARIELO97
Posted on Monday, June 14, 2004 - 07:54 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I HAVE ONE BUT DON`T KNOW ANYTHING ABOUT IT YET
LOOKS LIKE A PORTABLE TWO MAN EXTINGUISHER FOR
SHIPS. AS FAR AS I KNOW MOST OLDER ENGINES USED
A 20 TO 1 MIX.
Top of pagePrevious messageNext messageBottom of page Link to this message

Monte Jensen
Posted on Monday, June 14, 2004 - 11:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have one of these pumps. Anyone want to buy it?
montchar@sbcglobal.net
Top of pagePrevious messageNext messageBottom of page Link to this message

ARIELO
Posted on Monday, June 21, 2004 - 09:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

CORRECTION ON OIL MIXTURE,I BELIEVE IT WAS 16 TO 1
OR 1 QT TO 6 GALS. 30 WT. OUTBOARD OIL,I`M NOT
SURE BUT I THINK YOU CAN USE 50 TO 1 BUT USE THE
OLD RATIO. I BELEVE THE DIFFERENCE IS BABBIT
BEARINGS VERSES ROLLERS
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Tuesday, June 22, 2004 - 07:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

For the old time slow speed 2 strokes the correct mix is 40:1 SAE #30 non detergent. One pint to five gallons of regular gasoline. Don't use modern two stroke oil as it is intended for much higher swept piston speeds and higher temperatures such in weed wackers and chain saws. Modern two stroke outboards were designed to work with 50:l. Using modern two stroke oil in the old timers won't hurt but it will make a much bigger mess as the oil just passes through the basically cold engine and out the exhaust pipe. Won't win you any friends at engine shows or with the coast guard when you leave a big oil slick in your wake. The selection of 40:1 took place about 1910 as it provided good lubrication for cold running engines and most of the oil burned in the combustion chamber and not a lot went down the exhaust pipe. The heavy use two stroke engines tended to be cleaned once a season because of combustion chamber carbon build up. It is my opinion and only that that the pumpers mentioned above operate cold as their cooling water comes from the pump and therefore I would avoid mixtures less than 30 to 40 to 1. 16:1 is the classic Maytag washing machine air cooled mixture. It produces huge clouds of oil smoke and a lot of carbon build up in the cylinder head in these air cooled high temp engines.
Top of pagePrevious messageNext messageBottom of page Link to this message

Al Shell
Visitor
Posted on Saturday, November 12, 2005 - 06:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Out board Marine (Lawnboy) had the mixture on the cans. I have one @ my computer that is about 35 to 40 years old. It states 1/2 pint to each gallon (16 - 1). Latter they went to 1/2 pint to 2 gallons (32 - 1). It is a MS service 30 weight oil. Made in Galesburg Ill. Now this was intended for air cooled engines not water cooled. Later on Lawnboy went to a parasyn oil and different mixture. I also have several cans of "Special Formula" that reduces deposits & extends engine life that is 40 weight oil from the same era (16 - 1).
Top of pagePrevious messageNext messageBottom of page Link to this message

frank graney
Visitor
Posted on Tuesday, February 21, 2006 - 01:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello; Does anyone know where to get parts for these pumps? I need the bronze pump gears. The type is 2010 - 9.8 hp 80 gpm 100psi 3500rpm.
Top of pagePrevious messageNext messageBottom of page Link to this message

solarrog
Senior Member
Username: solarrog

Post Number: 123
Registered: 03-2002


Posted on Tuesday, February 21, 2006 - 03:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

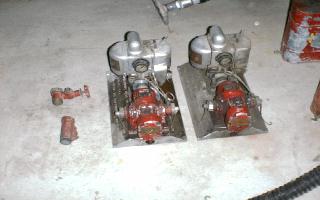

here are some pictures of the opposed pumpers
I hope, I never know if my pictures will work the first try
Top of pagePrevious messageNext messageBottom of page Link to this message

Tim Bush
Visitor
Posted on Friday, March 19, 2010 - 07:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi, I am from Australia, and own one of these pump/engines. Does anyone have a service manual for one of these? If anyone could either do a copy, or sell one to us I would be happy to pay for it. Regards, Tim}
Top of pagePrevious messageNext messageBottom of page Link to this message

axtion_jim
Advanced Member
Username: axtion_jim

Post Number: 37
Registered: 01-2006
Posted on Wednesday, April 07, 2010 - 12:12 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Tim, Ive just yesterday had a dicussion with a felloe that work on these fire pumps for the forestry service. He has retired from service but still has contacts. He believes that there is some info on this equipment in a file at his old work place and is going to check it out this comming Friday. Will get back to you.
Top of pagePrevious messageNext messageBottom of page Link to this message

tedd
New member
Username: tedd

Post Number: 1
Registered: 03-2011
Posted on Wednesday, March 09, 2011 - 11:42 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a vintage box of 9 (in original wax) Champion #13 plugs from Pacific Marine Supply co. that I beleive fits these pumps...Anyone interested?Champion #13 spark plugs
Top of pagePrevious messageNext messageBottom of page Link to this message

solarrog
Senior Member
Username: solarrog

Post Number: 479
Registered: 03-2002


Posted on Wednesday, March 09, 2011 - 11:55 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

how much? I have a few of these pumps
Roger
Top of pagePrevious messageNext messageBottom of page Link to this message

tedd
New member
Username: tedd

Post Number: 2
Registered: 03-2011
Posted on Thursday, March 10, 2011 - 01:29 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Roger, I sold one plug to a guy last week for $15. He wants the rest of them for $15 each. I'm not sure what the rest of the box is worth...so, I guess, best offer.
Tedd
360 581 2912
Top of pagePrevious messageNext messageBottom of page Link to this message

Bob Birdseye
Visitor
Posted on Sunday, August 05, 2012 - 06:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have one of these pumps and there is a chamber when looking at the motor on righthand side (there's a bracket inside the chamber). Does anyone know what goes in there? I have not run the pump yet but plan too in the near future. Any info would be greatly appreciated.
Top of pagePrevious messageNext messageBottom of page Link to this message

motorace
New member
Username: motorace

Post Number: 3
Registered: 10-2013


Posted on Thursday, October 17, 2013 - 09:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Regarding the Oil/Water ratio, I found this in the Nov 2001 Gas Engine Magazine article referenced above. It applies specifically to the FOUR-cylinder Pacific Marine Supply engine in the article:

Starting and Oiling Instructions for Pacific Marine:
Fill tank with a mixture of gasoline and oil. Zerolene No. 5, manufactured by the Standard Oil Co. of California, or Gargoyle Mobile Oil A. One-half pint oil to a gallon of gasoline. Shake well before pouring - for the first 20 hours of running a new engine use three-quarters pint of oil to a gallon of gasoline.

The entire article can be found online here:
http://www.gasenginemagazine.com/gas-engines/pacific-marine.aspx#axzz2i1vxymDY
}}
