Driggs-Seabury Motor Pictures

Old Marine Engine » Multi Cylinder Gas Inboards » Driggs-Seabury Motor Pictures « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

gryphon
Member
Username: gryphon

Post Number: 4
Registered: 07-2007
Posted on Saturday, August 11, 2007 - 04:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Here are some pics of my Marinized Driggs-Seabury 4 cylinder flat head, circa 1913-1915? Any information anyone may have or resources that I can be pointed towards is greatly appreciated. I am in need of spark plugs with 3/4 inch threads on them, if you know of any, please let me know. Thanks a lot, Jon.

Intake, exhaust & valve side.
Magneto base & oil fill side.
Freshly balanced rotating assembly & cam.
Cast aluminum oil pan & rod dipper tray.
Bosch magneto & brass Tillotson carb.
3 of 4 reciprocating parts & misc.
Top of pagePrevious messageNext messageBottom of page Link to this message

gryphon
Member
Username: gryphon

Post Number: 5
Registered: 07-2007
Posted on Saturday, August 11, 2007 - 04:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

None of the desciptions I put with the pics came through, so here they are.

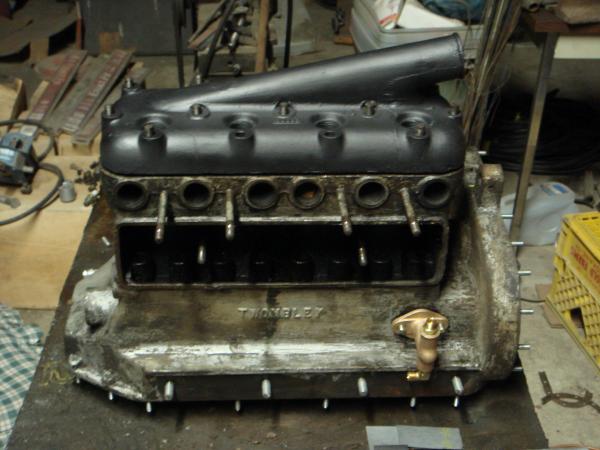

1)Right side of motor showing intake, exhaust & valvetrain compartment. Brass bit is the piston pump that is run by the @1 exhaust lobe of the cam to oil the front gears.

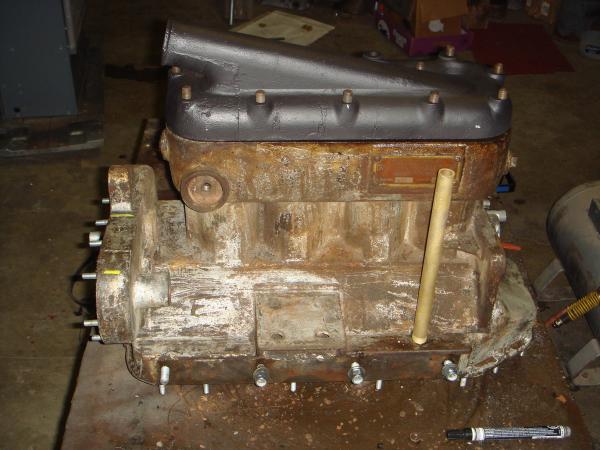

2)Left side of the motor shows magneto base, water inlet/outlet, brass tube for??? & the tag.

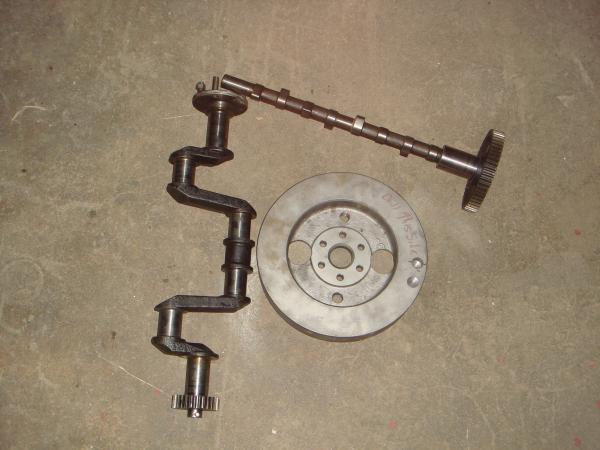

3)Freshly balanced rotating assembly & cam.

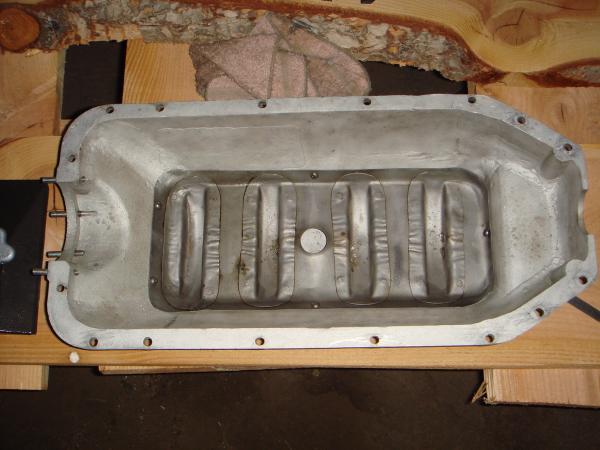

4)Cast aluminum oil pan with rod dipper tray.

5)Brass Tillotson carb & Bosch American Magneto.

6)3 of the 4 rods & pistons, with one of the 4-bolt main caps.

Thanks for taking the time to look at my project, would appreciate any/all comments, both good and bad, (not too bad anyhow!). I'll have more pics soon, as I've painted the motor body and other parts, when I can. Take care, Jon.

jonc32@hotmail.com
Top of pagePrevious messageNext messageBottom of page Link to this message

larry_from_maryland
Senior Member
Username: larry_from_maryland

Post Number: 263
Registered: 07-2003


Posted on Saturday, August 11, 2007 - 08:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Are your plug holes tapered? If so it would be 1/2 inch pipe threads. Value-bilt would have them
Top of pagePrevious messageNext messageBottom of page Link to this message

gryphon
Member
Username: gryphon

Post Number: 6
Registered: 07-2007
Posted on Saturday, August 11, 2007 - 08:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

They had put 3/4 to 1/2 pipe adapters in the plug holes to be able to use the smaller plug size. I would like to go back to the original size for looks, but the few I've found so far are cost prohibitive. I'll look on value-bilt, hope they have a web site. Thanks Larry, take care, Jon.
