Spark plugs for early four cylinder e...

Old Marine Engine » Multi Cylinder Gas Inboards » Spark plugs for early four cylinder engines « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

museum_of_motorsports_and_technology
New member
Username: museum_of_motorsports_and_technology

Post Number: 1
Registered: 03-2009
Posted on Friday, March 13, 2009 - 04:47 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello,
I have what I believe to be 1912 - 1913 four cylinder engines in my collection and both are without spark plugs. One engine is a Waterman four cylinder with copper water jackets and the other is an Erd with nickeled water jackets. Both engines are original/unrestored "as found". I measured the threads and the size is approx 0.825 OD and the threads are 14 threads per inch. I have tried to attach pictures to this post (my first) several times but each time I get an error message. Can someone tell me a plug number and/or source to purchase period plugs (new or used).
Thanx,
Todd
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 244
Registered: 02-2002


Posted on Friday, March 13, 2009 - 08:55 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Todd, Your engines take Spark Plugs with a 1/2-14 pipe thread. There are a couple of manufactures for new plugs, but I wouldn't recommend them. Your engines deserve early plugs. Your best bet is to watch Ebay and contact some of the individuals selling plugs, and see if they have multiples.
Keith
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 245
Registered: 02-2002


Posted on Friday, March 13, 2009 - 09:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Todd,
Search EBay for seller "Pludge". He is a collector and also sell plugs.
Top of pagePrevious messageNext messageBottom of page Link to this message

gryphon
Member
Username: gryphon

Post Number: 8
Registered: 07-2007
Posted on Saturday, March 14, 2009 - 03:20 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Also look for "dmckinsey33" as he has an E-Bay site along with a mail order catalog of 80,000 plus spark plugs. You can write him for a catalog, which costs two dollars, refundable on your first order. I can't find the address now, but he has responded right away via his E-Bay site. Good guy. Good luck, Jon
Top of pagePrevious messageNext messageBottom of page Link to this message

museum_of_motorsports_and_technology
New member
Username: museum_of_motorsports_and_technology

Post Number: 2
Registered: 03-2009
Posted on Sunday, March 15, 2009 - 01:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello and thanx for the help. I have contacted dmckinsey33 as suggested and he can help me out. As I shared previously, I was unable to post pics due to error messages. I suspect it is because I don't know how to compress pics. If anyone would be so kind, let me know and I'll send pics to you via email and you could help me post. I also have a four cylinder, 2 stroke (portless), rotary valve, supercharged engine to share. One of a kind from 1930 built by Skinner. Was made with engine mounts and bell housing mounts common to a Ford Model A. Ran too hot as a race car engine so supposedly spent its' life in a race boat.
Regards,
Todd
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 236
Registered: 12-2003


Posted on Monday, March 16, 2009 - 12:29 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

go ahead and send pics to me
wschall@charter.net
Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 237
Registered: 12-2003


Posted on Monday, March 16, 2009 - 01:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

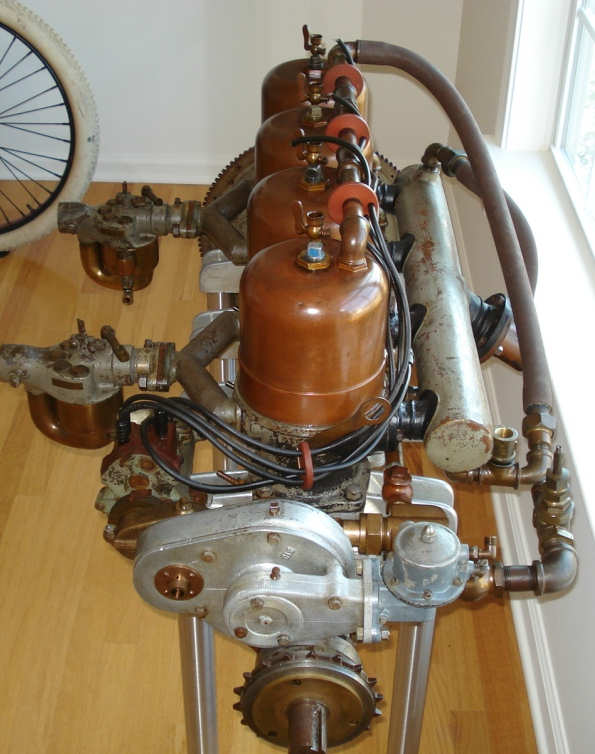

Here is Todd's Waterman.



Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 238
Registered: 12-2003


Posted on Monday, March 16, 2009 - 01:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

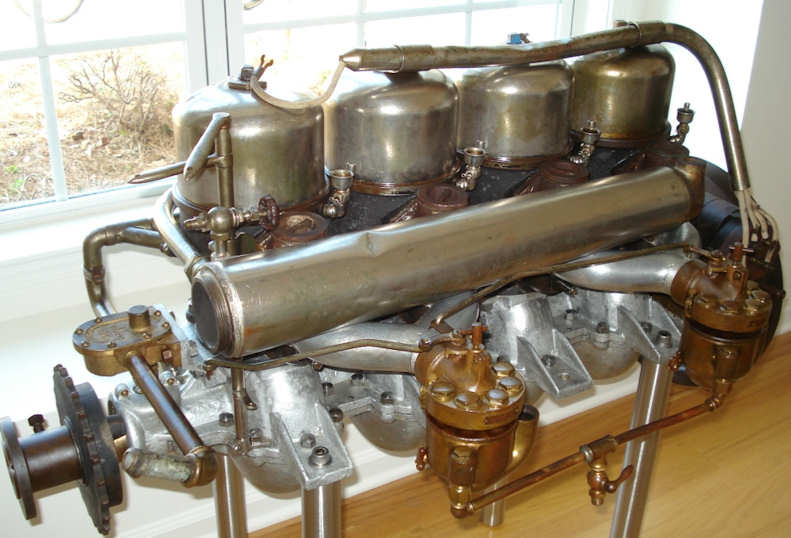

here is Todd's Erd.



Top of pagePrevious messageNext messageBottom of page Link to this message

billschaller
Senior Member
Username: billschaller

Post Number: 239
Registered: 12-2003


Posted on Monday, March 16, 2009 - 01:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

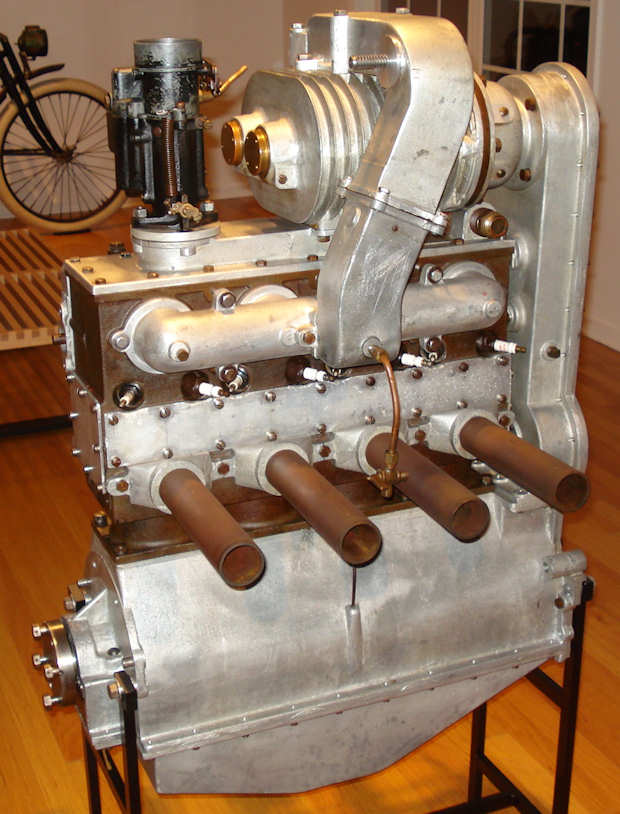

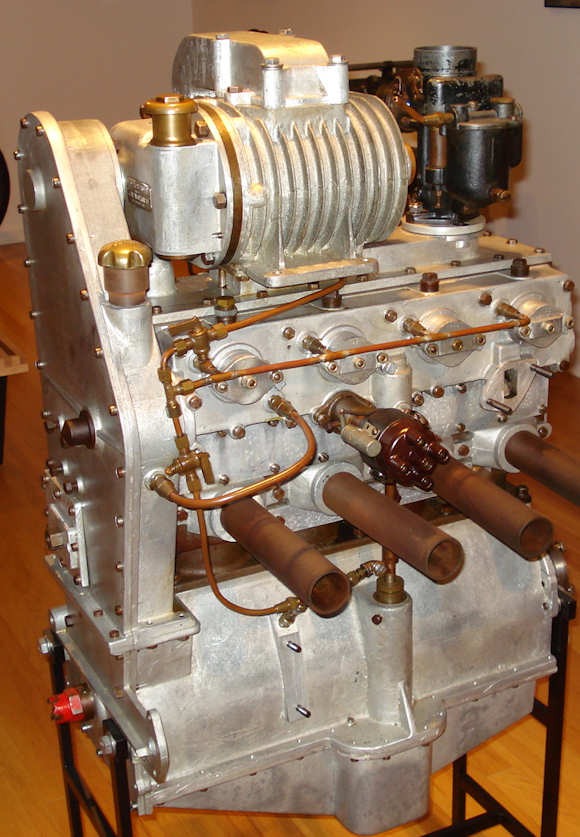

Here is Todd's Skinner.





Top of pagePrevious messageNext messageBottom of page Link to this message

museum_of_motorsports_and_technology
New member
Username: museum_of_motorsports_and_technology

Post Number: 3
Registered: 03-2009
Posted on Monday, March 16, 2009 - 01:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill, Thanx again for posting my pics,

Here is the story on the Skinner four cylinder... two stroke... supercharged... rotary valve engine.

- built by someone named Mr. Skinner in New England area in 1928-1929. yes, it runs
- motor mounts and rear clutch bell housing mounts are common to a Ford Model A
- water cooled cylinder block and head is cast as one unit from grey iron
- upper crankcase, oil pan, front chaincase and manifolds are aluminum sand castings
- supercharger is by Switzer-Cummins of Indianapolis, Indiana
- carburetor is a downdraft Stromberg
- cylinder head is machined to run two spark plugs per cylinder
- "camshaft" and supercharger are driven by side-by-side chains from the crankshaft
- exhaust vents to atmosphere at BDC out the right and left side of engine (eight exhaust pipes)
- rotary valve shaft spins at crank speed (1 : 1)
- although the engine is two cycle, there are no transfer ports
- whereas many four cylinder engines have a firing order of 1, 3, 4, 2 this engine has a firing order of 1, 4, 2, 3
- crankshaft is special construction with knife edge counterweights and runs on five pressure fed main bearings
- crankshaft big end journals are at 90 degrees to each other
- intake manifold has a rudimentary blowoff valve to vent to atmosphere if supercharger pressure gets too high
- pistons are flat top with three compression rings each (no oil ring)
- intake is by four separate rotary valves (one for each cylinder)
- rotary valve rotational axis is 90 degrees to the rotary valve shaft
- each rotary valve is the shaped like a shot glass, only about twice as tall

Each rotary valve has a slot in it that opens to the combustion chamber. I did a quick mapping of the system:

- intake begins to open when the exhaust port is 50% open
- intake is 100% open when the exhaust port is 100% open
- intake begins to close when exhaust port is 50% closed
- intake is 100% closed when the exhaust port is 100% closed

Understanding this mapping explains the need for the supercharger. There is no event that will draw in the intake charge naturally.

Regards,

Todd
