Kennebec Ignition

Old Marine Engine » Multi Cylinder Gas Inboards » Kennebec Ignition « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2186
Registered: 11-2001
Posted on Tuesday, September 22, 2009 - 10:29 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

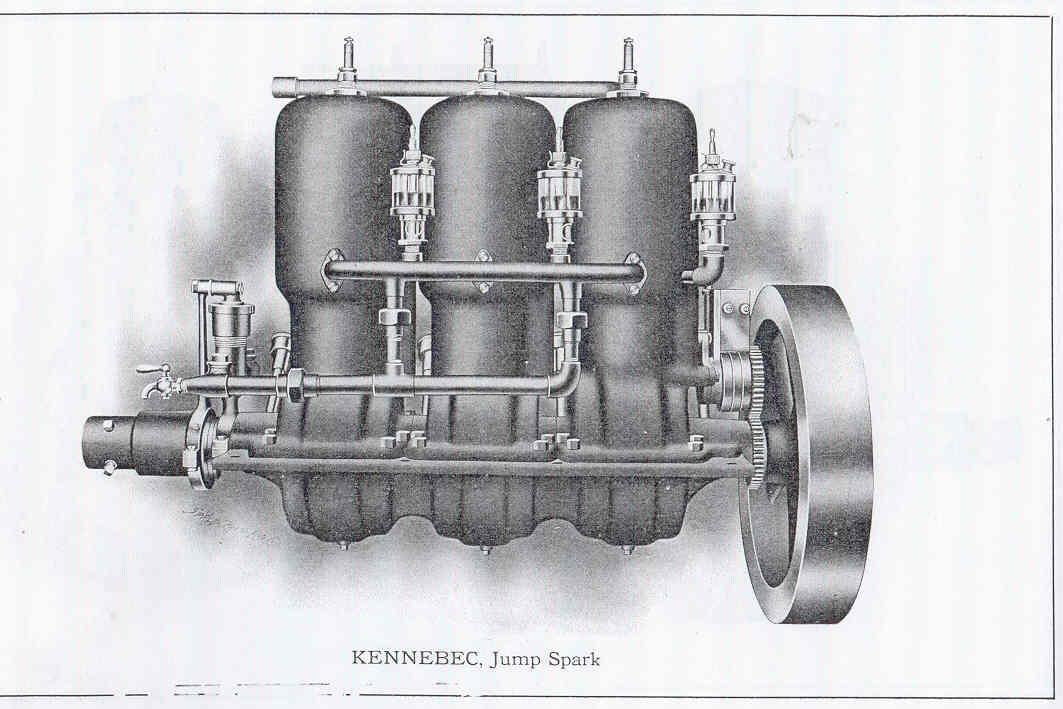

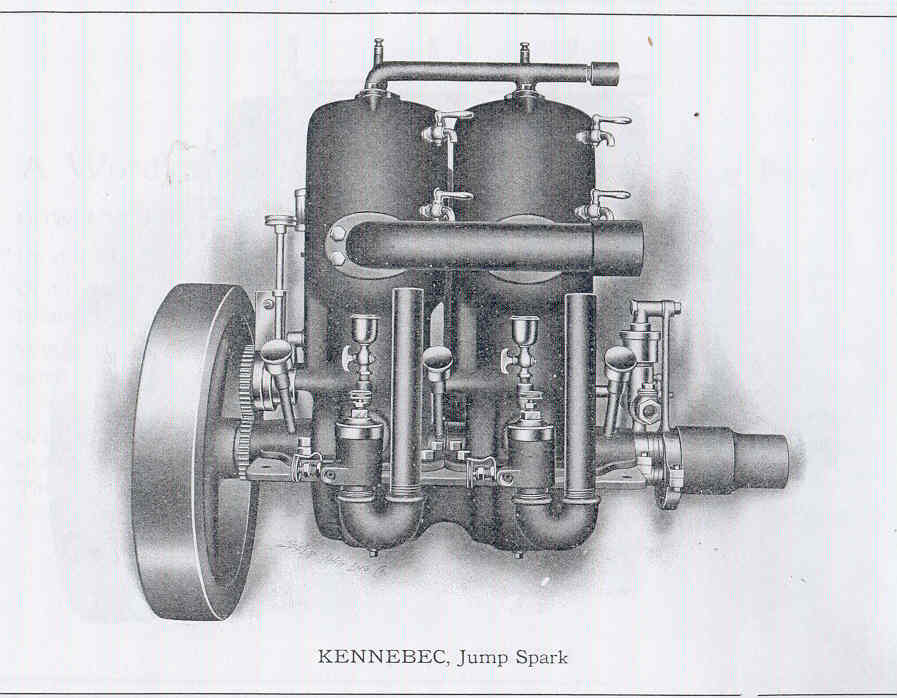

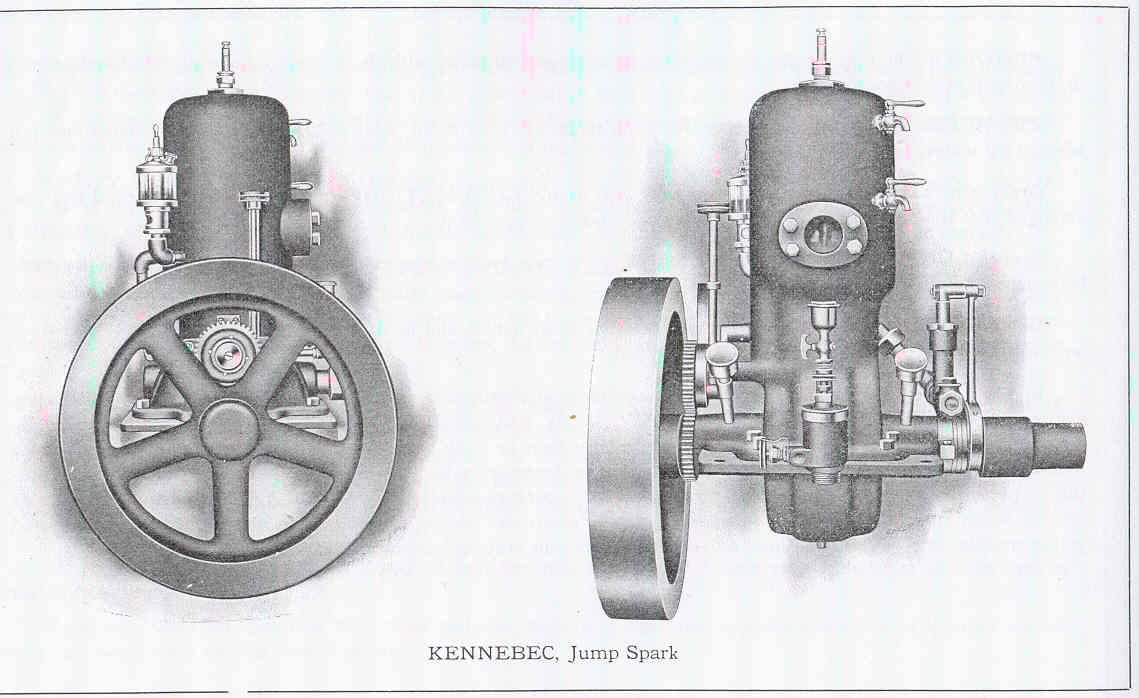

1908 Kennebec shows a gear driven drum operated
magneto, anyone have an engine or photos one of these ignition systems ?

k1
k1a
k1b

**
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2187
Registered: 11-2001
Posted on Tuesday, September 22, 2009 - 10:51 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

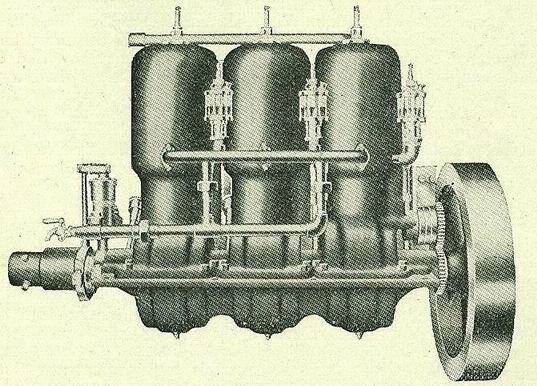

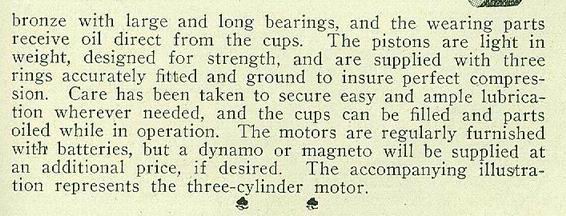

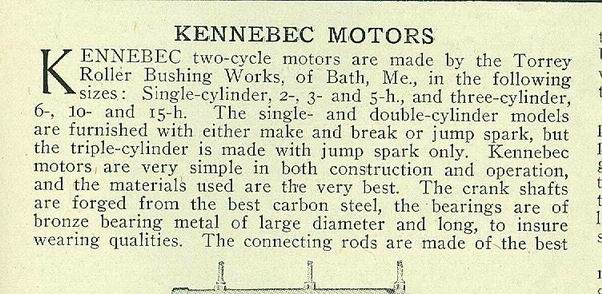

After searching old posts here I found these catalog photos and Its not a magneto but a lever operated timer !

ko1

ko1a

ko1b

**
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Senior Member
Username: ernie

Post Number: 1048
Registered: 01-2002


Posted on Tuesday, September 22, 2009 - 03:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Rochester was very similar. I have pics somewhere....
Top of pagePrevious messageNext messageBottom of page Link to this message

searcher
Senior Member
Username: searcher

Post Number: 366
Registered: 10-2004
Posted on Monday, November 02, 2009 - 12:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

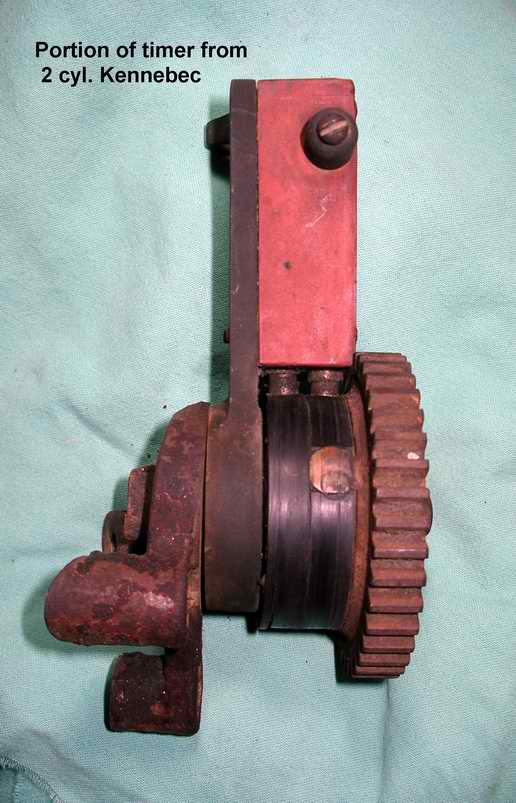

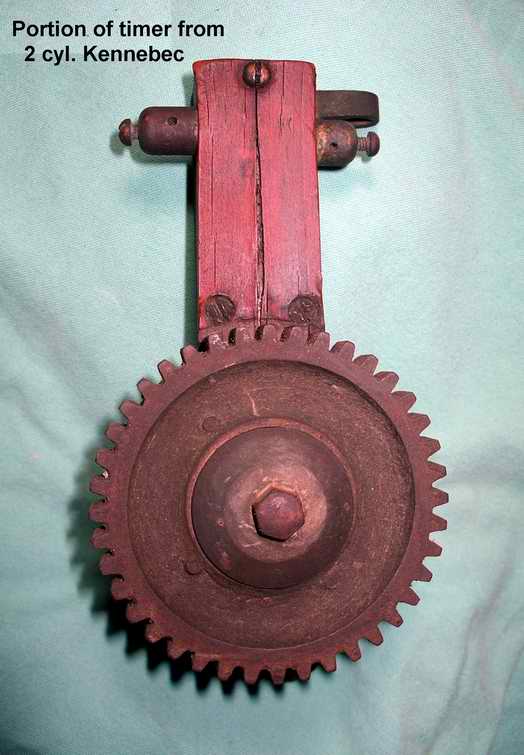

For awhile I thought these timers were made by Torrey Roller Bushing for their own engines. However, I have since seen other engines in ads that used these identical timers. Apparently, there was a supplier out there somewhere who sold them off the shelf. This timer is missing it's handle and knob, a loss I hope to remedy when I attempt to learn how to use a lathe this winter. I have the two cylinders (cracked from salt damage), the flywheel with half the crankshaft, the base, the timer, and one piston for this engine. Maybe I'll get lucky and find another one with the needed parts. Right!!!!!
