Universal C2 engine with distributor?

Old Marine Engine » Multi Cylinder Gas Inboards » Universal C2 engine with distributor? « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Jack Langland
Visitor
Posted on Saturday, October 02, 2004 - 12:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

As far as I can tell Universal discontinued the c series in 1923 but I have a friend that has one with electric start and electric ignition. both look like they belong where they are. The engine shows every little wear but runs great. Any information would be helpfull.

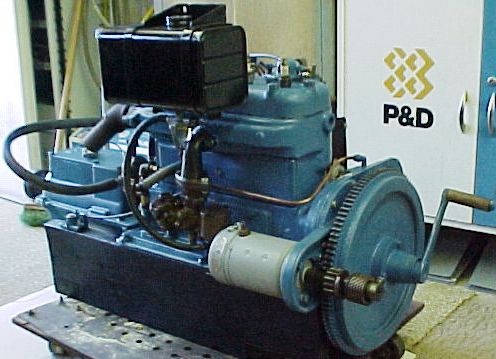

starter side
Distributor side
Name Tag
Top of pagePrevious messageNext messageBottom of page Link to this message

bills
Visitor
Posted on Saturday, October 02, 2004 - 08:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

why don't you think it is 1923?
Top of pagePrevious messageNext messageBottom of page Link to this message

Jack Langland
Visitor
Posted on Saturday, October 02, 2004 - 09:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Did they have electric ignition and electric starters in 1923? I know they did by 1933 with the Universal Utility Four. I thought they might be an add-on but can't find any evidence of one being available.

jackla@starband.net
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 564
Registered: 11-2001


Posted on Saturday, October 02, 2004 - 11:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

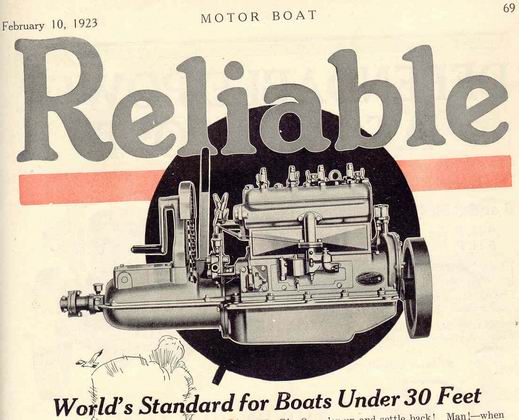

un1

un2
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 565
Registered: 11-2001


Posted on Saturday, October 02, 2004 - 11:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

un3
Top of pagePrevious messageNext messageBottom of page Link to this message

Jack Langland
Visitor
Posted on Sunday, October 03, 2004 - 10:32 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard,
Thank you very much, I didn't think they had electric starters in the early 20's. Then others I was emailing echoed the same doubt.

Is there any way that I could find out what this engine would be worth?

Thank you, Jack
Top of pagePrevious messageNext messageBottom of page Link to this message

dijo
New member
Username: dijo

Post Number: 1
Registered: 10-2005
Posted on Sunday, October 30, 2005 - 07:00 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have two Universal Model C engines. They are basically parts engines. I am trying to make one that works for an old launch.
Does anyone know
1) bearing clearances
2) source for bearings
3) crancase oil capacity
Top of pagePrevious messageNext messageBottom of page Link to this message

dijo
Member
Username: dijo

Post Number: 5
Registered: 10-2005
Posted on Friday, August 11, 2006 - 09:27 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Universal model C Technical questions.

Can anyone help?

Uninversal Mod C is back from machine shop after extensive repairs, including new babbitt main and rod bearings. These came from the shop with 10 mil shims (both sides). Plastigage shows clearance 2-3 mils. This engine is splash lubricated.

Should these clearances be larger?

Should they be adjusted after break-in?

What oil should be used?
