Scottish:Kalven 2 cylinder:very large...

Old Marine Engine » Diesel Inboards » Scottish:Kalven 2 cylinder:very large fly wheel:Early small tugboat « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Lendrum
Posted on Wednesday, January 02, 2002 - 01:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am looking for information on a Scottish power plant used to power a small tug in New York(Kit).
It was from a firm named Kalven. I understand it to be from the M.A.N. design. Any information on the firm or power plants?
Bruce Lendrum
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Lendrum
Posted on Wednesday, January 02, 2002 - 05:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Make that a Kelvin K2- 44 bhp made about 1935. I have been laught at by people who "Know" Diesel but I can remember being told about buy spark plugs for her. Who is crazy?
Bruce
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Wednesday, January 02, 2002 - 10:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bruce,
Here is a link to a site with Kelvin Diesel information.
Regards,
Andrew
Top of pagePrevious messageNext messageBottom of page Link to this message

Russell Ward
Posted on Saturday, August 17, 2002 - 09:47 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Let em laugh, Bruce. There were a lot of K series Kelvins on the NZ coast. A lot of our coastal scows ended up their days with a couple of K2 or K3 Kelvins.
Yep, you did buy the occasional sparking plug. Y'see, they needed plugs because, when cold, they started on petrol (gasoline to you) and had a carburetor separate inlet manifold and magneto etc. After they were running for a time (rather roughly -perhaps the compression ratio was a bit high, the engineer swapped over to diesel injection. A few heavy clonks, several smoke rings from the stack and she would settle down and he shut the gas off. I have seen them start OK on diesel when hot.
Top of pagePrevious messageNext messageBottom of page Link to this message

raymond
Posted on Thursday, June 17, 2004 - 07:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

RUSSEL WARD,

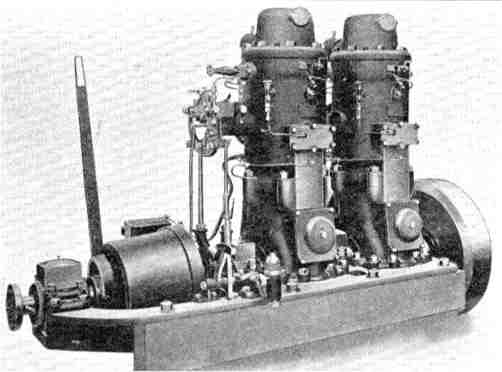

I sailed with a lot of K type KELVIN engines in the scows and coastal tugs. They went up to the K6 132 hp. HAND START too. will try to post a pic. The scows some times had a mixture. The " OWHITI" had a K3 on one side and a K2 on the other. Tug "HIPI" had a pair of K4's for many years.Most of the tugs on the Waikato River had K model's in them. {jpeg} K6 KELVIN
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Lendrum
Visitor
Posted on Friday, January 27, 2006 - 09:07 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

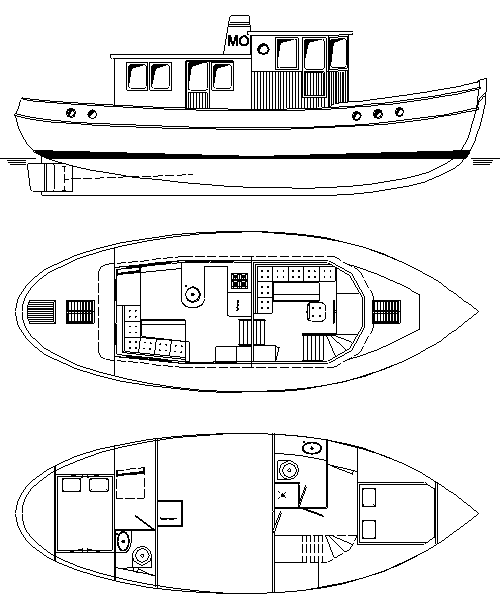

with more data we have now added four feet to the KIT II from 36 feet to 40: this give use two staterooms... power plants have increased too..
RN DM-4 looks like the best but
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Lendrum
Visitor
Posted on Thursday, February 09, 2006 - 06:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

THIS MAY BE THE POWER PLANT ON THE KIT AS THE PH MORE MATCHES THE NEEDS FOR THAT SIZE TUG..

POWER 160 HP
Top of pagePrevious messageNext messageBottom of page Link to this message

jimdanewf
Member
Username: jimdanewf

Post Number: 6
Registered: 08-2006
Posted on Wednesday, October 13, 2010 - 07:55 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

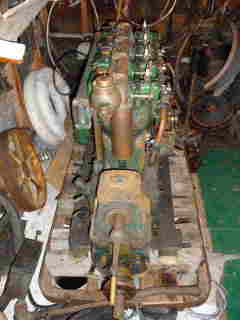

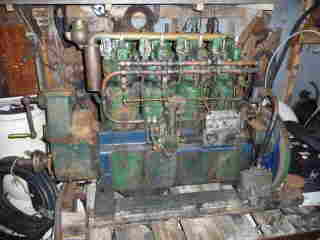

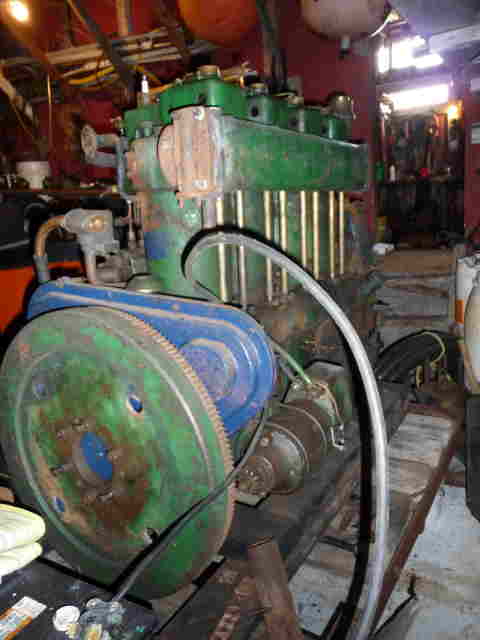

Here is a photo of a K series 44 HP Kelvin which belongs to my friend. Not running but in restorable condition. He may be interested in selling. Located at Newfoundland, Canada.

44 HP Kelvin

K series



Top of pagePrevious messageNext messageBottom of page Link to this message

tom_montagu
Member
Username: tom_montagu

Post Number: 5
Registered: 12-2011
Posted on Friday, December 30, 2011 - 07:20 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

ref the pictures that 'jimdanewf' posted--this is a J4 Petrol start Kelvin diesel-NOT a K4 (which would be 88hp and somewhat larger!)--idles at 225 rpm and peak power is at 1000rpm. When restored (I have a fully restored petrol-start J2) these engines run beautifully--smooth as a nut and with plenty of grunt. The 'Kelvin Register' in the UK can give plenty of support and advice. In the UK the 'J', and to a lesser extent the 'K' series, have found a second life in canal narrow-boats.Try www.theoilengine.co.uk or kwhittle@btconnect.com. Kevin Whittle runs the Kelvin Register (I am one of the founder members)--these engines are well worth restoring (but they have to sit on TRANSVERSE engine beds).Don't sell it, RESTORE IT.
Top of pagePrevious messageNext messageBottom of page Link to this message

david_reid
Member
Username: david_reid

Post Number: 6
Registered: 03-2011
Posted on Friday, December 30, 2011 - 07:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Jim, is there any chance that you friend still has that engine?
Top of pagePrevious messageNext messageBottom of page Link to this message

jimdanewf
Member
Username: jimdanewf

Post Number: 13
Registered: 08-2006
Posted on Saturday, December 31, 2011 - 08:08 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yes he still has it.
Top of pagePrevious messageNext messageBottom of page Link to this message

david_reid
Member
Username: david_reid

Post Number: 7
Registered: 03-2011
Posted on Saturday, December 31, 2011 - 09:14 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I didn't see a way to send a personal message on this forum, but my email is visible in my profile. (risky, I know, but this seems like a harmless bunch) Could you please send me some contact info. Thanx
