Early Gray Engine Tag or Plate

Old Marine Engine » Gray Motor Co - early 1 and 2 cylinder » Early Gray Engine Tag or Plate « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 275
Registered: 07-2003
Posted on Sunday, May 10, 2009 - 05:43 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

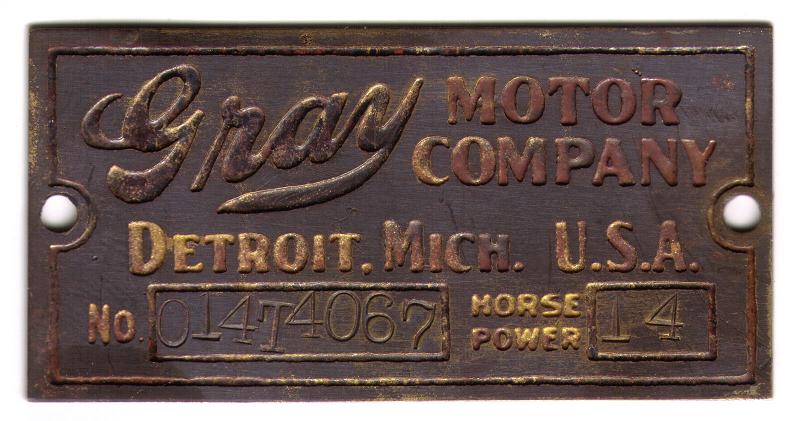

If someone would like to copy these plates there seems to be a need for them, I have cleaned and scanned this one I received (Thanks again, Derek). It measures 1.25" x 2.5", and .027" thick. (21 Gauge , American Wire Standard) The text is acid-etched of course. The word "Gray" was done in black paint, and the rest including the border, in red. The surface of the plate is chemically blacked to a dull grey. The image is as scanned in the first photo and inverted in the second.
Gray Plate
Top of pagePrevious messageNext messageBottom of page Link to this message

William Schaller
Senior Member
Username: billschaller

Post Number: 261
Registered: 12-2003


Posted on Monday, May 11, 2009 - 07:57 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks for the clear scans. In my experience, most Grays did not have a brass tag, they had the serial number stamped on the flywheel, and on a boss on the side of the cylinder. I am sure this was done to save a little bit of money when Gray was in fierce competition with other engine makers.
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 278
Registered: 07-2003
Posted on Monday, May 11, 2009 - 11:14 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill, would I be correct in thinking that the Model T Grays always had such a tag? Those we've had photos of here seem to.
Top of pagePrevious messageNext messageBottom of page Link to this message

William Schaller
Senior Member
Username: billschaller

Post Number: 262
Registered: 12-2003


Posted on Monday, May 11, 2009 - 11:38 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

when I come back from my trip, I might have some time to look, but I am more inclined to think that all Grays from a certain time period have tags, and after that, none. I have a T without a tag, but I don't have time right now to see if it was stolen.
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 334
Registered: 07-2003
Posted on Tuesday, January 19, 2010 - 01:06 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill, did you ever get to look? I was just looking at this plate again which reminded me.
