I need to know which way the piston goes in a Gray 3 h.p. model "u" serial #3u28176. Does the ridge on top of piston go towards the flywheel or the output shaft?
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 574
Registered: 07-2002


Posted on Saturday, February 05, 2011 - 09:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Generic rule. Deflector goes "on the opposite side of the exhaust port".
Top of pagePrevious messageNext messageBottom of page Link to this message

Harold Janes
New member
Username: harold_janes

Post Number: 2
Registered: 02-2011
Posted on Sunday, February 06, 2011 - 09:36 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks J.B.
Now I have another question about the same engine.
On the top of the timer cover there is a small threaded hole next to where the spark wire connects. What goes there and what is the purpose?
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1310
Registered: 01-2002


Posted on Monday, February 07, 2011 - 07:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A little twist to open oiler goes there. Just twist and stick the snout of your oil can in and give s squirt or 2.
Top of pagePrevious messageNext messageBottom of page Link to this message

Harold Janes
Member
Username: harold_janes

Post Number: 4
Registered: 02-2011
Posted on Monday, February 07, 2011 - 11:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Ernie:
Thanks for your reply.
My Gray is nearly complete and I will post pics when it is.
About you reply, I understand it’s a place to oil the timer but not sure how it looks. Could you please send me a close up of that little thing? I'm a retired machinist so I will make one.
Also I need the little cover that goes over the needle valve adjustment on my Schebler model D. This seems to be the only thing on this engine that is not a standard thread. I wonder why?
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1311
Registered: 01-2002


Posted on Monday, February 07, 2011 - 03:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The cover you need is 5/8th 11 thd.
I will get a pic of the oil cap as soon as I can.
Top of pagePrevious messageNext messageBottom of page Link to this message

Harold Janes
Member
Username: harold_janes

Post Number: 5
Registered: 02-2011
Posted on Monday, February 07, 2011 - 04:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks,I'm not sure we're talking about the same thing on the carb. The cover that's missing is 3/4-18 which is odd. My carb is the same as the one in the pic you included in your post. I've tried to include pics but I keep getting error message saying file is too large. I set my camera to "basic" which is the lowest quality but still doesn't work. Any idea what I'm doing wrong?
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1312
Registered: 01-2002


Posted on Monday, February 07, 2011 - 06:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

See if your camera has an e-mail pic setting and try that.
Or just click on my name to the left and e-mail them to me and I will post them for you.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1313
Registered: 01-2002


Posted on Monday, February 07, 2011 - 08:05 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Harold,

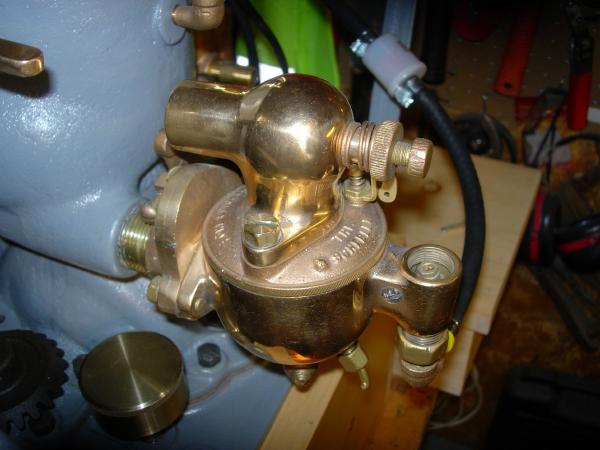

Yes you are correct the cover is 3/4 I was digging in the cobwebs. As to where to get one just keep looking all Schlebler carbs 1 inch and up used them.

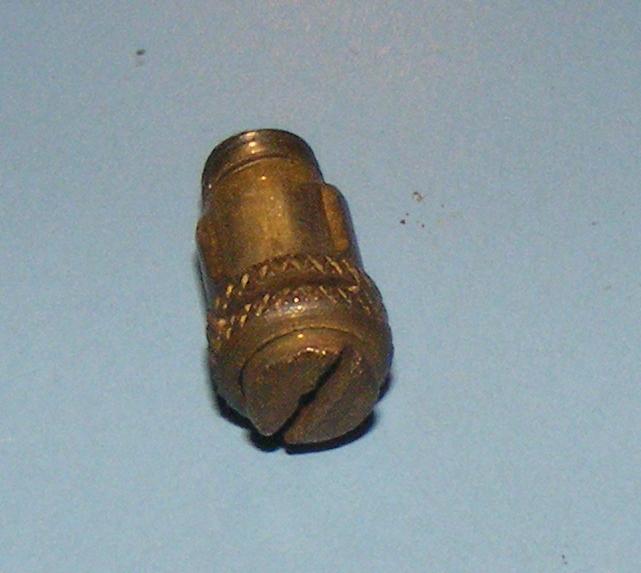

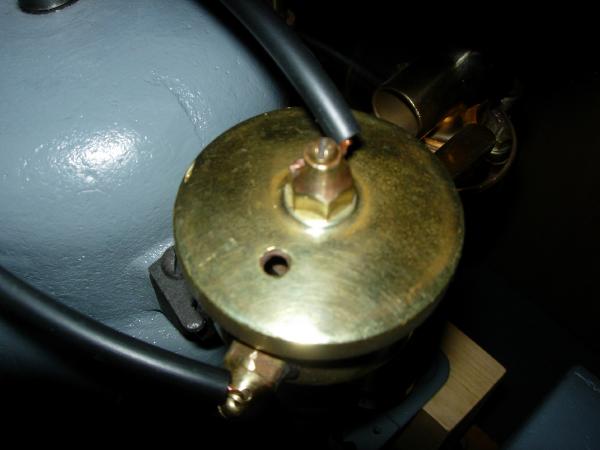

Pics of the oiler open and closed. The spare engine for my boat has a simple flip top oiler like you would see on an electric motor bearing.



Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1314
Registered: 01-2002


Posted on Monday, February 07, 2011 - 08:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

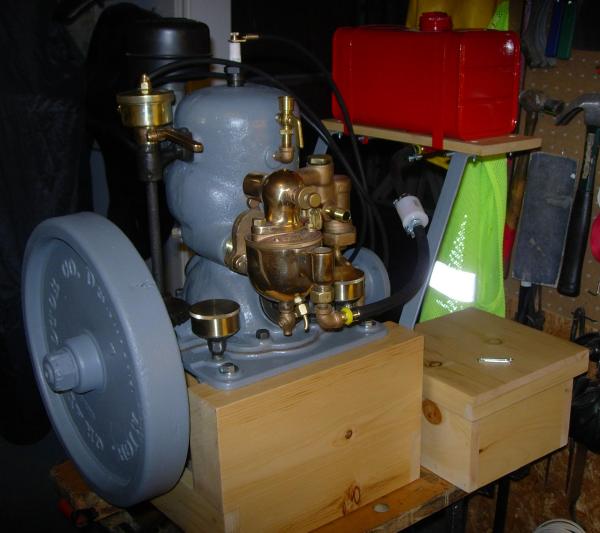

Harold's Pics
NICE WORK!



Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 576
Registered: 07-2002


Posted on Monday, February 07, 2011 - 09:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

George Coates makes the caps and other Schebler parts, they're available from Dave Reed, he's at

otto@ringspacers.com
Top of pagePrevious messageNext messageBottom of page Link to this message

Harold Janes
Member
Username: harold_janes

Post Number: 6
Registered: 02-2011
Posted on Tuesday, February 08, 2011 - 10:38 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The pics of the little oiler really helped.
Now, if someone had a spare one I would be glad to purchase it.
