Bob's mixer

Old Marine Engine » Carburetors, Mixers, Vaporizors » Bob's mixer « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 1029
Registered: 07-2002


Posted on Sunday, February 22, 2015 - 07:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

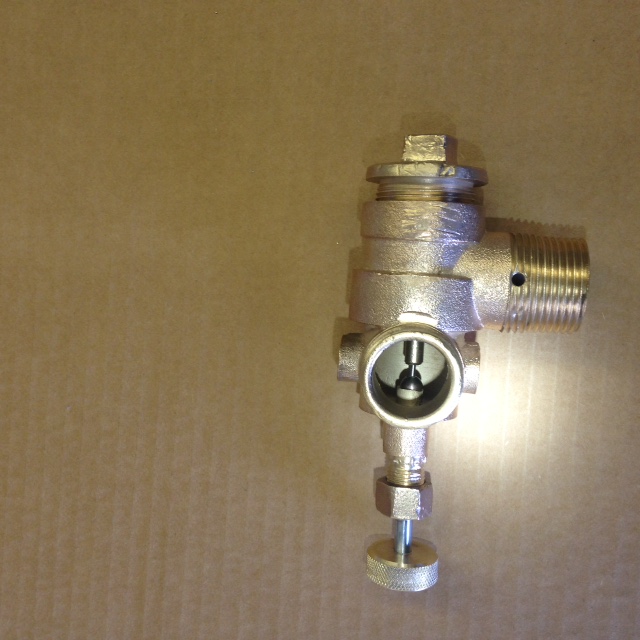

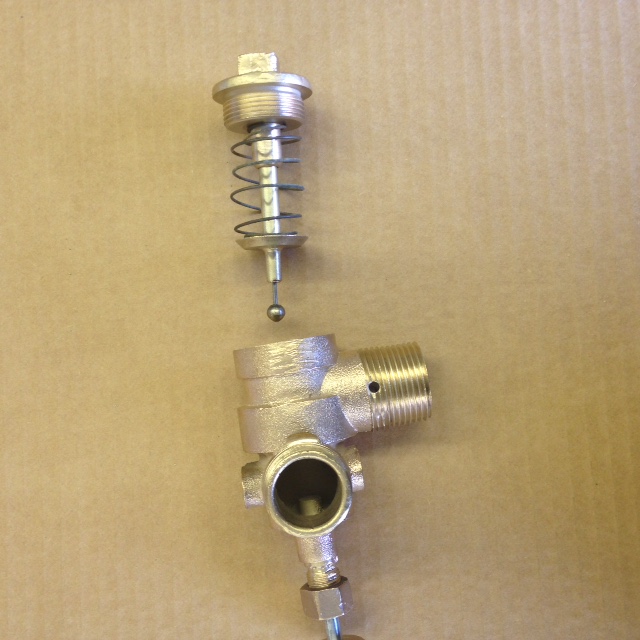

Bob Legnon has the mixer pictured below, he hasn't tried to run it yet. I don't see how it will work as is, the ball on the stem is free floating, it rest on a seat at the fuel inlet. When the air lifts the poppet valve there's nothing to lift the ball to allow fuel in. Any ideas?


Top of pagePrevious messageNext messageBottom of page Link to this message

Andrew Munns
Senior Member
Username: johnoxley

Post Number: 127
Registered: 04-2010
Posted on Sunday, February 22, 2015 - 10:37 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I had similar on an 1897 Union boat engine, except that the poppet valve lifted a needle valve above and dribbled in a little petrol from on top, which mixed with the air being drawn in. Worked fine - max rpm was 440. Assume the little ball seals just before the poppet seats. There was a regular steel suction inlet valve up in the head - no cam just suction. The assembly was located low in the bilge and fuel tank was well above the engine.
Top of pagePrevious messageNext messageBottom of page Link to this message

miro forest
Senior Member
Username: miro

Post Number: 801
Registered: 11-2001


Posted on Sunday, February 22, 2015 - 10:43 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Well, somehow that ball HAS to get lifted up to allow the fuel to enter and atomize.

The mass of the valve is much more than the small ball. So there may be a pulse of negative pressure that opens the valve and also affects the ball. But once the poppet valve opens, there's no more negative pressure.

Or maybe there is a missing part that connects the spindle of the ball and the poppet valve - some kind of friction fitting?

It will be interesting to see if it works .
Are you guys warm enough down there to actually start an old engine?

miro
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 1030
Registered: 07-2002


Posted on Sunday, February 22, 2015 - 11:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I'm sure Bob will have it on the table when we stop by Miro, maybe he can try it before. Greg had a "steam up" today, plenty of steam engines, short sleeve weather, a little warm for the gumbo, but it was delicious.
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 1031
Registered: 07-2002


Posted on Sunday, February 22, 2015 - 11:14 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Eddie's steam engine running.

https://www.youtube.com/watch?v=D1btxZ0qTKY
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 1032
Registered: 07-2002


Posted on Monday, February 23, 2015 - 01:37 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Greg sent this video of yesterday, might make you want to head south early.

https://www.youtube.com/watch?v=-UpMheO-bAA
Top of pagePrevious messageNext messageBottom of page Link to this message

miro forest
Senior Member
Username: miro

Post Number: 804
Registered: 11-2001


Posted on Sunday, March 01, 2015 - 09:55 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I sure would like to get there sooner, but I've got an exam ( HTML Coding for Web Site Design) to get done first.
Some smart ass somewhere said you're never too old to learn - but - oh boy, sure was a bit of a challenge for me. Most of the other student could be my grandchildren ( thank goodness they weren't).
Checking the weather in Dans'ville sure makes it tempting.

And yes - we WILL take a good look at Bob's carb.
miro
