Engine pictures and another request:

We have the water pump for the engine and the eccentric is in place on the crankshaft but the connecting rod from the eccentric to the pump shaft is missing.

Would really appreciate a picture or two and some basic dimensions of the rod.

The water pump looks like this in case there are different pumps. This picture was taken before the pump was disassembled and cleaned. Were they delivered from the factory with about 0.05" clearance between piston and cylinder wall? This is measured where the parts are not apparently worn.

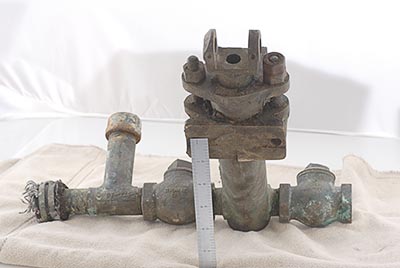

Water pump

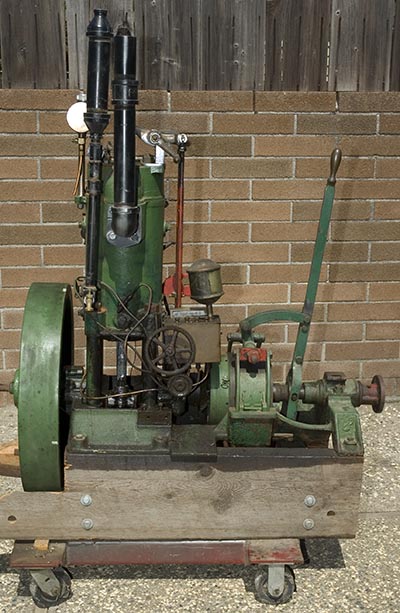

Right side of engine

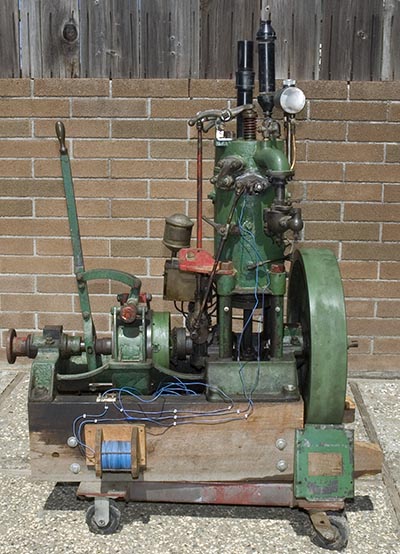

Left side

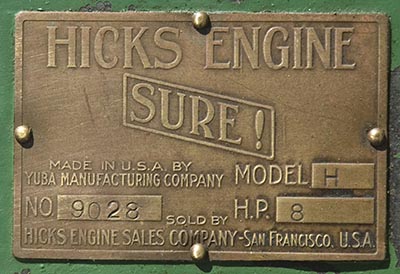

Label plate

Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

Pat Matthews
New member
Username: pat_matthews

Post Number: 2
Registered: 01-2016
Posted on Saturday, March 05, 2016 - 05:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi again Mike... still need help on this? I have the drawing...
