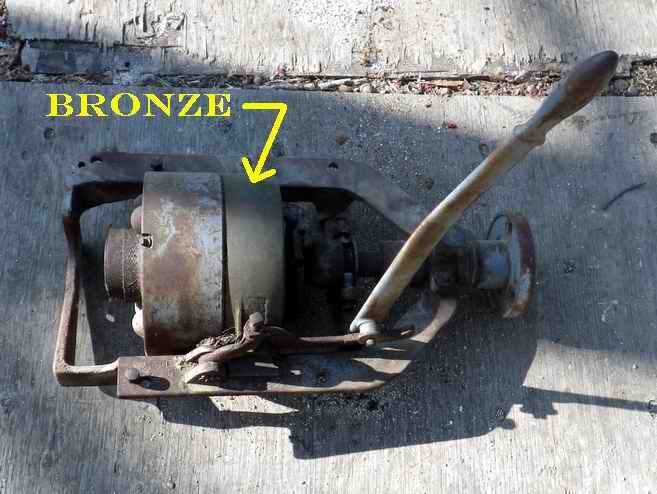

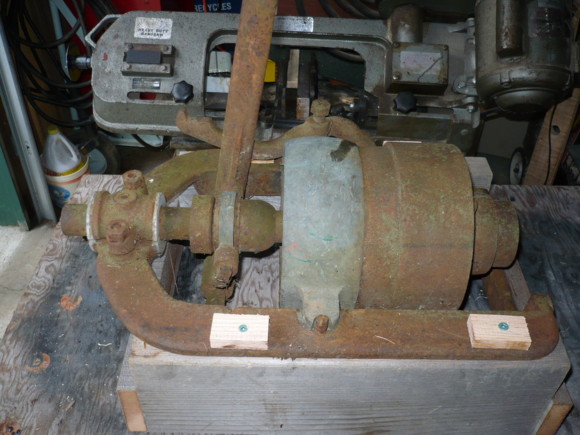

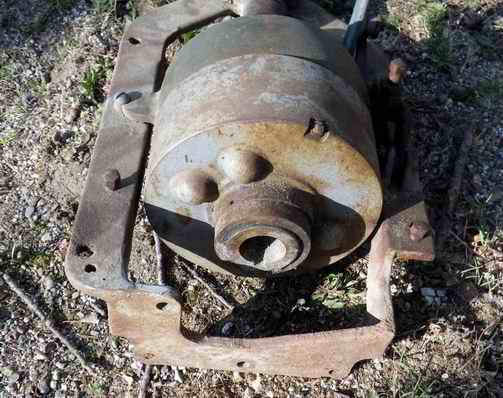

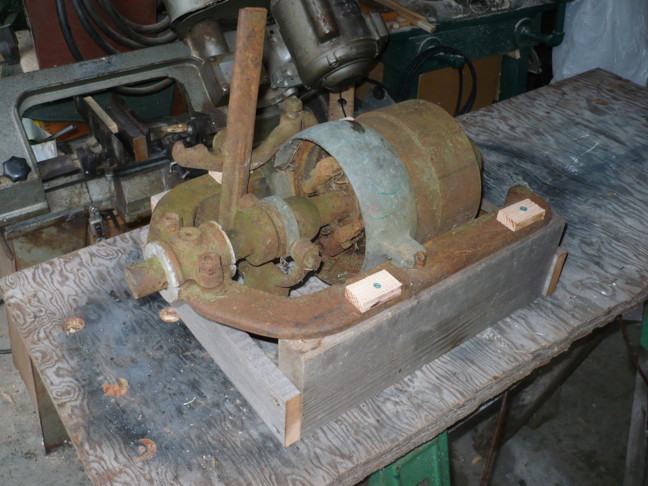

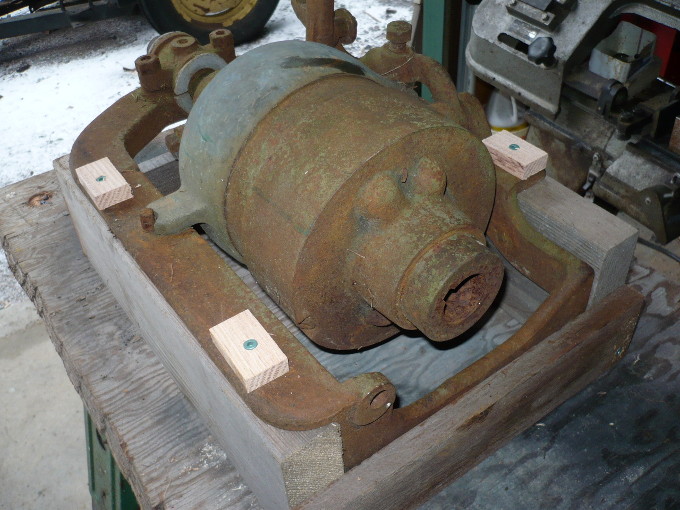

Here are some shots of a transmission, I found in a junk pile last week.

There are no markings or ID marks, but it looks typical of transmissions used in "our" style of boats / engines.

miro

one

two

three

four

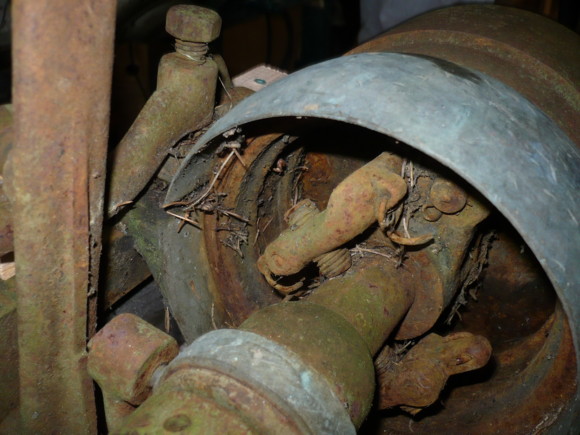

These two pictures are close ups, and you can see the inner and outer rings or shells that slide when the transmission is in neutral or reverse.
When engaged in forward, the fingers bear on the inner ring, expanding it enough to "grab" the outer ring, thus transmitting the torque from the front input shaft to rear shaft.
The posts that hold the two fingers take the torque and are about 1/2 in thick and about 1 1/8 in wide. I wonder what the bending moment on the posts are - say a 10 HP motor at 750 rpm - torque is about 400 ft-lbs.

five

six
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2962
Registered: 11-2001
Posted on Monday, January 14, 2013 - 10:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Miro

Great find, that Reverse gear is over 100 yrs old !
I'd keep digging in that junk pile.


1909

mad

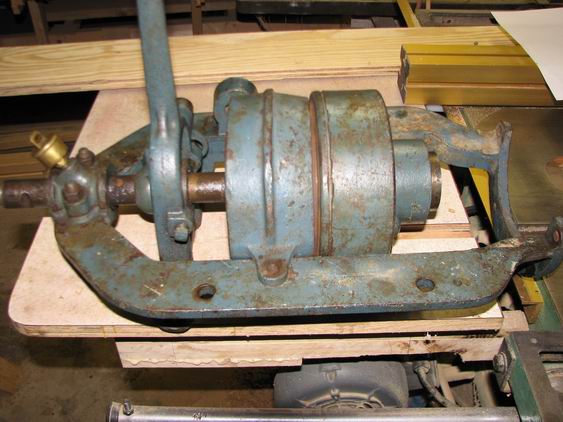

RB has a very similar one in his barn !

M1


M2

*
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 503
Registered: 07-2003
Posted on Monday, January 14, 2013 - 11:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Nice find. I've got a couple of Gies Gears and the odd Joe's Gear found like that. There are fewer of those good old "junk piles" every year! One of the Gies Gears came from an old boy who never took a bath and had over 500 tons of scrap on his property when he died. When the property was cleared they brought in the magnet crane and pulled stuff two or three feet out of the ground! Oh, and he had about $150,000. in cash in the safe in the basement too. Didn't trust banks. Weird huh?! ;-)
Top of pagePrevious messageNext messageBottom of page Link to this message

Searcher
Senior Member
Username: searcher

Post Number: 547
Registered: 10-2004
Posted on Tuesday, January 15, 2013 - 01:55 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

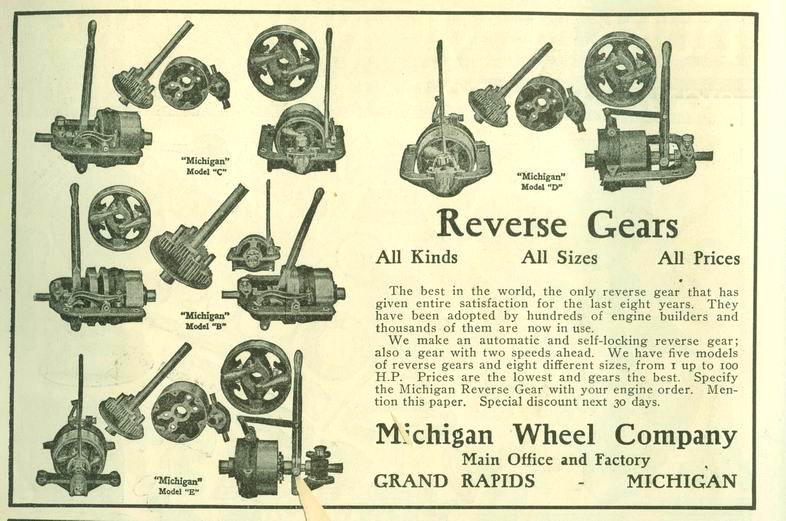

I believe this is a Model 'C' Michigan but what the heck do I know. The heavy band is bronze so these would look quite fetching all cleaned up. They look like they were designed for a specific brand of engine, is that true?
