Truscott Launch in England

Old Marine Engine » Truscott » Truscott Launch in England « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Andrew Menkart
Moderator
Username: andrew

Post Number: 671
Registered: 11-2001


Posted on Wednesday, June 14, 2006 - 08:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The following has come in by email from Richard Bartrop.

quote:

Andrew

Picked up your email address looking at your lovely Truscott on the Old Marine engine web site

I have just obtained an 1903/4?? 18 foot Truscott launch which has been dry stored in a barn for over 20 years and is in a remarkably good condition. The launch was imported to Britain from America by the Burnham–on-Crouch Motor Company and is believed to be called “Cheripika” or “Z” – final research required!

She took part in the annual races and is reported in “The Motor Boat” magazines of the period.


I am now looking for a 4HP single to get it powered. I would also be interested in the images of the Upton engines and any copies of relevant pages of your catalogues if that is possible.

If you put the name Cheripika into Google, it comes up with the 1908 Burnham Races report – transcribed from “the Times” of the period.

Any suggestions??

Look forward to hearing from you

Regards

Richard Bartrop.

My home email address for communications (no big attachments please!) is: richard@bartropm.freeserve.co.uk

Regards

Richard Bartrop




launch
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 140
Registered: 07-2002
Posted on Wednesday, June 14, 2006 - 08:57 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Beautiful boat, wish it was in my yard.
Top of pagePrevious messageNext messageBottom of page Link to this message

Michael Richard Bartrop
New member
Username: bartropr

Post Number: 1
Registered: 06-2006
Posted on Tuesday, June 20, 2006 - 03:48 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have been looking through a British publication called "The Motor Boat". This was a weekly magazine which started in 1903 and may be still running today, but incorporated in with another magazine. I bought my set as originally bound into 6 monthly lots. Unfortunately, most of the adverts were not included, but there are illustrations of small Truscott launches, taking part in regattas and also reported in the text. The Burnham Regattas are reported in the September issues of 1904,5,6,7&8, with illustrations of 'Cheripika' (2) and 'Z'(1). All the pictures have two people on board, with one at the stern looking after the engine and the other in the bow, steering.
I have cleaned the hull out and haven't found any markings from the builder. Did Truscott identify the hulls in any way, or in a specific place?
Top of pagePrevious messageNext messageBottom of page Link to this message

Tom Stranko
Senior Member
Username: thomas

Post Number: 225
Registered: 07-2002


Posted on Thursday, June 22, 2006 - 08:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

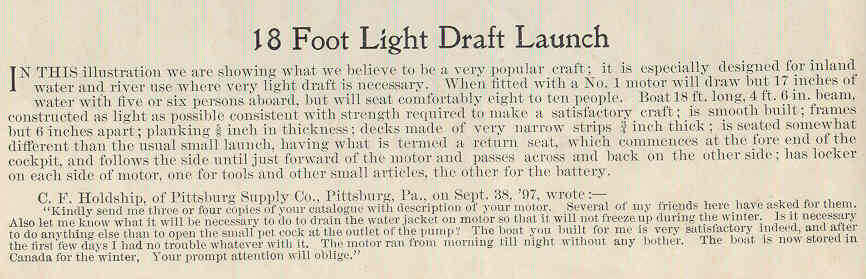

Hello, I'm searching my Truscott literature for 18' hulls: the 1906-7 cat. has 2 18 fotters; both listed as 4' 10" beam amidships. One is called Compromise and the other is Standard.
In the 1906-7 cat. the launches all seem to have a lot more combing(sp?)above the opening than yours shows. The design of the hulls I see almost always were with an eliptical opening in the deck. Not much in right angles. It appears that the "fan-tail" (that's what I think it's called) design was evolving into a straight, less streamlined shape from 1900 to 1906. I could never see anyplace where thay stated that a hull serial number or such was marked anyplace in the boat.It could be a very early hull- before 1904; maybe even late 1800's.
Tom
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Hall
Senior Member
Username: bruce

Post Number: 115
Registered: 07-2002
Posted on Thursday, June 22, 2006 - 10:54 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Appears to me based on Truscott info I've collected to be around the 1900 period or a bit prior.The squared aft cockpit suggests a "lazy-back seat" fairly common to Truscott construction. The bow fitting although faint in the photo resembles the Truscott combination chock and bow flag socket-it would have a deck hole encompassed in the fitting for stowing the tow/anchor line.I agree that a coaming would have been installed around the inside of the cockpit but they are an item easily prone to damage and could have been removed through the years??
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 1166
Registered: 11-2001


Posted on Friday, June 23, 2006 - 01:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

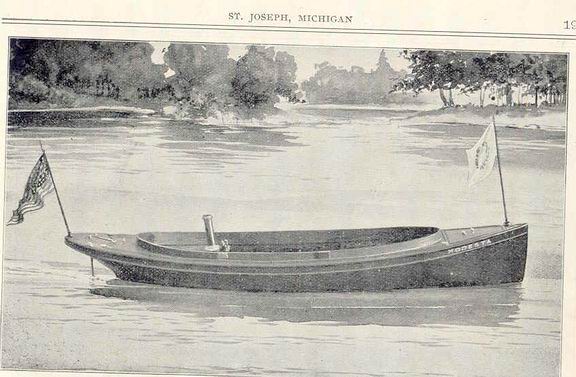

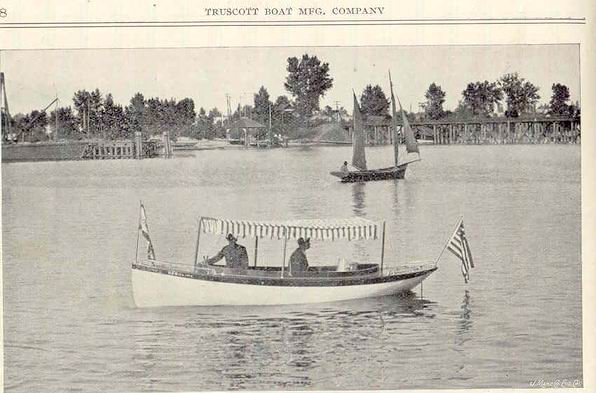

Truscott Launches 1898


T1
T2


T3
T4


T5
T6
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Bartrop
New member
Username: bartropr

Post Number: 2
Registered: 06-2006
Posted on Tuesday, June 27, 2006 - 09:45 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The bow fitting is the Truscott combination chock and bow flag socket-it, and has a deck hole encompassed in the fitting.(This is how my boatyard friend identified her as a Truscott) Would this also stow a Truscott design anchor? I agree that the coaming installed around cockpit will have been damaged and will have been removed through the years. It is great to think she is late 1800's. The picture with a boat with a funnel/stack-is this a naptha engine? The hull is 5 foot wide - a Standard hull? Anyone know of a number two engine (3HP?) to get her running?
Top of pagePrevious messageNext messageBottom of page Link to this message

Denny Anspach
New member
Username: docdenny34

Post Number: 1
Registered: 09-2007
Posted on Tuesday, September 04, 2007 - 09:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have recently been referred to these very interesting Truscott posts. I have a fully intact and unaltered 16' Truscott fan tail launch c. 1896-1906 with a c. 1918 Kermath single. It is unclear whether or not the original engine was steam, naptha, or gasoline. It was rescued from a chicken coop in Wilton NH about 1980, and reportedly had not been in the water since the twenties.It has all hardware, as well as Truscott's patented awning assembly. I have steam bent all new ribs, and replaced the keel. I am contemplating a non-destructive installation of an electric drive. but first I have to figure out the fundamental problem of finishing and caulking this carvel planked hull in a way that it can be day sailed without going to the bottom each launch.

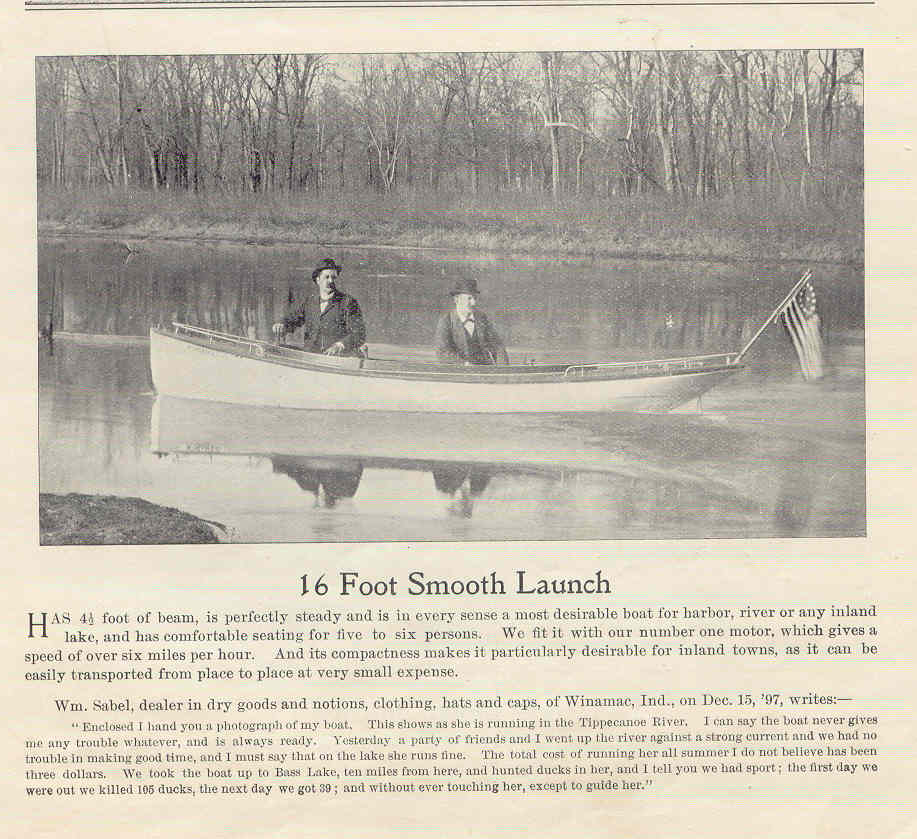

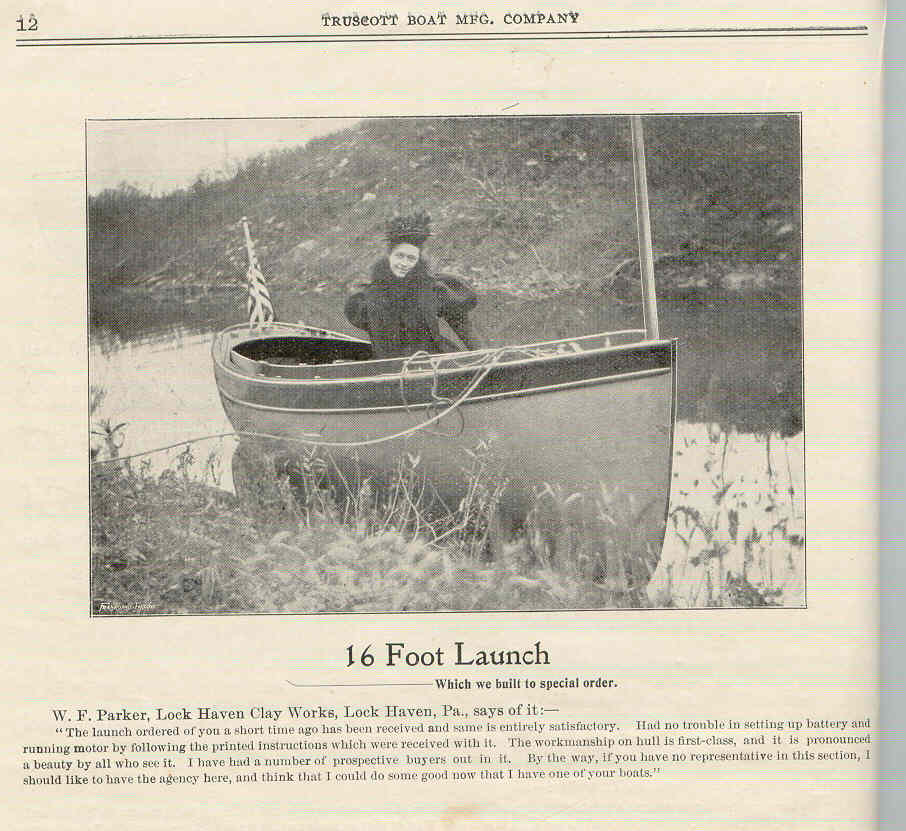

BTW, the launch depicted in the top photo in this thread identified as "18'" has to be the 16 footer. Many of these boats were purchased for public use at the St.Louis Fair, and a superb example is prominently exhibited as we speak in the center main marine hall of the Deutches (sp?) Museum in Munich (St. Joe to the German lakes via Englands Lake District.
Top of pagePrevious messageNext messageBottom of page Link to this message

Lew Dobbins
Member
Username: ldobbins

Post Number: 14
Registered: 12-2002
Posted on Friday, September 07, 2007 - 11:39 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Greetings Denny,

Long time no talk (MOW & ACBS)!

In your keel replacement, if you noticed any pipe holes going through the keel or the hull next to the keel, this would be an indication of a naptha plant. The high pressure naptha vapor was run through cooling coils (actually a couple of back and forth runs of copper) on the hull to condense the naptha vapor back to liquid. Some of the launches on Tahoe that were originally Naptha still have remnants of this. A beautiful example is in the museum at Mystic.

Cheers,

Lew

The West Coast Sterling Guy
Top of pagePrevious messageNext messageBottom of page Link to this message

Denny Anspach
New member
Username: docdenny34

Post Number: 2
Registered: 09-2007
Posted on Friday, September 07, 2007 - 12:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Lew Dobbins writes-


In your keel replacement, if you noticed any pipe holes going through
the keel or the hull next to the keel, this would be an indication of
a naptha plant. The high pressure naptha vapor was run through cooling
coils (actually a couple of back and forth runs of copper) on the hull
to condense the naptha vapor back to liquid. Some of the launches on
Tahoe that were originally Naptha still have remnants of this. A
beautiful example is in the museum at Mystic.

Hello, Lew! No. there were no holes through the keel, and as a matter of fact, there no holes in the bottom -period- except for an exotic U-shaped cast iron underwater exhaust exiting through the hull aft.

Now, completely overlooked in my post (and in my age-related memory decline- it has been 23 years since I stripped the boat), I neglected to recall that there is a carefully fitted galvanized fuel tank under the bow, its shape conforming to the bow shape in all three planes. The fuel line is made of lead tubing, and the feed gravity. Now, was this original, or was it a later addition?

The interior condition of the bilges (black, greasy) could otherwise reflect any type of original power.

I have just completed another long-standing old boat restoration, so I will be ramping up to tackle this lovely Truscott launch this fall and winter.

Denny

--
Denny S. Anspach, MD
Okoboji, Iowa
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 1523
Registered: 11-2001
Posted on Friday, September 07, 2007 - 03:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

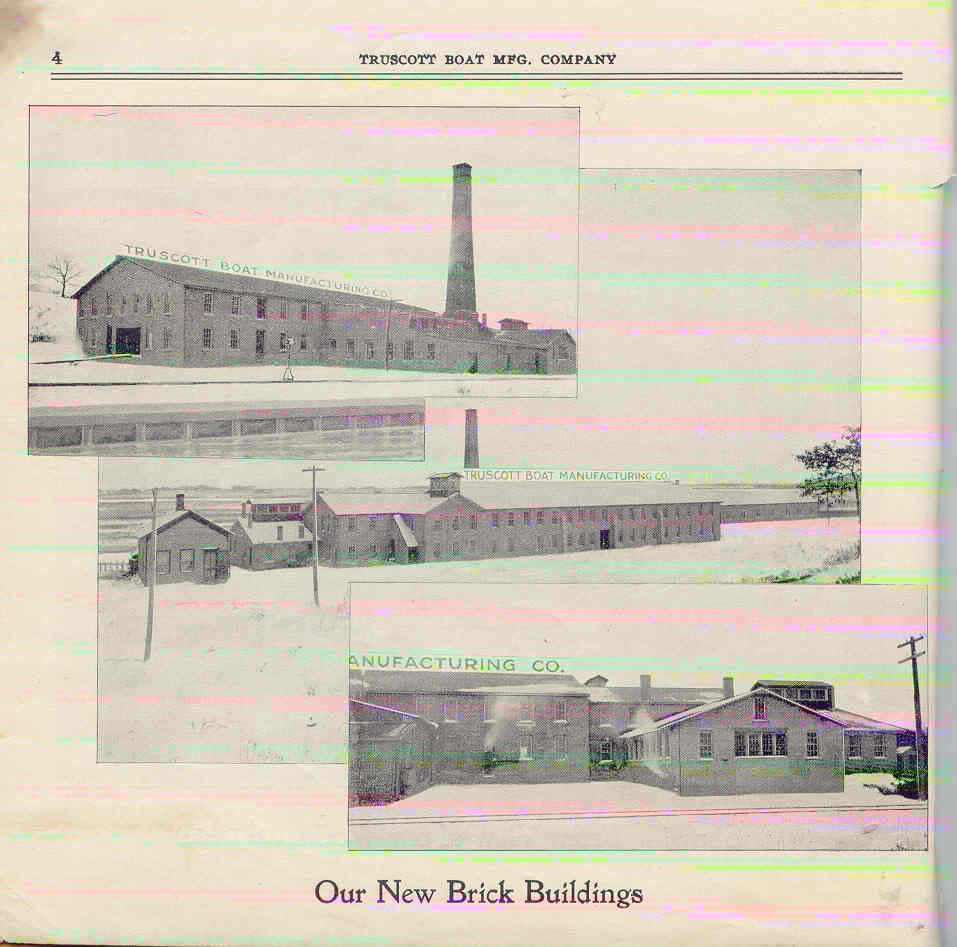

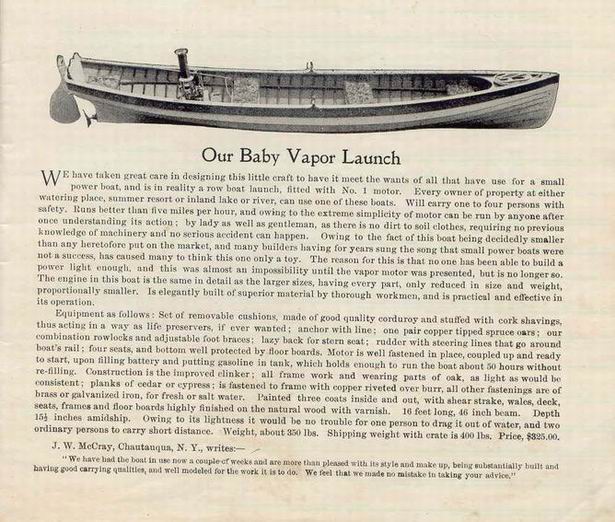

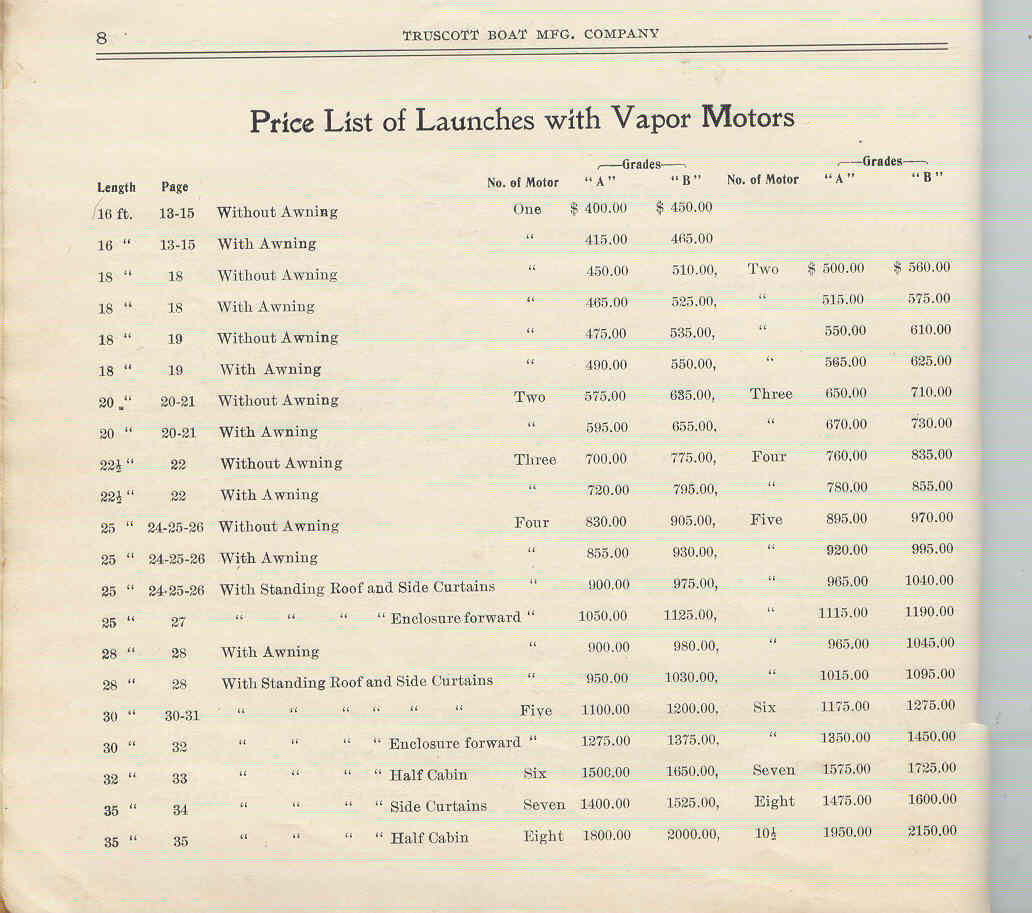

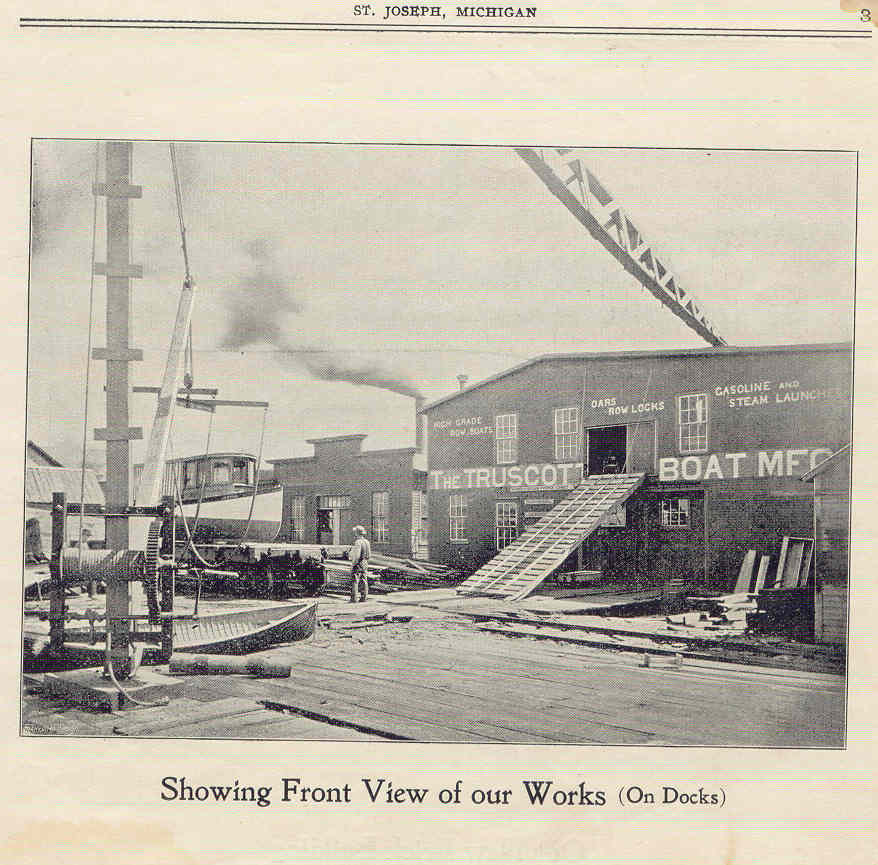

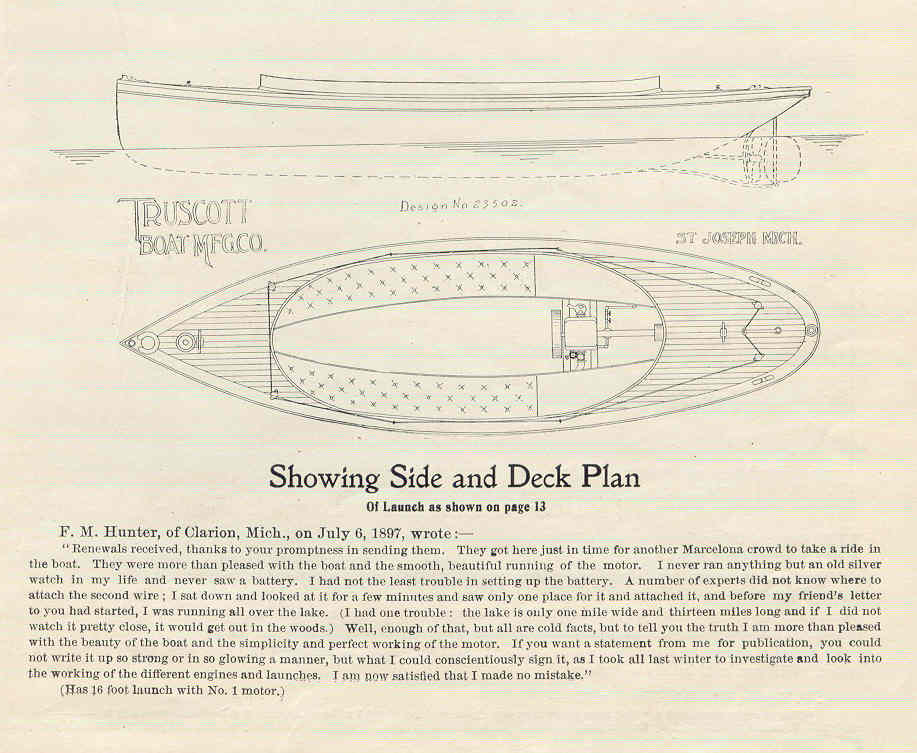

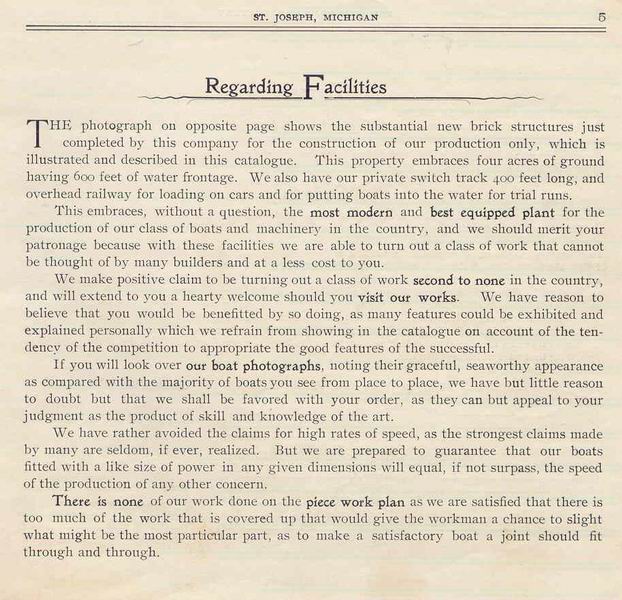

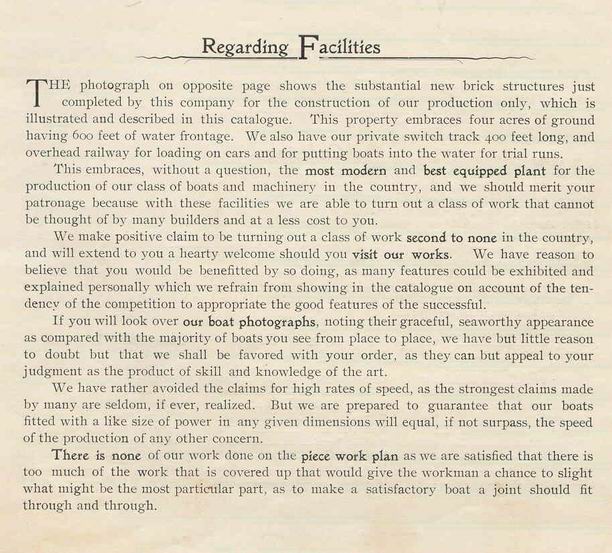

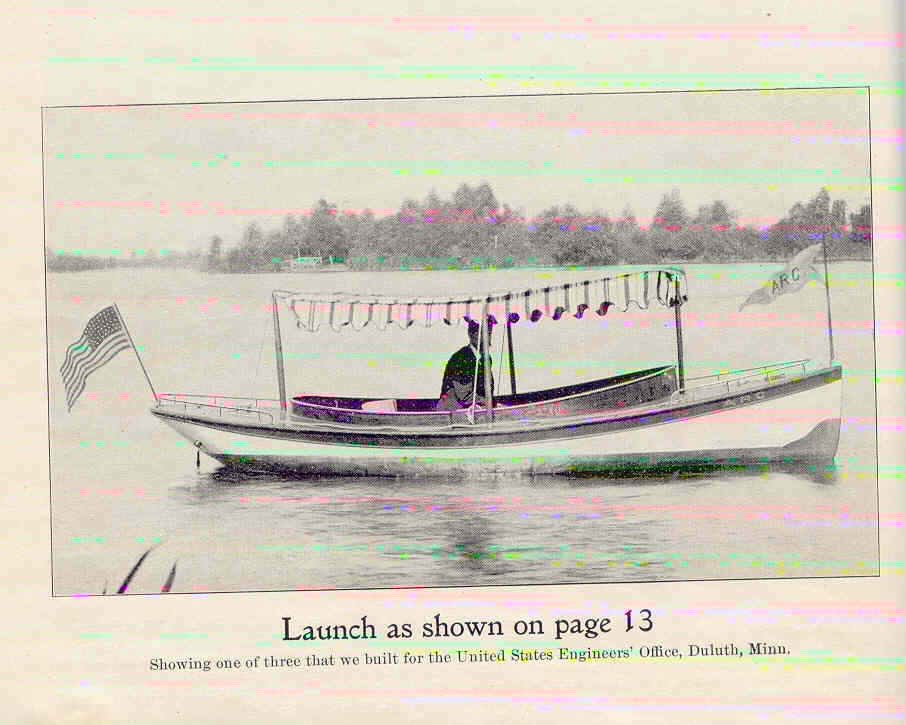

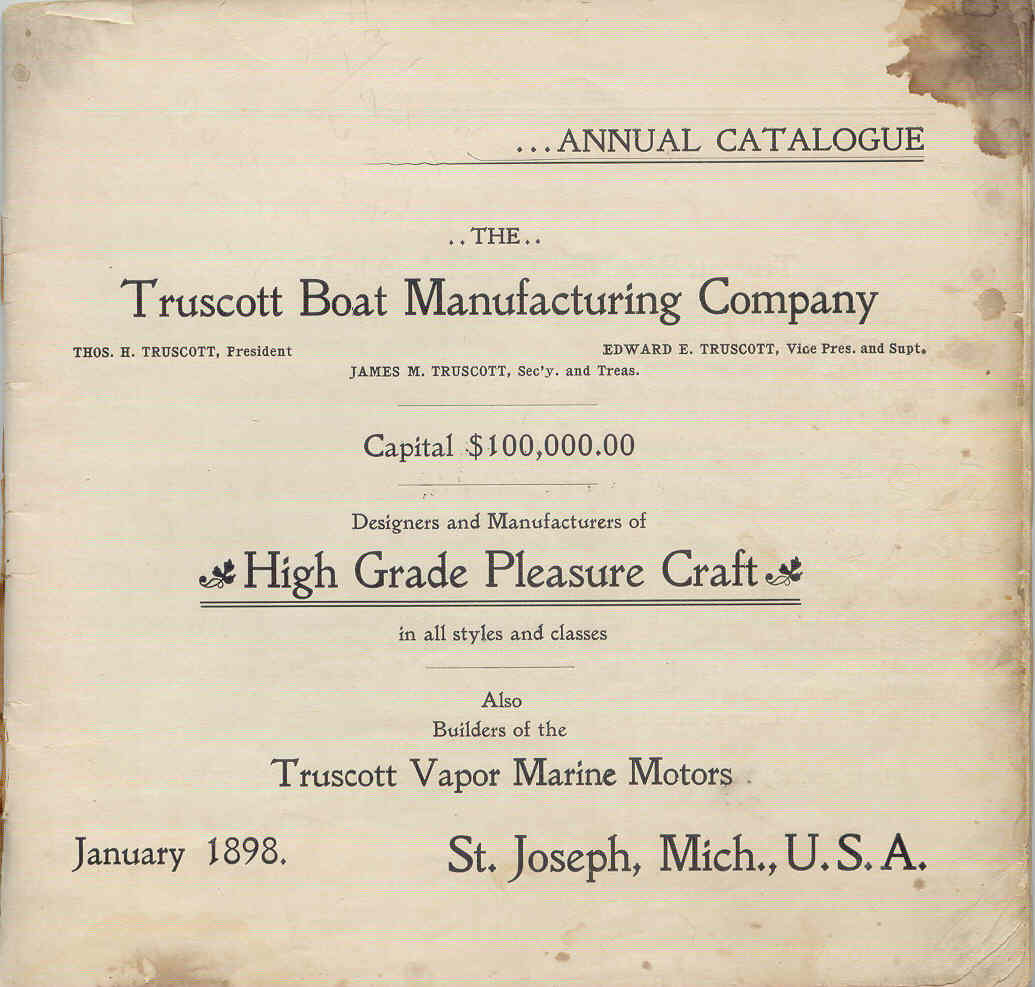

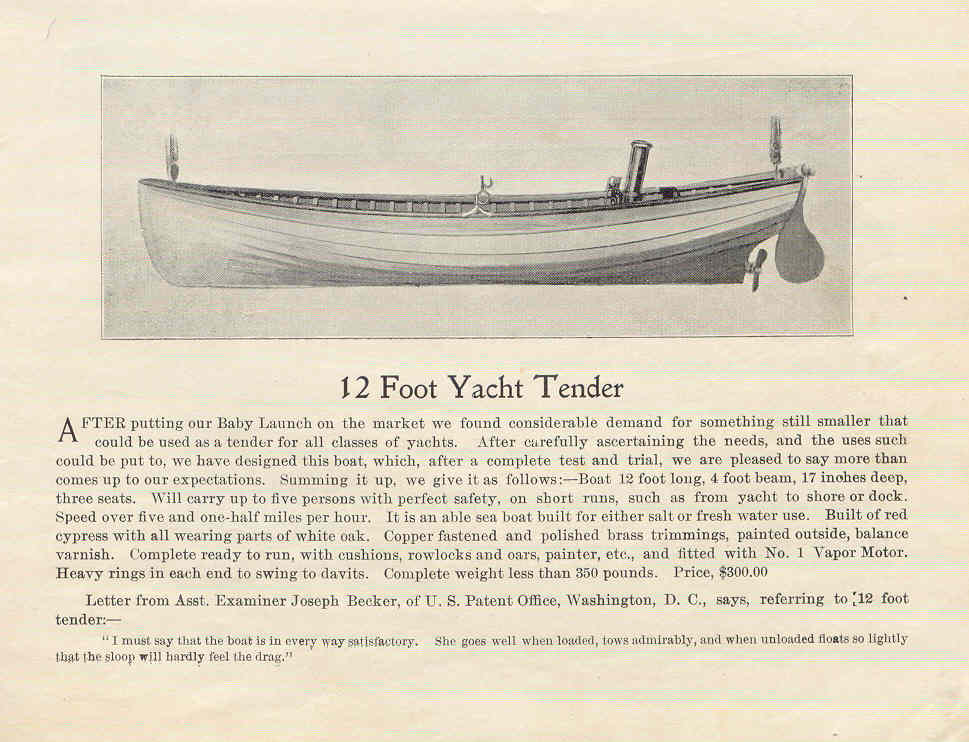

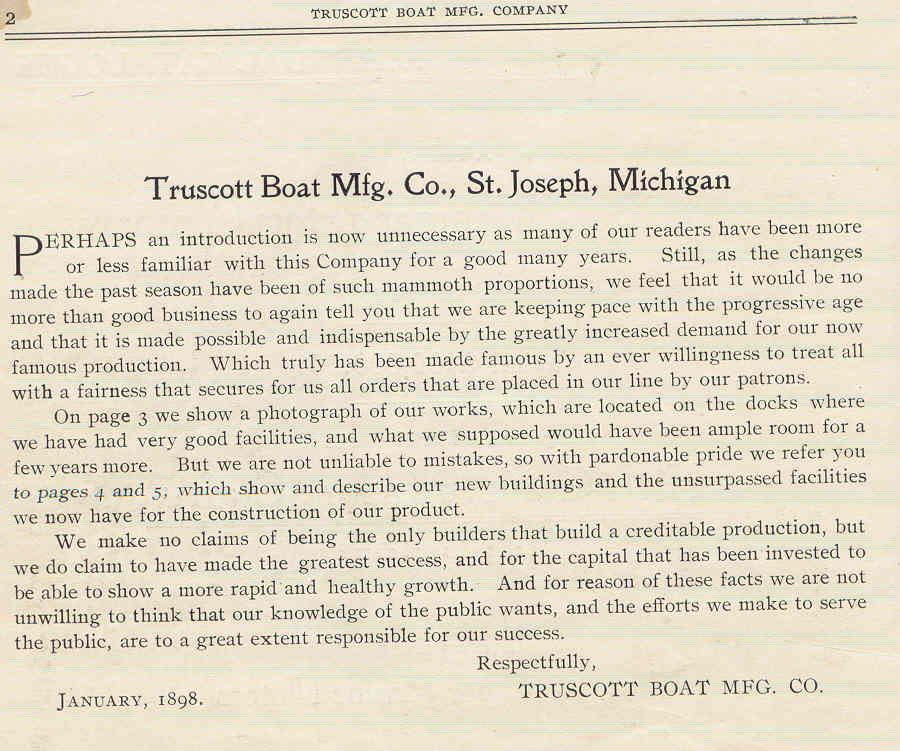

Truscott 1898

1.
T1

2.
T2

3.
T3

4.
T4

5.
T5

6.
T6

7.
T7

8.
T8

9.
T9

10.
T10

11.
T11

12.
T12

13.
T13

14.
T14



*
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Bartrop
Member
Username: bartropr

Post Number: 17
Registered: 06-2006
Posted on Friday, September 07, 2007 - 06:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Denny,
I believe the boat in Munich is the one listed in the UK Steam Boat Association Index in the late 1960's, early 70's and had a steam plant installed. She was 16'long by 5' beam, and was from the Henley on Thames area. She was called 'Natalie'and was in lovely condition then, although I always thought that the steam plant never looked right in her. I remember the last owner (Mr.Nick Knight) sold her to Germany, but I never knew who to.
Will you be able to post some photo's of the interior of your boat and the brass fittings?
Top of pagePrevious messageNext messageBottom of page Link to this message

Denny Anspach
New member
Username: docdenny34

Post Number: 3
Registered: 09-2007
Posted on Friday, September 07, 2007 - 07:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The hulls of the 16' Truscott launches depicted in the 1898 catalog posted by Richard Durgee would appear to be the same as mine, and the one in Münich. I do note that the coamings might seem to to differ, however.

As to Richard Bartrop's request for photos, I am afraid that I cannot do so currently. All photos of my own boat, as well as the one in Münich are on slides, which I cannot access until my return to California this fall- and then they have to be scanned!

I do find that I have a single photo of the Truscott hull (as is currently) on this computer, and if I can figure out how to upload it, I will do so. For the curious, it is depicted riding piggyback on the hull of our family Chris Craft, also undergoing restoration at the time.Truscott 16' launch hull.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Bartrop
Member
Username: bartropr

Post Number: 21
Registered: 06-2006
Posted on Sunday, October 14, 2007 - 05:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Progress on my 18'launch - cleaned out all the old ribs and timbers - the oak has rotted but the cyprus of the hull is still in amazingly good condition! Reribbed and fastened and steaming of stern timbers and other structural timbers which are under the decks is now virtually complete
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Bartrop
Member
Username: bartropr

Post Number: 22
Registered: 06-2006
Posted on Sunday, October 21, 2007 - 04:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A rather poor photo and details of "Natalie" from the 1972 edition of the UK Steam Boat Index. I think the steam plant was installed in the 1960's/70's. She was sold by Nick Knight, the last owner in the UK to Germany.The boat is now in a museum in the city of Munich in Germany.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Bartrop
Member
Username: bartropr

Post Number: 27
Registered: 06-2006
Posted on Tuesday, January 01, 2008 - 12:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Further restoration and cleaning has shown the number stamped on the bow timber which when I saw it picked out in the sunlight quite amazed me. Has anyone seen a number on their or any other Truscott in a similar position? There are also traces of another number to the left of the 57 where there is a screw hole, which could be a 6?
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Bartrop
Senior Member
Username: bartropr

Post Number: 84
Registered: 06-2006
Posted on Thursday, March 16, 2017 - 04:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

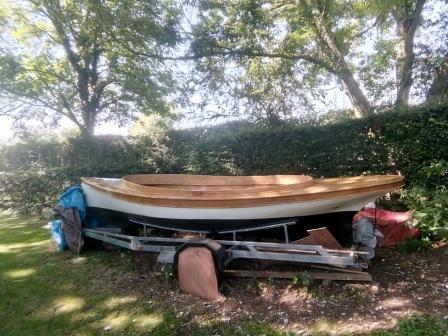

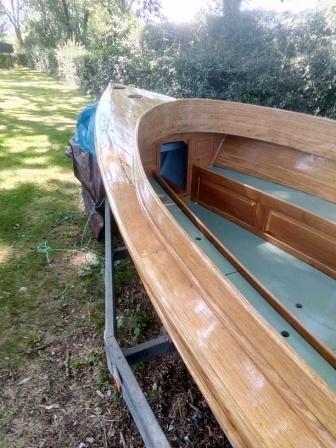

Still working away on the Truscott, with today seeing the last of the deck planks fixed in place. This was done following the plumbing in of the engine -exhaust, water pipes etc. Have now done most of the hull and panelling etc., but still plenty to do!
