|Posted on Sunday, January 04, 2004 - 07:00 am: ||
Well after that mess I think I now got the hang of it.
here is some more
I am put together a Vinco 4hp.
The Vinco needed the bottom end white metal bearings replaced and new bearings put in to the top end.
I decided to have a go my self. I pured the first set on top and bottom which turned out ok. I look at them again
and throught that a better job can be done, the first go was to see if it was possible. I use the oxy to melt the bearings out that I did before and pured another lot which turn out a lot better as you see by the photos.
I had a go at some white matel bearings.The first time were ok but I re pured another lot as I thought they could be done better.

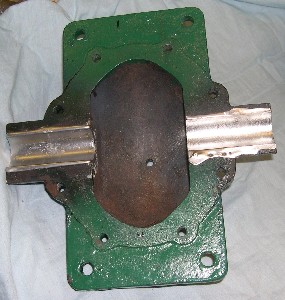

The bottom end was alot easier than the top.
The top part was a litte harder as the main bearing are also attached to the cylinder.
|Posted on Sunday, January 04, 2004 - 10:49 am: ||
Glad you got the hang of posting the pictures. For further comments and pictures you can put them in the "add a message" box below the original post rather than starting a new thread with the same topic.
