Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Posted on Friday, April 19, 2002 - 05:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The current issue of the Antique & Classic Boat Society publication, Rudder, has a long article on the history of the Red Wing Marine Engine company and lists the two people who purchased the assets. They sell info and parts for the engines.

The names are - Harry Munson, 612/388-3391 and Virgil Mischke, 612/388-3045

Great article Andrew - maybe you could get permission to post it.
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Friday, April 19, 2002 - 09:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bob,

Thanks... I haven't gotten my issue yet, but I am looking forward to seeing it.

There seems to be a lot of interest in Red Wing.

rw
Top of pagePrevious messageNext messageBottom of page Link to this message

Bill Schaller
Posted on Friday, April 19, 2002 - 10:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Andrew,

A lot of that interest in Red Wing must be mine. I am an active participant on this board, and Red Wing's are my favorite topic. In the last 4 years I have tracked down and bought over 25 Red Wings, and I am always looking to buy a few more. If any one has one they want to talk about, swap photos, or sell, give me a buzz. By the way, if anyone has an early catalog, showing the 2 cycle engines, I would sure like to own one.

William Schaller
1949 Pioneer Road
Red Wing, MN 55066
wschall@charter.net
651-388-1749
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Friday, April 19, 2002 - 10:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill,

Yes... thanks for all the great information you have shared on the site. I know you are a dedicated Red Wing collector... even taking vacation to drive to NJ in a Minessota winter to pick up a couple engines!!

Have you seen the Red Wing article in RUDDER? Who wrote it?

Keep up the good work. Eveyone has their own approach to collecting, but it seems that one of the most rewarding ways to do it is specialize in one manufacturer and really become an expert in that line of engines. Dick Day with Palmer, and Larry Mahan with Wolverine come to mind.

Most importantly... have fun!

Regards,
Andrew
Top of pagePrevious messageNext messageBottom of page Link to this message

Charles Darragh
Visitor
Posted on Wednesday, October 20, 2004 - 02:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am looking for a Red Wing Model D (Baby Doll)
marine engine 4 cyl. 2 3/4 x 4.

I restored a 16 ft. power launch built by Lawley's in 1927. The small boat build book, which is in Mystic Seaport's collection, shows the launch was built with the above engine.

I am donating the launch to the San Diego Maritime Museum and would like to install the original engine for it. The museum will use the launch as a static display and the engine need not be runnable.

Do any of you have one for sale or any leads to offer in my search?

Charles Darragh
619.224-8584
propxchange@cox.net
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 575
Registered: 11-2001


Posted on Thursday, October 21, 2004 - 12:41 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

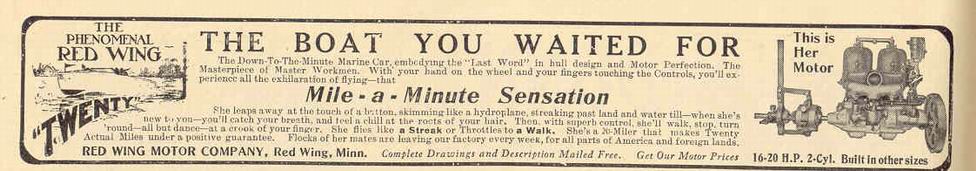

1913 ad

rdw
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 576
Registered: 11-2001


Posted on Thursday, October 21, 2004 - 01:00 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

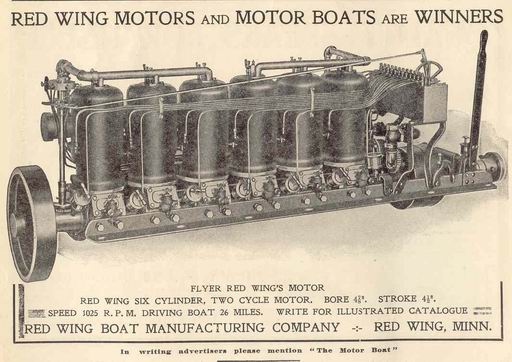

1908-09

rdw
Top of pagePrevious messageNext messageBottom of page Link to this message

R L Engines
Visitor
Posted on Friday, November 04, 2005 - 04:11 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am looking for a cylinder head for a Red Wing Model A 2 Port Engine. 3 HP. Please send an e-mail if you know where one can be found. RLEngines@aol.com. Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

Jackbat
Visitor
Posted on Thursday, June 15, 2006 - 12:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Can someone help me with some specification for a Red Wing Model D four cylinder. I have recreated a complete set of plans for a 18' Hacker runabout and finished all the drawings, lofting and so forth but He originally spec'd out the boat for this engine and I would like to know HP, RPM, weight and so forth. Anything you can give me would be a help. If you could email me or post I would appreciate it. If this site does not automatically notify when a post comes in I would prefer an email.

Thanks
Jack@sandypointboatworks.com
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert B. Price
Senior Member
Username: rbprice

Post Number: 204
Registered: 11-2001


Posted on Thursday, June 15, 2006 - 07:47 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello Jackbat - approx. what year are you interested in? I have some Red Wing engine catalogs ranging from 1915 to 1942.

Bob Price
Top of pagePrevious messageNext messageBottom of page Link to this message

Art Ferdinand
New member
Username: sparpro

Post Number: 1
Registered: 03-2008
Posted on Saturday, March 29, 2008 - 01:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am considering putting my 2 matched 6 cyl. Red Wing engines on the auction block. They have been rebuilt to original specs and purr like kittens. They were installed by the Canadian govt. in my 1941 34' Chris Craft. If interested, call me......Art.631-775-8026
Top of pagePrevious messageNext messageBottom of page Link to this message

Carlos Silva
New member
Username: pahuac

Post Number: 2
Registered: 06-2006
Posted on Sunday, March 30, 2008 - 11:26 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am again considering investing on refurbishing my 1954 30' Philip Rhodes Truant (see attached photo)and one of the major issues is its engine. The only reference I have comes from copy of the plans I got from the Mystic Seaport Museum where a Red Wing Meteor is mentioned.
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank Petran
Visitor
Posted on Saturday, July 05, 2008 - 08:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looking for information about a Red Wing engine serial # 91528. From the picture it looks like a C4 style but I am not sure. The owner states that it is an 18hp motor and from the picture I think that is right. I am looking into restoring a 17 ft. launche without a motor and I came across this motor and wondering about it. Tourqe curve, max RPM prop sizing etc. would help. Frank Petran, mrwoodboat@wi.rr.com or 262-284-2650 Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

robert burke
Visitor
Posted on Wednesday, August 20, 2008 - 10:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I PULLED A RED WING 4CYL.MARINE ENGINE IN PARTS OUT OF A STORGE SHED THE ENGINE WAS IN THE PROCESS OF BEING RESTORED IT WILL BE IN A AUCTION IN LATE OCT. (DATE HAS NOT BEEN SET YET) IN WATERLOO IOWA WITH OVER TWO HUNDERD OTHER GAS ENGINES SOME MARINE CHECK OUR WEBSITE HILPIPRE.COM THE PHOTOS WILL BE UP SOON OR CALL AND I WILL SEND YOU SOME THANK YOU MERV 319-415-0816 OR BOB 319-610-2819
Top of pagePrevious messageNext messageBottom of page Link to this message

Roslyn
Visitor
Posted on Thursday, September 11, 2008 - 04:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

My brother-inlaw recently acquired a Redwin engine item he wants to restore to "like new" condition for home display. It is a crank case cover with raised REDWING lettering on it. He said the party he got it from believed that it came from a six-cylinder (3 and 3), flathead-type engine with dual ignition from the mid-1920s. The rest had long since gone to scrap. So, I'm looking for proper colors to repaint the piece once it is cleaned up. Thanks, Ros
Top of pagePrevious messageNext messageBottom of page Link to this message

William Schaller
Senior Member
Username: billschaller

Post Number: 165
Registered: 12-2003


Posted on Saturday, September 13, 2008 - 09:06 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Most of the 4 cycle motors were painted industrial gray or less common a medium red. many earlier 4 cycle had gray motors, and red flywheels.

If it is an early motor before 1920s, or a 2 cycle, then it could be gray, black, red or even green. Does he have a picture?

Personally, if it was mine, I would paint it red, with black outlining the letters. My second choice would be gray, with black letters.

Bill Schaller
Top of pagePrevious messageNext messageBottom of page Link to this message

MIKE ARMSTRONG
New member
Username: mike_a

Post Number: 1
Registered: 09-2008
Posted on Monday, September 15, 2008 - 10:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I NEED SOME HELP WITH A RED WING MOTOR I THINK IT IS A 1915 MODEL. I LIKE TO RESTORE IT PUT NEED MORE INFO.ABOUT THE MOTOR.ON THE TAG IS RED WING MOTOR CO RED WING MINN.LAUNCHER NO.1360 HP6 USA THINKS
Top of pagePrevious messageNext messageBottom of page Link to this message

MIKE ARMSTRONG
New member
Username: mike_a

Post Number: 2
Registered: 09-2008
Posted on Tuesday, September 16, 2008 - 12:03 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

HAVING TROUBLE WITH POSTING MY PICTURES
Top of pagePrevious messageNext messageBottom of page Link to this message

William Schaller
Senior Member
Username: billschaller

Post Number: 166
Registered: 12-2003


Posted on Tuesday, September 16, 2008 - 08:16 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

You can send me the photos. click on my name for email.
Top of pagePrevious messageNext messageBottom of page Link to this message

MIKE ARMSTRONG
New member
Username: mike_a

Post Number: 3
Registered: 09-2008
Posted on Saturday, September 20, 2008 - 12:27 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I SENT YOU THE PIC AND I REALLY APPRECIATE THE HELP.MY DAD HAD THE MOTOR RUNING SOME 25 YEARS AGO HE SAID THEY USED IT TO PULLED LOGES UP AND DOWEN THE RIVER. I STILL LIVE ON THE RIVER AND WOULD LOVE TO GET THE OLD MOTOR RUNNING AGAIN. I HAVE ALL THE PARTS TO GET IT GOING. AS SOON AS I GET IT GOING I WIIL START BUILDING A NEW FLAT BOTTOM BOAT.
Top of pagePrevious messageNext messageBottom of page Link to this message

William Schaller
Senior Member
Username: billschaller

Post Number: 167
Registered: 12-2003


Posted on Monday, September 22, 2008 - 10:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

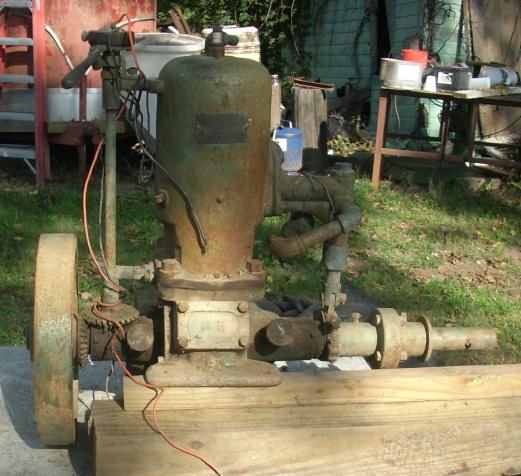

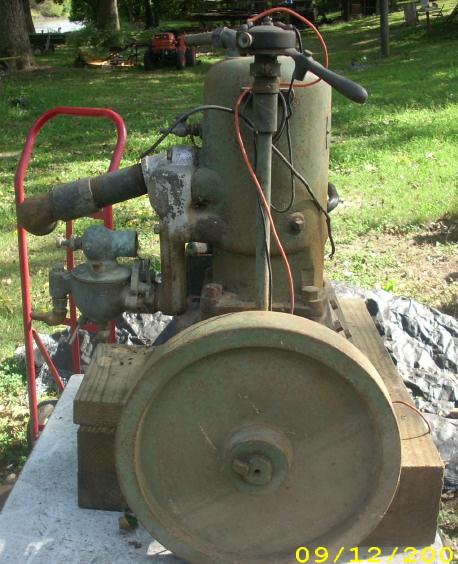

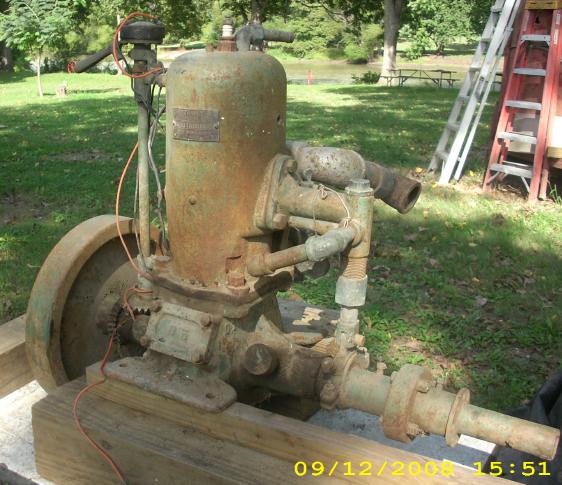

Here are the pictures of Mike's Red Wing. It looks like a nice complete engine, and he should be able to go to the OLD Marine Engine store, and get a copy of the PALMER GAS ENGINE HANDBOOK to help him run it.







Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 1822
Registered: 11-2001
Posted on Tuesday, September 23, 2008 - 05:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

Thanks for posting photos !
Nice looking original engine, looks like this one was Green !
Unique intake exhaust manifold!

*
Top of pagePrevious messageNext messageBottom of page Link to this message

MIKE ARMSTRONG
Member
Username: mike_a

Post Number: 4
Registered: 09-2008
Posted on Sunday, October 12, 2008 - 07:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

THANKS WILLIAM I ORDER THE PALMER GAS ENGINE HANDBOOK THERE IS A LOT OF INFO IN IT.AND ITS REALY GOING TO HELP ME A LOT THANKS.
Top of pagePrevious messageNext messageBottom of page Link to this message

Eugene Briggs
Visitor
Posted on Friday, May 08, 2009 - 01:42 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Any one know a ballpark figure on a red wing? I think it's a meteor. Not froze up. No plates so far. Appreciate any info. Geno
Top of pagePrevious messageNext messageBottom of page Link to this message

William Lynch
New member
Username: william

Post Number: 1
Registered: 11-2009
Posted on Thursday, November 05, 2009 - 08:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

New here hello all. Recently have gotten a RedWing Thorobred single cyl. engine. NO 32056 K 4-5 hp. Looks to be complete but the piston is stuck tight as can be and the bore may be heavily rusted. The goal is to fix it up and get it running . Any information about this engine will be nice to have as well as parts sources. Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

miro forest
Senior Member
Username: miro

Post Number: 407
Registered: 11-2001


Posted on Friday, November 06, 2009 - 08:48 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

William - if it's one thing I've learned - it is patience for the challenge of a stuck piston.
There are lots of guys who have rescued engines with stuck pistons so don't despair.
The first step is to get the engine apart without buggering up stuff, so you can get at the bottom of the piston.
How far down the bore is the piston stuck?
Please resist the temptation to push down on the piston through the spark plug hole- you'll damage the piston for sure.
Soaking the whole sheebang is not a bad idea if you can do it - the big question is what to soak it in.
To inspect the bore above the piston, I've soldered a small flashlight bulb onto a pair of twisted wires and lowered the bulb into the bore though the spark plug hole to see what I could see.
I've found that in general the bore is in pretty good shape, not nearly as bad as you'd think.
Some folks have used water as a penetrating fluid on the theory that rust ( iron oxide) attracts water molecules.
Never used that myself , but I have used a weak (5:1) mix of white vinegar (acetic acid) and water to soak parts in.
The other point is , once the parts start to move, please be even more patient and move them back and forth a little more each time, rather than trying to do it in one step.
You'll have to be creative on making up some jigs as well.

Can you post some pictures?
That would help the OME community here collectively work on this project with you.

miro
Top of pagePrevious messageNext messageBottom of page Link to this message

miro forest
Senior Member
Username: miro

Post Number: 408
Registered: 11-2001


Posted on Friday, November 06, 2009 - 08:57 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Have a look at

http://www.oldmarineengine.com/discus/messages/5/134202.html

You're not alone . . .miro
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard A. Day Jr.
Senior Member
Username: richardday

Post Number: 827
Registered: 11-2003


Posted on Friday, November 06, 2009 - 08:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Back about 1990 Harry Munson paid me a visit and picked up some Redwing parts. We had a great visit and a few weeks late a small wall clock in the shape of a Redwing one lunger arrived in the mail. Harry had made it for me and I have it hanging on the wall over my computer. Is Harry still alive? Have not heard a word about him in years and when I saw Bob's note I thought someone would know.
Top of pagePrevious messageNext messageBottom of page Link to this message

William Lynch
New member
Username: william

Post Number: 2
Registered: 11-2009
Posted on Sunday, November 08, 2009 - 03:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I haven't had a chance yet to take any photos but I will. The head came off without much trouble but the bore looks to be a real mess. The piston looks to be at or very near to BDC. When I get to it I will release the con rod from below and take the whole cyl assembly off for disassembly. I had really good luck with a UNITED cyl and a very stuck piston by soaking the whole thing in rust disolver. After a few weeks it came apart without alot of resistance.
Also have a GRAY MARINE one lunger 2 stoke . It is missing the mixer/check valve. Found this one at the dump !!!!
Top of pagePrevious messageNext messageBottom of page Link to this message

Wil Giraud
Visitor
Posted on Tuesday, November 17, 2009 - 08:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

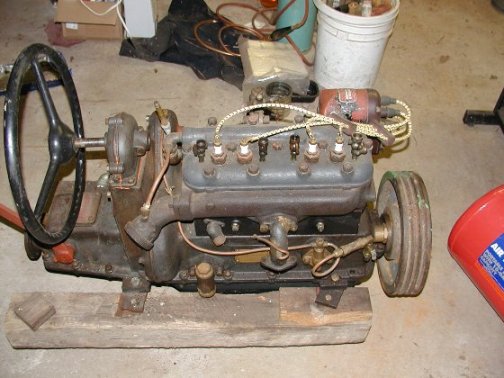

Need some info on my motor. Red Wing Thorobred 10hp #2123D. It is mostly complete, looks like I may be lacking a carburator. It may still be lurking around the shop somewhere, what should I look for? Model? Are there any parts lists or diagrams for these motors available?
Red Wing Thorobred
Top of pagePrevious messageNext messageBottom of page Link to this message

miro forest
Senior Member
Username: miro

Post Number: 411
Registered: 11-2001


Posted on Wednesday, November 18, 2009 - 02:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

It's likely a Zenith 1 inch carb.
If you're going to run the engine, you'll probably have to tilt the engine on its mountings so that the float bowl is level.
You should be able to put in a couple of big shims.
miro
Top of pagePrevious messageNext messageBottom of page Link to this message

Wil Giraud
Visitor
Posted on Monday, November 23, 2009 - 07:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

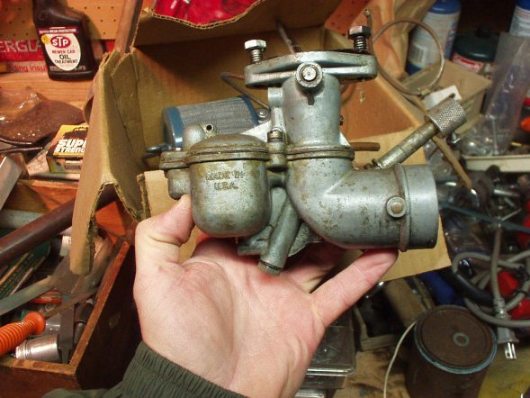

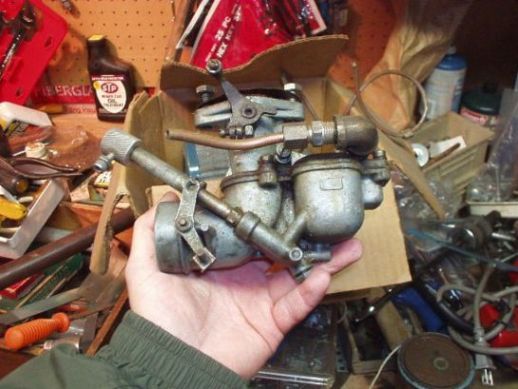

OK. May have found the carb. Does this look like the right animal? Only markings I could find are "Made In USA".

carb 2
Top of pagePrevious messageNext messageBottom of page Link to this message

Wil Giraud
Visitor
Posted on Monday, November 23, 2009 - 08:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Another view.
Top of pagePrevious messageNext messageBottom of page Link to this message

Kent Penovich
New member
Username: outofspec

Post Number: 1
Registered: 12-2009
Posted on Wednesday, December 02, 2009 - 10:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard asked; "Is Harry still alive? Have not heard a word about him in years and when I saw Bob's note I thought someone would know."

Yes, Harry is alive and well. About two weeks ago I purchased some parts from him for my Waukesha 140GK engine. The parts were NOS still packed in cosmolien. Harry is a fantastic guy and a real genius.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard A. Day Jr.
Senior Member
Username: richardday

Post Number: 831
Registered: 11-2003


Posted on Thursday, December 03, 2009 - 09:02 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Kent, Do you have an address for Harry? Would like to send him a note. Thanks. Dick

Add Your Message Here
Post:
Bold text Italics Underline Create a hyperlink Insert a clipart image

Username: Posting Information:
This is a public posting area. Enter your username and password if you have an account. Otherwise, enter your full name as your username and leave the password blank. Your e-mail address is optional.
Password:
E-mail:
Options: Automatically activate URLs in message
Action:

Administration Administration Log Out Log Out   Previous Page Previous Page Next Page Next Page

Home | Classifieds | History | Technical | Links | Store | About Us | Email
&copy 2005 OldMarineEngine.com, P.O. Box 188, Forest Dale, VT 05745-0188 • Phone: 802-247-4864 • All rights reserved.
   Marine Engine Seloc Repair Manual Lookup Tool

marine gas engine repair and restoration
