Brown and Talbot and Mianus

Old Marine Engine » Mianus » Brown and Talbot and Mianus « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Friday, February 27, 2004 - 06:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard,
What do you have on Brown and Talbot and Mianus. I just got a 1 cylinder 2 stroke Brown and Talbot and a 5 hp MandB Mianus.
Thanks
Ernie

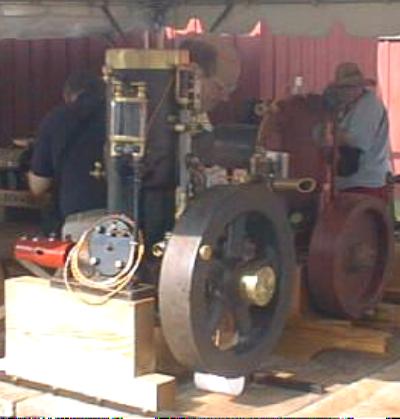

The Mianus is in the forground and the BandT is behind. Mot much of a pic of it.

Text description
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Friday, February 27, 2004 - 06:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Oh by the way Doug you are there too.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Friday, February 27, 2004 - 08:05 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

This 1913 catalog gives a little history to first year Mianus made eng's.

Note no oilers in 1913, and exhaust manifold is on opposite side from your eng and the one in the picture i posted few days ago, obviously earlier engs, i'll try to find when this change took place
Thats a great old Engine !!


Mianus
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Friday, February 27, 2004 - 08:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard,
This is the first I have noticed the city as Stamford. I assumed they were always in Mianus.
thanks
E
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Friday, February 27, 2004 - 08:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie,

This is 1911, i believe the singles came out with updated model in 1912, yours is 1912 or older !


Mianus1911
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Friday, February 27, 2004 - 09:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie

Oilers are different, your eng probably in between 1912-- 1906 ?? what do you think??


Mianus06
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Friday, February 27, 2004 - 09:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie

Brown & Talbot

This is 1906, i'll keep looking!!
Have you got a pic of your new one??


B&T
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Friday, February 27, 2004 - 10:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Brown & talbot listed in 1913 index of eng makers.
this is aft picture in same. Left the other engs in just for interest!!


B&T1913
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Saturday, February 28, 2004 - 07:59 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard,
Thanks, No not any pics yet. I won't actually have the engines for at least another week or 2. The pic above "aft view" looks like it. I will post pics when I get them.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Saturday, February 28, 2004 - 05:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Mianus moved to Stamford in 1907.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Saturday, March 13, 2004 - 09:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

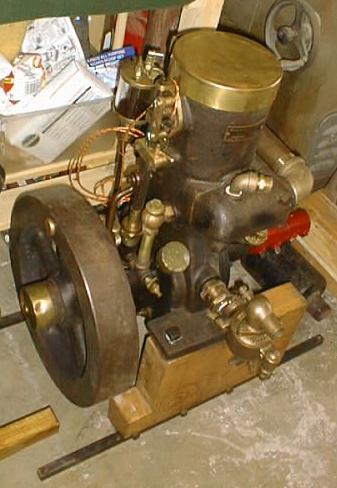

Here are some additional pics of both engines. Note the Mianus tag. Since it clearly says Mianus, Ct I guess it is 1906 or earlier acording to Dick comment above.

Text description
Text description
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Saturday, March 13, 2004 - 09:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

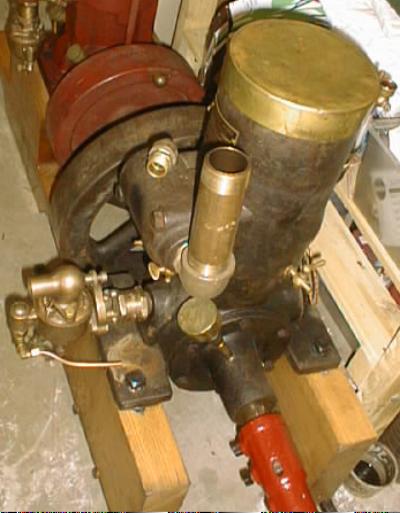

Brown and Talbot pics
Text description
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Sunday, March 14, 2004 - 10:48 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

this is 1902 Mianus, no side manifold and four holed flywheel.

1902m


Brown and talbot is rare, a horizontal Brown and talbot has to be very rare??
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Sunday, March 14, 2004 - 11:14 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

DUH!
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Sunday, March 14, 2004 - 11:23 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

this is from Hiscock's 1906 edition, previous edition was 1902 so picture is probably somewhere in between 1903=05 ???

Head bolts and primer go through brass hat??


HM
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Sunday, March 14, 2004 - 12:42 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I had a good laugh when first going through Wendel's yellow book he states "Mianus started out in 1887 as Mianus Electric Co." This of course is not true. Palmer Bros. started out as Mianus Electric Co. in 1887. I have never found any evidence that there was any connection between the two companies other than the fact they both started out in Mianus, CT. Palmer Bros. started their move in 1901 and moved completely to Cos Cob in 1907. Mianus moved to Stamford in 1907. Raynal Bolling visited their plant in the early 1920s and said they had no foundry. Their foundry work was farmed out. Mianus went out of business in about 1954. They made a long line of diesel and mutiple cylinder gas engines. Again Wendel didn't understand that Mianus Diesel Engine Co. of NY, NY was the same company as the Stamford company and the engines were made in Stamford. At the Arcadia, MD. Antique engine show a couple of years back a large 6 cylinder Mianus ca 1940s was in the auction. Unfortunately like so many salt water marine engines it was so badly rotted that there were no bidders. I didn't have the means to move it much less store it so don't know what happened to it. Only mutiple cylinder Mianus I have seen since the early 1930s when an uncle had one in his boat. Ernie certainly has a nice looking Mianus. The relics I have are all in need of major repair. Some beyond hope of repair.
Top of pagePrevious messageNext messageBottom of page Link to this message

Keith
Posted on Friday, March 19, 2004 - 03:11 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie
I have a Mianus of the same style as yours. I think it is probably a 3 hp. My engine does not have the side tag, but has a small tag on the ignitor trip linkage. That small tag doesn't have a place for a serial no. It has the spoked flywheel. I also do not have the brass head cover. Did they all have them? Wonder when they went from the solid flywheel with 4 holes, to the spokes?
Keith
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Friday, March 19, 2004 - 04:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Keith,
Bring yours to Calvert. I am bringing mine. Mine also has the tag on the ignitor trip rod like yours. I think they all had the top cover. It just slides on. Most likely the first part to "go overvoard" when it wouldn't start.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Friday, March 19, 2004 - 08:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Keith

This is 1909 ad - spokes .
1906 above solid wheel/ 4 holes.
Change must have been 1907-08 ?


1909M
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Friday, March 19, 2004 - 10:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie,

The 1909 ad above say's Main office Mianus Conn.
The 1911 ad above says stamford Conn.
Move must have been 1910 ??
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Saturday, March 20, 2004 - 07:03 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Somewhere I have an article about Mianus and that one says the factory moved to Stamford in 1907. I have other material that says the office was in New York so take your pick. Where does the truth really lie.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Saturday, March 20, 2004 - 07:43 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The 1909 add looks like mine.
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 1434
Registered: 11-2001
Posted on Friday, February 23, 2007 - 07:24 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

Jacques --- MIANUS Images
Top of pagePrevious messageNext messageBottom of page Link to this message

Samuel A. Kelly
Visitor
Posted on Friday, June 01, 2007 - 12:06 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a multiple cylinder Mianus. Each independent cylinder (2) is connected by a common crankshaft. Each cylinder has a nameplate with consecutive serial nos., Mianus Motor Works, Stamford Conn. 71/2 hp. It was used on a tug boat on the Ouachita River, Monroe, Louisiana. It was used to rescue people during the 1927 flood. Please respond if interested.
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 255
Registered: 07-2002


Posted on Friday, June 01, 2007 - 06:54 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I'm in south Louisiana, I'd like to know more about it. Can you email me at jbcast@charter.net
Top of pagePrevious messageNext messageBottom of page Link to this message

Bruce Hall
Senior Member
Username: bruce

Post Number: 257
Registered: 07-2002
Posted on Friday, March 04, 2011 - 08:55 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A friend has a 4 cyl Mianus estimated to be a mid late 20's marine engine. It has a large tapered bell-housing like cover over the tail shaft with the word MIANUS plainly cast in large letters. Info/photos/ads are pretty scarce. Has anyone seen or have a similar Mianus or more importantly ads or specifications for this model??
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2601
Registered: 11-2001
Posted on Friday, March 04, 2011 - 10:31 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

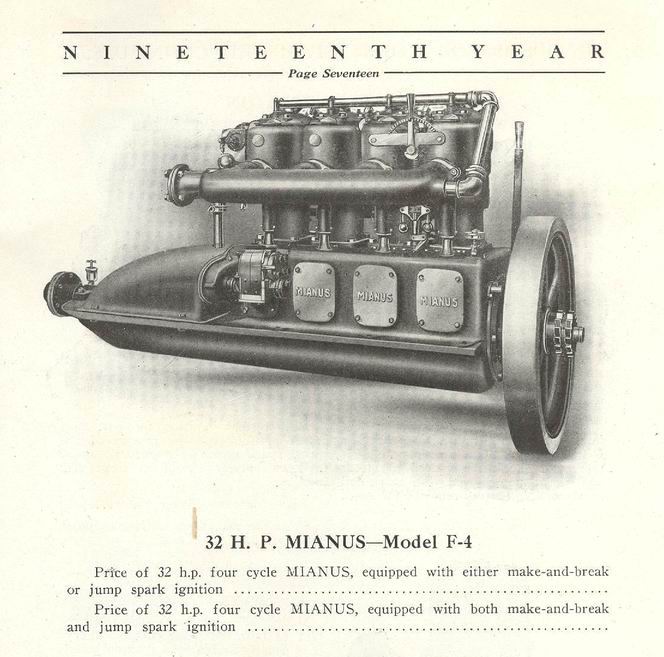

1917

A marine engine with built in governor.


M17

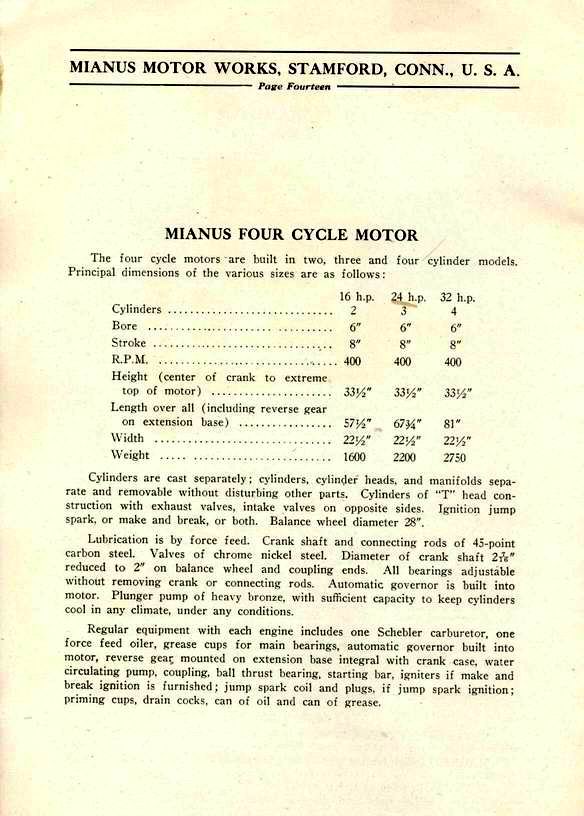

M17specs

*
Top of pagePrevious messageNext messageBottom of page Link to this message

Walter R Ansel
New member
Username: walt_ansel

Post Number: 1
Registered: 12-2011
Posted on Tuesday, December 06, 2011 - 08:43 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello,

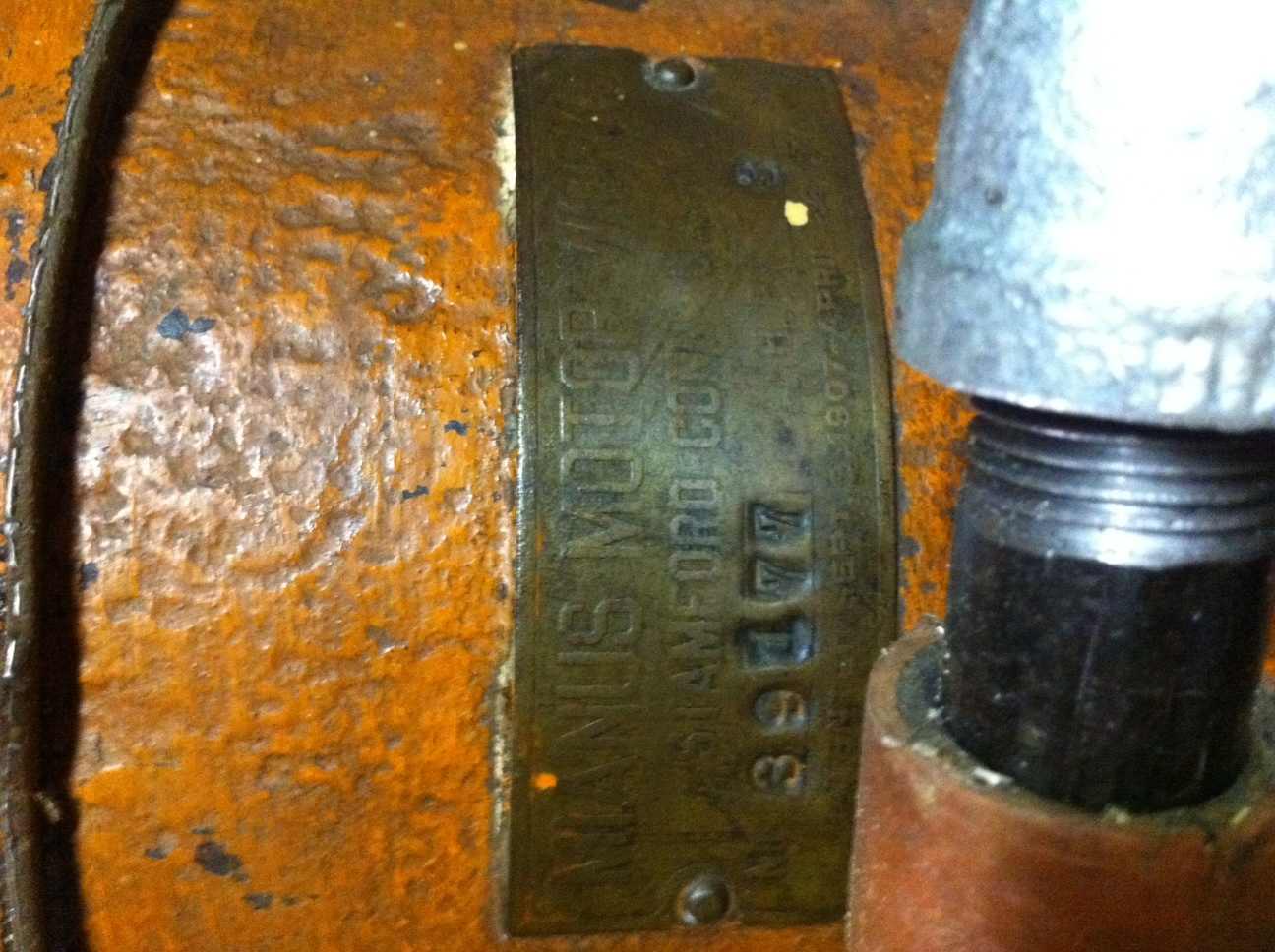

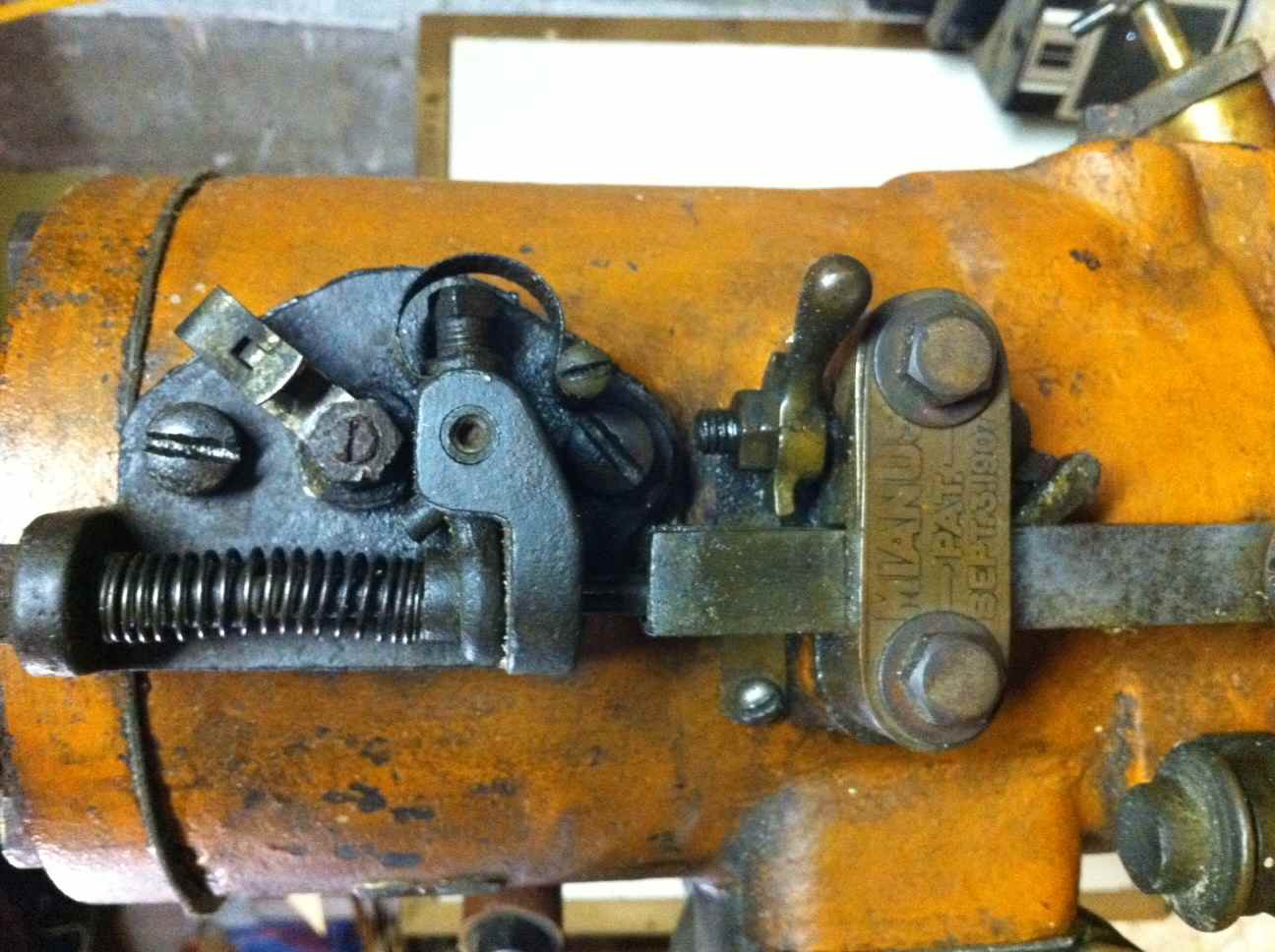

Walt Ansel here from Mystic CT. About a month ago I bought a very original 3hp Mainus.( #39177) With advice from Scott at Mystic, I got her running after replacing the head and manifold gaskets. I've got a few leaks in the repaired (brazed) manifold that will need attention.
My hope is to install her in an 18' Swampscott dory that my father built (like a Toppan). Hope to cool with a copper tube keel pipe & fresh water.
How old is this motor? I'm guessing 1919 or so.
Thank you- glad to be aboard- Walt
PS - sorry they came out sideways - still learning!
photo 1
photo 2
photo 3
photo 4
photo 5
photo 6
photo 7
