Mianus 3hp

Old Marine Engine » Mianus » Mianus 3hp « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

William J. Foster
Member
Username: bill_foster

Post Number: 10
Registered: 01-2008
Posted on Friday, October 20, 2017 - 05:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I've recently come into the possession of a working 3 Hp Mianus in a dory converted to inboard power. I have been able to get the engine to run, but I do have a few questions.
What type of grease should be used in the main crank grease cups?
The timer adjustment lever, if it is to the right is that fully retarded timing?
And to the left or handle facing toward the flywheel is that fully advanced?

I'd post a picture but am not sure how.

I have read the tips section but I think these items are not specifically discussed in that document. although the tips document in conjunction with the engine manual have been really very helpful.

Than you,

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2409
Registered: 01-2002


Posted on Saturday, October 21, 2017 - 08:22 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

William,
Send me your pics and I will post them for you.
Click my name on the left for my e-mail
Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

William J. Foster
Member
Username: bill_foster

Post Number: 11
Registered: 01-2008
Posted on Saturday, October 28, 2017 - 07:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie,

I emailed you some pictures, I'm wondering if maybe you did not receive the email?

Have another question if this finds you. I can take it offline via email.

Kind regards

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2410
Registered: 01-2002


Posted on Sunday, October 29, 2017 - 08:44 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill,

Here are the pics

Sure send me an e-mail

Ernie

Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2411
Registered: 01-2002


Posted on Sunday, October 29, 2017 - 08:56 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

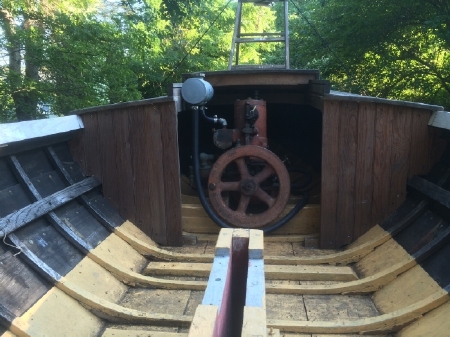

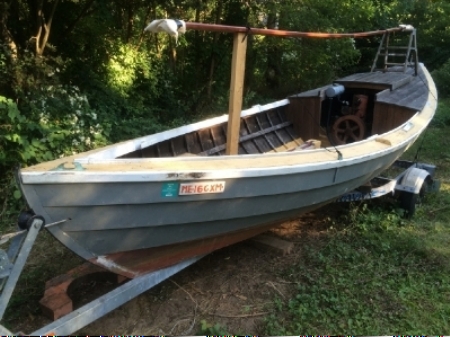

Bills Pics





Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2412
Registered: 01-2002


Posted on Sunday, October 29, 2017 - 09:09 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill,
Use plain old everyday wheel bearing grease in the grease cups for the main bearings
Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 1341
Registered: 07-2002


Posted on Sunday, October 29, 2017 - 09:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill, not sure about the timing on your engine but you can figure it out. Move the lever all the way one way, rotate the engine, note the location of the flywheel key when the ignitor trips. Move the lever to the other extreme and try it again, noting the key, you should be able to tell which is advanced. To reverse these engines you should be able to advance timing all the way, kill the ignition, connect ignition when it's about to stop, high timing should reverse it.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ned Lloyd
Senior Member
Username: ned_l

Post Number: 158
Registered: 08-2012
Posted on Monday, October 30, 2017 - 10:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Wow! That's a great engine snd great boat! Do you have any more pictures? (Especially of the boat?)
Top of pagePrevious messageNext messageBottom of page Link to this message

William J. Foster
Member
Username: bill_foster

Post Number: 12
Registered: 01-2008
Posted on Tuesday, November 21, 2017 - 10:28 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Sorry, I've been away a bit with other projects in the way of this one. I appreciate the feedback from those above regarding the boat and correct materials.... I will post some more pictures and report back once I have a new float from Otto and get this project moving forward more.

Bill
