Freeze Crack VS. Salt Crack

Old Marine Engine » Miscellaneous » Freeze Crack VS. Salt Crack « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 376
Registered: 02-2002


Posted on Wednesday, February 06, 2013 - 11:04 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I recently picked up an engine that has cracks around the bottom of the water jacket. The engine has been stored dry for many years. The cracks appear like they could be salt cracks in that there is some swelling of the crack. The water jacket is open to the (bottom) drain area and is not caked. I can, with a wire, pull out flakes of rust. I put some flakes in distilled water and checked after a week with a salinity gage and there was no indication of salt. Does that mean anything? I am leaning to think the cracks are a factor of engine use after a freeze crack and the constant weeping which would cause a rust swell in the crack. It doesn’t make sense for the water jacket to be open if it were salt rust. This is a very desirable engine and I want to do the right thing. I am concerned with doing a high heat process because of the potential for warping.
Thoughts?
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2976
Registered: 11-2001
Posted on Wednesday, February 06, 2013 - 03:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Keith

I second your concern with the high heat process and warpage etc !
My opinion only here,
I also don't feel right with using epoxys etc they just don't seem like a quality long term repair especially with some of these high end old engines that will be around for many more decades.
Owning and operating an auto/truck Radiator & A/c shop for 40 yrs i have soldered, silver soldered and brazed most metals that hold water or refrigerant including manifolds and blocks.
My choice of repair is open flame acetelyne brazing for these old marine water jacket cracks, I stop drill then use a hand grinder with a metal cutting blade ( no grinding wheels they plug up the metal pores)making a slight vee shape, use Johnsons brazing flux and brazing rod,with right heat and flux you can feel the braze take to the cast iron, pre heat I just pass the torch over the localised area it isn't to important, after brazing it in a shallow wood box with sand in it that lets me move the material in any direction I cover it with a welding blanket and let it cool over night. Have done many this way and no problems some old engs are now 20 yrs since brazing and are fine were they were brazed. If chunks of cast iron are broken away That's Geoge Coates dept ! Geo I believe repairs cracks with open flame and uses cast iron rods and flux ? maybe he will enlighten us about his magic touch ?

I have not tried this yet but will next repair I get into-- has anyone used it ???

http://www.castaloy.com/castironrepair.htm


Because of the temerature involved this would be considered soldering, if the flux is right and the filler metal good it should be a great way to repair water jacket cracks ?

Looking foreward to all opinions !!

*
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 761
Registered: 07-2002


Posted on Wednesday, February 06, 2013 - 09:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Keith, the salt damaged motors I've seen have been solid rust in the jacket, almost as hard as cast iron.
Top of pagePrevious messageNext messageBottom of page Link to this message

gebaker
Member
Username: gebaker

Post Number: 4
Registered: 09-2012
Posted on Thursday, February 07, 2013 - 12:20 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I appreciate everything above that you all have mentioned. However, I have had great experience with authentic cast iron welding. It isn't something you can do yourself- but it is a permanent solution. I have had personal experience with several castings sent to Crow's Cast Metal Welding in WI www.castmetalwelding.com/. They have the equipment to bring the metal to the correct temp, weld it, temper it or whatever it is called, then cool as appropriate- at reasonable prices. If you want a permanent solution to be worry and forget- perhaps you can give them a call. I had a 1933 Universal with two cast iron connectors that had to be reconstructed with only 50% original metal there- and a significant head crack that were done superbly. Too, they appreciate the historic nature and visual appearance of their work. While I prefer to do my work myself- I wouldn't hesitate to contact them on this project.

Others in in their area can attest to their work from the Bob Speltz chapter of the ACBS- and they are friendly and nice too.

I agree about the water jacket too- I have an Albin 029 Combi that had so much buildup from saltwater in the jacket that it was hard to differentiate it from the cast iron block.

Gary
Top of pagePrevious messageNext messageBottom of page Link to this message

searcher
Senior Member
Username: searcher

Post Number: 548
Registered: 10-2004
Posted on Thursday, February 07, 2013 - 12:53 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

At least 75% of the marine engines I see locally have been used in salt or at least brackish water. Most have cracks in the water jackets. The corrosion deposits I see in the water jackets range from tightly packed shaley iron oxides to deposits that resemble portland cement (but are much harder and tougher than portland cement). My impression is that the portland cement like deposits are a combination of mud and iron decomposition products, i.e., the engine was used in a shallow area and mud got sucked into and deposited in the cooling system. Those cement like deposits are refractory to the extent that 1000 degrees fahrenheit is not enough to decompose them. I suppose those deposits are similar to the cement/iron filings grout we used to lock in the bolts that held mine hoists and compressors to their foundations (50 years ago, anyway). Generally, but not always, cracks in cast iron due to salt water have distinctive features. It might be helpful if you could post a good clear photo of the cracks.
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 377
Registered: 02-2002


Posted on Thursday, February 07, 2013 - 11:11 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

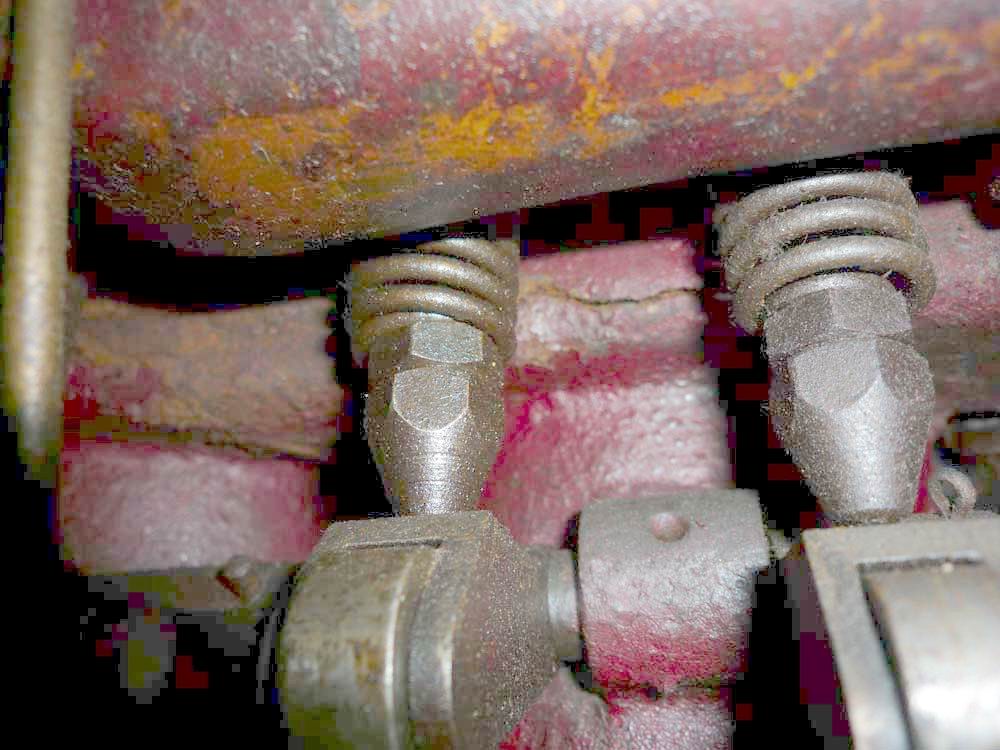

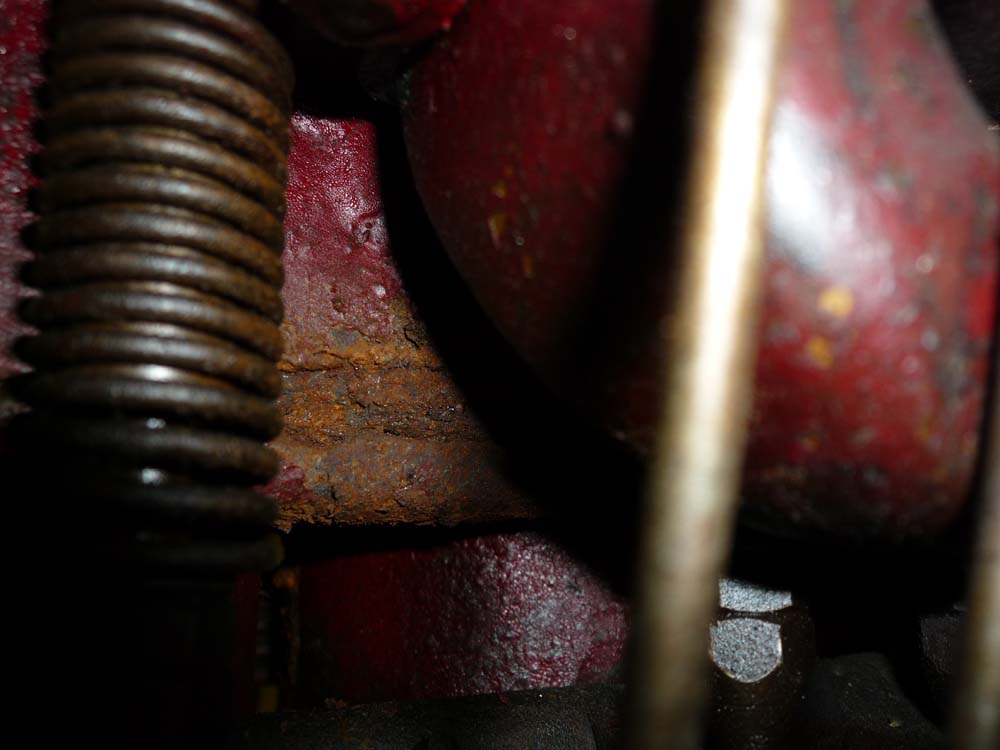

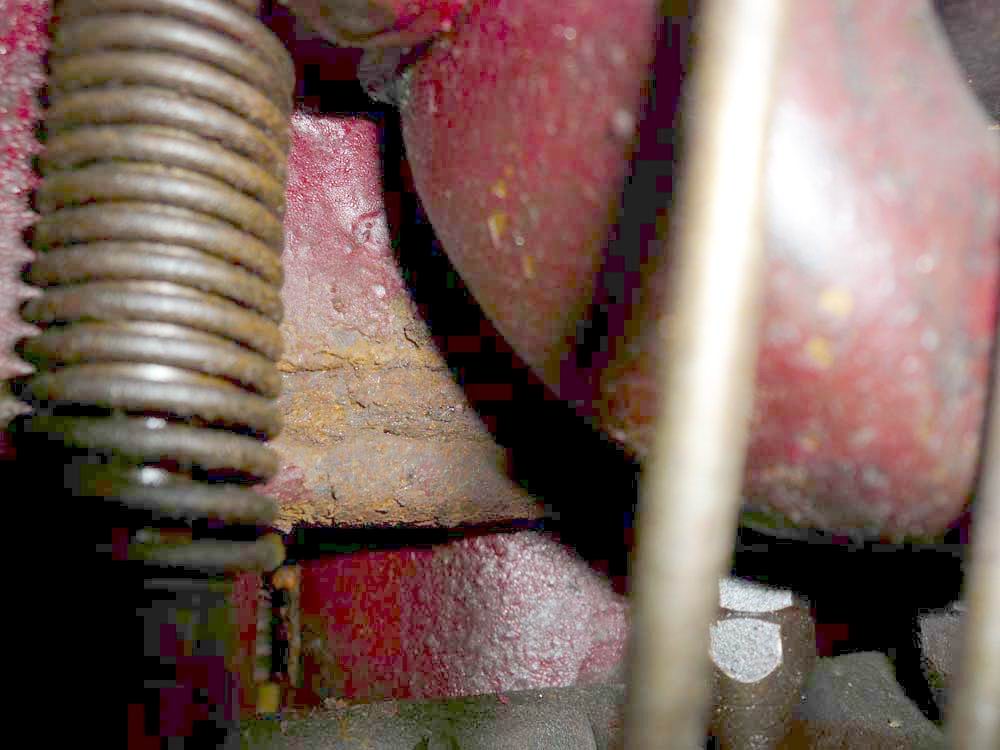

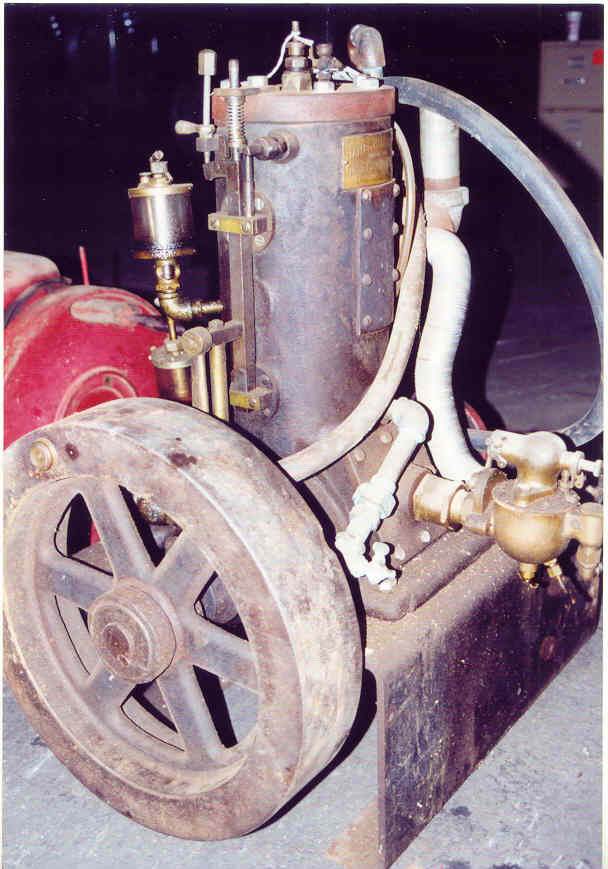

I am attaching pictures.
a
b
c
Top of pagePrevious messageNext messageBottom of page Link to this message

keith
Senior Member
Username: keith

Post Number: 378
Registered: 02-2002


Posted on Thursday, February 07, 2013 - 11:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

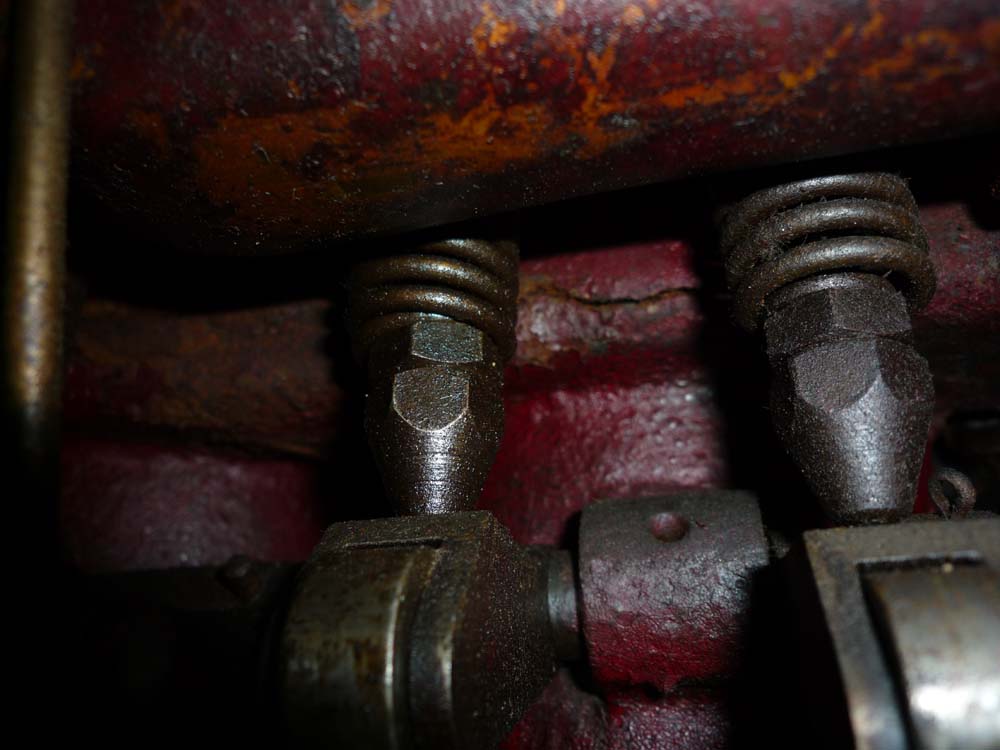

One more picture.
d
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 2978
Registered: 11-2001
Posted on Thursday, February 07, 2013 - 01:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
What a great old marine engine

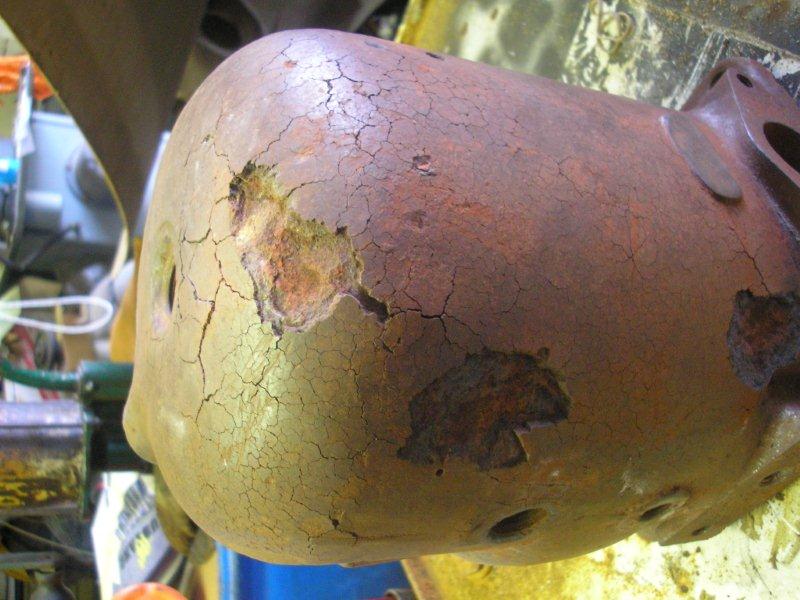

I brightened up the photos a bit

S1



S2

This well over 100 yr old Lathrop came to me with the crack repair patch, I took the head off and the jacket inside was surface redish with flakes that blew out with air no sediment etc, it had a minor 2 inch crack that was visible but not wet wth anti freeze after filling it and keeping an eye on it for a month or so --- lesson learned is that hidden in storage for almost two yrs the crack did open enough to let the anti freeze drain out and things went down hill fast the crack now is open and about 8 inches long. If I can't repair these situations right away ( I have a few more similar) I have cleaned the cracks and silicone sealed them temporarily to get the antifreeze back in them.
My take on these engs is that they had salt water exposure at some time in their life but maybe spent most of it in fresh water ??

L1

*
Top of pagePrevious messageNext messageBottom of page Link to this message

george_iv
Senior Member
Username: george_iv

Post Number: 91
Registered: 07-2003


Posted on Thursday, February 07, 2013 - 02:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

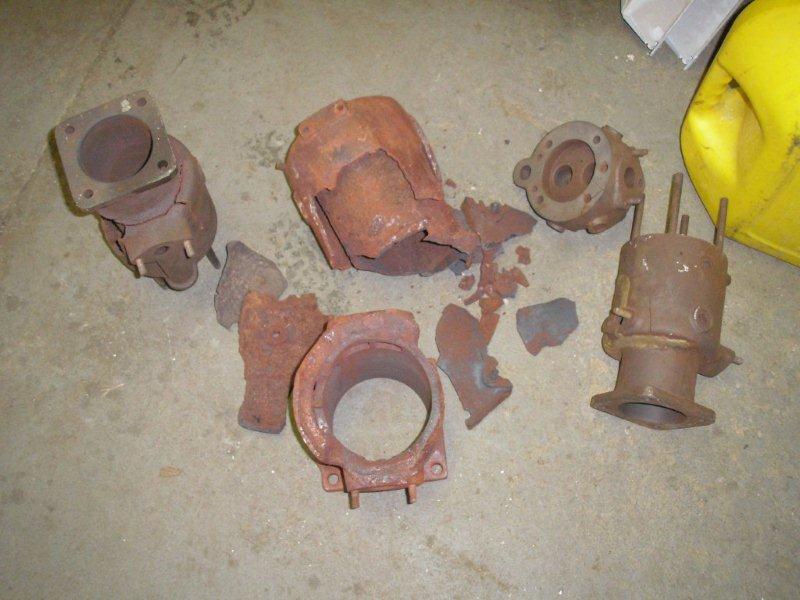

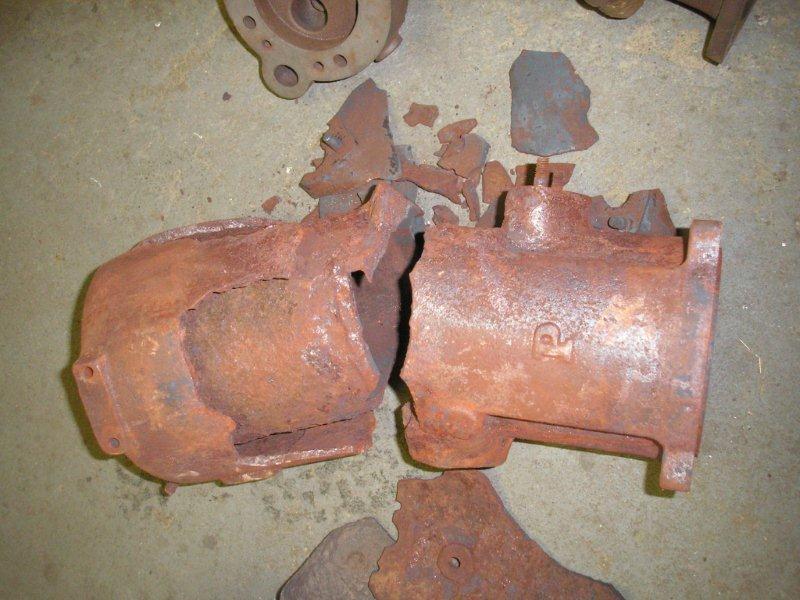

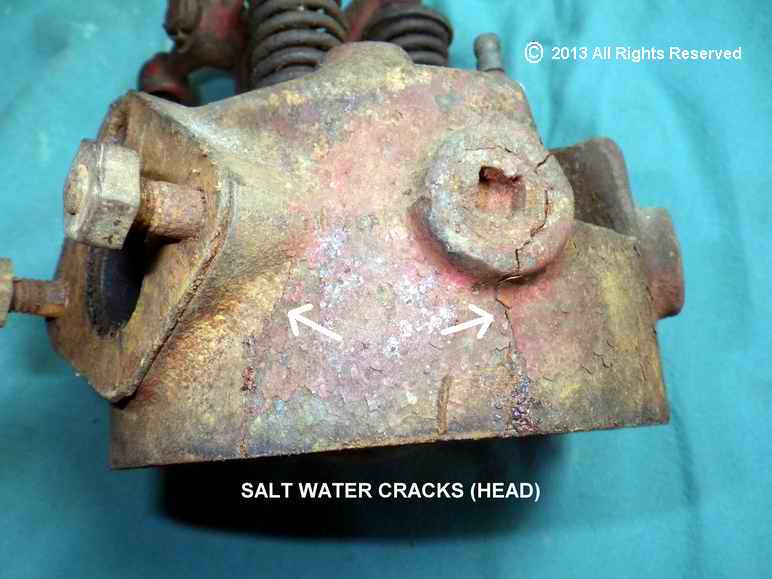

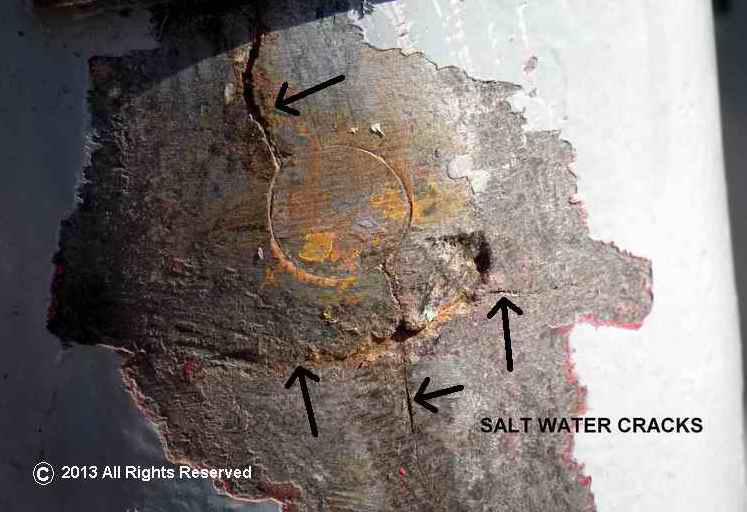

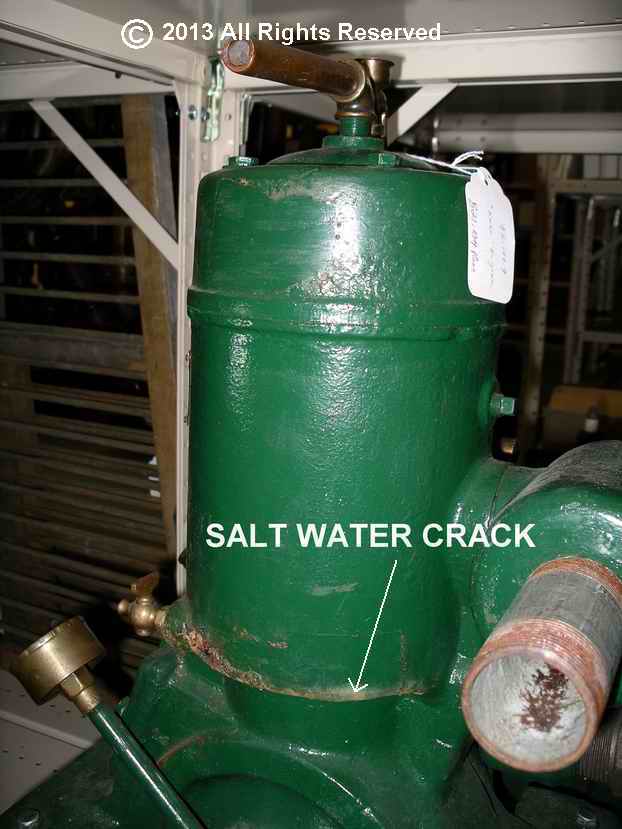

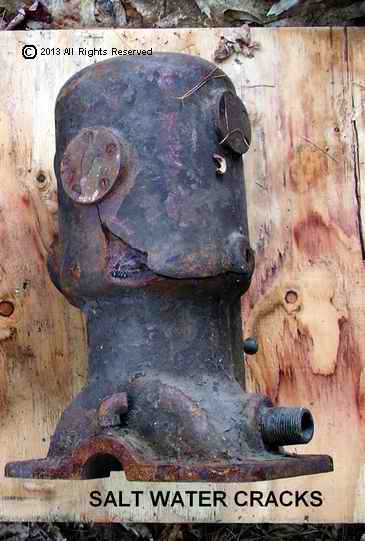

Some pictures of known salt water cracks and issues. Some with concretions and some without.








Top of pagePrevious messageNext messageBottom of page Link to this message

searcher
Senior Member
Username: searcher

Post Number: 549
Registered: 10-2004
Posted on Thursday, February 07, 2013 - 04:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

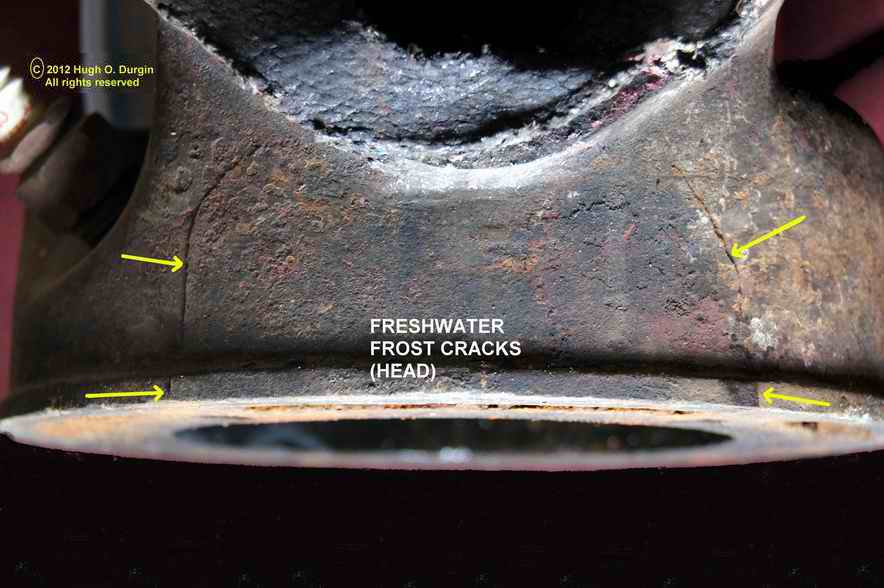

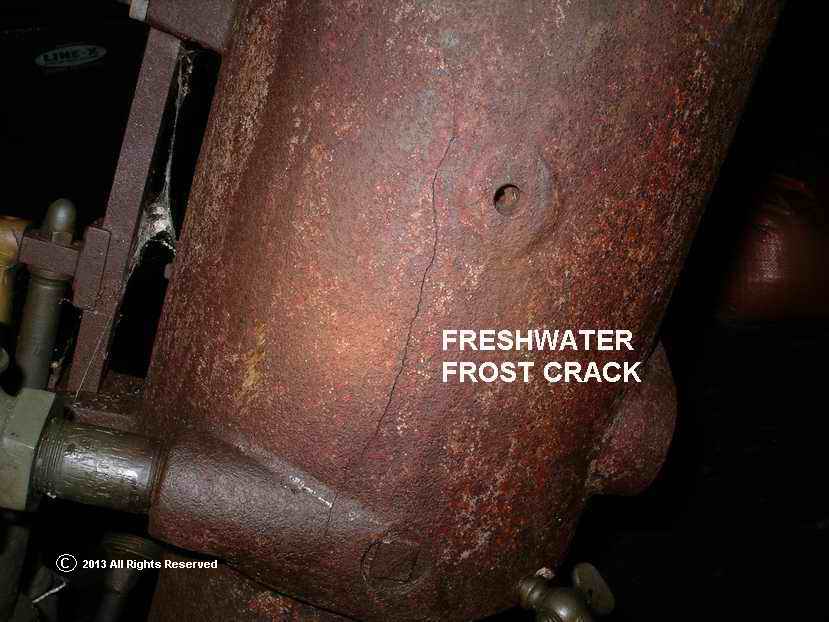

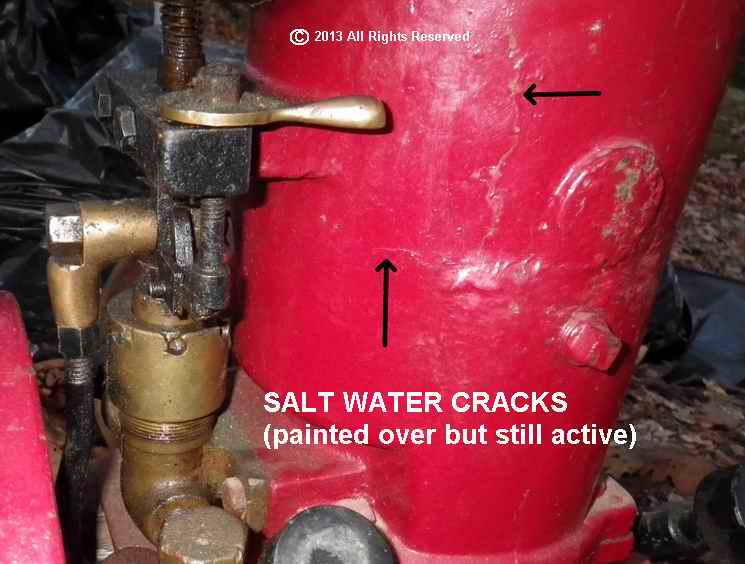

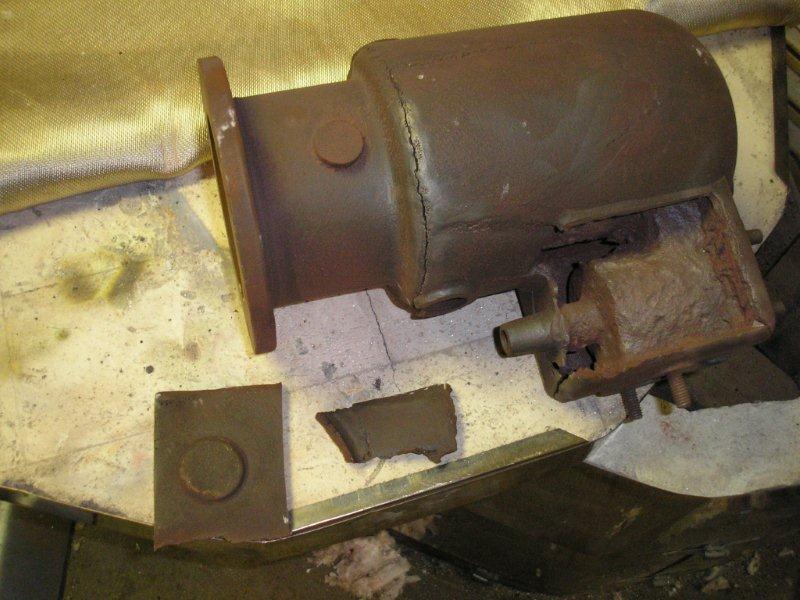

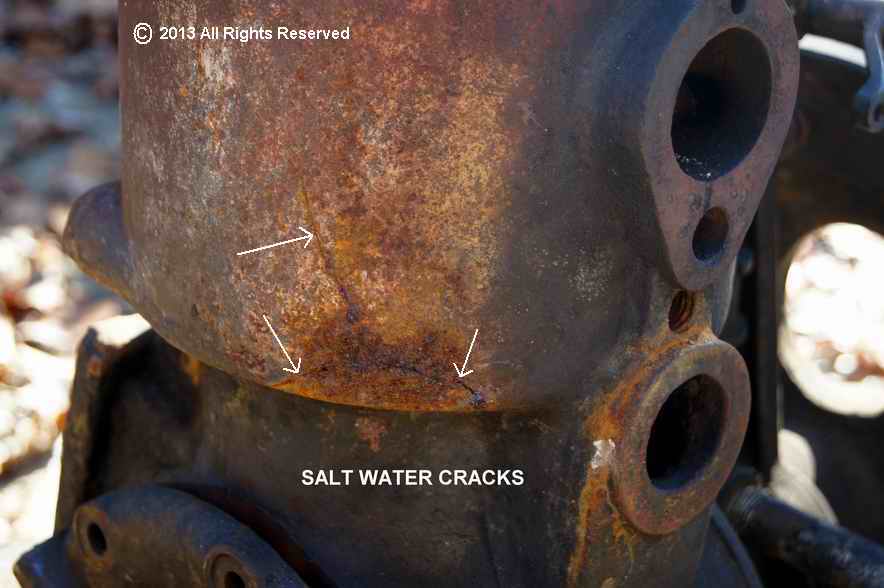

Here are some additional photos of saltwater cracks and freshwater frost cracks. The following comments are from my own experience. I expect somebody can come up with an example that contradicts every observation I offer. That's great because it advances knowledge on the subject.
