Clae Bantam Marine Engine

Old Marine Engine » One and Two Cylinder Gas Inboards » Clae Bantam Marine Engine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
New member
Username: bmine

Post Number: 1
Registered: 10-2009
Posted on Tuesday, October 27, 2009 - 12:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 4HP Clae bantam engine but the casting only shows "Ban am" and there is no "T" is this a mistake or was a specific engine made that did not have the "T" in the word BANTAM.
I am also seeking a block for this engine.
Photos of the casing and the block have been uploaded
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Moderator
Username: andrew

Post Number: 1022
Registered: 11-2001


Posted on Wednesday, October 28, 2009 - 11:06 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

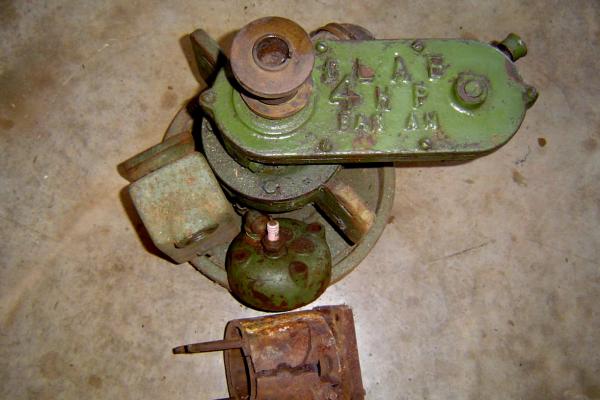

Here is one of bmine's photos

clae

zoom
Top of pagePrevious messageNext messageBottom of page Link to this message

eric_schulz
Senior Member
Username: eric_schulz

Post Number: 59
Registered: 01-2007


Posted on Wednesday, October 28, 2009 - 05:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Castings were made with wooded patterns. Brass letters and numbers were nailed to the wood. In this case, one letter fell of the pattern.
Misprinted postage stamps and bank notes are worth a lot of money, so, does this apply to engines?
I have some CLAE parts, so will have a look when I get a chance.

Eric
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
New member
Username: bmine

Post Number: 2
Registered: 10-2009
Posted on Wednesday, October 28, 2009 - 06:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Eric - thank you - after corresponding with a Putt Putt Member, Sydney - he had a photo of his engine in TOMM Mag - he said my engine had a number of differences to his. Can supply more information if required.
Top of pagePrevious messageNext messageBottom of page Link to this message

eric_schulz
Senior Member
Username: eric_schulz

Post Number: 60
Registered: 01-2007


Posted on Monday, November 02, 2009 - 04:13 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

There are 3 different Bantams that I know of. The first model was a 3hp with non-detachable head. Then came the 3 and 4hp sizes with a round cylinder block and detachable head. The 3rd series had a square block.
A cylinder and head that I have is unfortunately for a 3hp.

Eric
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
New member
Username: bmine

Post Number: 3
Registered: 10-2009
Posted on Monday, November 02, 2009 - 04:47 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thank you Eric - yes, pity that your block is off a 3hp and not a 4hp.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

maxiscool166
New member
Username: maxiscool166

Post Number: 1
Registered: 11-2009
Posted on Sunday, November 08, 2009 - 04:25 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Guys.
I have a Clae 4hp Bantam detachable head 2stroke engine.I have it going and have recently put it in my 12ft carvel that I have recently restored. I would like to know
What the timing is for the magneto
What type of spark plug should I use
Is there an owners manual or anything about the motor.
Thanks
Max
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 4
Registered: 10-2009
Posted on Sunday, November 08, 2009 - 11:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Max, yes i do have original copies of some information about Clae Bantams - firstly with regards to the magneto, the breaker points should be set at .012 - keep spark clean and adjusted to .30. Ignition timing is set so that breaker points are just breaking at 3/16 of an inch before top dead centre.
Original spark plug is KLG ML30 -- 18mm.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

maxiscool166
New member
Username: maxiscool166

Post Number: 2
Registered: 11-2009
Posted on Monday, November 09, 2009 - 02:32 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thankyou alot.
Much appreciated.
P.S Do you have any general information about the motor or the manual for the motor on the computer if so could you please email it to me at maxiscool166@hotmail.com
Thanks MAX
Top of pagePrevious messageNext messageBottom of page Link to this message

maxiscool166
New member
Username: maxiscool166

Post Number: 3
Registered: 11-2009
Posted on Monday, November 09, 2009 - 02:43 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Bill,
Just to clarify - that is 3/16" BTC on rise of piston not circumference of the flywheel.
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 5
Registered: 10-2009
Posted on Monday, November 09, 2009 - 03:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Max i have written it as I have it, so like all - I do believe that that would be the distance on the flywheel - like everything try one way and then try the other and settle for what gives the best results.

no sorry I do not have anything on the computer and as you well know there is virtually nothing anywhere about these engines. this is the reason for submitting mine here - I have owned it for approx 15 years and only recently found this web site.
the only other thing that may be of interest is mix 1/4 pint of oil to one gallon of fuel - shake well before filling tank.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

todd_vidgen
Senior Member
Username: todd_vidgen

Post Number: 148
Registered: 03-2008
Posted on Monday, November 09, 2009 - 03:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I think you will find the 3/16th is on the rise of
the piston,as I have a Bantam flywheel here with an
original timing mark set approximately at 2 7/8th
For those of you that are not bilingual with metric/
imperial measurements. 1/4 pint to 1 gal = 32:1
Cheers
Top of pagePrevious messageNext messageBottom of page Link to this message

maxiscool166
Member
Username: maxiscool166

Post Number: 4
Registered: 11-2009
Posted on Tuesday, November 10, 2009 - 03:23 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Todd. Do yo have any other information about the motor.
Thanks
Max
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 8
Registered: 10-2009
Posted on Saturday, October 01, 2011 - 05:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Just thought I would refresh my enquiry on this engine _ I have just put another engine on site Motore Torino DNF 30 Diatto A.Clement.

The latter engine people on other Forums said it was a marine engine I did not so am putting it up for comment.

I would still like a block for the Clae Ban am 4hp engine - has anybody found an old one yet?
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 18
Registered: 10-2009
Posted on Saturday, December 03, 2011 - 04:20 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Still looking for a block - is there anybody that has one, wishes to sell - the engine is of no use unless I can assemble it.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

senojn
Senior Member
Username: senojn

Post Number: 83
Registered: 08-2006
Posted on Sunday, December 04, 2011 - 03:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello Bill ,
There was a complete (in bits )4 hp on Ebay which finished 27 Oct without attracting a bid.
Located Smith's Gully ,Victoria .
Item no. was 110761477504 .

Neil
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 19
Registered: 10-2009
Posted on Sunday, December 04, 2011 - 04:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Senoin - Neil - I have tried to find the past record of this engine but cannot - all I can dig up is a metal sign.

Would it be possible for you to find and mail
bill@minehane.com
many thanks
Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

johnoxley
Advanced Member
Username: johnoxley

Post Number: 41
Registered: 04-2010
Posted on Sunday, December 04, 2011 - 10:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi - think I have a block and a base and will dig them out Friday - Western Sydney location, or could be Rozelle if needed.
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 20
Registered: 10-2009
Posted on Monday, December 05, 2011 - 01:08 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

John oxley - thank you very much - as you can see it is my block that is in a terrible state - whilst Engineer at Forbes Meat Works I had it repaired, then put it away for years - think it was put in acid to clean, so when I looked at again it was split and gets worse by the day.
It is a shame that it is in that condition as I would love to recondition it and put along with my collection.
My email address is in the previous reply if you need to get back to me with photos and other relevant info. i live in Pomona on the Sunshine Coast.

Many thanks

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

senojn
Senior Member
Username: senojn

Post Number: 85
Registered: 08-2006
Posted on Monday, December 05, 2011 - 03:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Glad you could make contact with the original seller .
Have been able to pull up the original Ebay post for your ref.
Will send direct .

Neil
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 21
Registered: 10-2009
Posted on Monday, December 05, 2011 - 04:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

thank you Neil for your help - sadly on getting the photos the engine on EBay has a square head, whereas mine has a round head. Both 4Hp.

Do hope johnoxley has the right block to suit a round head.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

put_put
New member
Username: put_put

Post Number: 1
Registered: 12-2011
Posted on Monday, December 12, 2011 - 09:24 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

HI I was wondering if anyone out there could help.I have a 16 foot motor launch,used to be a net boat from the brisbane river.When i purchased the boat the motor and prop shaft had been removed.I have since bought a Clae 4hp engine and picked up a prop shaft. Iam still looking for a dogclutch asembly.Could anyone help.ALSO NEED GLAND SEALS FOR 3 QUARTER INCH SHAFT.any help would be mutch apreciated,thank you.
Top of pagePrevious messageNext messageBottom of page Link to this message

qwilkin
Advanced Member
Username: qwilkin

Post Number: 47
Registered: 08-2009
Posted on Monday, December 12, 2011 - 09:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a dog clutch from a Blaxland if thats of any use
Quinton
Top of pagePrevious messageNext messageBottom of page Link to this message

put_put
New member
Username: put_put

Post Number: 2
Registered: 12-2011
Posted on Monday, December 12, 2011 - 10:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Quinton,thank you for your responce.I would be interested if the dog clutch asembly is complete.Has it still got the lever and fork with it.Thank you TONY.
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 22
Registered: 10-2009
Posted on Monday, December 12, 2011 - 10:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

qwilkin-- no doubt you have read the above the Clae Bantam that was on EBay is a square head Clae bantam 4HP with attachments - maybe you could ring David 0408527995 - he may be able to help.

I am still seeking a block suitable for a round cylinder head.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 23
Registered: 10-2009
Posted on Monday, December 12, 2011 - 10:14 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

johnoxley - hi John any success yet - do hope so and that it is the type I want.
thanks

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

qwilkin
Advanced Member
Username: qwilkin

Post Number: 48
Registered: 08-2009
Posted on Monday, December 12, 2011 - 10:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Tony
Yes it is complete with fork will check again and confirm
Quinton
Top of pagePrevious messageNext messageBottom of page Link to this message

johnoxley
Advanced Member
Username: johnoxley

Post Number: 43
Registered: 04-2010
Posted on Friday, December 23, 2011 - 08:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Alas, I have this engine, but the block has rust wedged a piece out. Otherwise complete (and the name is also complete). Sorry for the delay - excessive workload gets in the way.

There are around here some good patternmakers and I've access to two first rate foundries in Sydney. I recently did a head and barrel for a 6" Frisco.
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Member
Username: bmine

Post Number: 27
Registered: 10-2009
Posted on Friday, December 23, 2011 - 11:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thank you John - could you please send a photo or two to bill@minehane.com - if it suits my round cylinder head - could you find out the cost of repair for me after Christmas plus what you want for it - I would like to put the engine together again.

Talk to you when you have time to mail - have a merry Christmas and a Happy New Year.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Advanced Member
Username: bmine

Post Number: 36
Registered: 10-2009
Posted on Friday, August 17, 2012 - 05:03 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I would like to thank all for looking and commenting on this article - I have been able to get a Clae bantam block from an add in the TOMM Magazine - a person in Inisfail Qld had one and so has sent it to me.

I am including a photo of the block and head

Bill
application/octet-stream
TOMM Clae bantam (74.4 k)
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Advanced Member
Username: bmine

Post Number: 37
Registered: 10-2009
Posted on Friday, August 17, 2012 - 05:07 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

application/octet-stream
TOMM Clae bantam (74.4 k)
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Advanced Member
Username: bmine

Post Number: 38
Registered: 10-2009
Posted on Friday, August 24, 2012 - 12:09 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

last try at uploading a photo of the block obtained
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Advanced Member
Username: bmine

Post Number: 39
Registered: 10-2009
Posted on Wednesday, September 26, 2012 - 12:16 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi seeing as i now have a block and am starting to put it all together (after 15 years) even to the extent of making a transporter I would like to hear from anybody that knows about alternative piston rings for this engine (or original) - I also appreciate a photo of the positioning of the fuel and cooling water tank - I take it a thermo cooling system should suffice or does one need a circulating system?

Thanks

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

bmine
Advanced Member
Username: bmine

Post Number: 40
Registered: 10-2009
Posted on Friday, October 12, 2012 - 04:50 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have now been able to get a block, head and rings for this engine.

After getting the above I have been putting all the parts together and find out that the cooling water is supplied by a small brass piston pump - this is operated from a connection piece mounted on the shaft at the back of the flywheel.

I am at the moment making up a bed plate and transporter so that sometime in the future I can take the engine to Historical Society meetings.

Bill
Top of pagePrevious messageNext messageBottom of page Link to this message

dougie_oz
New member
Username: dougie_oz

Post Number: 1
Registered: 04-2013
Posted on Sunday, April 14, 2013 - 05:38 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Clae. Model F. Australian Single pot Marine engine.
I have had this old clunker in the back yard for many years. I see the water jacket has split. Advice.. repairable or junk yard.?
I have the complete engine minus a gearbox. in fact I used it in the late 70's for a year or two in an old clinker. I would love to get it working as a mounted engine for display, I have photos of course but cant work out yet how to reduce them to 150kb for posting. happy to email whilst i get it worked out.thanks
Doug Adelaide.
Top of pagePrevious messageNext messageBottom of page Link to this message

miro
Senior Member
Username: miro

Post Number: 692
Registered: 11-2001


Posted on Sunday, April 14, 2013 - 09:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

How bad is the split? Was the engine cooled with salt water?

If no, then scratch out as much of the rust and crud as possible, and you might get away with using an epoxy treatment eg JB Weld.
You might also try the electrolysis technique for rust removal as a start to the repair.

If yes, then once it starts to split, then you are done.
The only hope is cooking out the salt water rust at 900 F for several hours. After that, if yu still have a cylinder in one piece, then welding the cast iron jacket back to some semblance of utility.
None of the above is simple or straightforward, but do-able but an enthusiastic owner.

miro

most camera software usually has some kind of "tool" menu in which there is a "resize" function. It may be a bit fiddly on the first one or two pictures until you get the hang of it
Top of pagePrevious messageNext messageBottom of page Link to this message

dougie_oz
New member
Username: dougie_oz

Post Number: 2
Registered: 04-2013
Posted on Monday, April 15, 2013 - 03:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Well I managed to shrink them. A couple of views of the split water jacket. Junk or worth savingSplit Water Jacket
Top of pagePrevious messageNext messageBottom of page Link to this message

dougie_oz
New member
Username: dougie_oz

Post Number: 3
Registered: 04-2013
Posted on Monday, April 15, 2013 - 03:42 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A wheel barrow view of the Model F. I have all the bits including the magnetoModel F Clae
Top of pagePrevious messageNext messageBottom of page Link to this message

todd_vidgen
Senior Member
Username: todd_vidgen

Post Number: 237
Registered: 03-2008
Posted on Monday, April 15, 2013 - 05:27 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

looks like a F6,even if you dont want it,dont junk it. There are still good bits to salvaged and people
are regularly contacting myself and others looking
for parts
Cheers Todd
Top of pagePrevious messageNext messageBottom of page Link to this message

todd_vidgen
Senior Member
Username: todd_vidgen

Post Number: 238
Registered: 03-2008
Posted on Monday, April 15, 2013 - 05:45 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

PS: If you do decide to do it up as a display motor,
I have a block here that has no rust cracks or bad
external corrosion .It has a repairable hole that
is between that water jacket and the exhaust outlet.
This was quite a common failing with this motor,as
the casting at this point was very thin.the bore
and the rest of it is quite good.
It was still running at the time of strip down.
Todd
Top of pagePrevious messageNext messageBottom of page Link to this message

escape0002
New member
Username: escape0002

Post Number: 2
Registered: 05-2014
Posted on Saturday, May 17, 2014 - 12:14 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

http://youtu.be/Cq6Z8sAFaWk
Clae Bantam running
Top of pagePrevious messageNext messageBottom of page Link to this message

escape0002
New member
Username: escape0002

Post Number: 3
Registered: 05-2014
Posted on Saturday, May 17, 2014 - 12:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

http://youtu.be/Cq6Z8sAFaWk
Clae Bantam running
Top of pagePrevious messageNext messageBottom of page Link to this message

oceans15
New member
Username: oceans15

Post Number: 1
Registered: 06-2014
Posted on Tuesday, June 17, 2014 - 05:05 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Doug - that certainly is a CLAE 'Fisherman' 5 or 6 - it says on the cast side plate which it is. Fixable for a display engine at least - cut and clean crack out with a cutting disc on an angle grinder then fill with jb weld or even sikaflex. Once restored and running keep engine full of water to prevent air (oxygen) getting at the iron. Not much good without a gearbox though - it shares the engine oil - I have restored a F10 and it's a lot of work but rewarding and rare engine to have.
Top of pagePrevious messageNext messageBottom of page Link to this message

todd_vidgen
Senior Member
Username: todd_vidgen

Post Number: 256
Registered: 03-2008
Posted on Tuesday, June 17, 2014 - 05:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Some F series motors did not have gear boxes,just a
large finger clutch assy. I Have 2 with clutches, 2 with gear box type face plates to mount box on.
You only had to change the face plate and add or remove the pinion on the crank.
Todd

Add Your Message Here
Post:
Bold text Italics Underline Create a hyperlink Insert a clipart image

Username: Posting Information:
This is a public posting area. Enter your username and password if you have an account. Otherwise, enter your full name as your username and leave the password blank. Your e-mail address is optional.
Password:
E-mail:
Options: Automatically activate URLs in message
Action:

Administration Administration Log Out Log Out   Previous Page Previous Page Next Page Next Page

Home | Classifieds | History | Technical | Links | Store | About Us | Email
&copy 2005 OldMarineEngine.com, P.O. Box 188, Forest Dale, VT 05745-0188 • Phone: 802-247-4864 • All rights reserved.
   Marine Engine Seloc Repair Manual Lookup Tool

marine gas engine repair and restoration
