Post Number: 2399
|Posted on Thursday, May 13, 2010 - 08:07 pm: ||
Post Number: 62
|Posted on Thursday, May 13, 2010 - 10:27 pm: ||
Wow, thanks for posting another weird wonder!

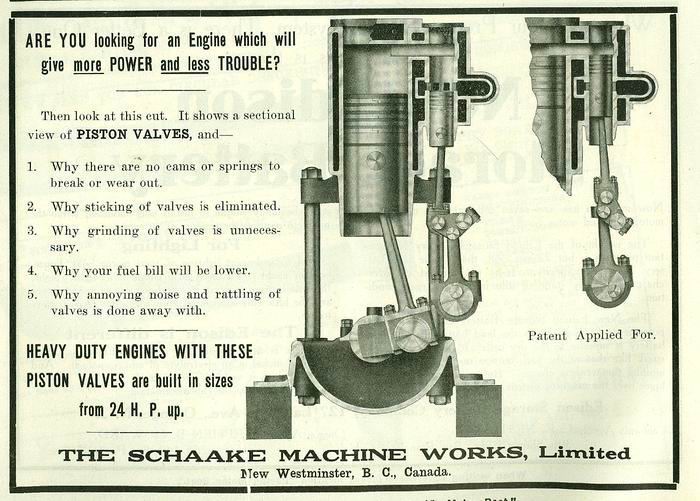

It does not show the cam drive ratio, nor where the ports lead to, however;
I imagine it is a 4 stroke [as there is no separate induction chamber] with possibly an atmospheric inlet valve [not shown] OR;
There could be 2 piston-valves per cylinder [not shown] if no atmospheric inlet were used!?
Either way; there would be considerable combustion forces bearing down on the piston-valve/s. The third pin in the intermediate valve rod is staying still as though a pivot point, this would share half of the combustion pressure with the cam, it would seem.
"24Hp & up" wow; i imagine that's at least a twin.
Has anyone got a pic of one, or known of one??
Post Number: 369
|Posted on Friday, May 14, 2010 - 12:03 pm: ||
Given that these were a west coast design and used mainly in salt water, it's not surprising there is only one known survivor: in the Vancouver Maritime Museum. Probably an engine used on lakes or only in the Fraser river.
Thanks for posting that Richard. What magazine is the advert from?
