motorgo, and maybe lockwood-ash?

Old Marine Engine » One and Two Cylinder Gas Inboards » motorgo, and maybe lockwood-ash? « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Bill Schaller
Posted on Monday, September 09, 2002 - 08:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

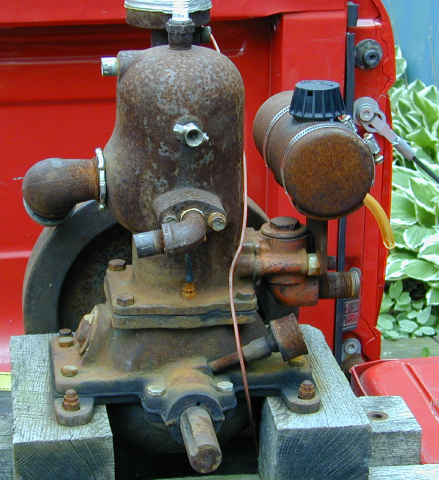

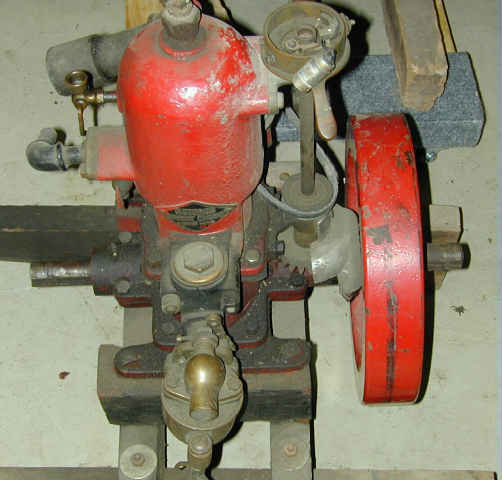

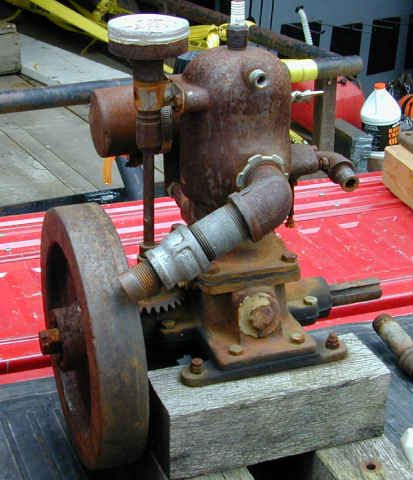

here are my motorgo, and an engine the man said was a lockwood ash.


Text description
Text description
Text description
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

Bill Schaller
Posted on Monday, September 09, 2002 - 08:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

should they have water pumps on them?
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Posted on Monday, September 09, 2002 - 11:27 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Bill, you will need a pump, a strap, and an eccentric-coupler. These are both 2 1/2 hp Lockwood Ash, use a two bolt pump. Art Dekalb has castings, the pumps are not cored, lots of machine work, but it can be done. It will add to the value of the motors.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Saturday, January 25, 2003 - 07:39 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thought this tag was interesting !


lockwoodAsh Motorgo
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Posted on Saturday, January 25, 2003 - 08:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard, I have a Motorgo like this, different tag. My engine has a Lunkenheimer mixer with a place for an oiler on the intake, about 1910 from what I've seen. The 1912 doesn't have the oiler port. I have an original drawing of the exhaust manifold, made one from a pipe nipple. It looks pretty good but I have since seen Audie Taquino's with an original manifold in poor shape, may have some cast in the future. On the Lockwoods the first digit of the serial # is for the hp, remaining numbers would be the production number, 2125 would be the 125th 2 hp. Don't know if Motorgo shared this numbering system.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Sunday, January 26, 2003 - 11:49 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Is there any real difference between this model of Sears MOTORGO and Lockwood Ash? My understanding of MOTORGO is it was a Sears label they tacked on all their marine engines they sold. Many were much earlier and different from the Lockwood Ash manufactured version. JB didn't Nadler go on making this model MOTORGO for Sears after LOCKWOOD ASH sold out to NADLER in the early 1920s? Is there any detectable difference between the MOTORGO, Nadler and Lockwood Ash engines other than the nameplate?
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Posted on Sunday, January 26, 2003 - 03:06 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The tag on this engine says Lockwood-Ash Motorgo. That's the first time I've seen both names on one tag. These engines were almost identical other than the name. On the 4hp Motorgo the primer cup was in a different location for some reason. The engine in the above picture is an early production, it has a bolt on exhaust manifold, most were like the engines in the first pictures, exhaust threaded into the block. Nadler didn't produce engines for Sears. The only way I can tell a Nadler from an L-A without the tag is by the machine marks. Nadler machined most of the flat surfaces on a lathe with radial machine marks out from the center. L-A used a rotary cutter that left marks across the surface, like this (((((((. J.B. Castagnos
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard Day
Posted on Sunday, January 26, 2003 - 08:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks JB.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Posted on Sunday, January 26, 2003 - 10:56 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

J.B. Great information THANKS !

When you cast the two bolt exhaust manifolds
put me down for one.
Top of pagePrevious messageNext messageBottom of page Link to this message

primetrucks
Posted on Monday, March 01, 2004 - 11:23 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

richard the little red lockwood-ash/ motorgo does it turn over or runs?
Top of pagePrevious messageNext messageBottom of page Link to this message

primetrucks
Posted on Monday, March 01, 2004 - 11:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hi bill schaller would the little red motorgo be up for grabs?
Top of pagePrevious messageNext messageBottom of page Link to this message

J. R. Larsen
Visitor
Posted on Saturday, September 25, 2004 - 06:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looking for info on: Motorgo Marine Engine 8 HP,
2 cycle, 2 cyl.
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 215
Registered: 07-2002
Posted on Sunday, September 26, 2004 - 01:21 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

What do you need to know about it? I have some info.
Top of pagePrevious messageNext messageBottom of page Link to this message

J. R. Larsen
Visitor
Posted on Saturday, October 30, 2004 - 10:36 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Motorgo Marine Engine 8 HP, 2 cycle, 2 cyl: Looking for general info, any manuals available, pictures, can it be aged by serial number? Thanks for any help you can give.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 590
Registered: 11-2001


Posted on Sunday, October 31, 2004 - 09:51 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The early twins had separate cylinders, after (ca 1915) they were en-bloc !
e-mail me photos Ill post them here.
Whats serial number ?

oceanblu@adelphia.net
Top of pagePrevious messageNext messageBottom of page Link to this message

george tolbert
Visitor
Posted on Thursday, January 22, 2009 - 03:20 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

to jb castanos we have come across a nadler engine it is ether a 2 or 21/2 horse we would like to know more about this engine it also has numbers on it either 2g39 or2039 on the plate and possibly ()g68 on the engine we have no e-mail but we do have a phone 6012010270 please call us or anyone else with info. thank you
Top of pagePrevious messageNext messageBottom of page Link to this message

danny
Visitor
Posted on Sunday, August 16, 2009 - 05:55 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i have a motorgo marine engine NO 2268 what is the year of mine and what is it worth missing a magino and is there any one interested in it
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 466
Registered: 07-2002


Posted on Sunday, August 16, 2009 - 07:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Danny, Sears sold a few different engines under the Motorgo name. Lockwood Ash manufactured most of them, does it look like the ones at the beginning of this post? I may be interested, can you send pictures? If you click on my name at the left you should get my address.
Thanks, J.B.
