4hp motorgo

Old Marine Engine » One and Two Cylinder Gas Inboards » 4hp motorgo « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

iceboater
Member
Username: iceboater

Post Number: 4
Registered: 08-2006
Posted on Wednesday, October 11, 2006 - 02:27 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am about to start to redo this old motorgo but am missing the exhaust manifold.If someone out there has one and could post a picture ,it would be great.Thanks in advance,Iceboater4hp motorgo
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 182
Registered: 07-2002


Posted on Wednesday, October 11, 2006 - 09:27 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I sent a drawing of the manifold to Richard, he should post it soon. That's a nice early engine, first 4hp I've seen with a bolt on manifold. I own and have seen several other 2 1/2, 5 and 6hp like this. Does it have a serial #, if no tag it should be stamped on front of the crank. Is the water pump strap offset or straight?
Top of pagePrevious messageNext messageBottom of page Link to this message

iceboater
Member
Username: iceboater

Post Number: 6
Registered: 08-2006
Posted on Thursday, October 12, 2006 - 01:04 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

jb I took a look at the engine tonight and the serial number on the tag is 4088 and it does have a offset pump rod. I also have a 2 1\2 horse serial number 2223 but it has two bolts that hold the exhaust manifold on. 4hp motorgo
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 1251
Registered: 11-2001


Posted on Thursday, October 12, 2006 - 01:14 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

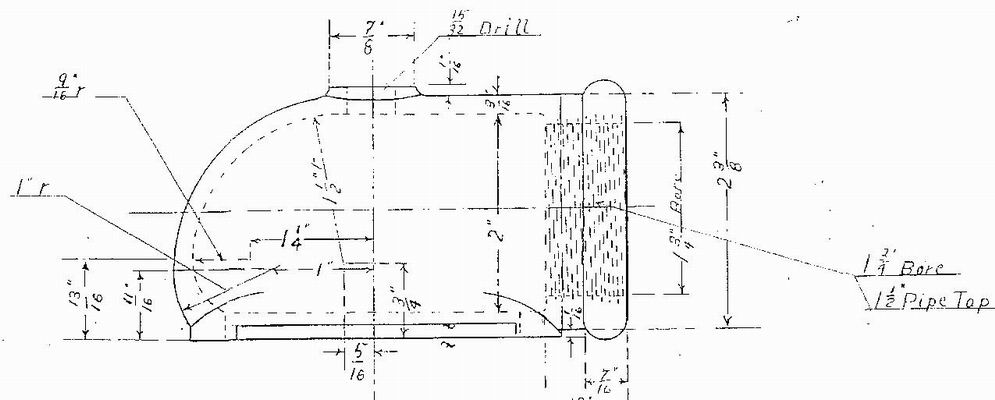

J.B.'s Lockwood - Ash exhaust Drawing.

I hope its readable after reducing it down under 50KB ?

LA exmjb
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 1252
Registered: 11-2001


Posted on Thursday, October 12, 2006 - 01:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

J.B.'s LA ex manifold drawing II.



LAc1
LAc2LAc3
Top of pagePrevious messageNext messageBottom of page Link to this message

iceboater
Member
Username: iceboater

Post Number: 7
Registered: 08-2006
Posted on Thursday, October 12, 2006 - 11:42 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks for the drawing. You can't ask for more than that you guys are unbelievable. Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 183
Registered: 07-2002


Posted on Thursday, October 12, 2006 - 09:18 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

On the L-A engines the first number indicated the HP, the rest was consecutive numbers. The 4hp would be the 88th in that series, probably a model 24. The 2 1/2 would be # 223. Model 24 was the 2 1/2 & 4hp singles, model 68 was the 6 & 8hp twins. The very early L-A engines didn't use this numbering system. I don't know if L-A and Motorgo shared serial numbers.
Top of pagePrevious messageNext messageBottom of page Link to this message

primetrucks
Member
Username: primetrucks

Post Number: 8
Registered: 03-2004
Posted on Wednesday, December 10, 2008 - 08:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i am trying to reach brad hansen can someone help me my number is 225-268-4191 jamie
Top of pagePrevious messageNext messageBottom of page Link to this message

pulrichmyfrontiermailcom
New member
Username: pulrichmyfrontiermailcom

Post Number: 1
Registered: 06-2016
Posted on Tuesday, June 14, 2016 - 10:31 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a Motorgo Marine Engine no.41037 HP-4;I know I'm missing the carb. but not sure what else. I'm a antique motorcycle person (1940 Indian 4 cyl.) The engine just looked interesting to me so I bought it. What can any one tell me about it? Is it a desirable motor or an orphan? Is it worth peanuts or what- I'm scared to say what I paid for it; if it's a orphan and not very desireable? Thanks for any info, Paul Ulrich
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 1178
Registered: 07-2002


Posted on Wednesday, June 15, 2016 - 07:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does it look like the engine at the top of this post? Sears sold engines under the Motorgo name, used different mfg. The engines in this post are Lockwood Ash. Lockwood Ash also made a 4 cycle 4 HP. The 2 stroke L-A 4hp is a good engine, very durable, powerful, and easy to run. They were probably the most plentiful, the 2 1/2 and 6hp are more in demand because of their smaller size. If you need parts we have a lot of the exterior parts recast.
Top of pagePrevious messageNext messageBottom of page Link to this message

pulrichmyfrontiermailcom
New member
Username: pulrichmyfrontiermailcom

Post Number: 2
Registered: 06-2016
Posted on Friday, June 17, 2016 - 01:07 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Yes it looks to be the same as the one at top of this post. I am interested in selling this one. I will try to get a couple of pics and post them. I may need a week or so to get pics posted as I'm not a expert on computers and rely on my neighbor and daughter to help me wade thru computer issues. Do you know any one interested in this motor. Better to sell as is or get parts and get it running? Are there any other photos available to identify any other missing parts besides the carb.?; oh looks like I'm also missing what looks to be a cover on the points advance/retard mechanism. Thanks, Paul Ulrich , email address- pulrich@myfrontiermail.com ; I live in Fort Wayne, IN
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 1180
Registered: 07-2002


Posted on Friday, June 17, 2016 - 11:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

One of the local guys, Bob L. made a tool to press the covers, Jamie H. has the disc etched and presses them out, early ones had some wrinkes, they're getting better. Here's one of the early L-A covers, he should have a Motorgo available.
Top of pagePrevious messageNext messageBottom of page Link to this message

richarddurgee
Senior Member
Username: richarddurgee

Post Number: 3808
Registered: 11-2001
Posted on Saturday, June 18, 2016 - 09:24 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

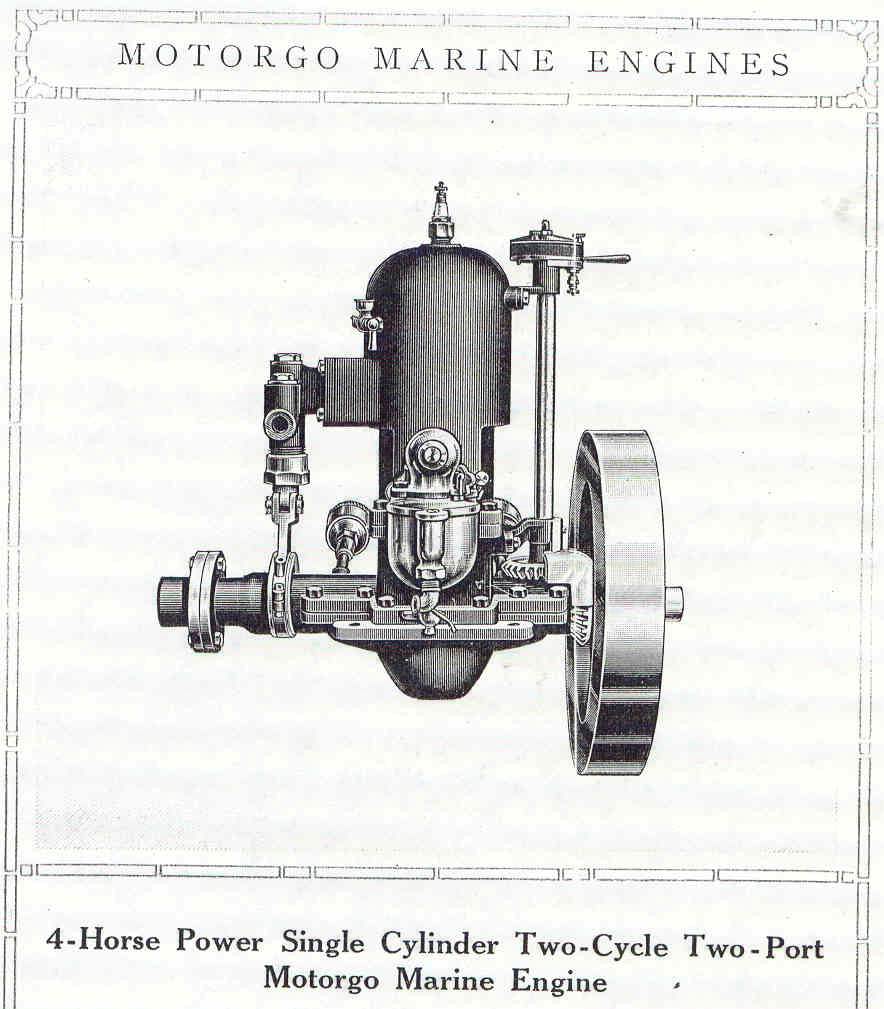

Motorgo 1914


M14



*
