Palmer ZR 1 coming back to life

Old Marine Engine » Palmer Engine Co » Palmer ZR 1 coming back to life « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Tuesday, October 22, 2002 - 06:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

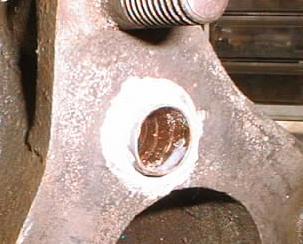

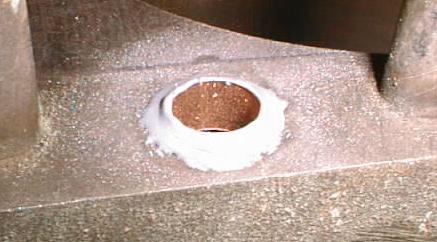

Pics of the start of a Palmer ZR1 restoration. Note the hole in the head. I will make a piece to fit and epoxy it in. The end result should be just about impossible to see.
Enjoy
Ernie
Text description
Text description
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Tuesday, October 22, 2002 - 06:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie,
Great to see....
Hope you will post pics of the whole restoration!
Regards,
Andre
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Tuesday, October 22, 2002 - 07:30 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I will but good things take time
E
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Saturday, October 26, 2002 - 02:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

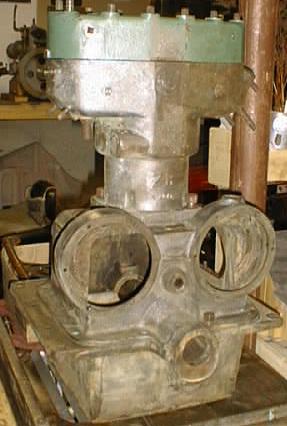

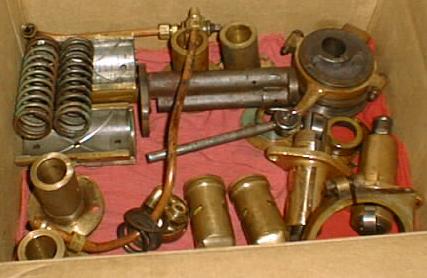

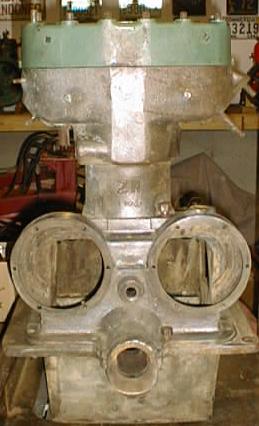

Here are some more pics of the ZR project. The final engine will have major parts from at least 3 donor engines.
I will post my head and block repair in another seperate post.
Text description
Text description
Text description
Text description
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

rbprice
Posted on Saturday, October 26, 2002 - 08:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

What is the photo with the epoxy Ernie?
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Sunday, October 27, 2002 - 08:35 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I put a post under the misc section about block and head repair. it explains how I repair gasket surfaces of the block and head.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Saturday, November 09, 2002 - 12:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

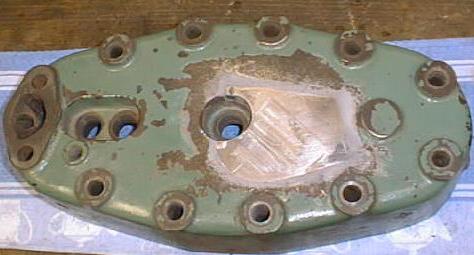

Here are 2 pics of the head with new piece fit and ready for epoxy. Note the rough ground edges. Epoxy bonds much better to a clean rough surface.
Text description
Text description
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Monday, November 18, 2002 - 04:43 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

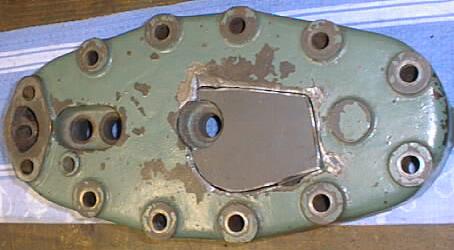

Here is the head with a completed repair. I most likely will not use any putty to hide it. It has been repaired and any future owner needs to know that.
Text description
Text description
