Rubytoo p55 has water in crankcase

Old Marine Engine » Stuart Turner » Rubytoo p55 has water in crankcase « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Matthew Balkwell
Member
Username: matt

Post Number: 20
Registered: 04-2006
Posted on Thursday, November 08, 2007 - 07:35 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Well, after another session of trying to start our p55 i loosened the crankcase plugs and to my horror grey milky water and oil ran out of both plugs, no wonder she was getting harder to start.
My dad and i then made the decision to start to pull the motor down, we removed the head and then the cylinder block.
The engine had previously been running the weekend before at Davistown .
We discovered that the cooling water channels were very rusty but not blocked, what did attract our attention was the bottom end of the motor did have traces of rust on crankshaft lobes.
We also noticed that the studs of the no1 and no2 cylinders were quite rusty and the top of the case and bottom of the cylinder showed signs of rust, we think that the head gasket has given way and allowed water to travel down the studs and then into the crankcase.
Another strange thing was that the expansion chamber was lined with a thick oily muck and not with dry carbon like deposits that i have thought should have been there.[ we run a water lift muffler about two feet down the exhaust,is this causing this?].
Any help or advice would be great as my dad is starting to look around for blaxlands, but after seeing the engineering close up of these engines i want to see this through and get her back together and running again.
Matt and Ron
Top of pagePrevious messageNext messageBottom of page Link to this message

Matthew Balkwell
Member
Username: matt

Post Number: 21
Registered: 04-2006
Posted on Friday, November 09, 2007 - 06:24 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

We are making rapid progress with getting our p55 back together , does anyone have any thoughts on the the water lift muffler? is it to close to the exhaust outlet?.
Matt and Ron.bits1bits2bits3bits4
Top of pagePrevious messageNext messageBottom of page Link to this message

Nick Champion
Member
Username: nickchamp

Post Number: 11
Registered: 08-2006
Posted on Friday, November 09, 2007 - 12:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I use a waterlift exhaust system and have not experienced problems although the waterlift does need to be low down to stop any run back to the engine. My expansion chamber does not have dry carbon in, it's always oily which I think is normal. Having said that it is not thick sludge but just an oily surface. It doesn't seem to create much carbon deposit.

If cooling water was running down the studs and getting in to the crankcase it means you must have had a bad seal not only at the cylinder head but also at the block / crankcase interface. I did read somewhere that a lot of people when they are rebuilding do not take enough account of making sure all these joints are good and experience problems but again it is not one I have had - yet.

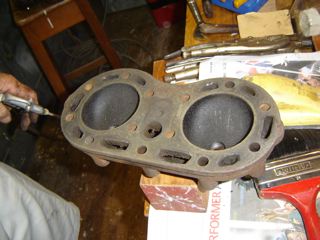

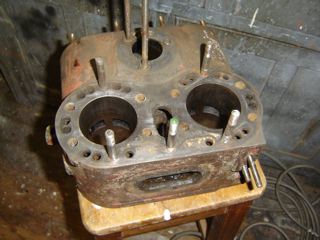

Your pictures of the head and block show them in what I would call pretty good condition - if you were on this side of the world I would try to talk your dad into getting a Blaxland and then giving me the bits of ST to take care of for you!
Top of pagePrevious messageNext messageBottom of page Link to this message

Neil Ralph
New member
Username: ralphy

Post Number: 1
Registered: 12-2007
Posted on Tuesday, December 18, 2007 - 12:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

G'day,
Tried to email you thru your profile don't think it went thru anyway I have manual for this motor if thats a help happy to scan and send if you wish, Regards, Neil (Melb)neiltina@optusnet.com.au
Top of pagePrevious messageNext messageBottom of page Link to this message

Matthew Balkwell
Member
Username: matt

Post Number: 24
Registered: 04-2006
Posted on Thursday, December 20, 2007 - 02:52 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Neil, my email at work has been down, we have a manual thanks for the offer though.This weekend we will be putting both our engines together again and all going well the one in the boat and the spare will fire up,
by the way, does anyone know about different water pump capacities, our two pumps seem to have different cams, which therefore allow more or less travel for the plunger.?
Top of pagePrevious messageNext messageBottom of page Link to this message

Neil Ralph
New member
Username: ralphy

Post Number: 2
Registered: 12-2007
Posted on Friday, December 21, 2007 - 10:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thats great mate
You know after reading other post it may be that I actualy have an instruction book (photo copy) not a workshop manual although it has part# section and a blow up picture of intenals I'm new to these old motors my passion up untill now has been motorbikes but a bloke gave me this engine for a mini motor I gave him, now I'm intrigued I'll be back looking for lots of info in the comeing year.
