Claemarine 1xe gearbox - questions

Old Marine Engine » Gears, Transmissions, and Propellers » Claemarine 1xe gearbox - questions « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Simon Mags
Member
Username: simonmags

Post Number: 6
Registered: 05-2015
Posted on Wednesday, January 11, 2017 - 05:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

http://www.woodworkforums.com/f32/gearbox-question-claemarine-1xe-210891#post199 6907

I have started a thread over there looking for information on this gearbox, so that I can source a suitable replacment, suspect it's from approximatley 1950 era.

Out of a timber motor sailer, around 25 foot. Was attached to a pretty original Perkins P3, from appox 1955.

Guessing it's a paralell drive gearbox as from memory it didn't have any down angle on the connector to the drive shaft.

Wondered if there was a way to work out if it is a 1:1 ratio or something different though, bearing in mind it will no longer spin due to some corrosion issues.
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Staib
Senior Member
Username: drrot

Post Number: 217
Registered: 09-2008


Posted on Thursday, January 12, 2017 - 09:45 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looks like Paragon guts. Also looks 1-1. +++ jpeg +++ 274989 +++
++++++ jpeg +++ 274990 +++
++++++ jpeg +++ 274991 +++
+++
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Staib
Senior Member
Username: drrot

Post Number: 218
Registered: 09-2008


Posted on Thursday, January 12, 2017 - 09:50 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Top of pagePrevious messageNext messageBottom of page Link to this message

Simon Mags
Member
Username: simonmags

Post Number: 7
Registered: 05-2015
Posted on Thursday, January 12, 2017 - 06:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Jim,

So if I was to look for a replacement gearbox, anything that's pararlell drive, 1:1 ratio and of a similar length to this would be a good start i guess. That and making sure the new gearbox fits the spline from the Engine as well...

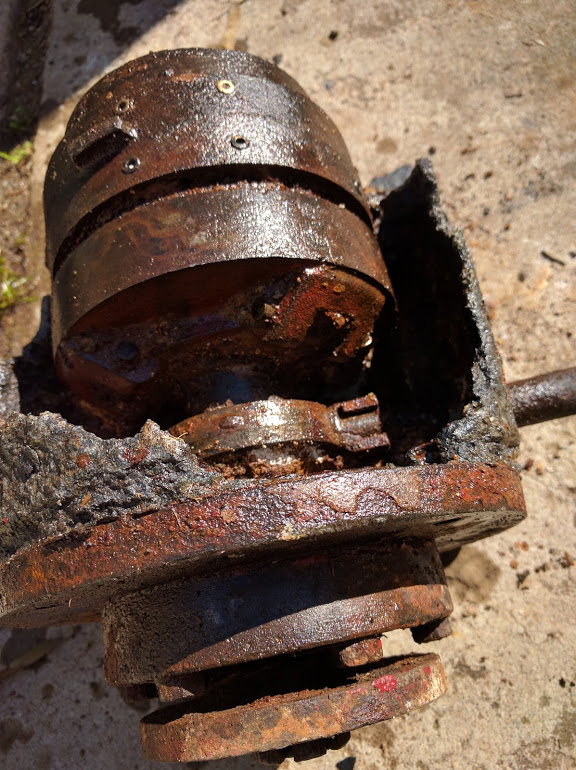

Another picture for your amusement.



That's taken from the bottom of the gearbox, you can see the selector shaft poking out on the right of the picture there.

Cheers
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Staib
Senior Member
Username: drrot

Post Number: 219
Registered: 09-2008


Posted on Friday, January 13, 2017 - 10:14 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

My guess is you need to find one off a Perkins. While the guts are the same the housing is specific to the engine as it keeps the oil contained. Usually powered direct off the crankshaft end with a small hole that feeds it oil through the end of the crankshaft and has a shared oil between the engine and reverse gear.
Top of pagePrevious messageNext messageBottom of page Link to this message

Simon Mags
Member
Username: simonmags

Post Number: 9
Registered: 05-2015
Posted on Sunday, January 22, 2017 - 10:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Evidently from the Marine Handbook for the Perkins P3 they recommended the use of a Borg Warner 71C and possibly a Parsons DA Marine transmission. So will now be on the lookout for one of those to suit.

I'm still not 100% on this though as the Marine handbook appeared to be for the 6 cylinder version of the Perkins engine, even though it indicated the P3.152 which as I understood it was a 3 cylinder engine only.

http://www.cheoyleeassociation.com/RestorationIssues/Manuals/Perkins%20Marine%20 Engine%20Handbook.pdf

Anyway the Borg Warner/Velvet Drive 71c, looks like it may be a close match to what i need, even if it is a bit over the top for a little 3 cylinder engine.
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Staib
Senior Member
Username: drrot

Post Number: 220
Registered: 09-2008


Posted on Monday, January 23, 2017 - 12:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The 71C is a self contained hydraulic unit. The 1EX is lubricated through the end of the crankshaft. The 1EX also allows feathering in gear. Sorta depends on what you like too.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ned Lloyd
Senior Member
Username: ned_l

Post Number: 100
Registered: 08-2012
Posted on Sunday, February 26, 2017 - 03:05 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

A little late I suppose,. But,.... Definately 1:1. Any gear reduction is accomplished through a separate reduction gear that is off the back end of the reverse gear.
As for lubricación, the hole that is drilled through the bolt that holds the splined stub shaft onto the crankshaft is principally to lubricate the reverse pinion gears and isn't much needed when in "forward".
I would still hold onto that gear case. They haven't made them in probably 40 years, and parts are getting difficult to come by.
If you change reverse gear styles the stub shaft can be removed from the crank shaft and swapped out with the new reverse gear,.
