Engine ID Help Required.

Old Marine Engine » Unknown Engines - post here with photos » Engine ID Help Required. « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Dave Carter
New member
Username: dave_carter

Post Number: 1
Registered: 08-2005


Posted on Sunday, November 19, 2006 - 04:00 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello gentlemen, I have cut and pasted an enquiry from a the stationary-engine@oldengine.org news group wondering anyone could ID the engine for them. Thanks in advance, Regards, Dave Carter.



Can anyone identify the Villiers marine(?) engine in the attached photo. One of the visitors to my web site emailed it to me to see if I could work out what model it was so he can order a manual.

Regards
Paul

--

pjp@steamengine.com.au
Emerald, Victoria, Australia
www.steamengine.com.au


Unknown Engine.
Top of pagePrevious messageNext messageBottom of page Link to this message

John Roseland
Member
Username: rosey

Post Number: 7
Registered: 07-2006


Posted on Sunday, November 26, 2006 - 01:08 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Dave

There is a villiers buff somewhere in Australia. Do a search and you will find his wepage. I believe he has the grease on most villeirs.
Top of pagePrevious messageNext messageBottom of page Link to this message

David Myers
Member
Username: dave_myers

Post Number: 9
Registered: 11-2006


Posted on Wednesday, January 17, 2007 - 10:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi to everyone.

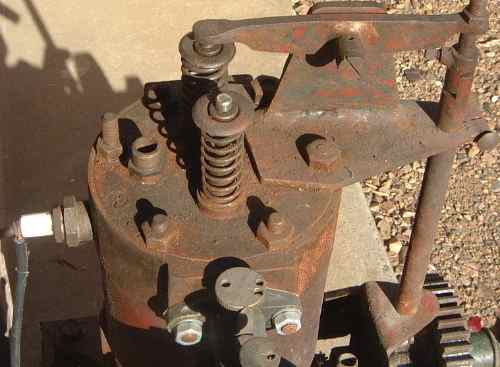

I need help in identifying this motor. Some time in it's life it has been fitted with a WICO Magneto which I believe has been fitted in place of the Igniter system. It is complete except for the Exhaust Manifold and turns over quite freely with good compression.
Any idea's?

Regards,
Dave
Engine1
engine2
engine3
Top of pagePrevious messageNext messageBottom of page Link to this message

Eric Schulz
Member
Username: eric_schulz

Post Number: 12
Registered: 01-2007


Posted on Wednesday, January 17, 2007 - 11:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

"It is complete except for the Exhaust Manifold"

Hello Dave,
I don't know what it is, but I wouldn't say it was complete.
That water pump is either not from that engine or there is a bracket missing.
The valve rocker gear is home made and the valves are modern ones with collets. There is a bronze bearing on the end of the camshaft that is attached to nothing. Can't tell from the photos, but that steel plate is probably a fabrication. Does it have any welding. Welding equals non-original.
Are you sure about the low tension ignition. From the photos I can't see where an ignitor could be fitted.
None of this means it is not an interesting piece of machinery and well worth owning.

Eric
