Please help identify these engines

Old Marine Engine » Unknown Engines - post here with photos » Please help identify these engines « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Hal Davis
New member
Username: hal

Post Number: 1
Registered: 03-2009
Posted on Friday, March 06, 2009 - 08:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

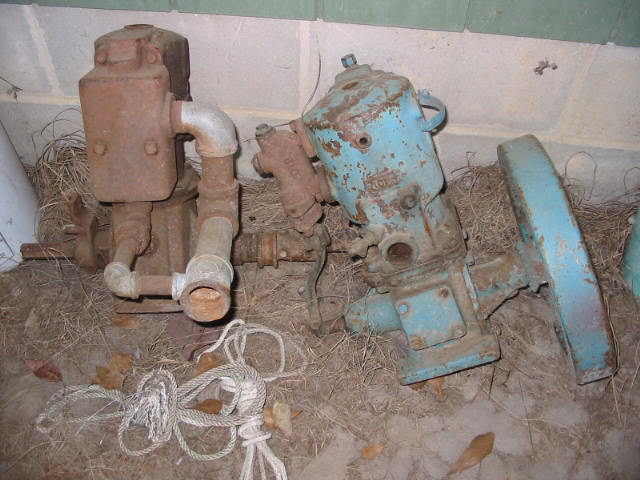

Hello. This my first post here. Could someone please identify these inboards and point me toward more information on them? Not pictured is a nice brass carburetor that was on the blue one. Neither have rods or pistons, but otherwise, the blue one appears to be fairly complete. Is there any chance of finding a rod and piston? If so, I'd like to see if I could get it running.

I'm into antique cars, hit and miss engines, and antique outboards, so this is a logical extension of my interests.

Thanks in advance for any help,

Hal Davis



Top of pagePrevious messageNext messageBottom of page Link to this message

Keith Billet
Senior Member
Username: keith

Post Number: 243
Registered: 02-2002


Posted on Saturday, March 07, 2009 - 05:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hal,
They are of the Detroit Style. Fair amount around, so you could get lucky. Search "Detroit" for other post. They have been talked about extensively. Ernie could step in here with more detail.
Top of pagePrevious messageNext messageBottom of page Link to this message

John Davis
Senior Member
Username: johnny

Post Number: 177
Registered: 03-2006
Posted on Saturday, March 07, 2009 - 10:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looks like a early model Detroit and a late model Detroit. Early engine has pipe plug for crank case inspection hole. Late model has the square hole with steel plate and four bolts for crank case inspection. You might be able to build one engine from the two, maybe..
Top of pagePrevious messageNext messageBottom of page Link to this message

Hal Davis
New member
Username: hal

Post Number: 2
Registered: 03-2009
Posted on Tuesday, March 10, 2009 - 06:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks guys. Time to do some research, now that I know what I have.

Thanks again,

Hal
Top of pagePrevious messageNext messageBottom of page Link to this message

John Davis
Senior Member
Username: johnny

Post Number: 178
Registered: 03-2006
Posted on Tuesday, March 10, 2009 - 07:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hal,

You can do a search on this forum and find a lot of information on your engines. Just find the search at the top right then type in Detroit Engine Works. Also you can find a lot of info on Detroits on my website click below.

http://www.antiquengines.com/Detroit_Engine_Works_Menu.htm
Top of pagePrevious messageNext messageBottom of page Link to this message

kevin lang
Senior Member
Username: klanger

Post Number: 123
Registered: 03-2012


Posted on Sunday, February 25, 2018 - 01:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I wonder what ever happened to these 2 Detroits?

Kev
Top of pagePrevious messageNext messageBottom of page Link to this message

Doug Harlocker
New member
Username: botenbot

Post Number: 1
Registered: 02-2018
Posted on Monday, February 26, 2018 - 11:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I am looking for some good looking larger engine parts in brass for an Prop Engine we are making...
Vintage fairly unrecognizable parts that the average person wouldn't recognize..

Need to purchase parts right away..
See Example Photo
Vintage Engine Part
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 2450
Registered: 01-2002


Posted on Monday, February 26, 2018 - 08:42 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Your picture is a duplex steam pump.
Not sure what you are looking for but you won't find much steam stuff on this board
Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 944
Registered: 07-2003
Posted on Monday, February 26, 2018 - 11:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Methinks it is a steam punk "art" project.
