Unknown 12' launch with Palmer PW27 e...

Old Marine Engine » Unknown Engines - post here with photos » Unknown 12' launch with Palmer PW27 engine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Andrew Menkart
Moderator
Username: andrew

Post Number: 1023
Registered: 11-2001


Posted on Thursday, November 05, 2009 - 06:52 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

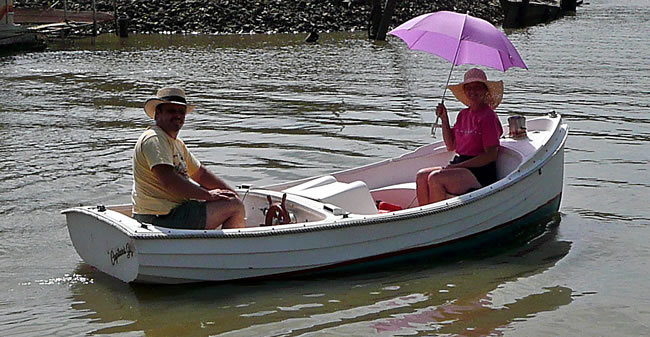

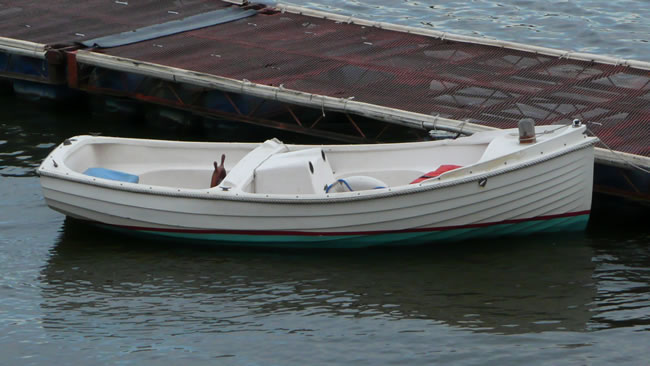

Steve requested that I post the following for him. Beautiful little fiberglass lapstrake launch. It would be interesting to know if someone still has the molds for it.

He can be reached at sfrancis36@charter.net


quote:

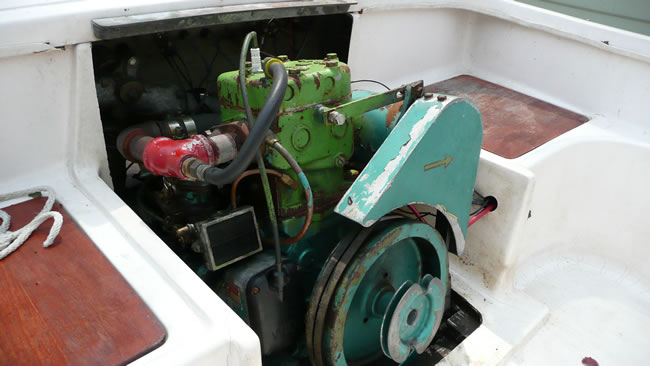

I have an unknown boat with a Palmer PW27 inboard. I tried to post it, but could not resize it to fit. I would really like to find out who made this boat, and what year it was made. I only know of one other and its on antique boats. I contacted the owner, and he has the same problem I do, unknown manufacturer. I would like to register the boat, but do not want a homade title. It's a fun boat, the Palmer PW27 is a great little motor. The last two digits of the motor serial number is 44, I don't know if it was made in 1944. If you can help identify this boat I would really appreciate it.

Thanks,
Steve Francis
St. Louis, MO



and


quote:

. I'm having ignition problems with it right now. Might have to pull the mag and try and fix it. Do you know any company that handles parts for it?

Thanks,
Steve




1

2

3

4
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1091
Registered: 01-2002


Posted on Friday, November 06, 2009 - 01:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Going by the color of the engine it is a 1974 as in the last years of production Palmer only used the last digit to indicate the year. As to the boat it is neat. Never seen one like it.
Those mags usually only require a good cleaning of the points. If you have to remove it there are 2 bolts holding the mag onto the engine. The outer one has to be removed. The inner one only needs to be loosened as it is in a slot.
Parts for the mag are easily found on the net. Once you have the MFR either Fairbanks or Wico and the model number just search on google.
One source is www.magnetoparts.com
As to a Hull Identification Number "HIN" look real closly in the upper outer areas of the transom. The boat appears to be new enough "later than 1972" so it should have a HIN somewhere. If you can find the HIN the first caracters will identify the manufacturer. A list of all HIN codes is here
http://www.uscgboating.org/recalls/mic.aspx
Additional info to decode a HIN is here
http://boatsafe.com/nauticalknowhow/hin.htm
Top of pagePrevious messageNext messageBottom of page Link to this message

Keith Billet
Senior Member
Username: keith

Post Number: 267
Registered: 02-2002


Posted on Friday, November 06, 2009 - 08:32 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie,
You are just an unbeliveable wealth of knowledge.
Keith,
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1093
Registered: 01-2002


Posted on Saturday, November 07, 2009 - 07:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Well its called being around the boating industry since the 70s and around boats with old engines since I was a kid
Top of pagePrevious messageNext messageBottom of page Link to this message

Steve Francis
New member
Username: sfrancis36

Post Number: 1
Registered: 08-2009
Posted on Friday, November 13, 2009 - 01:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Ernie, but there are no makings on the boat whatso ever. There is one for sale on Antique boat America. I contacted the person selling it, and he has the same problem. No markings or numbers. I would really like to find out the make and year to properly title it. Otherwise, I'll have to take a different route. The trailer came from Orlando Florida, so it could have been a Disney utility boat, made by Disney. Here is the link to the other boat thats for sale http://www.antiqueboatamerica.com/ab_list_boatNew.asp?Left=&Type=ViewBoat&BoatId =27231
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1099
Registered: 01-2002


Posted on Friday, November 13, 2009 - 08:02 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

If you think that is the case you might want to contact them. I have heard of folks doing that realted to RR equipment that was possibly made by them.
Also what year is the engine in the other boat?
Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

Lawrence T Wolfe
Senior Member
Username: larry_from_maryland

Post Number: 384
Registered: 07-2003


Posted on Saturday, November 14, 2009 - 05:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Could you use the engine serial number as the number for the whole boat? They do that with some tractors that have no number.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1100
Registered: 01-2002


Posted on Saturday, November 14, 2009 - 06:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

From my recent dealings with the CG or state on boats with no HIN that doesn't work,too bad as it's actually a good idea
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

fp
Visitor
Posted on Saturday, November 14, 2009 - 08:46 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Usually each state can issue a number that must be permanently affixed to the hull of main engine stringer. I know Wisconsin does that for old boats that have no serial number. Check with your local Department of Natural Resources and I am sure they will help you.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1101
Registered: 01-2002


Posted on Saturday, November 14, 2009 - 11:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

That is correct however it will NOT be an engine number
Top of pagePrevious messageNext messageBottom of page Link to this message

Fred Abbe
New member
Username: fabbe

Post Number: 1
Registered: 04-2009
Posted on Tuesday, December 01, 2009 - 10:21 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Captain's gig

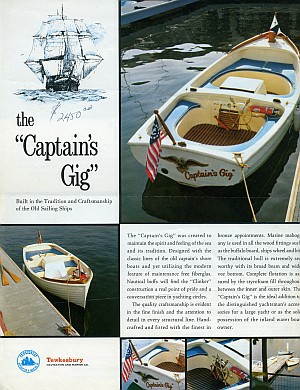

I have a builder's color flyer for this little fiberglass launch. It was built by Tewksbury Navigation & Marine Co., 17673 Armstrong, Santa Ana, Calif.

There was one for sale recently here in Cataumet MA at Parker's Boat Yard. It belonged to a neighbor Mr Wood who died several years ago. I could be wrong but I think it had a single cylinder diesel.
In addition to the inboad version Tewksbury also built an outboard version where the motor was mounted in a well. If Parker's still has the boat I think it could be purchased cheaply as Buzzards Bay is not the best place for a tiny boat like this.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1109
Registered: 01-2002


Posted on Tuesday, December 01, 2009 - 03:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I talked to Patti at Parker's boat Yard
The one that was for sale there was a 1969. That being the case it would not have had a HIN in the new Coast Guard format. I have asked them if they know where the HIN is on the boat. If they know I will post the info here.
Also as to Tewksbury Navigation the address in Santa Anna is now all very high tec. I go down that street every day from the hotel to the office when I am in Calif for work so I really doubt that they are still there. Also I spent about an hour in the Coast Guard HIN data base searching for all kinds of combinations for Tewksbury Navigation and found nothing.
This all being the case maybe it is a 64 and not a 74???
At least now thanks to Fred you know who made yours.
Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1110
Registered: 01-2002


Posted on Tuesday, December 01, 2009 - 07:48 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I heard back from Parkers
They don't remember where the HIN is on the boat and the boat is put away for the winter also the owners are not available so the location of the HIN will have to wait till spring.
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

Steve Francis
Member
Username: sfrancis36

Post Number: 6
Registered: 08-2009


Posted on Friday, March 12, 2010 - 11:57 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks to everyone for all the info. Dick Day has placed the motor to be a 1968 by the serial number. Thanks to Fred Abbe, I know who sold, or made the boat with his sales flyer. Thanks Fred for sending me copies. I'm going to frame them. I can't seem to find out any info on "Tewkesbury navigation & marine".I've reset the valves, and started buffing her for summer. I finally found a brass eagle for the transom to replace the missing bronze one. I guess I'm going to title it a 1968 Tewkesbury and use the engine number. If anyone finds out any more info please let me know.

Thanks,
Steve
Top of pagePrevious messageNext messageBottom of page Link to this message

S.Jeff Hall
Visitor
Posted on Monday, July 04, 2011 - 10:49 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a palmer PW-27 in my sailboat. I'v had it for 5 years and it has been reliable, but I've never been able to make it idle.If I close the throttle beyond a certain point, corresponding to 1500 to 2000 RPM in neutral, it dies. Compression is about 90 psi. Any suggestions would be much appreciated Jeff
Top of pagePrevious messageNext messageBottom of page Link to this message

Gonzo Couto-Lain
Member
Username: gonzo

Post Number: 13
Registered: 06-2011
Posted on Wednesday, July 06, 2011 - 12:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

have you tuned it up and rebuilt the carburetor?
Top of pagePrevious messageNext messageBottom of page Link to this message

s. jeff hall
Visitor
Posted on Wednesday, July 06, 2011 - 03:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Gonzo I have rebuilt the carb,and also cleaned it several times. It has always looked pretty clean, and has always acted the same when I put it back.I guess I'll have to look again. It does seem to be a carb problem. Thanks for the response. Jeff
Top of pagePrevious messageNext messageBottom of page Link to this message

Fred Abbe
Member
Username: fabbe

Post Number: 9
Registered: 04-2009
Posted on Sunday, July 17, 2011 - 09:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

There is now ( 7/17 2011) a FG Captain's Gig 12 ft. launch advertised for sale with a Palmer PW-7 on antiqueboatcanada.com if anyone is interested.
It's the first boat listed under "Launches"
