Mystery marine engine

Old Marine Engine » Unknown Engines - post here with photos » Mystery marine engine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

gary lauer
New member
Username: mark20h

Post Number: 1
Registered: 08-2010
Posted on Sunday, August 01, 2010 - 03:03 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

This engine snuck into my pickup while I was at the junk yard getting rid of scrap aluminum. I think the flywheel may not be original. any help would be great. Thanks Gary
http://rides.webshots.com/album/578208246aBMSzc
Top of pagePrevious messageNext messageBottom of page Link to this message

Dennis Hart
Advanced Member
Username: sinbad

Post Number: 36
Registered: 07-2005
Posted on Sunday, August 01, 2010 - 05:55 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Mystery marine engine. Am I being optimistic, does it have characteristics similar to my Sintz but on a smaller scale?
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2435
Registered: 11-2001
Posted on Sunday, August 01, 2010 - 09:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Gary
I originally thought this engine to be a Straubel,many similarities but also some differences ?? It is an old and interesting Marine Engine !
I was away and trying to research it with a limited lap top. The Webshots site does not allow downloading of its photos that makes comparisons difficult ! possible to email the photos to me I'll also post them here ?
oceanblu10@comcast.net

*
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2436
Registered: 11-2001
Posted on Monday, August 02, 2010 - 02:00 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

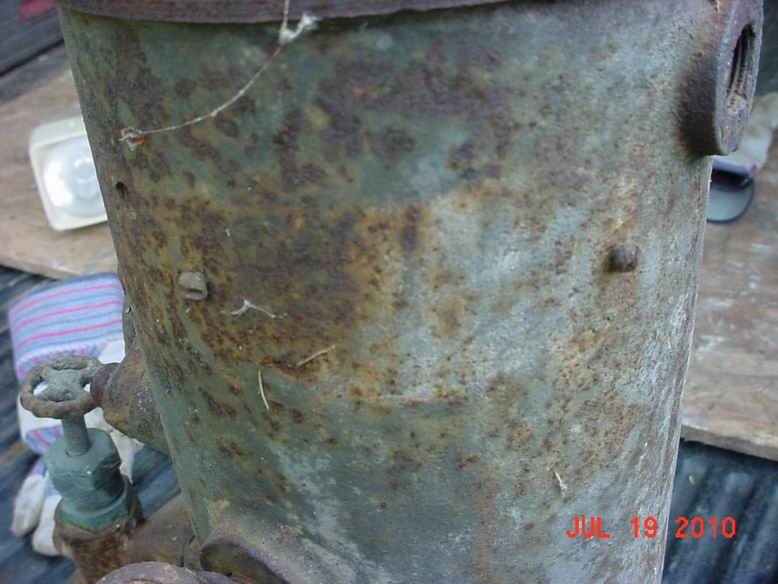

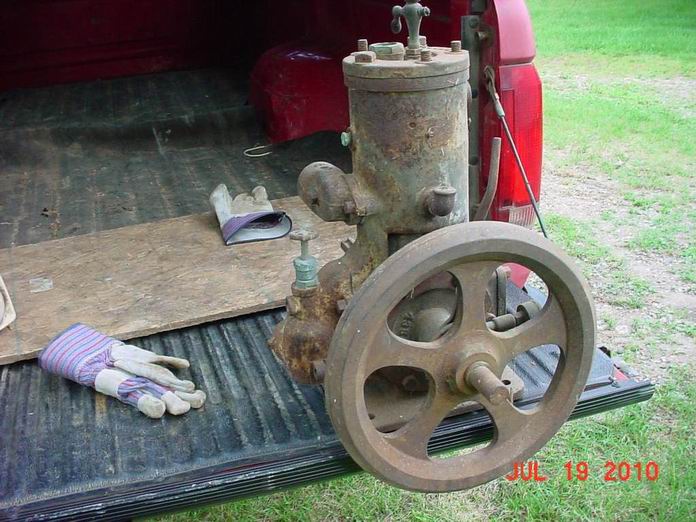

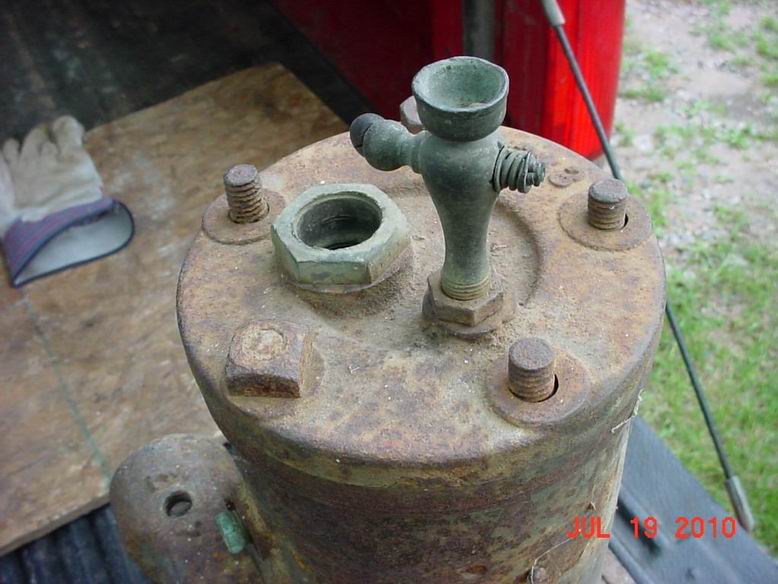

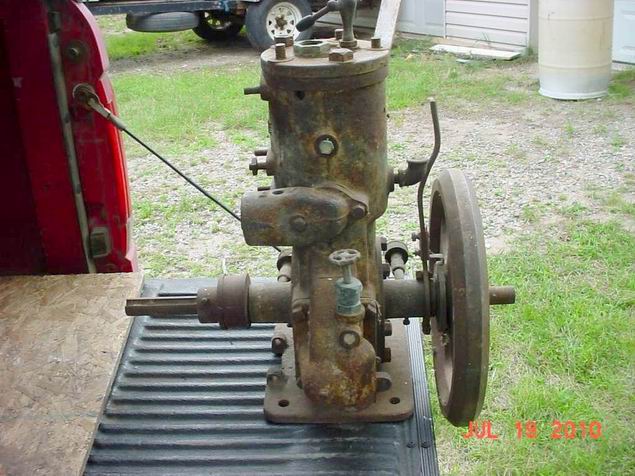

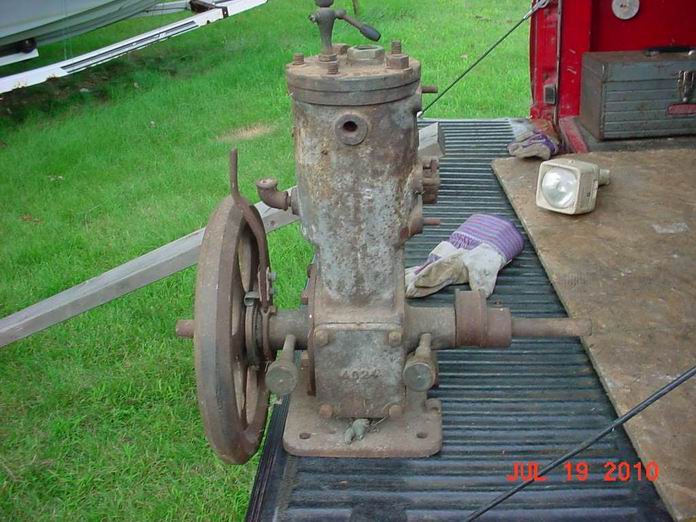

Gary's Unknown Marine Engine photos

1

2

3

4

5

6

7

*
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2437
Registered: 11-2001
Posted on Monday, August 02, 2010 - 07:57 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

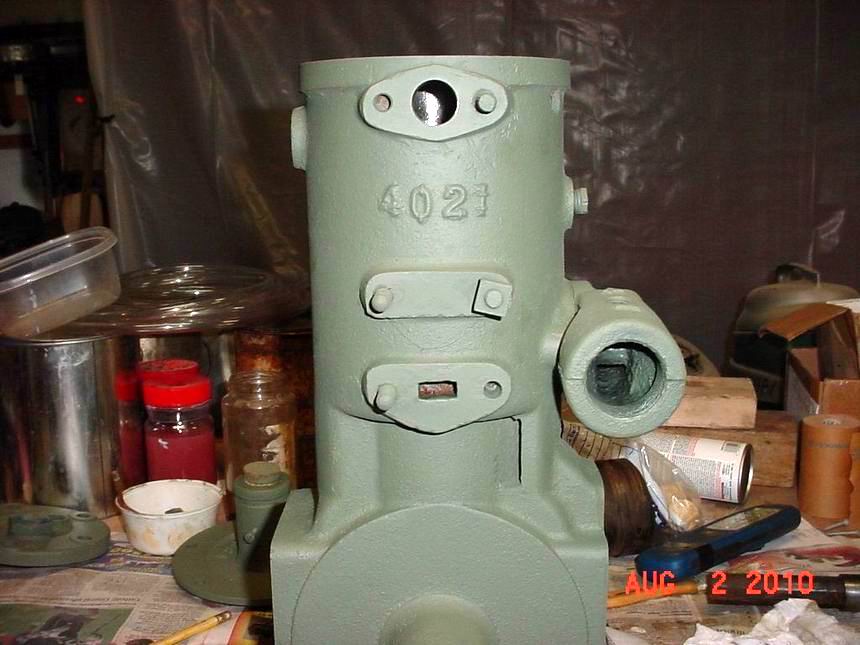

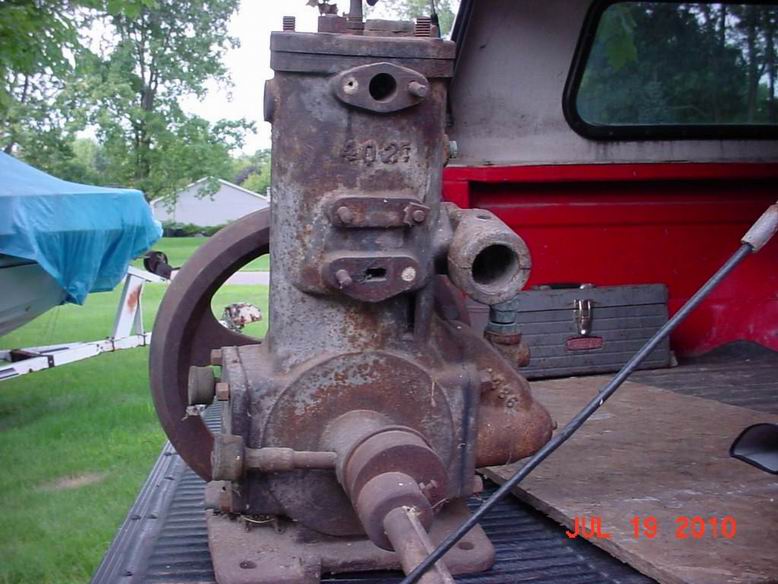

More of Gary's photos

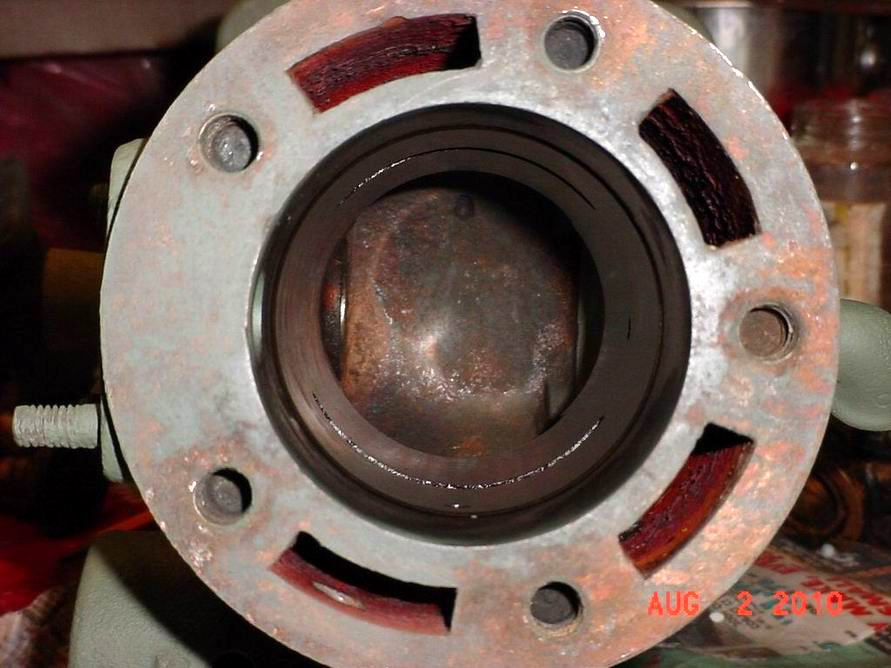

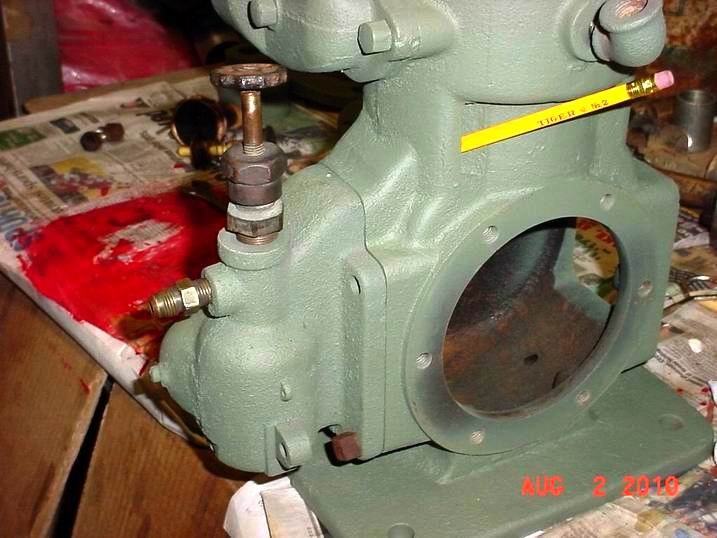

Pics of the poppet carb and the step on the bore.

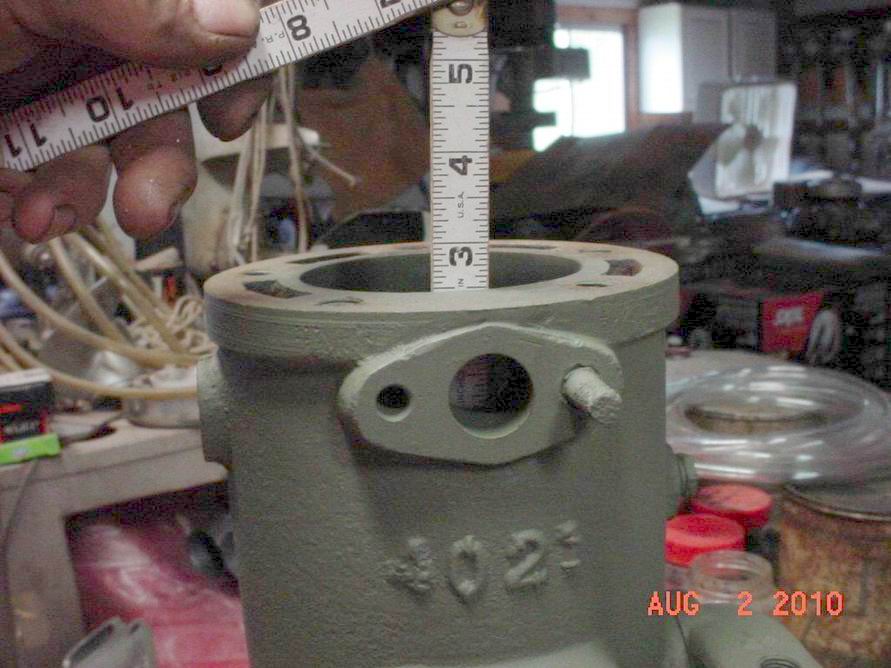

The pencils are in the air intakes. the piston at tdc is a little less than 2 1/2 inches from the top of the cylinder

1

2

3

4

5

6

7

*
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2438
Registered: 11-2001
Posted on Monday, August 02, 2010 - 08:24 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*

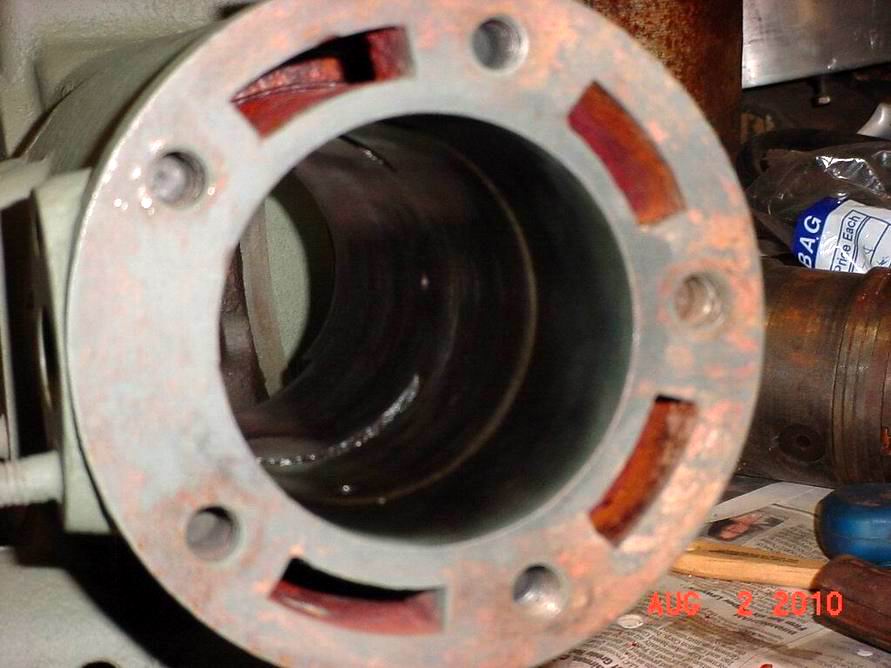

Anyone seen an old two cycle engine with the cylinder bore above the piston at TDC larger than the piston bore ?? A stepped bored cylinder ??

Anyone seen a flywheel like this ??

Does it look like it had a water/pump - make and break mechanism on the aft originally ? Timer behind flywheel added later ??

*
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 549
Registered: 07-2002


Posted on Monday, August 02, 2010 - 10:19 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

The Lockwood Ash engines are headless but the cylinder is larger above the piston travel. If you push the piston all the way up beyond normal travel, the top ring will expand making the piston very diffucult to remove. It looks to have been a water pump ignitor combination on the back. It's a unique engine, hope he can find a water pump and timer to copy.
Top of pagePrevious messageNext messageBottom of page Link to this message

gary lauer
New member
Username: mark20h

Post Number: 2
Registered: 08-2010
Posted on Tuesday, August 03, 2010 - 09:43 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

This engine keeps amazing me. upon assembling it I found that the head studs are 1/2-12 insdead of 13. what gives????
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2439
Registered: 11-2001
Posted on Tuesday, August 03, 2010 - 10:45 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
This is an old Marine engine probably designed in late 1890's long before SAE standards were adopted. Dick Day cautioned me about checking thread sizes yrs ago when I was Redoing an old Palmer. I have a few engs 100 yrs or older, some have non standard threads especially head bolt studs.
Those square nuts and square headed cap screws may be original to the engine,a hold over from the days of steam ? I'm Still trying to put a name to this engine but no exact matches as yet !!

*
Top of pagePrevious messageNext messageBottom of page Link to this message

Jeff Kitzmiller
Member
Username: jeffk

Post Number: 4
Registered: 04-2009
Posted on Tuesday, August 03, 2010 - 11:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Richard, I am fitting rings in a step bored Barber Bros. right now. Jeff
Top of pagePrevious messageNext messageBottom of page Link to this message

William Schaller
Senior Member
Username: billschaller

Post Number: 335
Registered: 12-2003


Posted on Tuesday, August 03, 2010 - 02:49 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

1/2-12 was standard at the time.
Top of pagePrevious messageNext messageBottom of page Link to this message

Richard A. Day Jr.
Senior Member
Username: richardday

Post Number: 887
Registered: 11-2003


Posted on Tuesday, August 03, 2010 - 10:05 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Raynal Boling CEO of Palmer Engine Co. 1947-1968, Palmer Bros employee 1934-1947. Told me as late as the mid 1930s Palmer was still using 1/2" 12 THD which was constantly being mixed up in the shop with 1/2" 13THD. I make a practice of checking fine thread on early items because there are a lot of crazy threads from the period 1850s to WWI. I was lucky an old time machinist gave me his tool box when he retired about 1940 and he gave me an interesting tool which was a screw thread die for tiny threads like 4/36 and smaller. It is about a foot long with two rows of dies made in the blade so to speak. About 2" wide. 4/36 for example is the Schebler Carb cork float screw. Not a common screw thread any more. Ernie Darrow ran into 1/2 12 thd when I gave him a NOS Palmer PNR cylinder which needed head studs. We both thought it would be 1/2" 13thd. Now Way!!! It had 12 thread for the head studs. I bought a couple of el cheepo 1/2" 12 thread imported dies so I could turn the die in a lathe. You guessed it. The first die lasted one half of one stud. The other turned out the needed 12. No longer easy to find good American made stuff like we once made in this country.
Top of pagePrevious messageNext messageBottom of page Link to this message

Gary Lauer
New member
Username: mark20h

Post Number: 3
Registered: 08-2010
Posted on Wednesday, August 04, 2010 - 12:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

update--- I have the engine primed and mostly together, I need to make a head gasket and am not sure which material to use. then I will paint it so I can show it at Buckley with my thrall.
Top of pagePrevious messageNext messageBottom of page Link to this message

miro forest
Senior Member
Username: miro

Post Number: 481
Registered: 11-2001


Posted on Friday, August 06, 2010 - 01:05 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

For a show engine, there is high temperature gasket material available to cut out a gasket, not necessarily the usual copper/asbestos sandwich.
And since the compression is probably not more than 4:1 and the engine will run relatively cold ( and no load) , you should be OK.
miro
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert B. Price
Senior Member
Username: rbprice

Post Number: 332
Registered: 11-2001


Posted on Friday, August 06, 2010 - 08:39 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

You can buy a sheet of graphite impregnated high temp gasket material from McMaster-Carr for not much. Part no. 95715K62

Cut it with an Xacto knife.
Top of pagePrevious messageNext messageBottom of page Link to this message

Gary Lauer
Member
Username: mark20h

Post Number: 4
Registered: 08-2010
Posted on Saturday, August 14, 2010 - 05:42 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks for all your help. The engine remains a mystery, I am taking it to the Buckley old engine show next week and maybe someone might have an idea. Gary
