Palmer YT 1 Copy??? from AU

Old Marine Engine » Unknown Engines - post here with photos » Palmer YT 1 Copy??? from AU « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1251
Registered: 01-2002


Posted on Tuesday, August 17, 2010 - 11:41 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

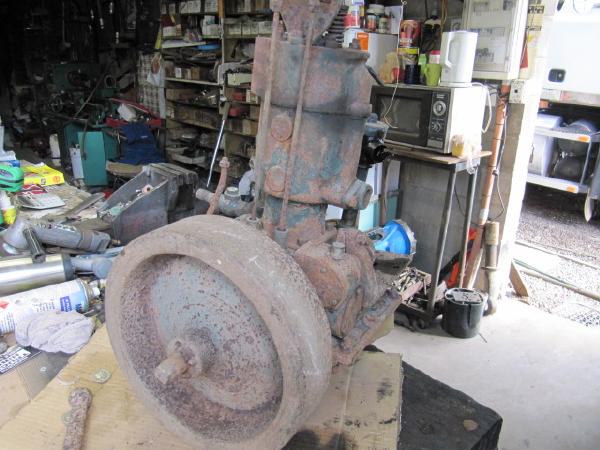

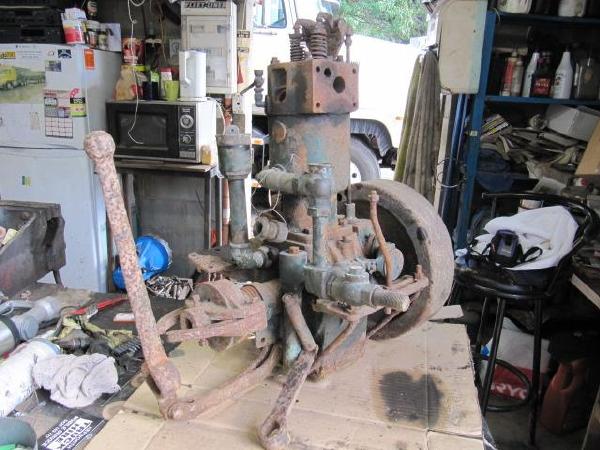

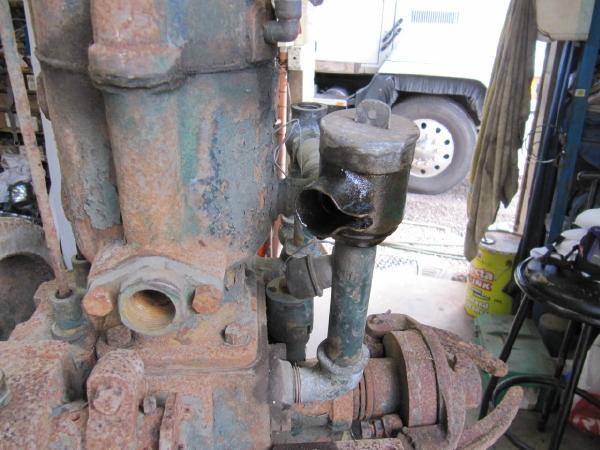

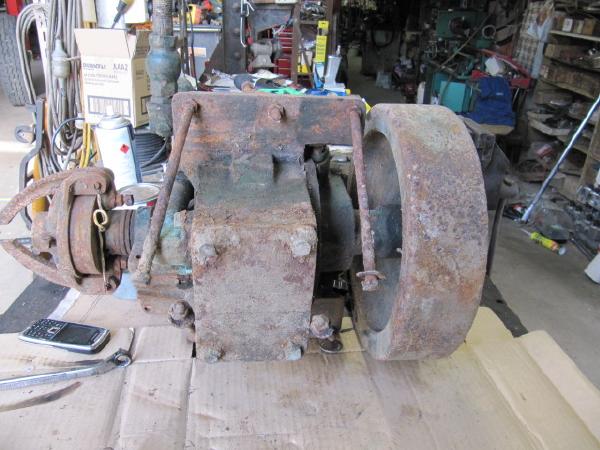

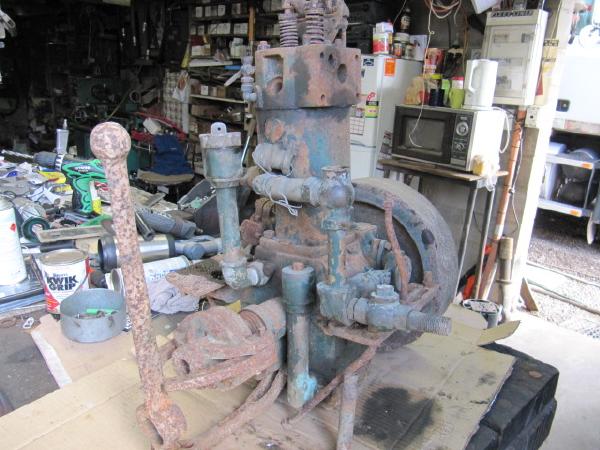

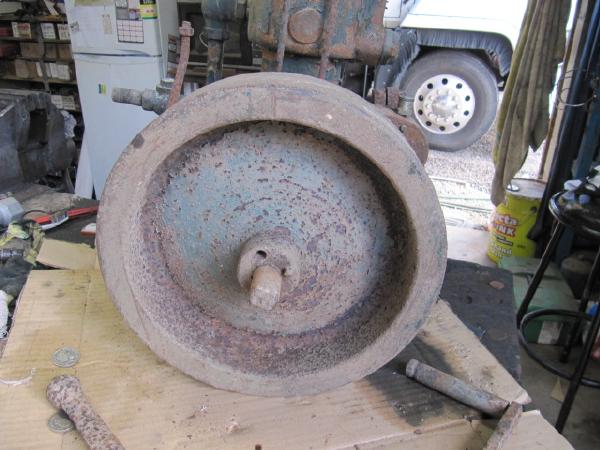

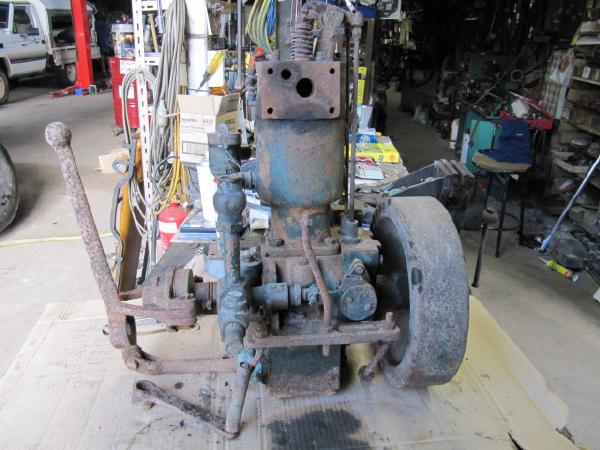

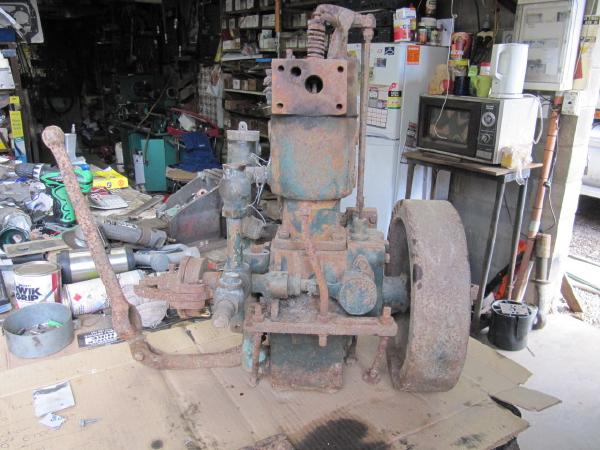

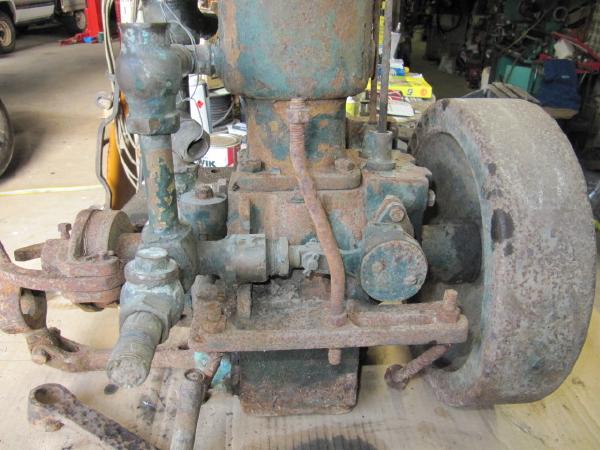

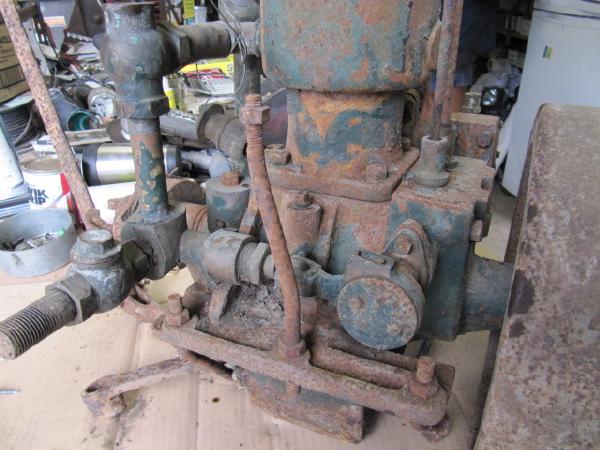

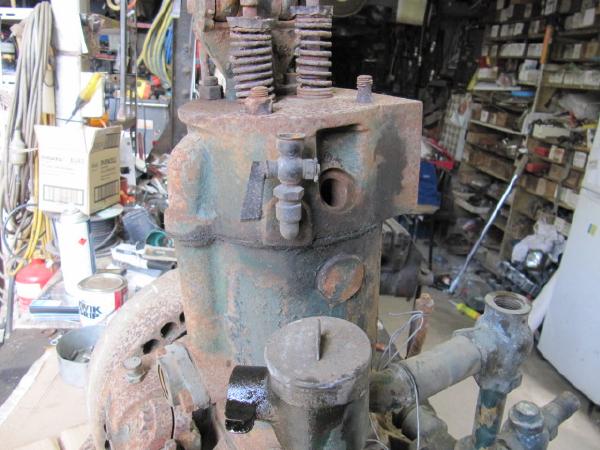

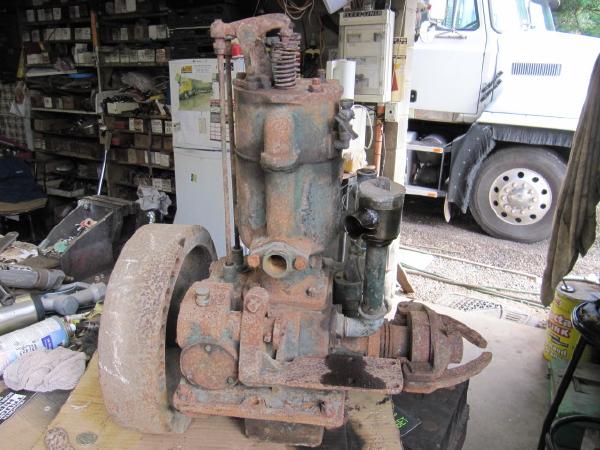

Here are some pics of a Palmer YT 1 copy??? from AU. I will let the guys from down Under Chime in with whose it is and where it was found.
Enjoy
Ernie













Top of pagePrevious messageNext messageBottom of page Link to this message

Richard A. Day Jr.
Senior Member
Username: richardday

Post Number: 892
Registered: 11-2003


Posted on Tuesday, August 17, 2010 - 08:08 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

In my opinion some very clever fellow back about 1925 wanted a YT-1 and he basically made up his own patterns and assembled a pretty remarkable knock off. I would like very much to see the con rod webb to see if it is a Palmer product. The camshaft gearing as they are spiral gears and copying them with their built in cams would be a pretty difficult job without a pretty good machine shop and a lot of knowledge. Bravo for who ever did it. Hope the current owner cleans it up and we see it running one of these days. I cannot place the reverse gear as having any Palmer background. May be but I have nothing which remotely looks like this one.
Top of pagePrevious messageNext messageBottom of page Link to this message

Paul Fannon
Member
Username: hookedup

Post Number: 17
Registered: 02-2010
Posted on Tuesday, August 17, 2010 - 08:23 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

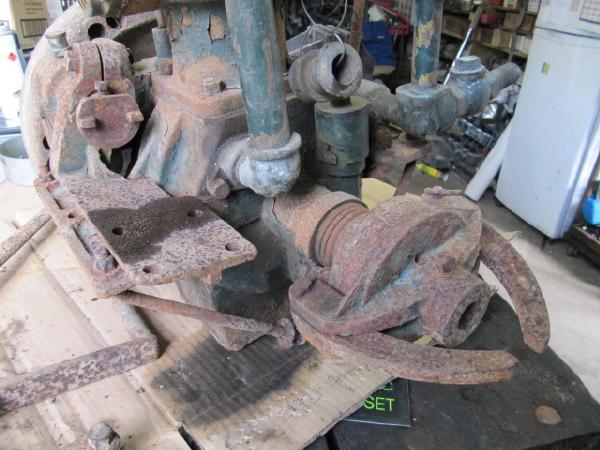

The gear system looks to be the same as the 6hp Clae Engine. No reverse. Tapered dog on shift lever engages forward gear only. ?
Top of pagePrevious messageNext messageBottom of page Link to this message

steve craig
Visitor
Posted on Wednesday, August 18, 2010 - 08:42 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hello to all
thanks Ernie for putting photo's up. this engine was recently collected at a swapmeet in Cairns Queensland Australia by a friend if mine. when i saw it, i was certain it was a Palmer yt1, but having consulted the palmer men, it turns out to be a close copie.was hoping some aussie members or anyone has seen anything like it. engine is quite complete missing carbie, maggie and exaust. can anyone confirm Paul's thinking on the dog clutch might clae? that flang below the thrust bearing looks to be made for that clutch's activating rod. you would think that with the amount of work thats gone into the pattern making, we would have seen more surviving today. Dick i'll try and get a look under that sump plate in a few days
Steve.
