Old Marine Engine » Unknown Engines - post here with photos » Unknown Smaller « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Doug Kimball
Senior Member
Username: doug11k

Post Number: 75
Registered: 12-2003
Posted on Thursday, October 21, 2010 - 07:42 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

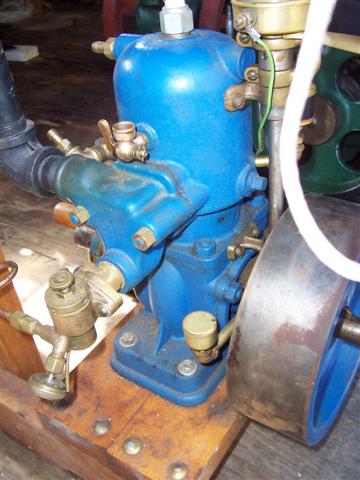

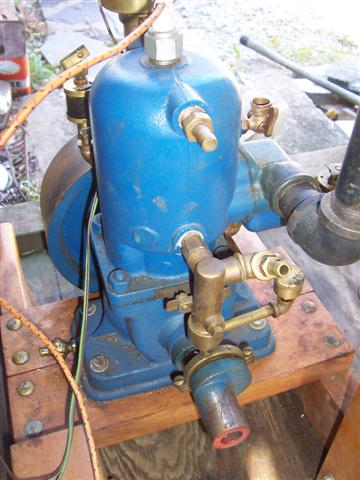

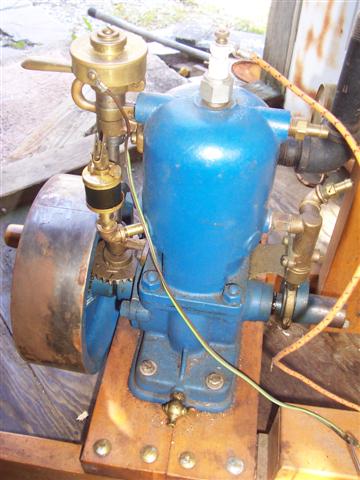

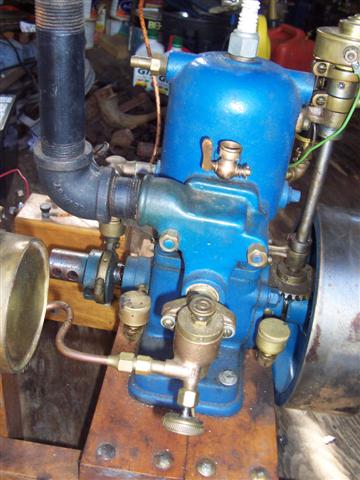

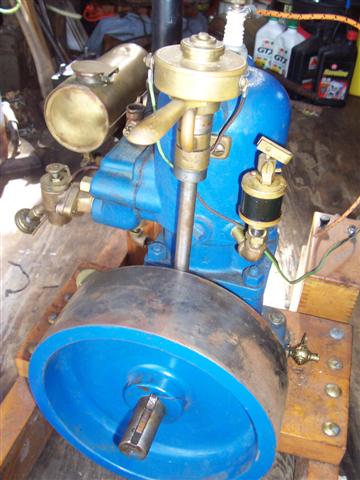

Here is an even smaller dome top of the same owner. This one has 9" diameter flywheel 3" wide.
Smaller1
Smaller2
Smaller3
Smaller4
Smaller5

Smaller6
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2464
Registered: 11-2001
Posted on Saturday, October 23, 2010 - 01:56 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Doug, Good photos of both engines, when I get my
computer back from the shop, I'll spend some time and try to I.D. these two ! I have put them in my unknown file so not to forget them !

*
Top of pagePrevious messageNext messageBottom of page Link to this message

Doug Kimball
Senior Member
Username: doug11k

Post Number: 76
Registered: 12-2003
Posted on Saturday, October 23, 2010 - 06:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Richard,
The owner says on the blue smaller engine he can see on the manifold between the bolts what appears to be the faint letters "E & M".
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Senior Member
Username: ernie

Post Number: 1281
Registered: 01-2002


Posted on Saturday, October 23, 2010 - 07:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Looks like some flavor of Detroit Auto Marine to me. Pump no timer no manifold no crankcase yes flywheel yes cylinder sort of
Just my thoughts
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

Doug Kimball
Senior Member
Username: doug11k

Post Number: 77
Registered: 12-2003
Posted on Saturday, October 23, 2010 - 08:30 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Ernie,
I thought Detroit Auto Marine also .... carb is on opposite side however. The "E & M" is cast in manifold but rings no bells with me. I was thinking T & M but owner is pretty sure first letter is an "E".
Top of pagePrevious messageNext messageBottom of page Link to this message

RichardDurgee
Senior Member
Username: richarddurgee

Post Number: 2465
Registered: 11-2001
Posted on Saturday, October 23, 2010 - 10:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

*
Doug

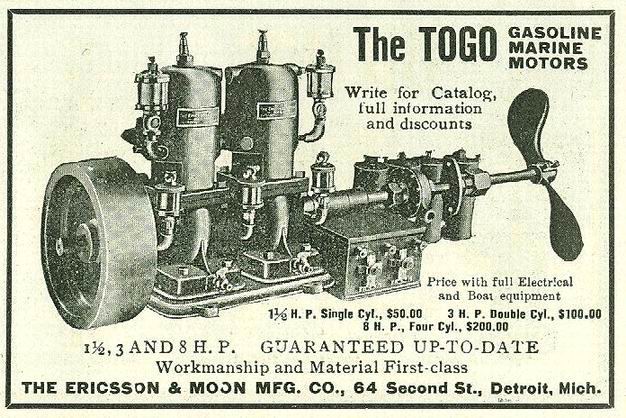

E & M it is, "THE TOGO " made by Ericsson & Moon Mfg Co.,the engine mount as a casting of the crankcase with Draincock is very rare design !

Ernie knows-- look at the address on the ad !!

Would date engine 1906-07.
Cool little 104 year old marine engine.

1906

em06

*
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 383
Registered: 07-2003
Posted on Saturday, October 30, 2010 - 08:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Circa 1905 - named after Admiral Togo who had just defeated the Russians at the Battle of the Tsushima Straits?
