Small unknown to me.

Old Marine Engine » Unknown Engines - post here with photos » Small unknown to me. « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Parrott
Senior Member
Username: jim_parrott

Post Number: 144
Registered: 06-2009
Posted on Monday, August 28, 2017 - 03:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

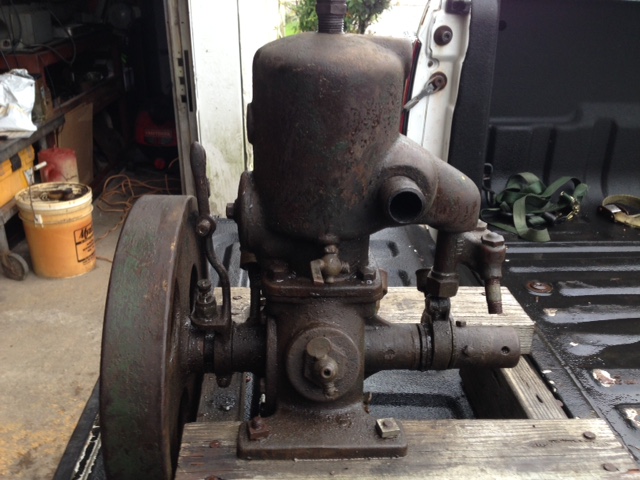

Any idea who made this 2 port engine?







Any help would be appreciated.
Jim
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Parrott
Senior Member
Username: jim_parrott

Post Number: 160
Registered: 06-2009
Posted on Thursday, January 04, 2018 - 04:13 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Posted this one a while back, figured I would bring it up again.
Any idea of the manufacturer?
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 918
Registered: 07-2003
Posted on Wednesday, January 10, 2018 - 12:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

What's the petcock in the cover plate all about?
Top of pagePrevious messageNext messageBottom of page Link to this message

J.B. Castagnos
Senior Member
Username: jb_castagnos

Post Number: 1354
Registered: 07-2002


Posted on Wednesday, January 10, 2018 - 07:00 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Just a guess but I would say an attempt a economy, I've seen several variations. An old fisherman told me you could open t to allow more air and save fuel. adjusting the carb would do the same thing.
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Parrott
Senior Member
Username: jim_parrott

Post Number: 176
Registered: 06-2009
Posted on Monday, February 26, 2018 - 10:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

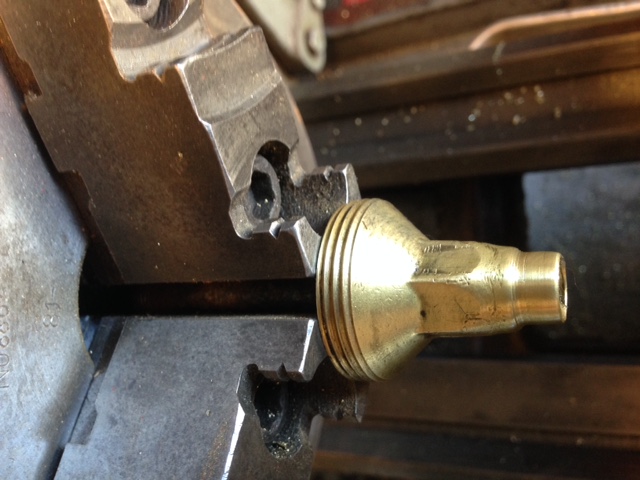

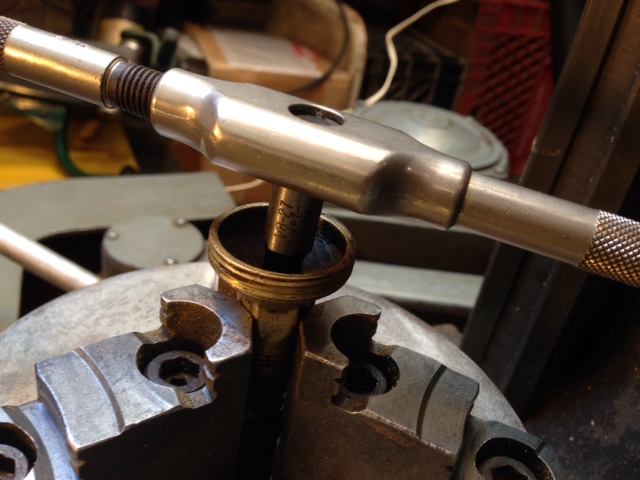

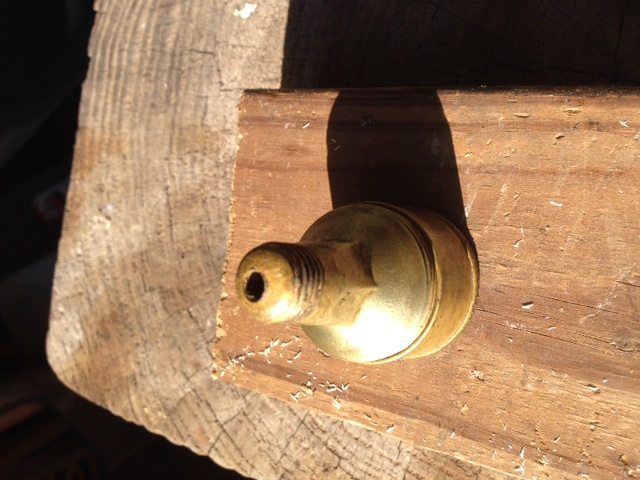

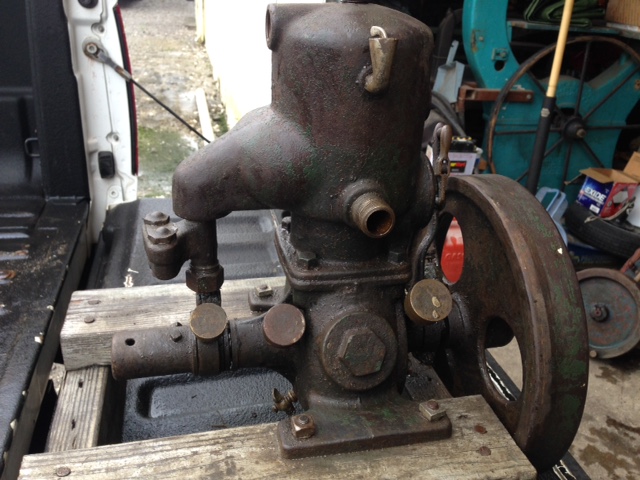

Cleaned up my little unknown engine today and noted that I had an oddball grease cup. Having a matching spare with 1/4 male threads instead of 1/8 female threads, I decided to try a conversion. First I cleaned it up, chucked the hex end in the lathe, cut the off center hole bigger with a end mill. Drilled to size and tapped 1/8 npt enough to hold it, then screwed in a 2 pipe. Rotated it in the chuck, faced it off and turned down the threads. Removed from chuck and retapped from outside end. Worked out pretty good and now have a matching set.








Top of pagePrevious messageNext messageBottom of page Link to this message

Robert
Senior Member
Username: robert

Post Number: 943
Registered: 07-2003
Posted on Monday, February 26, 2018 - 11:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Clever! If you'd used a brass nipple no one would ever guess.
Top of pagePrevious messageNext messageBottom of page Link to this message

Jim Parrott
Senior Member
Username: jim_parrott

Post Number: 178
Registered: 06-2009
Posted on Tuesday, February 27, 2018 - 10:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Robert,

I prefer brass fittings, but the other cup has a steel nipple that looks original, so I wanted to match it also.

Jim
