Early 4-stroke spherical valve chest ...

Old Marine Engine » Unknown Engines - post here with photos » Early 4-stroke spherical valve chest engine « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Nick Rowland
Advanced Member
Username: nar

Post Number: 33
Registered: 04-2007


Posted on Thursday, September 03, 2020 - 03:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

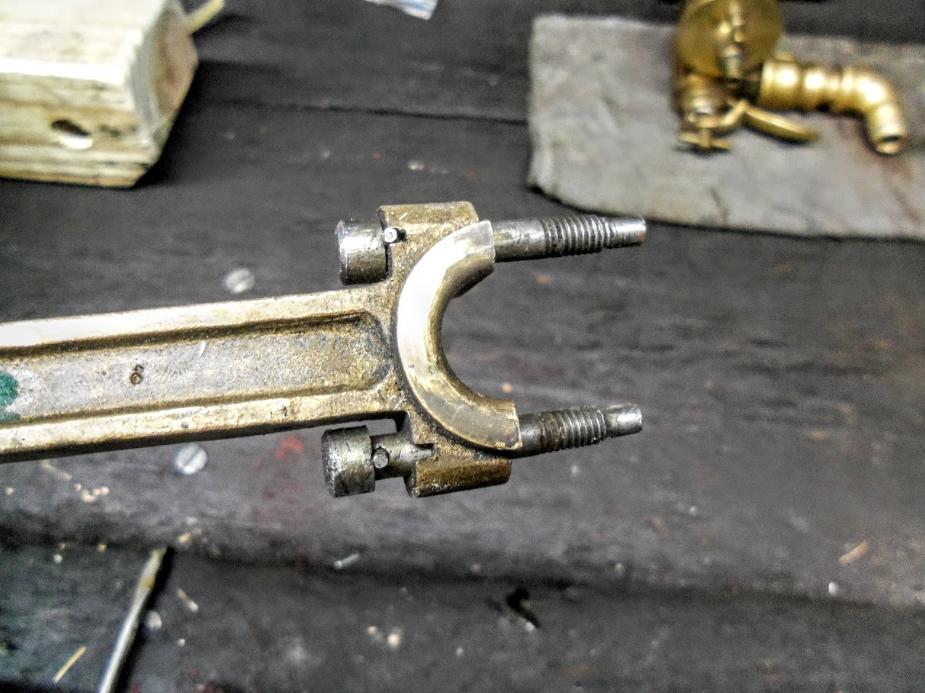

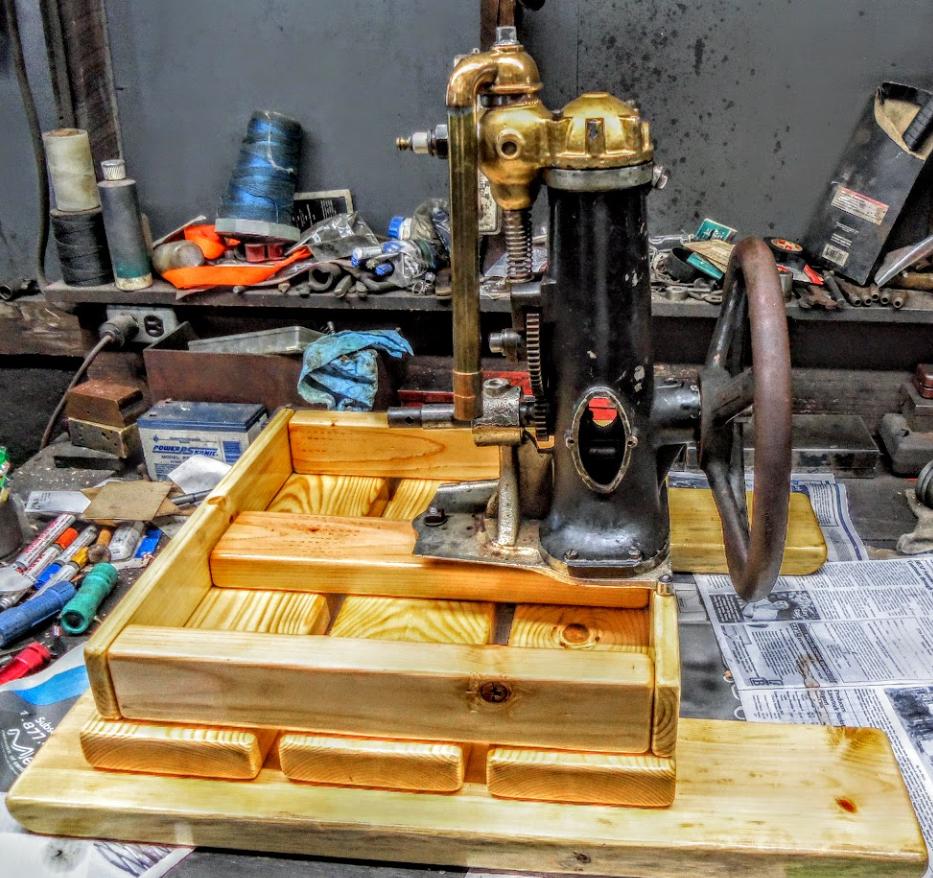

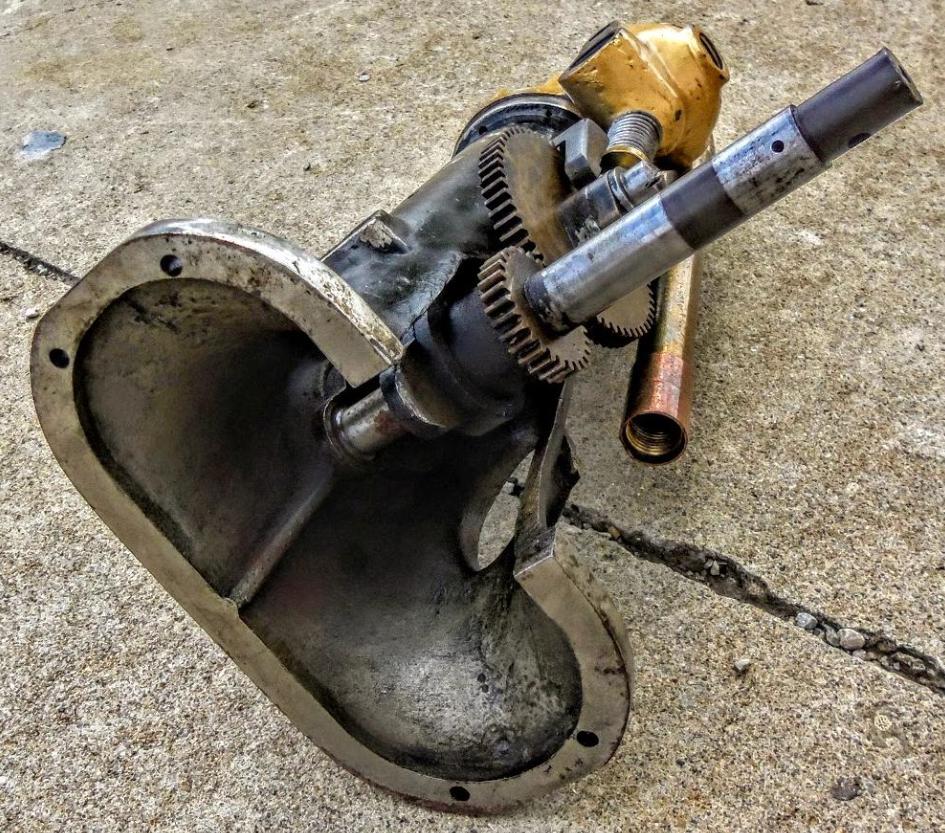

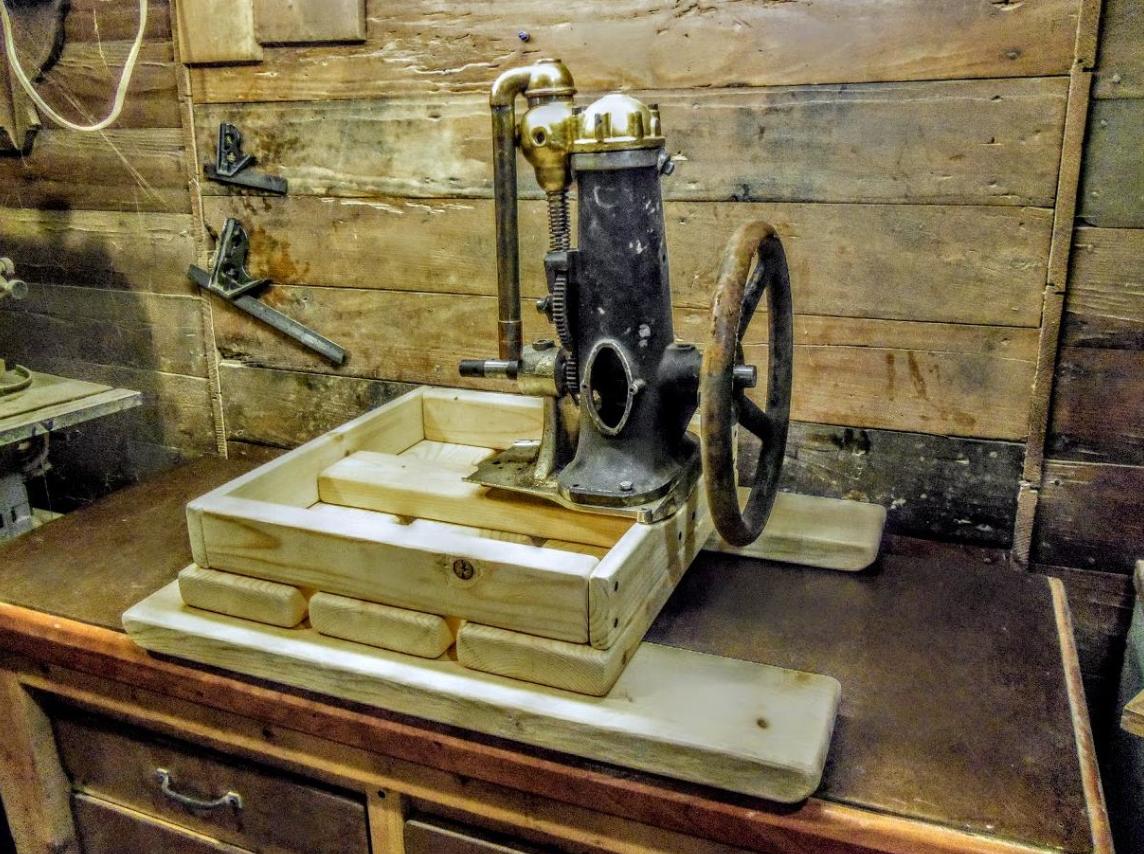

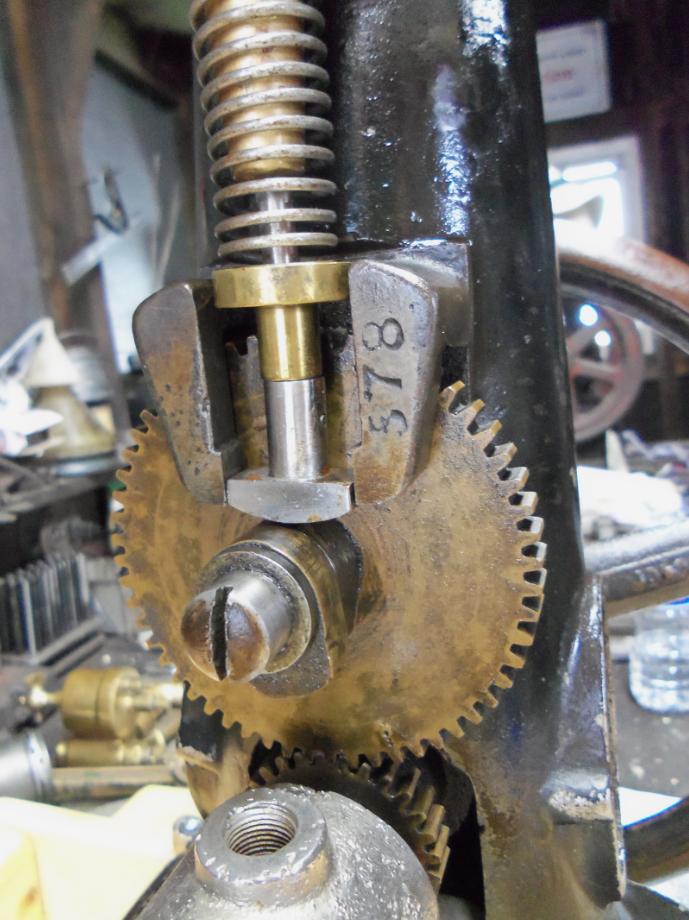

Anyone know who made this engine? Iíd think itíd have a little age on it with the spherical valve chest. The way the one side of the main bearing slides into the side of the engine is also kind of different. The only stampings on it is ď578Ēstamped onto the exhaust valve guide & ď575Ē stamped into the connecting rod.
Itís missing its flywheel, its crank case cover plates, & ignition wipe but the ignition lobe is there. Itís also missing its carburetion. Most the engine is nickle-plated all over but someone painted over it with the black & gold paint.

Iím pretty sure itís a marine engine since the cast base it sits on is at a slight downward angle. Van Duzen (Dirigo) engines sold in Maine are different but have a similar style sloped crankcase/cylinder casting. Any clues who made it are appreciated; Iíd like to get it back to original if possible.


Thanks, -Nick Rowland, New Washington, Ohio

pic1

pic2



pic4pic3
Top of pagePrevious messageNext messageBottom of page Link to this message

Nick Rowland
Advanced Member
Username: nar

Post Number: 34
Registered: 04-2007


Posted on Thursday, September 03, 2020 - 03:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

More pictures;

pic5

pic6

pic7

pic8
Top of pagePrevious messageNext messageBottom of page Link to this message

Nick Rowland
Advanced Member
Username: nar

Post Number: 35
Registered: 04-2007


Posted on Thursday, September 03, 2020 - 03:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Last pic, pic9
Top of pagePrevious messageNext messageBottom of page Link to this message

B. Goss
Senior Member
Username: bgoss

Post Number: 275
Registered: 12-2007
Posted on Thursday, September 03, 2020 - 07:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

No idea - but that sure is cute. Likely had a very heavy, small diameter flywheel.
Blair
Top of pagePrevious messageNext messageBottom of page Link to this message

Nick Rowland
Advanced Member
Username: nar

Post Number: 36
Registered: 04-2007


Posted on Tuesday, September 08, 2020 - 09:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks Blair & Iíll make sure to pattern the flywheel a smaller diameter.

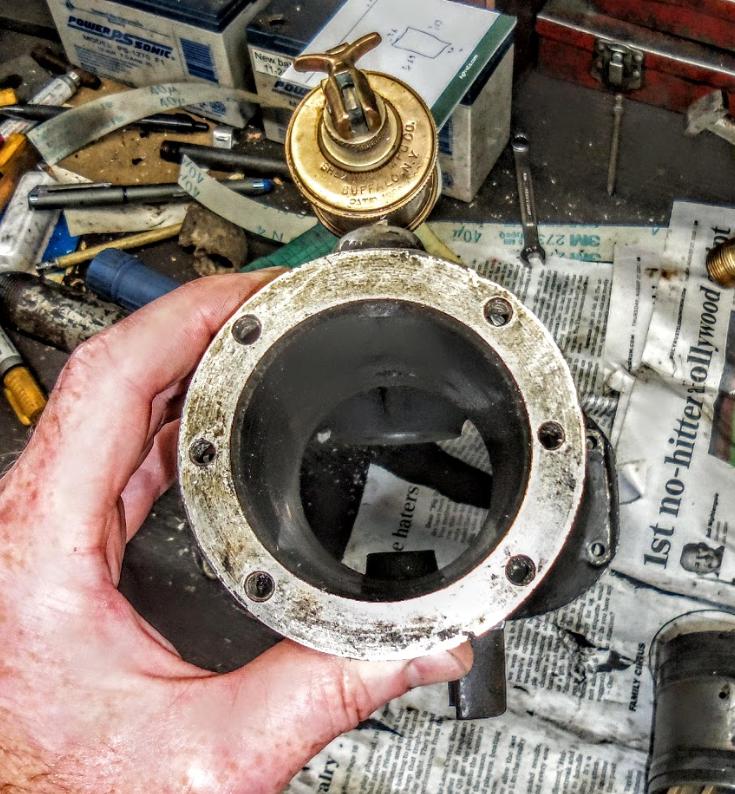

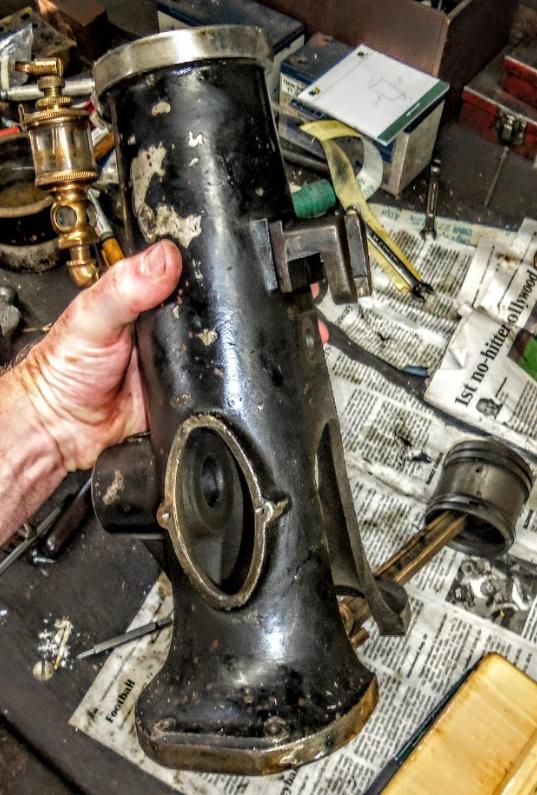

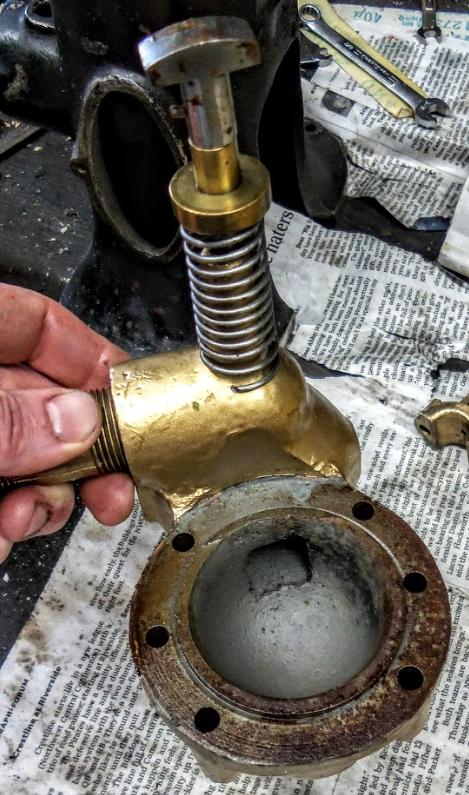

Something else unusual about the engine is that there is no cooling on the cylinder. No water jacket around it. The spherical valve chest is the only thing cooled & it has water inlet & outlet holes on each side of it. The domed head is not cooled, only the valve chest.

Early Regan marine engines & Thomas Kane engines used spherical valve chests with separate water lines for them, but the rest the engines were a lot different than this marine.

There were some uncooled engines that were made over the years, & some Secor oil engines had uncooled cylinders. I havenít found any matches to this engine though.

pic1

pic2

pic3

pic4
Top of pagePrevious messageNext messageBottom of page Link to this message

Nick Rowland
Advanced Member
Username: nar

Post Number: 37
Registered: 04-2007


Posted on Friday, September 11, 2020 - 05:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

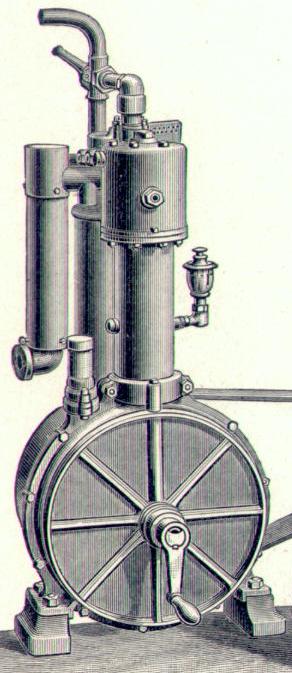

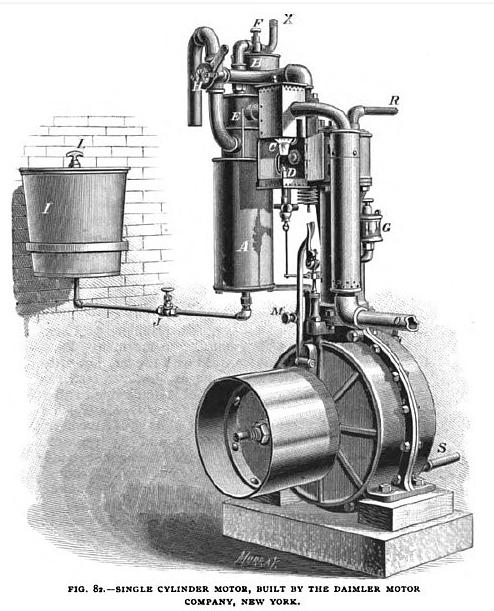

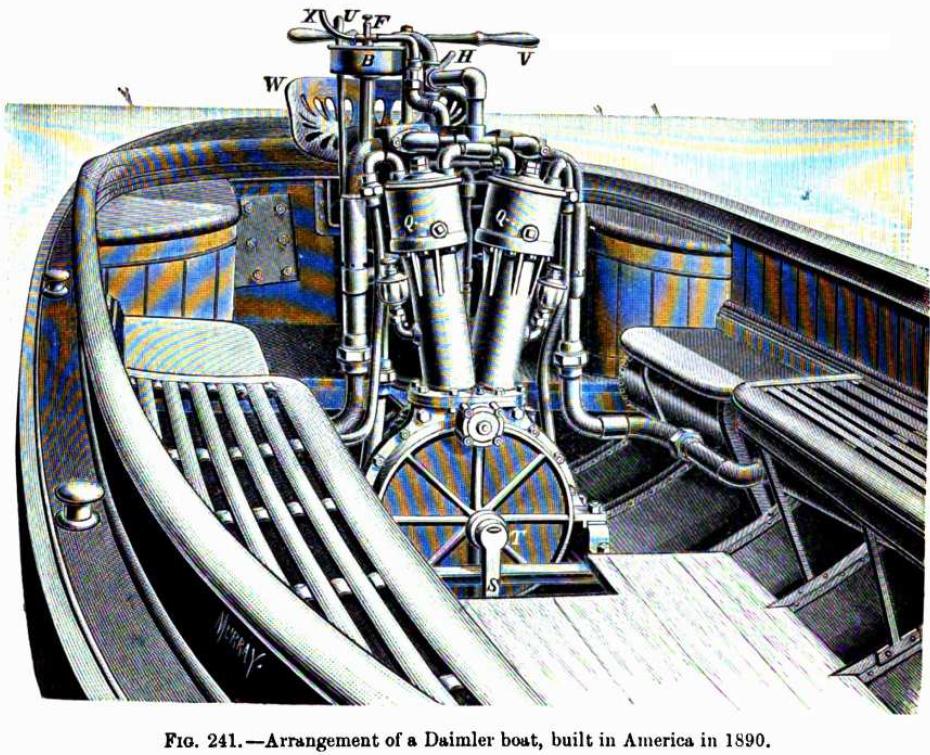

Some early marine engines built in New York only had cooling on their heads without cooling around their cylinders.
