Fabuglas/Renault???

Old Marine Engine » Unknown Engines - post here with photos » Fabuglas/Renault??? « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

matttye
New member
Username: matttye

Post Number: 1
Registered: 04-2005
Posted on Wednesday, April 13, 2005 - 10:30 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I bought a Fabuglas boat. Model# T. Serial# 659656M. There is a plate attached to the engine with the serial numbers. The word "motor" is in the french spelling "moteur". Moteur# 688-30. Moteur serial# 1923086. I was told that it is a Renault engine. I don't have a clue. The drive unit is a MerCruiser with no numbers. I'll try to post some pic's. Thanks, in advance, for any help you might be able to give.

Boat

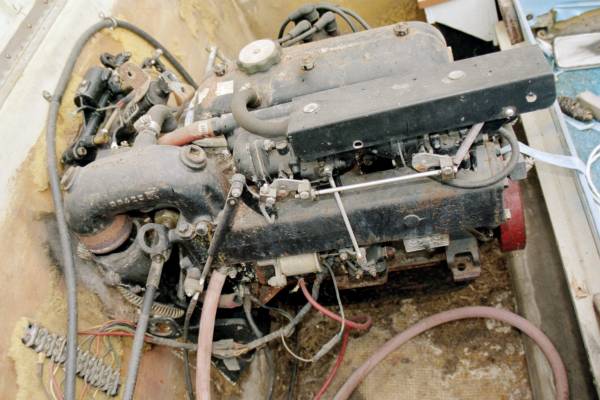

Motor

Plate on Motor
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Moderator
Username: andrew

Post Number: 1132
Registered: 11-2001


Posted on Wednesday, April 13, 2005 - 12:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

That appears to be a "mercruiser engine package". Mercruiser used a Renault Inline 4 cylinder "68" engine from 1965 to 1968. Serial number range 1887079 thru 2049044.

Mercruiser refered to it a s a model "60". There "should" be a Mercruiser nameplate on it.

Most parts should be available.
Top of pagePrevious messageNext messageBottom of page Link to this message

matttye
New member
Username: matttye

Post Number: 2
Registered: 04-2005
Posted on Wednesday, April 13, 2005 - 03:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks so much for your help. I've been searching for 6 months and finally, a break. Much appreciated.
Top of pagePrevious messageNext messageBottom of page Link to this message

matttye
New member
Username: matttye

Post Number: 3
Registered: 04-2005
Posted on Friday, April 15, 2005 - 10:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does anyone know where I can find a manual for this motor? I have searched quite a bit, but I have only found manuals that cover MerCruiser packages powered by Ford or GM. Although theye did list dates of 1964-1968, I would still think that it does not cover my motor. It would be nice to find something written specifically for the Renault model 60.

Any help, as always, is appreciated. Thanks a bunch.

MMT
Top of pagePrevious messageNext messageBottom of page Link to this message

dadofketa
Visitor
Posted on Friday, April 29, 2005 - 03:30 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Any of the normal manuals that covers 1965 and on, should have info for you. It has a mercruiser "O" outdrive. I have had a very difficult time finding parts, but, it is possible with a little patience. I have the same power package. If you have any problems, email me and I will give you my phone #.
Top of pagePrevious messageNext messageBottom of page Link to this message

65_glastron_gulfcruiser_v195
New member
Username: 65_glastron_gulfcruiser_v195

Post Number: 1
Registered: 04-2005
Posted on Saturday, April 30, 2005 - 10:19 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I'll check my mercruiser manual when I get home. I have one of those mercury 2 vol. deals as well as one of those after-market ones you are talking about.

If mine covers that, I'd suggest getting one off of ebay.

I have posted questions to many people listing the same and similar manuals to see if their's covers that model.
Top of pagePrevious messageNext messageBottom of page Link to this message

65_glastron_gulfcruiser_v195
New member
Username: 65_glastron_gulfcruiser_v195

Post Number: 2
Registered: 04-2005
Posted on Saturday, April 30, 2005 - 10:31 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I just got a response from one of the sellers, when I asked him specifically about your model and if he had any info on it and he said yes indeed, parts and service for an "O" drive.
Top of pagePrevious messageNext messageBottom of page Link to this message

65_glastron_gulfcruiser_v195
New member
Username: 65_glastron_gulfcruiser_v195

Post Number: 3
Registered: 04-2005
Posted on Tuesday, May 03, 2005 - 07:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Okay, so both the original Mercury service manual for the stern drive mercruiser and the Clymer mercruiser stern drive shop manual cover that motor. So, get them where you will.
Top of pagePrevious messageNext messageBottom of page Link to this message

andy67
New member
Username: andy67

Post Number: 1
Registered: 05-2005
Posted on Monday, May 09, 2005 - 04:54 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

All right! I too have the same package on a '68 Sea Swirl and have been wondering what it is. Now maybe I can get some parts for it! Does any one know if there is a Chevy or Ford 4 cyl that will bolt straight up to that transom? The ol Renault has a cracked water jacket that has been JB welded. Thanks fellas!
Top of pagePrevious messageNext messageBottom of page Link to this message

matttye
Member
Username: matttye

Post Number: 4
Registered: 04-2005
Posted on Monday, May 09, 2005 - 10:33 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks everyone for your help. I almost sold this boat, but with this new information, I think I'll try to get her going again.
Top of pagePrevious messageNext messageBottom of page Link to this message

davez
Visitor
Posted on Sunday, September 03, 2006 - 08:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I too have the same motor package. I have a 1966 glstron futura v-154. I just finished a three year estoration. If you have any question, please ask.
Top of pagePrevious messageNext messageBottom of page Link to this message

Ron morgan
Visitor
Posted on Friday, July 06, 2007 - 05:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I to have same motor package and looking for starter parts or new starter.Please email if anyone knows were I can get a hold of some parts .Thanks again
Top of pagePrevious messageNext messageBottom of page Link to this message

Beniamino Fonte
Visitor
Posted on Wednesday, October 24, 2007 - 10:04 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

}Have for sale,Renault 4 cly.believe to be 90hp,with Mercruser outdrive that has hand crank cable trim(factory)believe to be 1968 model,all original except for carborator thats new,runs good,shifts good boat is a 16ft.hydrodine and goes with motor and out drive,trailer will sell seperate. 995.00 fob Ohio
Top of pagePrevious messageNext messageBottom of page Link to this message

jon kilburn
New member
Username: whatateacher

Post Number: 1
Registered: 11-2007
Posted on Saturday, November 24, 2007 - 03:32 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

TO BENIAMINO FONTE; i would like some info and pictures of your boat for sale. IS IT IN THE CLASSIFIEDS SOMEWHERE? or e-mail me at whatateacher5@yahoo.com. Jon
Top of pagePrevious messageNext messageBottom of page Link to this message

pati jordan
Visitor
Posted on Friday, June 20, 2008 - 01:03 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i see these are all old posts. i need some help also. boat looks just like mattye's and engine package exactly the same. inboard needs some work, where are parts available, aftermarket??want to get it running. 68 sportscraft adventurer. or should i just switch out the motor/ and what would be compatible and fit?? help please if any one is still on here.thanks:-)
Top of pagePrevious messageNext messageBottom of page Link to this message

Larry Ritzenthaler
New member
Username: glastronv184

Post Number: 1
Registered: 08-2008
Posted on Monday, August 04, 2008 - 02:10 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 60 hp renault Mercruiser thats been sitting in my garage for 40 years.It has not turned over in a long time - is missing the starter and exhaust riser.The package was upgrade to a 120 hp Merc in the late "60s.I would be glad to sell it to a good home
Top of pagePrevious messageNext messageBottom of page Link to this message

Roger DiRuscio
Senior Member
Username: solarrog

Post Number: 310
Registered: 03-2002


Posted on Monday, August 04, 2008 - 02:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

where are you located?
Top of pagePrevious messageNext messageBottom of page Link to this message

Larry Ritzenthaler
New member
Username: glastronv184

Post Number: 2
Registered: 08-2008
Posted on Tuesday, August 05, 2008 - 09:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Webster NY
Top of pagePrevious messageNext messageBottom of page Link to this message

David Smith
New member
Username: lidsmith

Post Number: 1
Registered: 06-2009
Posted on Saturday, June 06, 2009 - 10:23 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello, I have a 1968 Correct Craft mustang with a 1968 Mercruiser "60" IO.
The boat came with this as original, and I have not been able to find ignition parts? I need a coil, cap/rotor and points. Does anyone know of a replacement part as mercruiser has not made parts for a while for these models.
Thanks for any info
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank Petran
Member
Username: frank_petran

Post Number: 28
Registered: 05-2009
Posted on Sunday, June 07, 2009 - 12:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

David,
Try a NAPA Auto parts store. I owned an aluminum tri-hull that had a pair of those and I got my tune up parts from them. You could search the junkyards for them also. If I remember correctly that engine was used in a Renault R 10 or R 8. Check the library for an older Chilton
Top of pagePrevious messageNext messageBottom of page Link to this message

Eric Harnden
Member
Username: 65_glastron_gulfcruiser_v195

Post Number: 4
Registered: 04-2005
Posted on Sunday, June 07, 2009 - 01:30 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

David Smith,
It's been awhile so I don't remember what my engine was but at the bottom of this page: http://geocities.com/sanclementeeric/glastron_v-195_gulfcruiser.htm , I have links to the parts info for my engine when I did the repairs. This should help you find some companies to go to.
Top of pagePrevious messageNext messageBottom of page Link to this message

David Smith
New member
Username: lidsmith

Post Number: 2
Registered: 06-2009
Posted on Sunday, June 07, 2009 - 06:11 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thanks very much for the help Frank and Eric - I will give NAPA a try, as I have all the manuals for the engine/parts cat.
Thanks again
David
Top of pagePrevious messageNext messageBottom of page Link to this message

David Kromann
New member
Username: davidkromann

Post Number: 1
Registered: 07-2009
Posted on Friday, July 17, 2009 - 10:46 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi, New member here. I just acquired a 1966 Glassmaster that looks a whole lot like matttye's Fabuglas. Same general hull shape, same motor, and even the trailer looks identical, down to the rust. The boat's floor and seats are gone, the cable controls are rusted away to nothingness, there are no front motor mounts (were there ever any?) and it has probably not seen water or run in 25+ years. On the plus side, the engine will turn over by hand, appears to have very low hours, the outdrive turns/raises/lowers and the trailer has new tires. I will post some pix when I get some decent ones. I'm guessing I need to change the oil, rebuild or at least clean out the carbs, and figure out how to get running water into the water jacket before I even think about trying to start this thing. The outdrive shifter cables appear to be rusted in neutral position; at least the prop turns freely. I have no experience with outdrives and only a little with outboards; have I said/assumed anything stupid? Thanks in advance, Dave
Top of pagePrevious messageNext messageBottom of page Link to this message

Anthony Erickson
Visitor
Posted on Tuesday, September 01, 2009 - 05:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 1968 mercruiser with the renault runs great and has a model 60 outdrive that was just rebuilt and a nice ez loader trailer everything is original looking to get $1,500 obo out of it let me no if anybody is interested thanks.
Top of pagePrevious messageNext messageBottom of page Link to this message

Charlie Schooner
New member
Username: charlieschooner

Post Number: 1
Registered: 03-2010
Posted on Tuesday, March 02, 2010 - 09:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 1969 Starcraft Jupiter with a 60hp Renault. Want to know if I can convert the crank/cable trim to power.?. Any assistance would be greatly appreciated.
Top of pagePrevious messageNext messageBottom of page Link to this message

Frank Petran
Senior Member
Username: frank_petran

Post Number: 88
Registered: 05-2009
Posted on Wednesday, March 03, 2010 - 05:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I looked at that when I had the boat but it didn't seem practical. To much to modify and would have to mount a pump somewhere on the engine. The setup I had had the generator build into the vibrations damper, so there wasn't any belts available to lengthen for a pump assy.
Top of pagePrevious messageNext messageBottom of page Link to this message

Charlie Schooner
New member
Username: charlieschooner

Post Number: 2
Registered: 03-2010
Posted on Monday, April 12, 2010 - 10:47 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Anyone know what prop would work best for my '69 Starcraft Renault 60 hp package? I was told it's a 50hp Lower Unit? Also having trouble shifting...
Top of pagePrevious messageNext messageBottom of page Link to this message

kevin schultz
Visitor
Posted on Tuesday, May 18, 2010 - 01:51 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 1967 silverline with the 4 cylinder renault and 90 hp outdrive.. I will be parting this boat out due to an engine problem..if parts are needed i can be contacted at rusticlife17@yahoo.com
Top of pagePrevious messageNext messageBottom of page Link to this message

andy seeger
Visitor
Posted on Tuesday, June 15, 2010 - 08:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a motor that loos like that but the spark plugs are in the valve cover like a hemi it is a 4 clinder made by mercruiser what size is it
Top of pagePrevious messageNext messageBottom of page Link to this message

Alan Muller
New member
Username: amuller

Post Number: 1
Registered: 06-2010
Posted on Wednesday, June 30, 2010 - 05:21 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Andy: The one with the plugs through the rocker cover and the manifolds on opposite sides is the 90 hp version. The one in the picture above is the 80 hp version. The one with the cast iron block and the red alternator on the front is the 60 hp.
Usually, the 90 hp has electro/hydraulic tilt and the 60 and 80 are hand crank.

I'm not sure, but i think power tilt was optional on the 60 and 80 and could be put on if you had the parts. The hand crank always works, though, as long as you don't lose the crank. This is more than can be said for the power setup.

The Mercruiser factory parts and service manuals for these are online at the iboats.com site and elsewhere.

I'm looking for a lower unit if anybody has one to spare.
Top of pagePrevious messageNext messageBottom of page Link to this message

beniamino fonte
Visitor
Posted on Saturday, August 07, 2010 - 10:48 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

On my post Oct.24th 2007,I have droped price to 625.00 for boat motor and trailer,FOB conneaut Ohio phone 440 2242923 Beniamino Fonte.
Top of pagePrevious messageNext messageBottom of page Link to this message

ray griffith
New member
Username: 72_demon

Post Number: 1
Registered: 07-2011
Posted on Sunday, July 24, 2011 - 01:30 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

need carbs for 68 renault motor
Ray @ randdhscvaxle@sbc global.net
Top of pagePrevious messageNext messageBottom of page Link to this message

VicTor Wieder
New member
Username: victor_j

Post Number: 1
Registered: 10-2011
Posted on Monday, October 10, 2011 - 11:47 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello,
I have a 1968 Lone Star,mustang with a 1965-1966 W/ Marine Reault"60",Mercruiser"0" Unit Drive I/O. I would appreciate any information on aguiring an lower unit of the outdrive.
Thanks, Vic
Top of pagePrevious messageNext messageBottom of page Link to this message

David Kromann
New member
Username: davidkromann

Post Number: 2
Registered: 07-2009
Posted on Monday, October 10, 2011 - 04:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have decided to part out the engine and outdrive on my '66 Glassmaster w/ Renault "60" 688-30 motor and type "O" outdrive. I see Ray Griffith wants carbs (I have the dual side-drafts on the manifold with guard) and both VicTor Weider and Alan Muller want a lower unit. I currently have the whole outdrive, including a decent prop.
Parts are "as-is" as they are coming off a boat I traded for in as-is condition (see description above), but I will take pix.
David.Kromann AT gmail
Top of pagePrevious messageNext messageBottom of page Link to this message

scott van buren
New member
Username: scottrvb

Post Number: 2
Registered: 12-2010
Posted on Sunday, January 01, 2012 - 09:40 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

AS THE FORMER SERVICE MANAGER FROM RENAULT MARINE . i AM FAMILIAR WITH THE 60 HP (O) DRIVE. THE BASE MOTOR IS THE SAME AS THE R5 RENAULT (LECAR) IT IS THE 1189CC MOTOR . THE 90 HP IS FROM THE LARGER RENAULT CAR R15 AND R17. THE MOTOR HAS A WET LINER THAT CAN BE RELACED . IT IS NOT A BORED BLOCK. THE FRONTCRANK HUB ON THE 60 , IS THE CHARGING UNIT. I CAN BE REACHED AT SCOTTRVB@YAHOO.COM
Top of pagePrevious messageNext messageBottom of page Link to this message

chris hayek
Visitor
Posted on Saturday, June 09, 2012 - 10:18 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

i have the renault 90 horse mercruiser and every marine shop that even knows what the engine is tells me that the parts are no longer availiable for the engine i need the cylinder sleeves and pretty much just going to rebuild if i can get the parts because looking into it more the lower unit i have for the boat evidentally only mounts up to that specefic engine that i was told by a few mercruiser dealers was used from 70-72
Top of pagePrevious messageNext messageBottom of page Link to this message

Gary Reid
Visitor
Posted on Monday, June 25, 2012 - 11:35 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I recently got a 71 seaswirl with a mod90 that appears complete except outdrive.I live in western Oregon. would be glad to sell if someone can use it.
Top of pagePrevious messageNext messageBottom of page Link to this message

JL Wilson
Visitor
Posted on Thursday, July 05, 2012 - 08:25 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a complete 90 drive and transom assembly in southeastern Michigan.
Top of pagePrevious messageNext messageBottom of page Link to this message

David Kromann
New member
Username: davidkromann

Post Number: 3
Registered: 07-2009
Posted on Sunday, August 05, 2012 - 01:00 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

As I promised back in October, I am selling my Renault Mercruiser model 60 688-30 motor. It is complete, comes with internal transom mount as well as external transom mount and gimbal. The outdrive has already been sold. It can be found on eBay by searching eBay for some of these words: "Renault Mercruiser Model 60 688-30 Kiekhaefer Engine gimbal transom trim handle". There are high-res photos of everything there as well. Freight ship to anywhere in continental US.
I am repowering my Glassmaster with an outboard and will post pix of that project on another thread if there is any interest.
Top of pagePrevious messageNext messageBottom of page Link to this message

Dan Veltkamp
Visitor
Posted on Thursday, September 27, 2012 - 09:01 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have the 60 688-30 package on a '66 Seaswirl. It needs a lot of work. Is it even worth trying to restore the boat and motor/out drive, or am I better off parting things out and junking the hull? The hull and transom are in good shape, but the windshield is shot, seats are gone, top is missing, motor has a cracked/JB welded water jacket, out drive doesn't shift, etc....Got it to run a few years back. Prop was stuck in drive and it idled, revved, ran, pumped water.

Honest opinions please. Thanks.
Top of pagePrevious messageNext messageBottom of page Link to this message

sam rand
New member
Username: samuelrand101

Post Number: 1
Registered: 04-2013
Posted on Wednesday, April 24, 2013 - 02:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hey I picked up a speed boat has a 80hp. its in decent shape. I have heard about the 90 but this says mercruiser 80hp. I'm pretty sure its a renault. Anybody have any ideas. The out drive is good on it.
Top of pagePrevious messageNext messageBottom of page Link to this message

Larry Ritzenthaler
New member
Username: glastronv184

Post Number: 3
Registered: 08-2008
Posted on Wednesday, April 24, 2013 - 04:23 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Renault Mercruisers cam in 60,80 & 90 hp versions
Top of pagePrevious messageNext messageBottom of page Link to this message

sam rand
New member
Username: samuelrand101

Post Number: 2
Registered: 04-2013
Posted on Wednesday, April 24, 2013 - 09:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Oh ok. I thought it was just wasnt sure thanks. I'm gona put a pic or two up when I get a chance as there arent a lot of pics on the interent of these.
Top of pagePrevious messageNext messageBottom of page Link to this message

Larry Ritzenthaler
Member
Username: glastronv184

Post Number: 4
Registered: 08-2008
Posted on Thursday, April 25, 2013 - 10:03 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a 60 hp Renault / Mercruiser in my garage I would like to sell.Anybody need one or parts before i scrap it ?
Top of pagePrevious messageNext messageBottom of page Link to this message

deeguidry
New member
Username: chesdeeautorepair

Post Number: 1
Registered: 06-2013
Posted on Friday, June 07, 2013 - 02:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

trying to remove this motor from the boat.
anyone know how to remove the front motor mount on a 60hp renault/mercruiser.
Top of pagePrevious messageNext messageBottom of page Link to this message

richteat
Visitor
Posted on Monday, July 08, 2013 - 03:24 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hello .. I am looking at a 65 Dixie with 40HP Renault/Mercruiser outdrive I am told. The seller says that last timeon lake one of the hoses that control the shifting from F-N-R got pinched and a little fluid came out. It was stuck in Forward since. He said he replaced hose but thought there might be air in there preventing shifting. I know little of this particular setup. I'm assuming a mechanical cable engages the unit that this hose is coming from and pneumatically shifts the out-drive. Anyone have any info that might help? If it's an fairly easy fix, I might get the boat. It's in great shape other than this issue. Thanks for you time. -rich
Top of pagePrevious messageNext messageBottom of page Link to this message

sam rand
New member
Username: samuelrand101

Post Number: 3
Registered: 04-2013
Posted on Friday, March 28, 2014 - 10:28 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hey i have a renault 80hp outdrive for sale on ebay at http://www.ebay.com/itm/261433382536?item=261433382536&viewitem=&vxp=mtr
I plan on pulling the engine out this weekend if anyones interested im letting engine go for three hundred includes shipping locally or we can arange something.
Top of pagePrevious messageNext messageBottom of page Link to this message

Michael Smith
Visitor
Posted on Friday, August 15, 2014 - 11:22 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I passed my driving test by taking driving lessons in Birmingham. Although this statement may be irrelevant haha I bought a Renault car not a boat. http://www.drltestschoolofmotoring.co.uk
Top of pagePrevious messageNext messageBottom of page Link to this message

Alan Caldwell
New member
Username: stomper

Post Number: 1
Registered: 12-2015
Posted on Wednesday, December 02, 2015 - 01:37 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi everyone new guy here i just bought a 1966 Glastron with a mercruiser 60 renault 4 cylinder
im looking for a manual and complete engine gasket set does anyone know where i can find them ive searched high and low and came up with nothing
Thanks
moneyrun@yahoo.com}}
Top of pagePrevious messageNext messageBottom of page Link to this message

Alan Muller
New member
Username: amuller

Post Number: 3
Registered: 06-2010
Posted on Wednesday, December 02, 2015 - 02:27 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

(email to board@oldmarinengine.com bounced)

It will take some scrounging. Mercruiser manuals can be found on line. I think I have a pdf that covers that model.

The engine is essentially the one used in the Renault 10, so gaskets and internal engine parts should be available from sources supporting these vehicles.

As for Mercruiser-specific parts, you will have to hunt around for the dealers that maintain old stock. I have an 80 and a 90 hp Mercruiser, and the biggest issues for me have been the exhaust bellows and the drive shaft bellows. Even if you find them NOS, 45-50 year old rubber parts and not always in good shape, and a major failure of the big bellows floods the boat. I believe the model 60 has some parts in common with the largest Mercury outboards of the time.

I believe you should have a pair of Tillotson sidedraft carbs similar to outboard carbs.

Alan
Top of pagePrevious messageNext messageBottom of page Link to this message

Darryl Ovens
Member
Username: darryl

Post Number: 8
Registered: 11-2005
Posted on Wednesday, December 02, 2015 - 03:16 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Thinking of bellows for drive shafts, we have found that if you can find the right size, car CV joint bellows, make good replacements. We have also been using them on gear lever to gearbox joints for some time. This trick has saved several tractor gearboxes from getting rain water in them.
I don't know the exhaust bellows and how "customized" they are, but there might be something that could be adapted that is already made for automotive, or tractor/farm machinery, or maybe something like bellowed rubber hose, for example, sometimes seen used for flexible cable trunking on industrial machinery.

Cheers
Darryl

Add Your Message Here
Post:
Bold text Italics Underline Create a hyperlink Insert a clipart image

Username: Posting Information:
This is a public posting area. Enter your username and password if you have an account. Otherwise, enter your full name as your username and leave the password blank. Your e-mail address is optional.
Password:
E-mail:
Options: Automatically activate URLs in message
Action:

Administration Administration Log Out Log Out   Previous Page Previous Page Next Page Next Page

Home | Classifieds | History | Technical | Links | Store | About Us | Email
&copy 2005 OldMarineEngine.com, P.O. Box 188, Forest Dale, VT 05745-0188 • Phone: 802-247-4864 • All rights reserved.
   Marine Engine Seloc Repair Manual Lookup Tool

marine gas engine repair and restoration
