volvo early engines

Old Marine Engine » Miscellaneous » volvo early engines « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

Chuck Franklin
Posted on Saturday, December 08, 2001 - 01:22 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Does anyone know about what year a volvo single cylinder gas in-board engine model S12A serial number 3577 was built and soes any one have any photos or manauls on this engine?
Thanks,
Chuck Franklin
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Saturday, December 08, 2001 - 09:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Chuck,
I can't find anything on a S12A Volvo. I will check with a friend who is familiar with Volvo and see what he knows.
Are you sure it is Volvo? Could it be a Penta from before they became Volvo-Penta?
Regards,
Andrew
Top of pagePrevious messageNext messageBottom of page Link to this message

Chuck Franklin
Posted on Wednesday, December 12, 2001 - 03:26 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Andrew,

It is a Penta that looks like a one lunger with a spoked fly wheel, magneto, piston type water pump, and a forward/reverse gear box attached. Came out of a sail boat from overseas. Looks like a dynamo starter might be used with a belt around the flywheel. need a carb. and the piston is stuck no other damage that I can see. It looks
to be a 4 cycle engine.

Would welcome any help anyone can give.

Chuck
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Wednesday, December 12, 2001 - 03:33 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Chuck,

There was an engine like that at the Mystic Seaport show two years ago, running. I know I had some pictures of it, but I can't find them now (maybe someone else has some).

It was listed as a:

Atkenbolaget Penta
5.5HP
Gptjembirg, Sweden
Model F12A Serial No. 3579

Maybe the "F" is a mistake... it even has a serial number close to yours. The owner was from Connecticut, you could get his address from the show index, or I could send it to you off the board.

Regards,
Andrew
Top of pagePrevious messageNext messageBottom of page Link to this message

Robert Holcomb
Posted on Wednesday, December 12, 2001 - 06:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

http://m1.533.telia.com/~u53304146/inomb.htm

Chuck,this is the Säffle Marinmotor Museum
they have some Penta information there
Top of pagePrevious messageNext messageBottom of page Link to this message

Steve Green
Posted on Thursday, December 13, 2001 - 06:07 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Chuck, have a listing on Penta as follows
F12A ... ceased production 1959, unfortunatly
no start date ,,Single cyl , 2/stroke
bore 92 stroke 90 , comp/ratio 5.2 to 1,
5,5 bhp @ 1350 rpm...
IS a star embossed on the I.D. plate that is on top of the drive box , hope this helps.
Steve Green ,Australia
Top of pagePrevious messageNext messageBottom of page Link to this message

Ernie
Posted on Friday, December 28, 2001 - 07:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Andrew,
The pick of the Penta at Mystic would have been in the ones I sent you from 2000 Mystic. I can't find my origionals either. I looked at the site from the museum link above. The pic that looks like the one at Mystic is here. http://m1.533.telia.com/~u53304146/i029.jpg
It was about 5 hp and 2 stroke. Neat little engine.
Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

ernie
Posted on Saturday, March 02, 2002 - 08:36 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

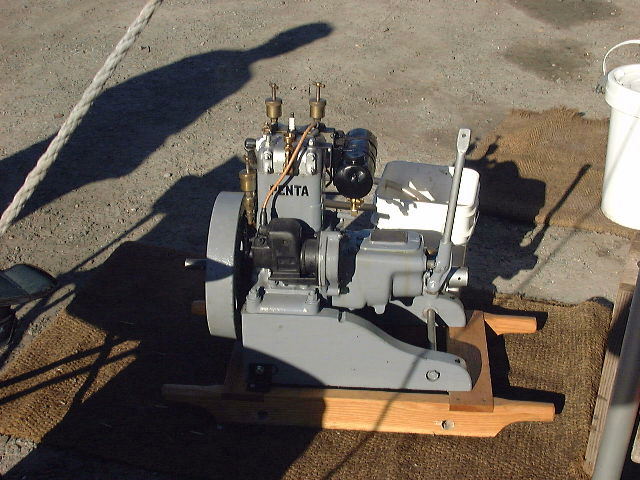

I found the pic of the Penta at Mystic. It is on the Mystic Show Pics page.
http://www.oldmarineengine.com/shows/dscf0041.JPG
Hope this helps
Ernie
Top of pagePrevious messageNext messageBottom of page Link to this message

Alan Mustarde
Posted on Sunday, January 12, 2003 - 03:41 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hello engine enthusiasts, my friend has a volvo penta 3cyl diesel he has just rebuilt, he believes it is the (model no. 2003) but needs to find out the tappet settings and also if anyone might have a wiring diagram (he has the wiring loom) I realise this is not defined as an old marine engine but thought someone might help.
Thanks Alan.
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Sunday, January 12, 2003 - 04:45 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I sell manuals for the Volvo Penta 2001,2002,2003 and 2003T engines. I can email you a page with the tappet settings.
Regards,
Andrew
Top of pagePrevious messageNext messageBottom of page Link to this message

dan king
Posted on Sunday, July 20, 2003 - 06:51 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hi i have a volvo penta 5hp type 123 outboard
and im trying to find a carb for it can n e 1 tell me where i can find one thanks dan
danking2001@hotmail.com
Top of pagePrevious messageNext messageBottom of page Link to this message

Gary Janes
Posted on Sunday, March 14, 2004 - 01:12 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Andrew:
I have a Volvo Penta marine engine model 2003T 3 cylinder it was built in 1994, I believe.
As of late its been leaking diesel fuel around the middle fuel injector. Could you tell the problem?

Thanks
Gary
Top of pagePrevious messageNext messageBottom of page Link to this message

s
Posted on Sunday, March 14, 2004 - 01:17 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Gary it sounds like you already found the problem.
there are either loose fittings or the need for a new injector. Im sure there are repair kits, but it sounds like you are a remove and replace kind of person. Nows it the time to take care of it.
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Posted on Sunday, March 14, 2004 - 06:15 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Gary,
Parts for the 2000 series Volvo diesels are available from any Volvo Penta dealer...
Andrew
Top of pagePrevious messageNext messageBottom of page Link to this message

Bagshaw
Posted on Tuesday, June 01, 2004 - 08:02 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi there

Anyone got a remedy for a sticky gear button? Our Volvo 2003 cockpit control stick works fine, but once the button is pressed in to rev up the engine to start, it now needs fingernails or pliers to get it to pop out so the engine can engage forward or astern. We have tried WD40, but the button itself seems to be degrading - maybe the UV light or whatever. Any suggestions welcome!
Top of pagePrevious messageNext messageBottom of page Link to this message

Todd
Posted on Tuesday, June 01, 2004 - 08:04 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi looking for some information. Just found (purchased) a Bayliner with a Volvo Penta 4cylinder gas motor. The year of production was 1983-84 but their are no markings i can find on the motor. Does anyone have any information regarding this motor; size, horsepower, id number so i can begin to rebuilt it.
Todd
Top of pagePrevious messageNext messageBottom of page Link to this message

leonm
New member
Username: leonm

Post Number: 1
Registered: 09-2004
Posted on Monday, September 27, 2004 - 04:58 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi, I Am looking for technical help !!
I have a sailboat 85 equipped with Volvo Penta 2002.
I have problems with cold start the engine ( after 8 hours of no working). I have to maintain starter for roughly 100 turns before the engine starts. .. And big white fume appears at the begenning ( 15 seconds )of start elone..
Nobody found what it is.
I purge the diesel pump , pressure pipes, change the filter...
The sailboat was used continiusly in Lac Champlain (NY+VT). The motor seems in very good shape. It has minor oil linkings , and never black fume from the exhaust.
Thank's

Léon
Top of pagePrevious messageNext messageBottom of page Link to this message

jb_castagnos
Senior Member
Username: jb_castagnos

Post Number: 218
Registered: 07-2002
Posted on Tuesday, September 28, 2004 - 07:37 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

White smoke sounds like slow cranking speed or low compression, if it's cranking fast it may need internal work.
Top of pagePrevious messageNext messageBottom of page Link to this message

jugbhery
Visitor
Posted on Friday, October 08, 2004 - 08:14 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I need volvo penta out drive 270, like to buy immediately
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Moderator
Username: andrew

Post Number: 928
Registered: 11-2001


Posted on Saturday, October 09, 2004 - 01:59 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

jug,

Post a wanted ad in the classifieds.
Top of pagePrevious messageNext messageBottom of page Link to this message

JIMBOB SMITH smith
Visitor
Posted on Thursday, April 19, 2007 - 02:37 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

where can i purchase volvo diesel paint for the engine the original green?}}}
Top of pagePrevious messageNext messageBottom of page Link to this message

Dallas
Visitor
Posted on Thursday, May 24, 2007 - 08:52 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

HI,
I am having trouble finding parts for a 1970 something mdllc volvo penta diesel engine. Are parts still available and if not or if they are to expensive any hints on what would be a good repower. Love the old girl but she is a bit long in the tooth.
Thanks,
Dallas
Top of pagePrevious messageNext messageBottom of page Link to this message

mahmud2001
Visitor
Posted on Sunday, June 10, 2007 - 04:59 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

hi i have a problem
i have a mitsubishi forklift model : F12A . CN : F12A - 01388. AND I DONT KNOW WHAT IS THE YEAR OF PRODUCTION. i hope that u will help me. thanks in advance.
Top of pagePrevious messageNext messageBottom of page Link to this message

Les Embrey
Visitor
Posted on Sunday, December 23, 2007 - 05:27 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi just purchased a boat with a Volvo Penta 600 3 cyl, cant locate model etc only a serial No on transom bracket 341403964 anybody have any info/ manuals on these I can not find info anywhere seems they were never manufactured.
Les
Top of pagePrevious messageNext messageBottom of page Link to this message

don hampton
Visitor
Posted on Sunday, September 14, 2008 - 12:12 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

wanted 1982 volvo penta aq 280 outdrive trim rams
both my rams are leaking a little
call 209 874/1419 thanks don
Top of pagePrevious messageNext messageBottom of page Link to this message

don hampton
Visitor
Posted on Sunday, September 14, 2008 - 12:21 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

wanted 1982 volvo penta aq 280 outdrive trim rams
both my rams are leaking a little
call 209 874/1419 thanks don
Top of pagePrevious messageNext messageBottom of page Link to this message

John McLaughlin
Visitor
Posted on Tuesday, September 16, 2008 - 08:34 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Andrew I have an Allied 39 sloop with a Volvo model #2003. This is not the original motor in this boat, we are refitting the boat and I will be working on the motor soon. You said you sell the manual for this motor. I will need all the settings, piping dia. and electrical dia. Is this manual available? Please email me if it is.
Thanks John mclaughlin.john@yahoo.com
Top of pagePrevious messageNext messageBottom of page Link to this message

John McLaughlin
Visitor
Posted on Tuesday, September 16, 2008 - 08:44 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Another note on my Volvo 2003. After a large light and magnifier, I was able to get the Numbers off the sticker. I know the Model: 2003 would the serial # tell me what year it is? Would anyone know what the serial number means? What HP is this motor.
Thanks John mclaughlin.john@yahoo.com
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Moderator
Username: andrew

Post Number: 940
Registered: 11-2001


Posted on Wednesday, September 17, 2008 - 09:59 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

John,

The model 2003 is the 3 cylinder version of the 2000 series.

We sell the manuals for the 2000 series on the MarineEngine.com site, see the bottom of the page at this link.
Top of pagePrevious messageNext messageBottom of page Link to this message

John McLaughlin
Visitor
Posted on Wednesday, September 17, 2008 - 08:53 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Andrew
Perfect! Thanks for the help. I'll get these ordered. With a little heat on board, I'll get this motor overhauled through this winter season. I'll assume through my serial number, I'll find the year it was manufactured.
As a post above noted,I also hear parts are expensive. I wonder if it wouldn't (almost) be cheaper to re-power with a new motor.
Thanks
John
